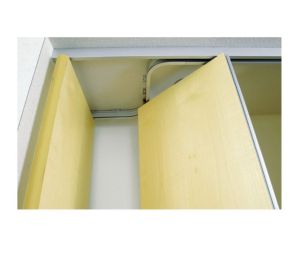

Hafele 943.30.003

• Sliding Doors Type H, Hawa Aperto 60/H

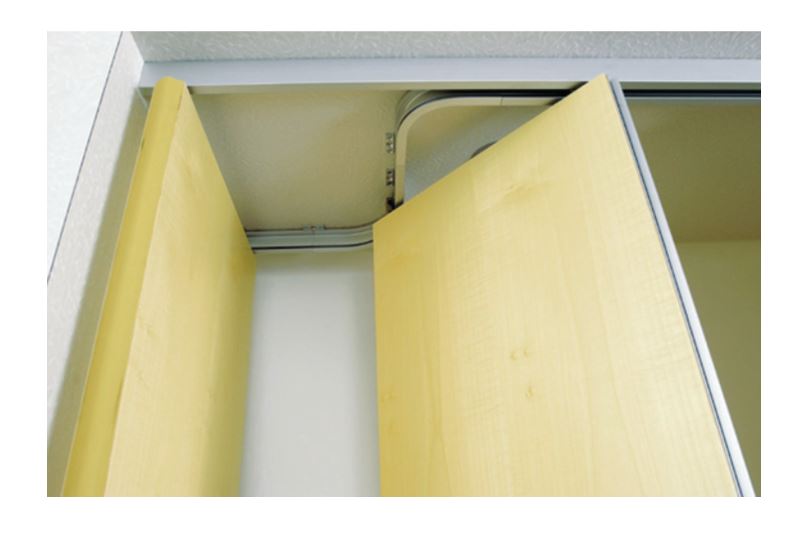

• 90° and parallel parking area

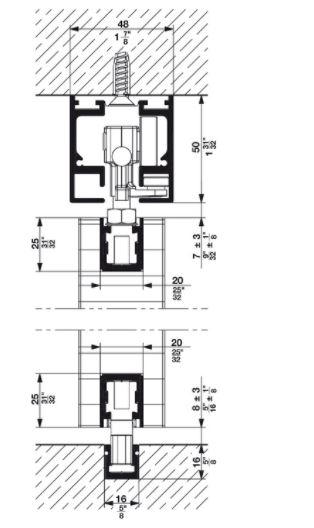

• Version: for system with guide track
• Application: Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings locking of the system with one lock
• Door weight: up to (130 lbs) 60 kg
• Door width: 90° parking area: 550–950 mm, parallel parking area: 550–1,500 mm
• Door height: up to 2,600 mm
• Door thickness: 35–50 mm
• Adjustment Vertically: (+/- 1/8") +/- 3 mm
• Features: Door stackable 90° or parallel with the running direction in open position partial sets for sliding doors, access doors and parking areas with guide track, without guide track with lighter loads (optional)system flush in closed position light and steady curving run
• Installation: Ceiling installation
• Supplied with:

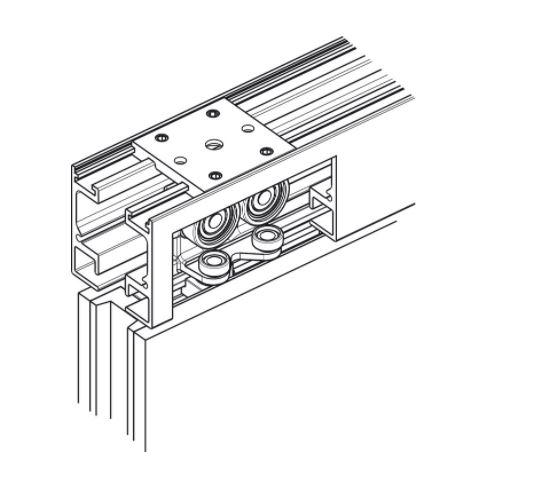

  • 2 suspension carriages
  • 2 Running gears
  • 3 Support profiles
  • 3 cover caps
  • 1 guide with zero clearance
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Suspension Profile: 943.31.125

Optional accessories:

• Fixing Plate: 943.30.024
• Suspension Carriage, with Integrated Mounting Block and M8 Screw: 943.30.020
• Running Gear, with M8 Screw, with 2 Rollers: 943.30.012
• End cap, for Carrier Profile, 20 x 25 mm: 943.30.029

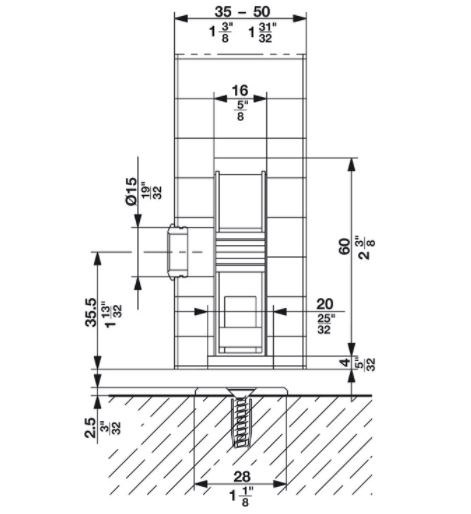

• Floor Guide, with Mounting Block: 943.30.030
• Single Bolt Lock, with Square/Hexagonal Socket, Ø9 mm (11/32") Bolt: 943.31.083, 943.31.080
• Single Bolt Lock, for 17 mm (11/16") Profile Cylinder, Ø9 mm (11/32") Bolt: 943.31.081
• Stike Plate, Ø9 (11/32") Bolt: 943.31.090
• Socket Key, for Bolt Lock: 943.04.090
