Hafele 943.29.014

• Sliding Door Fitting
• Hawa Variofold 80/H for Pivot Doors
• With Guide Channel
• Set for system with guide track
• Load bearing capacity for Panel: (176 lbs.) 80 kg
• Adjustment Height: adjustable ± 3 mm (±1/8")

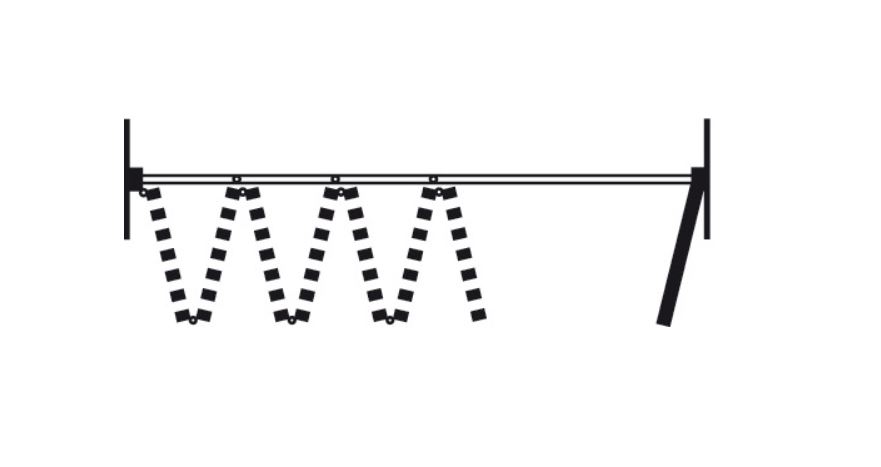

• Folding/sliding hardware for wall partitions
• For 2 - 7 folding panels
• Upper track made out of anodized aluminum
• Lower guide channel made out of anodized aluminum
• Dual running gear with ball bearings
• Minimal space required in stacking area
• Extremely quiet and smooth operation
• Supplied with:
  • 1 top pivot bearing
  • 1 folding/access door catch, adjustable
  • 3 support profiles, pre-drilled, length 208 mm
  • 1 pressure bearing sleeve with follower
  • 3 cover caps for support profile
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, Pre-drilled: 943.27.960
• Guide Channel, 24 x 24 mm (15/16" x 15/16"): 940.81.600

Optional accessories:

• Doorfix espagnolette lock: 946.21.100
• Heavy Duty Ball Bearing Hinge: 926.21.003
• Door Seal, For Hawa Variofold and Centerfold 80/H: 950.07.423
