Hafele 942.72.000

Name: Hafele 942.72.000 Pocket Door Frame Set, Slido, for 80" tall door
Brand: Hafele
SKU: Hafele 942.72.000
Price: 566.36 USD

Hafele 942.72.000 Pocket Door Frame Set, Slido, for 80" tall door

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $566.36 USD

Comments (Optional)

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 49

For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

Sales

Technical Support

Product Description:

Hafele 942.72.000 Pocket Door Frame Set, Slido, for 80" tall door

Pocket Door Frame Set
Slido

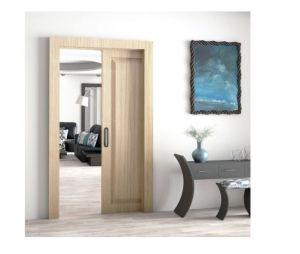

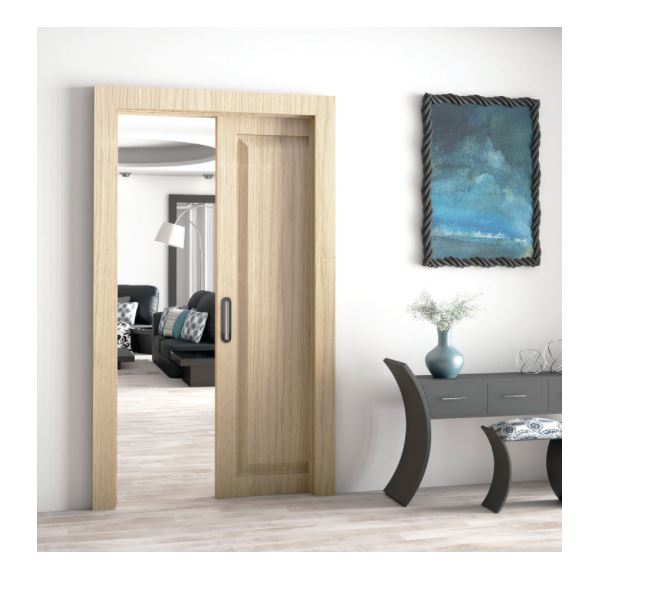

Application: Provides an effective way to save space in tight rooms and frees up typically unused wall and floor areas
Suitable for:

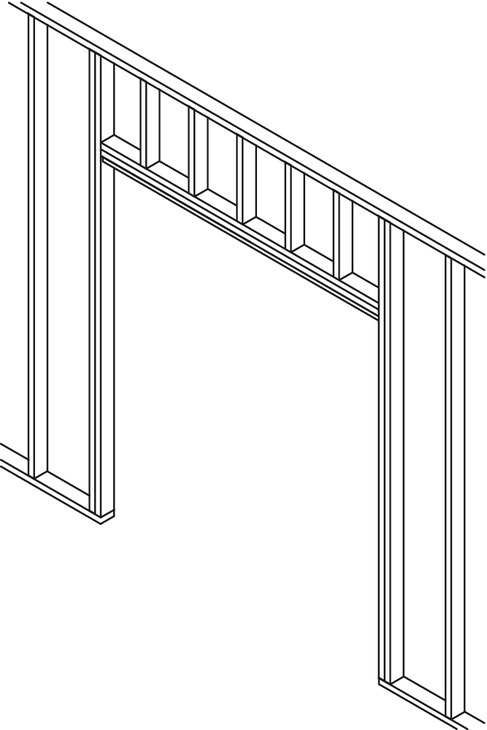

- Designed to fit into standard 2 x 4 wood or steel constructed interior walls
- Designed for Slido Classic 40-P – 120-P fitting sets
Specially bent steel reinforced split studs prevent bowing of the pocket walls
Simple and straight forward installation

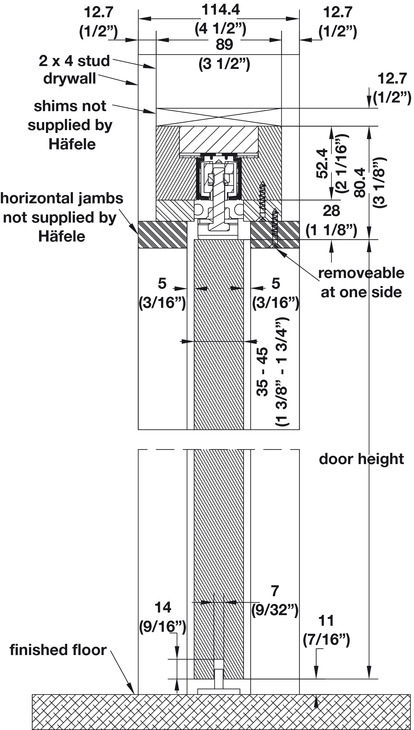

For door height: (6' 8") 2032 mm
Load bearing capacity: (88 - 264 lbs) 40 - 120 kg
For door thickness: Up to (1-3/4") 45 mm
For door width: Max: (40") 1016 mm
After installation, the system components are serviceable because the track can be removed without opening up the drywall
Supplied with:
- Header assembly
- Front & back vertical stud with poplar wood strip
- Shoe plate
- Concealed end bracket
- Open end bracket
- Filler strip
- Upper track
- Screw pack
Order reference: For bi-parting applications order 2 sets. The sliding fitting sets need to be ordered separately. Refer to the respective catalog pages for the Slido Classic 40-P, 60-P, 80-P, and 120-P.
Packing & Sold as: Set.
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
