Hafele 942.56.004

• Sliding door hardware
• Model: 250 A
• Version: With 2 track buffers
• Smooth quiet operation
• Outstanding durability
• Rattle-free bottom guide
• Suspension with carrier profile
• Height adjustable

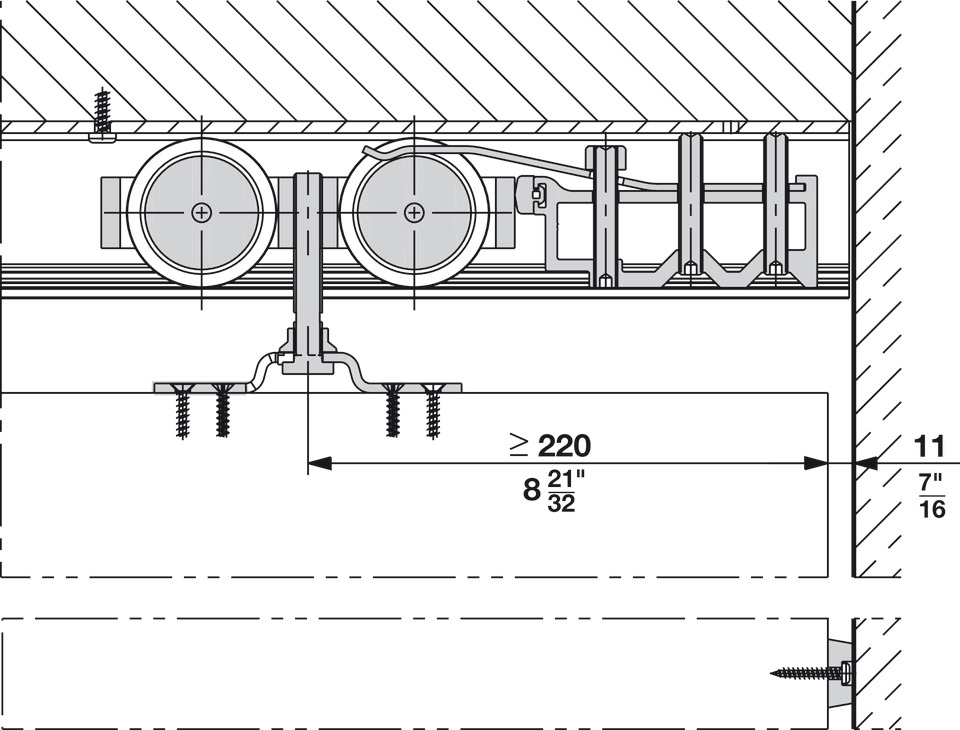

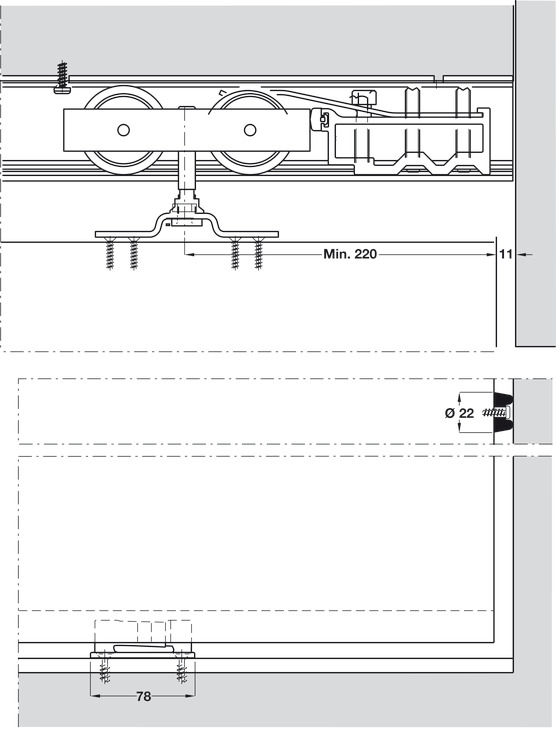

• Door stop with adjustable retention spring
• For door material: Wood
• For door thickness: = 35 mm (1-3/8")
• For door weight: = 250 kg (= 550 lbs)
• Adjustment facility:
  • Height adjustment: ±5 mm (3/16"), track buffer with adjustable retaining spring
  • Side adjustment

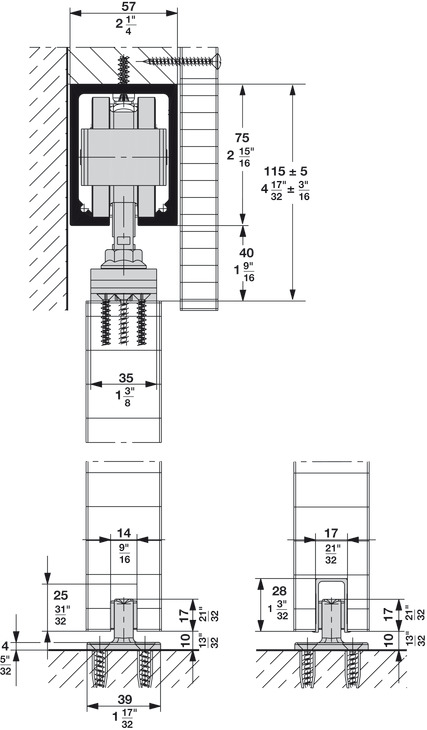

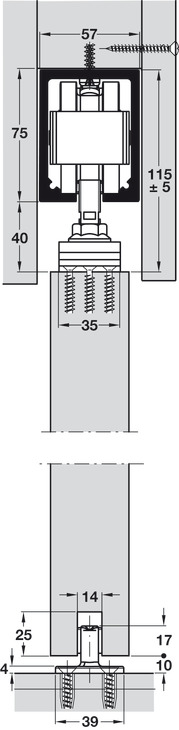

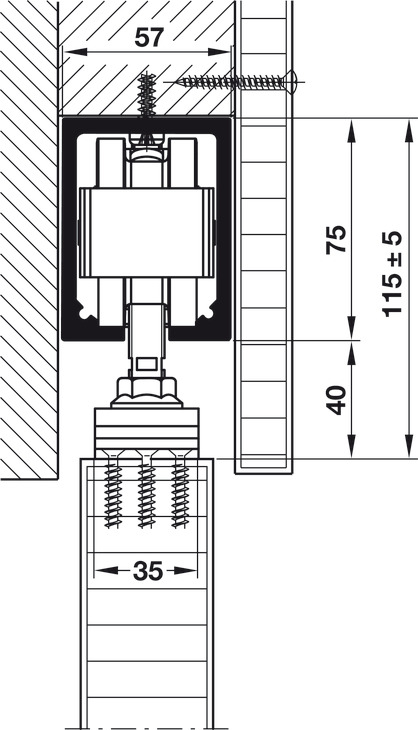

• Installation: Suspension with suspension bar
• Door processing: For screw fixing
• Number of doors: 1
• Number of doors per system max.: 1 to 2
• Standard: Certified in compliance with EN 1527:2013
• Controller installation options: Ceiling installation, wall mounting
• Running position: Top
• Material/finish: Zinc Alloy, Aluminium, Plastic, Rubber

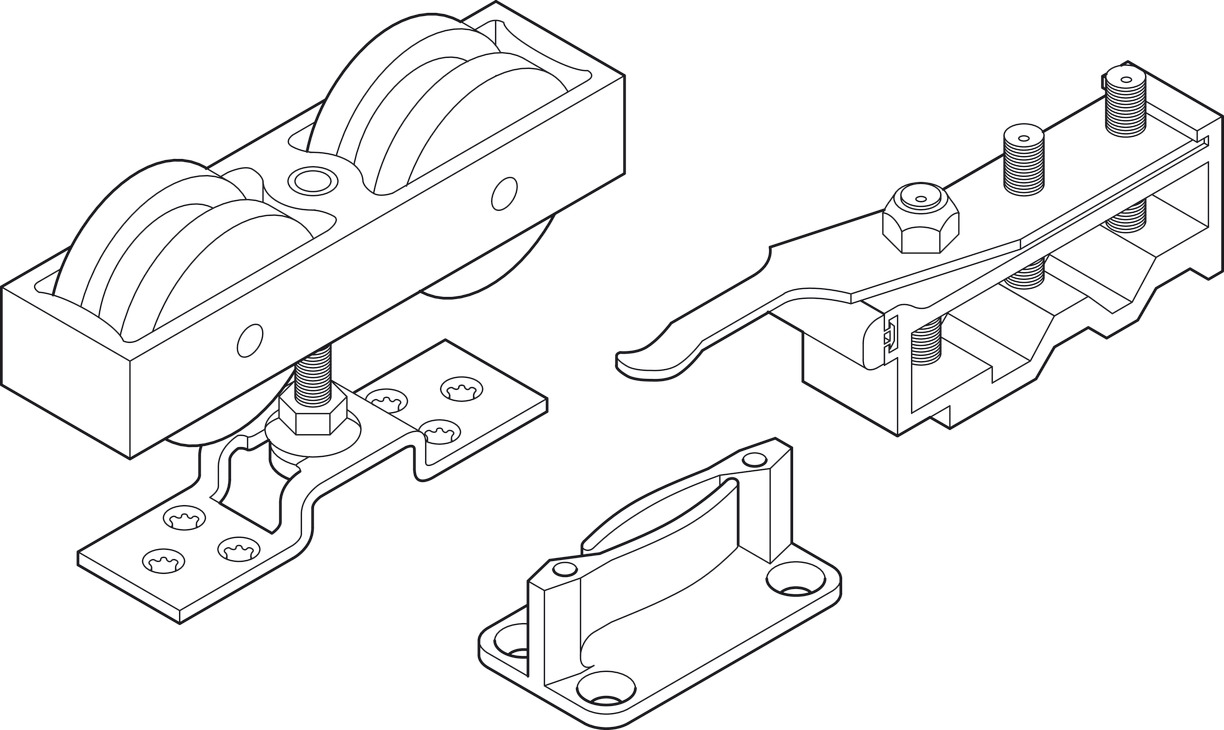

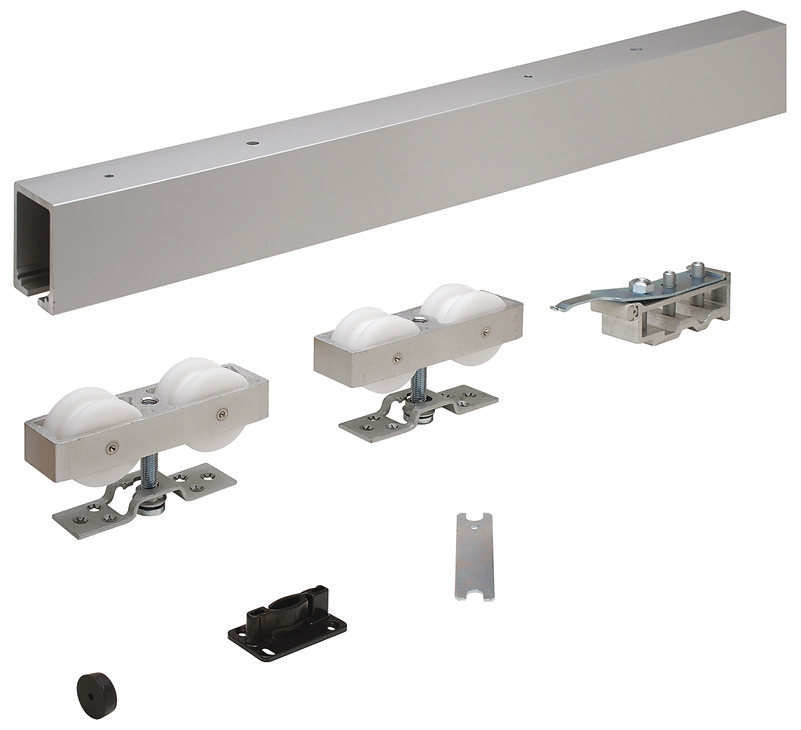

• Supplied with:
  • 2 Running gears
  • 2 Support flanges with hanger bolt and nut, M12
  • 2 Track buffers with retaining spring

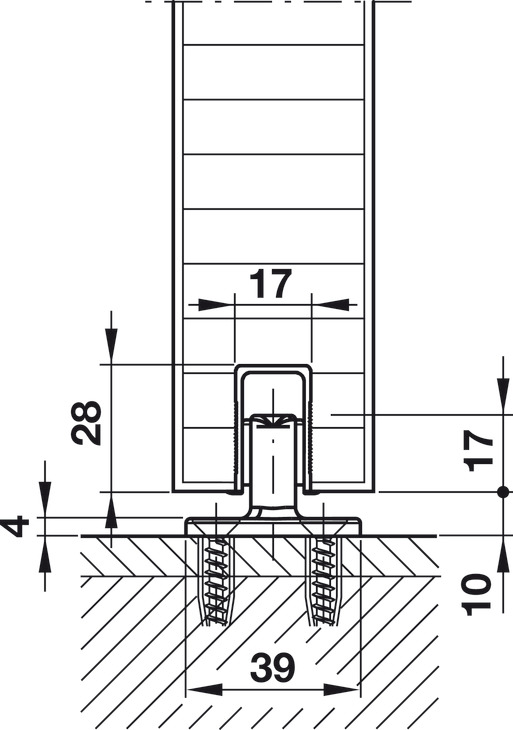

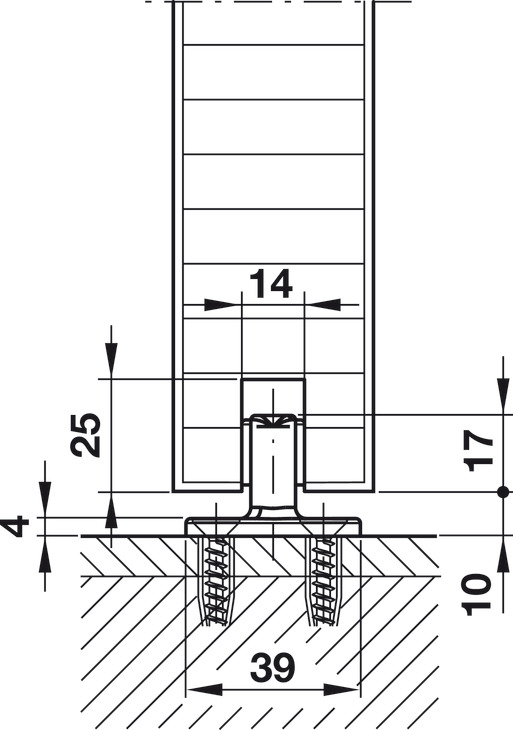

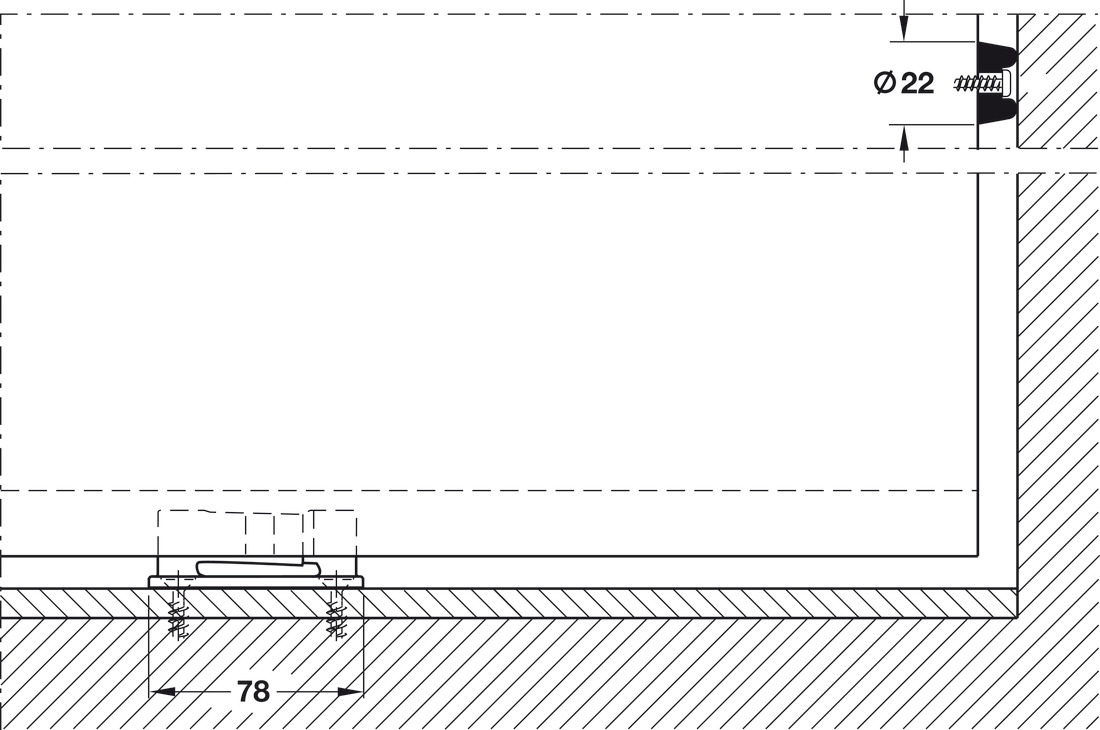

  • 1 Clear threshold floor guide
  • 1 Height adjustment spanner
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, Pre-drilled, Aluminum
• Guide Rail, Plastic, 3 m (9’ 10-1/8"): 941.61.130
