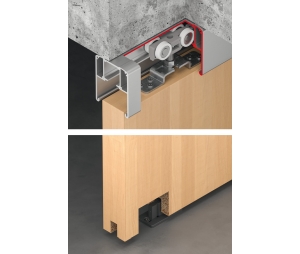

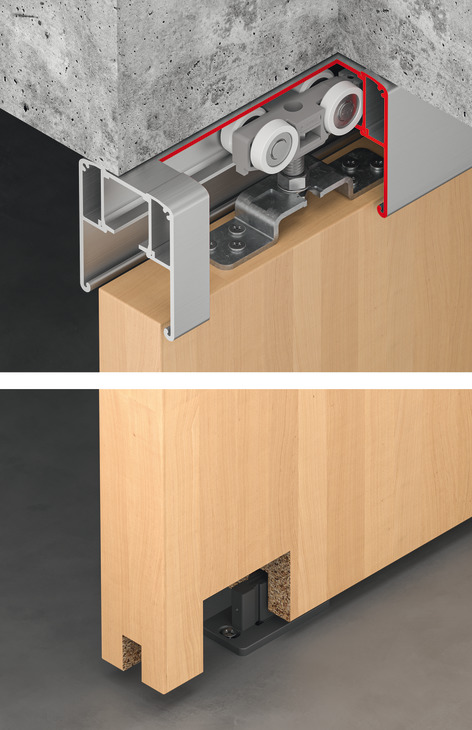

Hafele 941.62.018

• Sliding door hardware
• For door width: = 868 mm (34-3/16")
• Adjustment facility: Height adjustment
• For door weight: = 160 kg (352 lbs.)
• Note on door weight: Per door

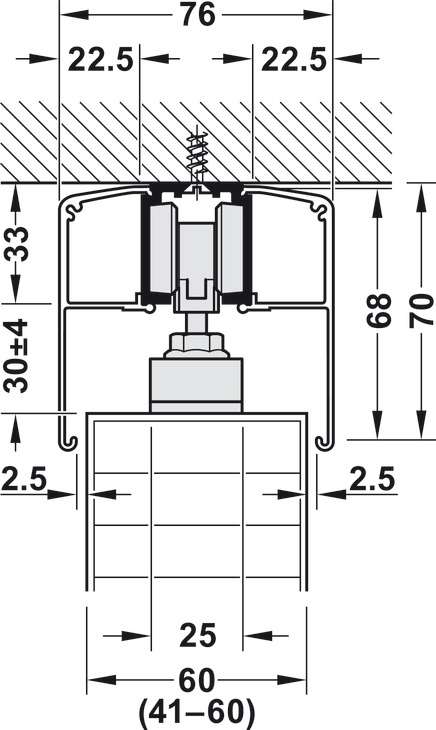

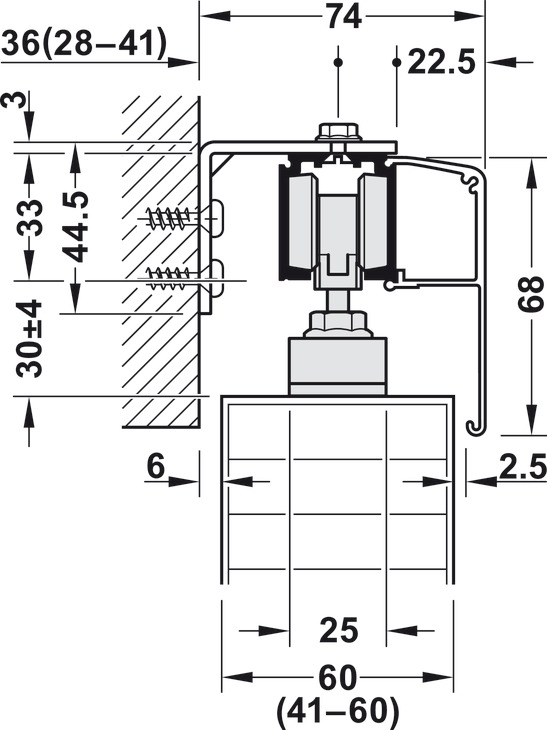

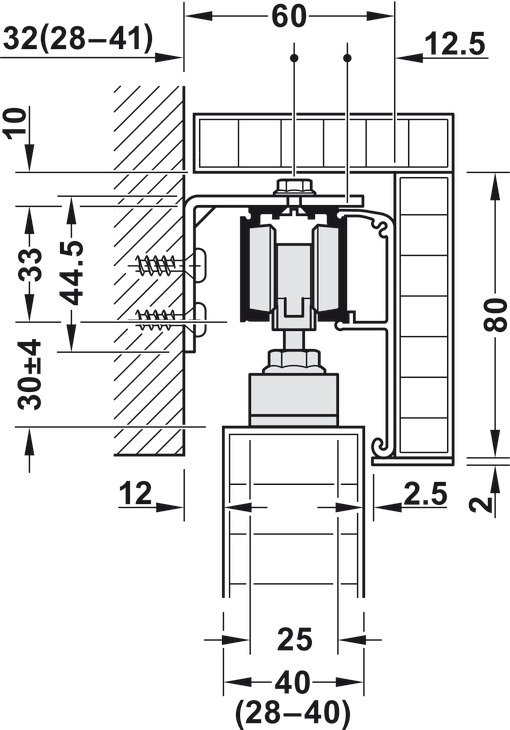

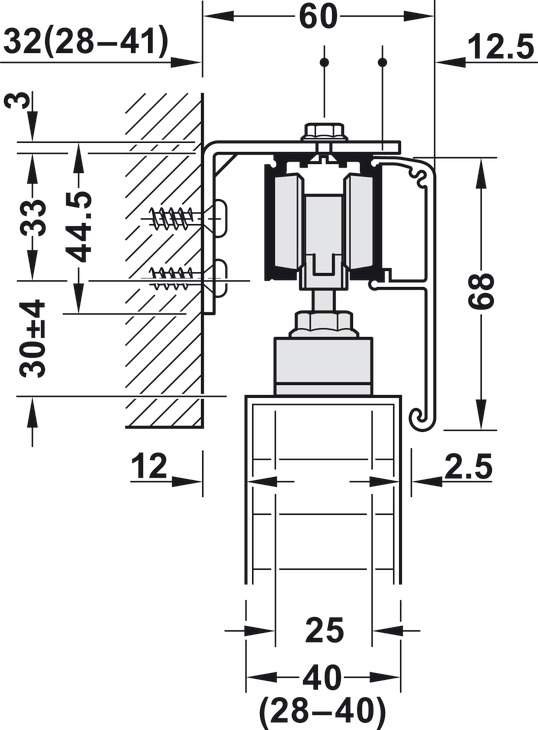

• Installation: Suspension with screwed on support flange
• Door processing: With recess

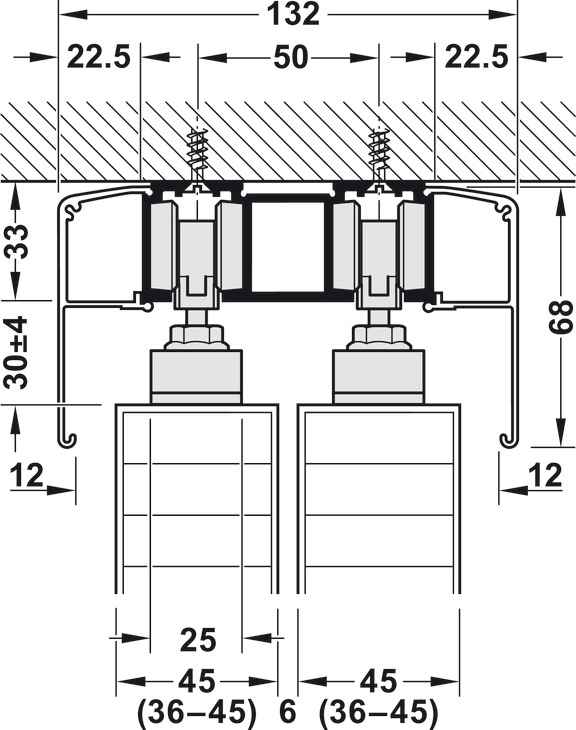

• Number of doors per system max.: 1 to 2
• Running position: Top
• Soft and self closing mechanism:
  • Low opening force – easy and convenient operation
  • Tested with increased closing speed up to 0.4 m/s
• Supplied with:

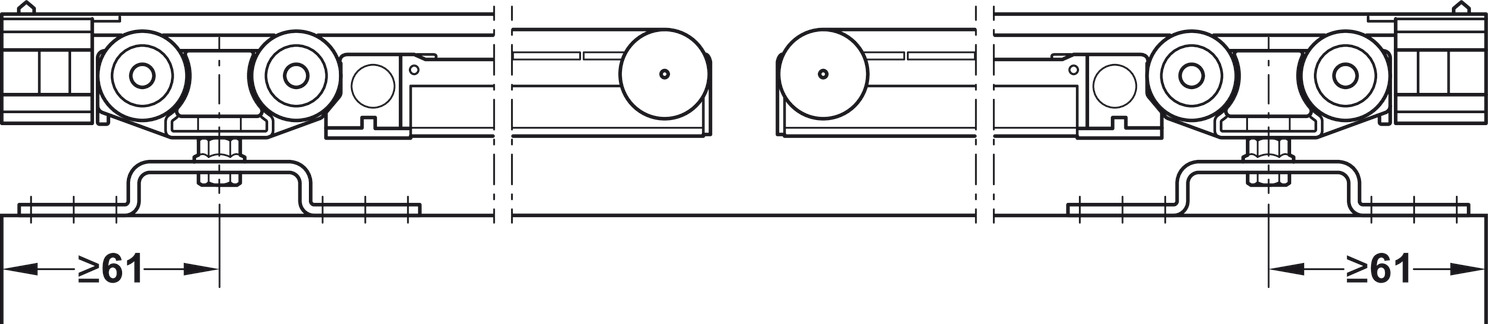

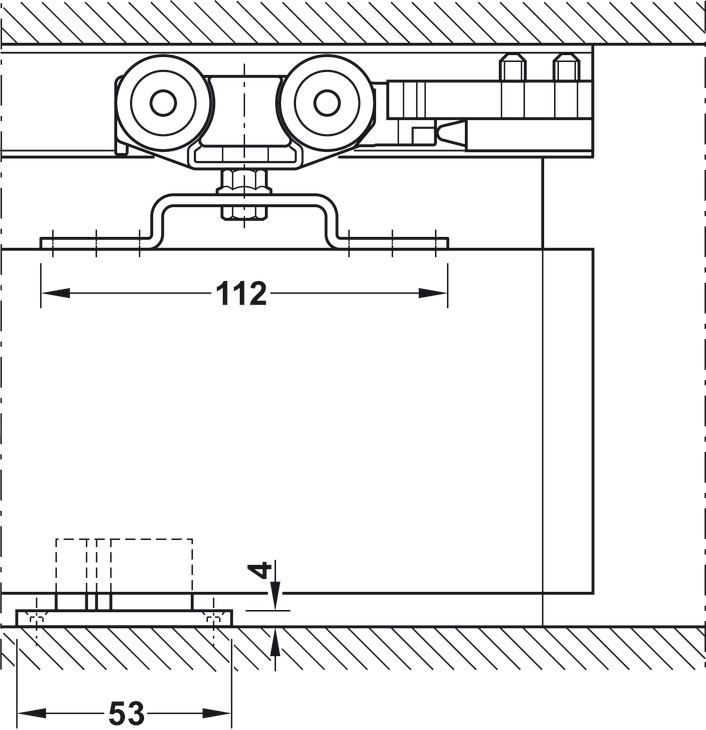

  • 2 Running gears with soft and self closing mechanism

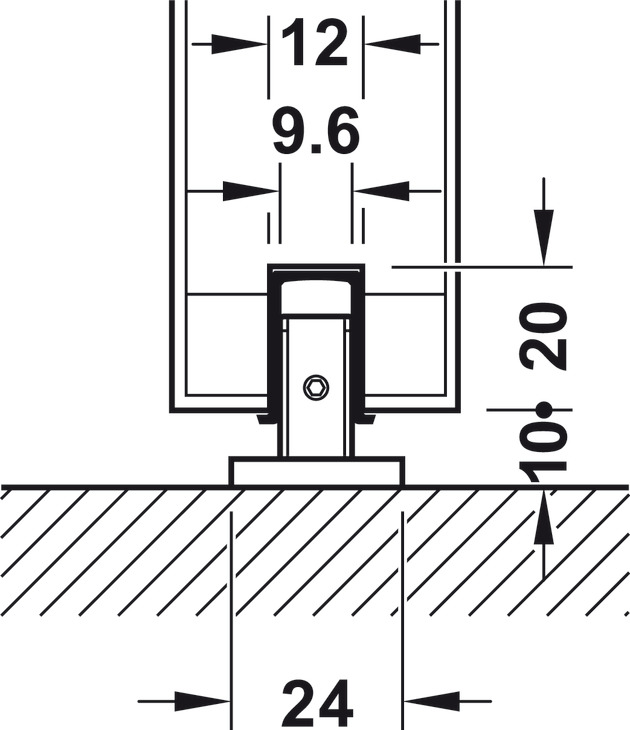

  • 1 Clear threshold floor guide
  • 2 Release devices with stopper for soft and self closing mechanism
• Order reference: Please order track, panels and accessories separately.
• Additional information: No end cap is available for ceiling installation with fascia on both sides. A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Running Track, Pre-drilled, W x H: 31 x 33 mm (1-7/32" x 1-5/16")
• Double Running Track, Pre-drilled, W x H: 81 x 33 mm (3-3/16" x 1-5/16")
• Guide Track, Bottom
• Floor Guide, Slido Classic 40-P-120-P: 940.42.203
