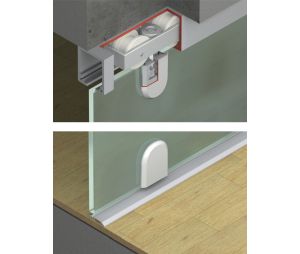

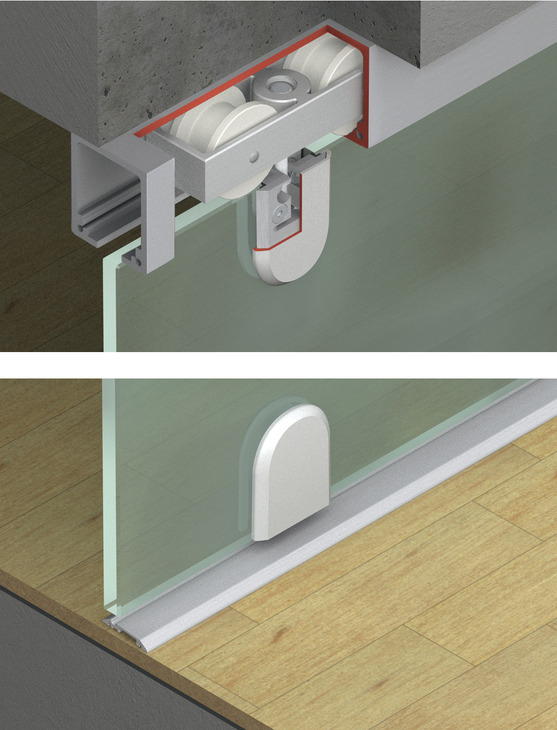

Hafele 941.60.005

• Sliding Door Hardware
• Hawa Junior 160/GP
• Application: For 1-leaf and 2-leaf sliding doors
• For 1-leaf sliding doors, without running track, without floor guide, without cover caps
• Maintenance-free
• Vertical adjustment without removing the glass door
• Simple installation
• Smooth, quiet operation
• Rattle-free bottom guide
• Low installation height
• Load bearing capacity: Max. (352 lbs.) 160 kg
• For glass thickness: Tempered glass: 8, 10, 12 and 12.7 mm (5/16" - 1/2"), laminated glass: 8.7 – 12.7 mm (5/16" - 1/2")
• Suitable for: Laminated or tempered glass, laminated glass: Offset =2 mm
• Supplied with:
  • 2 Running gears
  • 2 hanger bolts
  • 2 point fixing sets with patch fitting
  • 2 track buffers
  • 1 disposable drilling jig
  • 1 rubber wall buffer
  • 1 height adjusting pin
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, Pre-drilled, Aluminum: 941.60.301, 941.60.401, 941.60.601
• Single Lower Guide Track, for Clip or Glue Mounting: 940.41.725, 940.41.735
• Guide Channel, 24 x 24 mm (15/16" x 15/16"): 940.81.600
• Lower Guide Channel, Pre-drilled: 941.00.925, 941.00.960

Optional accessories:

• Patch Suspension: 940.40.038
• Lower Guide, Spring-loaded: 940.40.039
• Fixing set, For single guide track: 404.97.990
• Lower Guide, with Mounting Screws: 940.40.035
• Door Stopper, to Lower Guide Channel: 940.80.051
• Cover Cap, for Patch Suspension, Square: 940.41.024, 940.41.027, 940.41.028
• Cover Cap, for Patch Suspension, Round: 940.40.023, 940.40.027, 940.40.028, 940.41.023, 940.41.029
• Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm: 940.40.032
