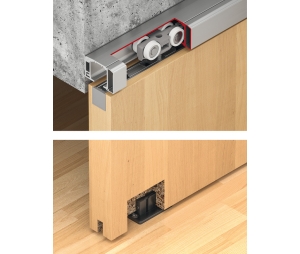

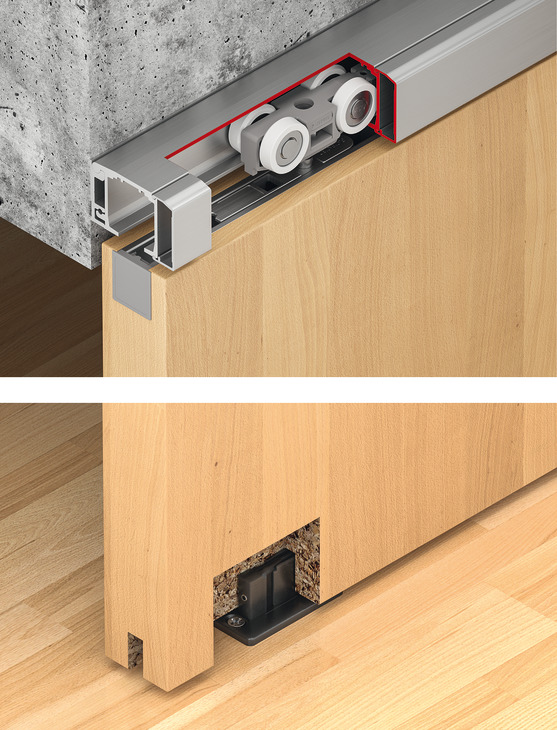

- Sliding Door Hardware
- Model: 120I
- Version:
- Track buffer with retaining spring
- Without soft and self-closing mechanism
- Running gear version: Running gear with axle bearing
- For door material: Wood
- For door width: ≥500 mm (19-11/16")
- For door weight: ≤120 kg (264 lbs.)

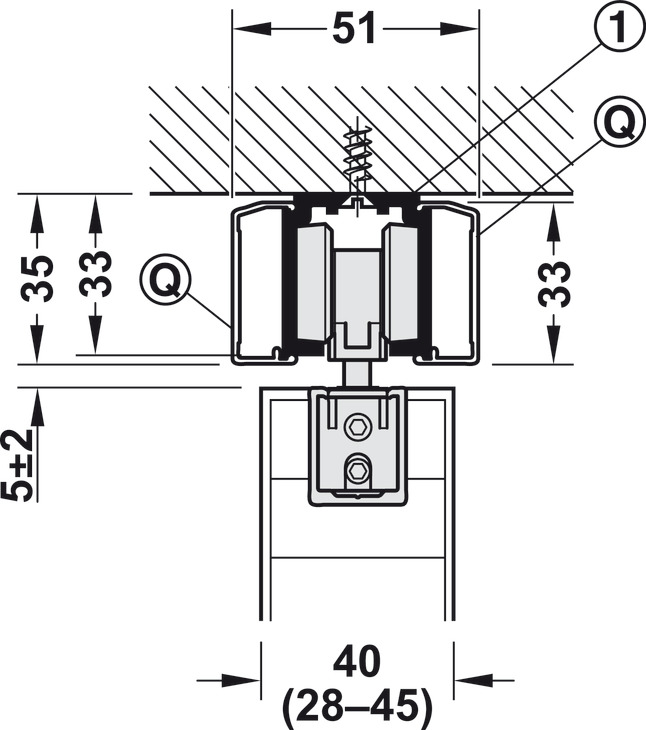

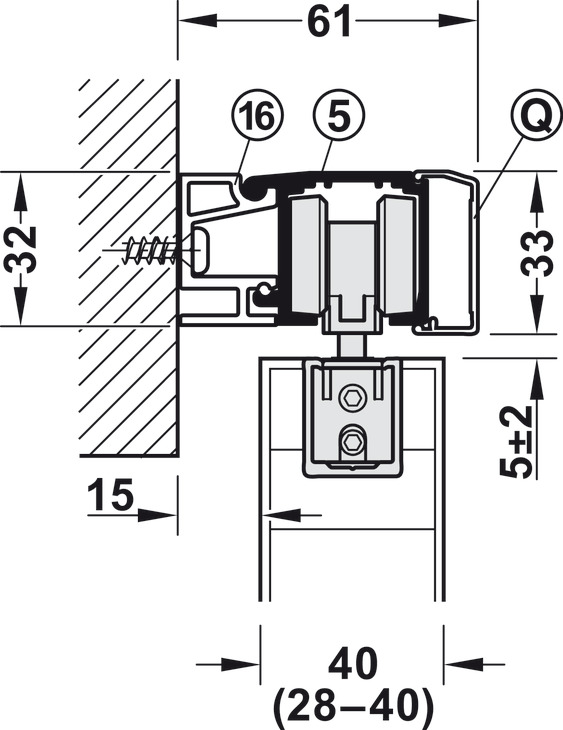

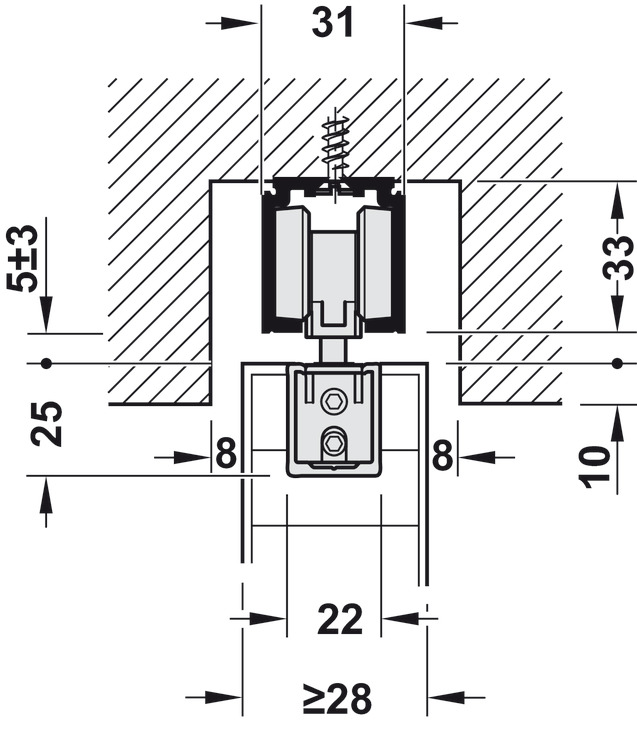

- Controller installation options: Ceiling installation, Wall mounting, Wall pocket solution
- Adjustment facility: Height adjustment ±3 mm, Door height adjustable ±3 mm
- Number of doors per system max.: 1 to 2
- Note on door weight: Per door
- Installation: Suspension with integrated support flange
- Door processing: For screw fixing
- Soft and self-closing mechanism:
- Low opening force - easy and convenient operation
- Tested with increased closing speed up to 0.5 m/s
- Can be retrofitted or replaced at any time
- Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N
- Shock absorber: Closing speed with shock absorber tested up to 0.4 m/s
- Supplied with:
- 2 Running gears with support flange
- 2 Support profiles with cover cap

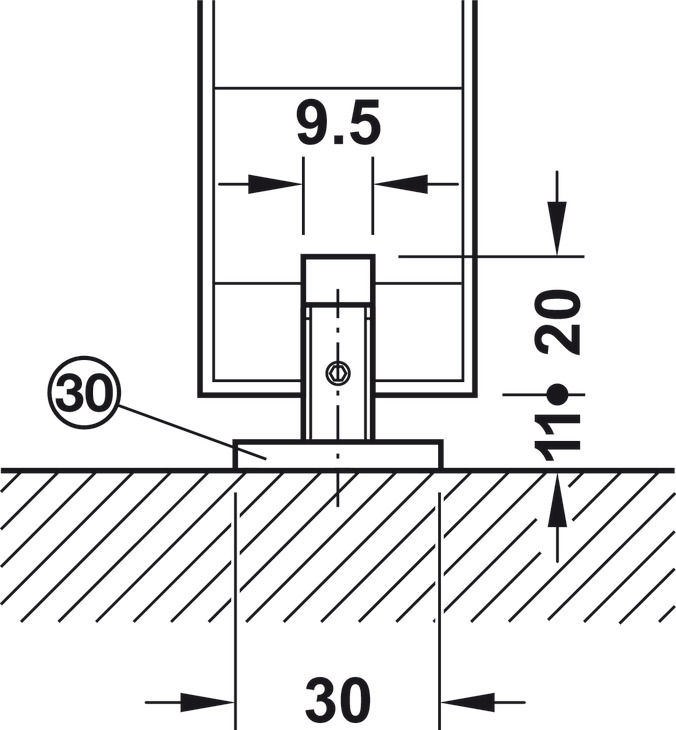

- 1 Clear threshold floor guide
- 2 Track buffers with retaining spring
- Order reference:
- Please order track, panels and accessories separately.
- Order 2 sets for 2-leaf sliding doors.
- Please order adjustment aid for adjusting the running gears (height and position) separately.
- Additional information:
- Please note when using the shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.
- Sets without or with soft and self-closing mechanism on one side can be retroffitted with soft and self-closing mechanism or shock absorber, if required.
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

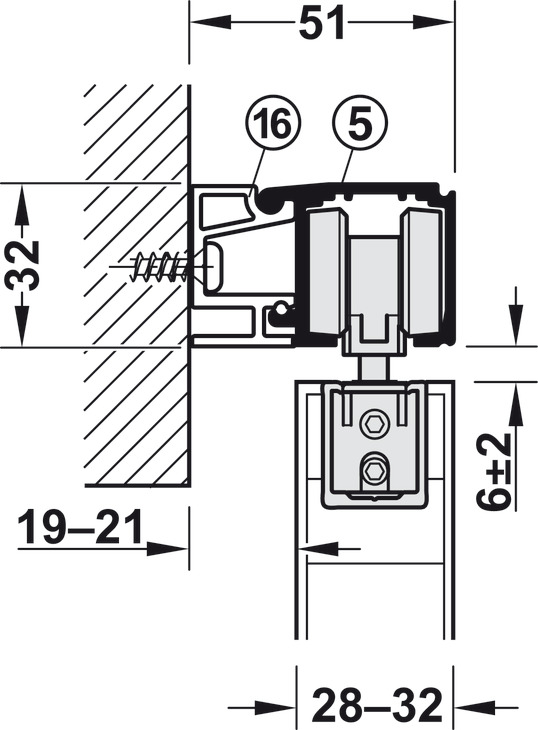

Optional accessories: - Mounting rail, Pre-drilled, width 19 mm: 941.25.821, 941.25.831

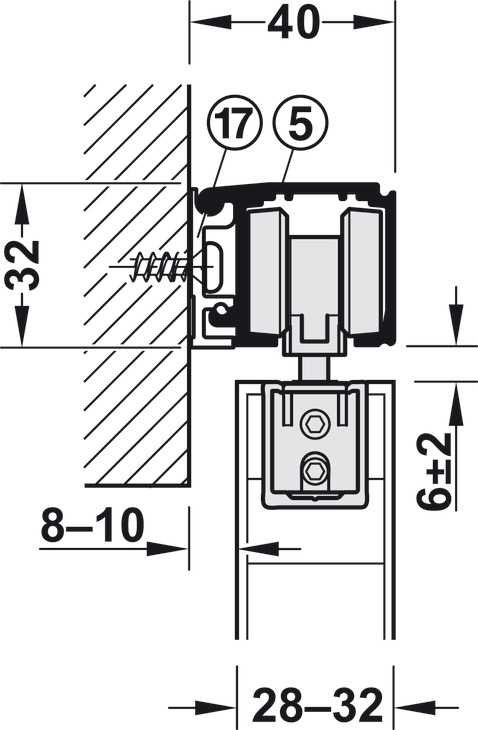

- Mounting rail, pre-drilled, width 8 mm: 941.25.820, 941.25.830
- Mounting bracket, with screw and nut: 940.42.061, 940.42.063, 940.62.061
- Safety Pin and Safety Screw Set, For Running Track and Mounting Rail: 941.25.090

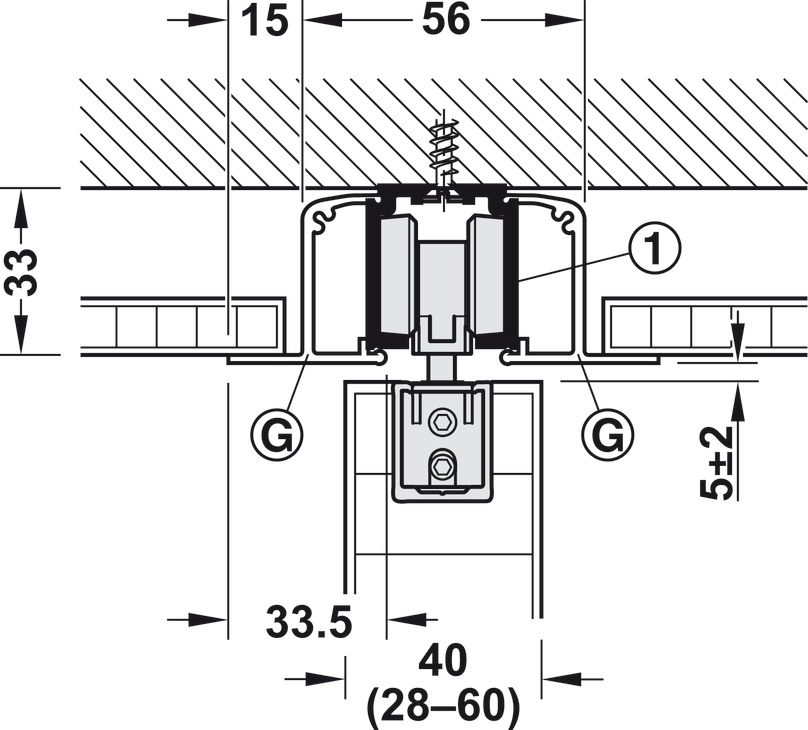

- Clip-on panel, For running track, for integration in suspended ceilings: Item no. 940.43.620, Item no. 940.43.630
- End cap set, for running track: 941.25.040, 941.25.041, 941.25.042
- Track Stopper, Slido D-Line11 additional set for 50P-120P, 50C-120C, 50I-120I: 940.42.070, 940.42.071, 940.42.072
- Sealing profile, Hawa, accessories for wooden doors, sliding door fittings: 946.24.600
- Fitting set, Slido D-Line11 Stacking Additional Set for 50P-120P, 50C-120C and 50I-120I: 940.44.001
|
