- Sliding Door Hardware

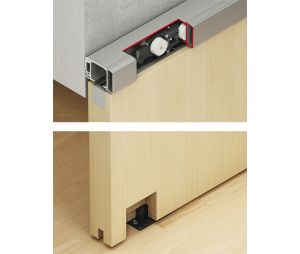

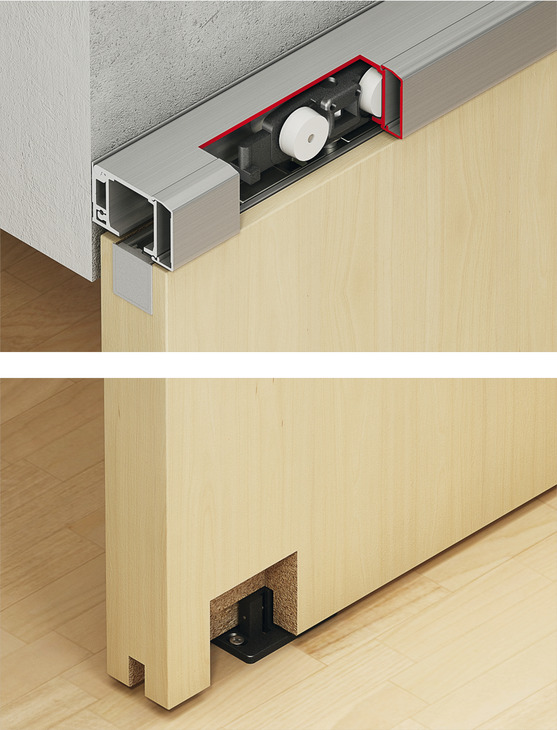

- Slido, Classic 120-I
- Version: With soft and self closing mechanism on one side
- Suitable for: For wooden doors
- Application: For 1-leaf and 2-leaf sliding doors
- Installation: Wall mounting and ceiling installation, suspension with integrated support flange
- Adjustment: Door height adjustable ±3 mm
- Door weight: up to 120 kg
- For door thickness Min: (1-1/4") 32 mm
- Supplied with:
- 2 running gears with support flange (1 with soft and self closing mechanism)
- 2 support profiles with cover cap
- 1 clear threshold floor guide
- 1 track buffer with retaining spring
- 1 release device with stopper for soft and self closing mechanism
- Order reference:
- Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.
- Please order adjustment aid for adjusting the running gears (height and position) separately.
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
Required products: - Single Running Track, Pre-drilled, W x H: 31 x 33 mm: 940.43.921, 940.43.922, 940.43.931, 940.43.932, 940.43.961, 940.43.962
- Double running track, Pre-drilled, W x H: 70 x 33 mm: 941.02.920, 941.02.930, 941.02.960
- Double Running Track, Pre-drilled, W x H: 81 x 33 mm: 941.02.820, 941.02.821, 941.02.830, 941.02.831, 941.02.860
- Mounting rail, Pre-drilled, width 19 mm: 941.25.821, 941.25.831
- Mounting rail, Pre-drilled, width 8 mm: 941.25.820, 941.25.830
Optional accessories: - Door seals for sliding doors: 946.24.600
- Track stopper: 940.42.070, 940.42.071, 940.42.072
- Additional set for stacking: 940.44.001
- Mounting bracket, for Häfele Slido Classic: 940.62.061, 940.42.061, 940.42.063
- Retaining Bolts and Screws, For running track and mounting rail: 941.25.090
- Clip panel, For running track, for integration in suspended ceilings: 940.43.620, 940.43.630
- End cap set, For running track: 941.25.040, 941.25.041, 941.25.042
- Guide Track, Bottom: 940.42.050, 940.42.051
- Floor Guide, Slido Classic 40-P-120-P: 940.42.030
- Track Buffer, With Retaining Spring and Rubber Buffer: 940.42.040, 940.42.041
- Release Device, With Stopper: 940.42.042, 940.42.082
|
