Hafele 941.20.018

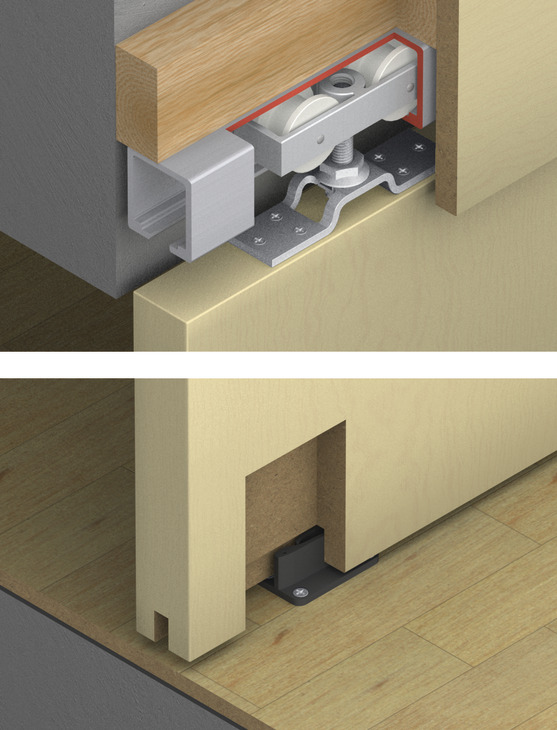

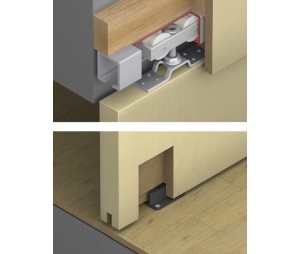

• Sliding door hardware
• Model: 120 A
• Version: With track buffers on both sides
• For door material: Wood
• For door thickness: 35 - 80 mm (1-3/8" - 3-1/6")
• For door weight: = 120 kg (= 264 lbs)
• For door width: = 3000 mm (118-1/8")
• For door height: = 4000 mm (157-1/2")
• Installation: Suspension with suspension bar
• Door processing: For screw fixing
• Number of doors: 1
• Number of doors per system max.: 1 to 2
• Standard: Certified in compliance with EN 1527:2013
• Controller installation options: Ceiling installation, wall mounting
• Running position: Top
• Smooth quiet operation
• Outstanding durability
• Rattle-free bottom guide
• Simple installation
• Steel suspension bracket
• Vertically and laterally adjustable
• Door stop with adjustable retention spring
• Supplied with:
  • 2 Running gears
  • 2 Support flanges with hanger bolt and nut, M12

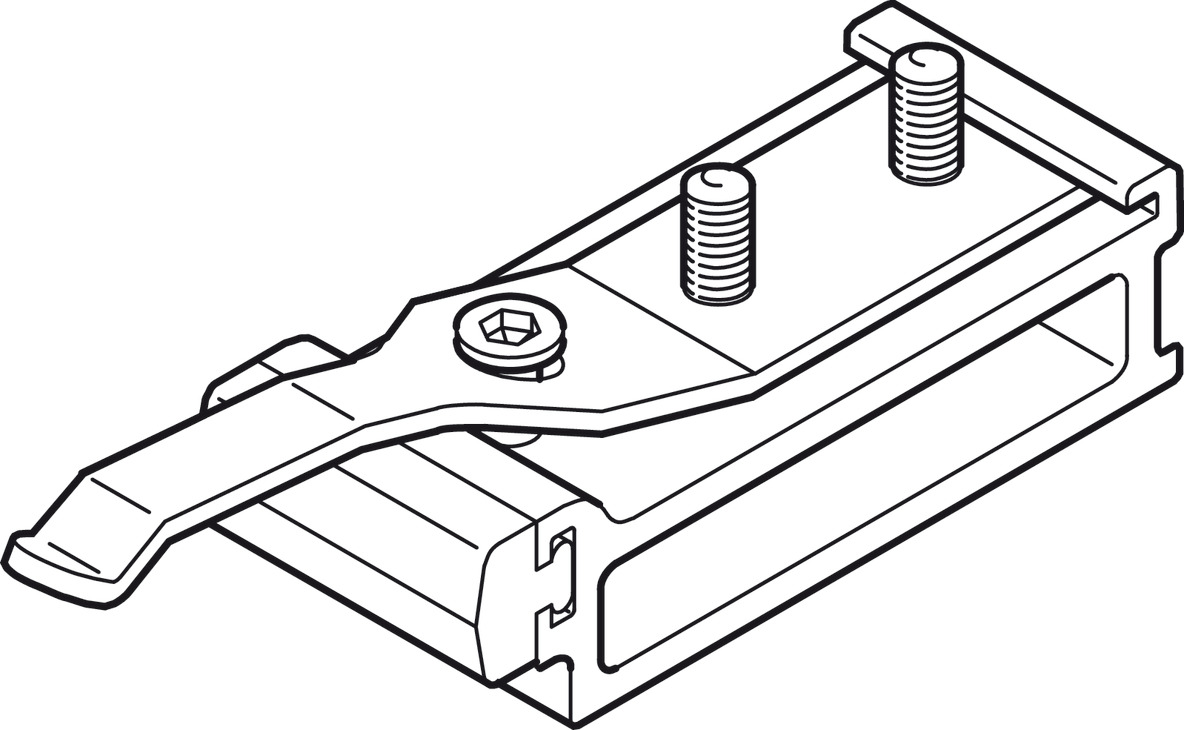

  • 2 Track buffers with retaining spring

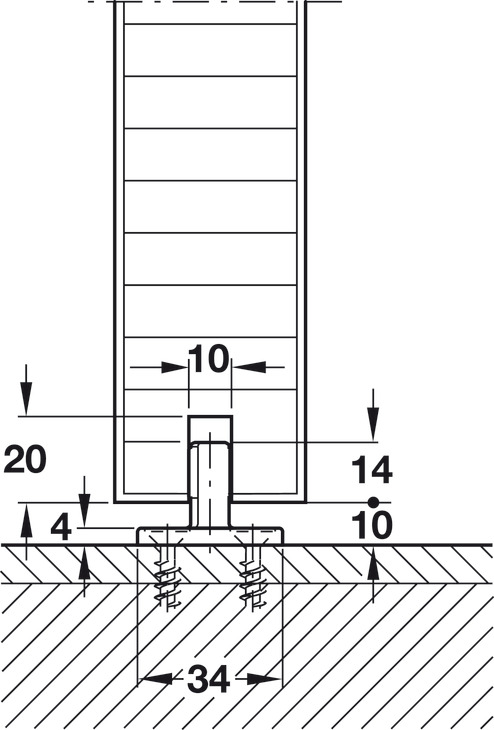

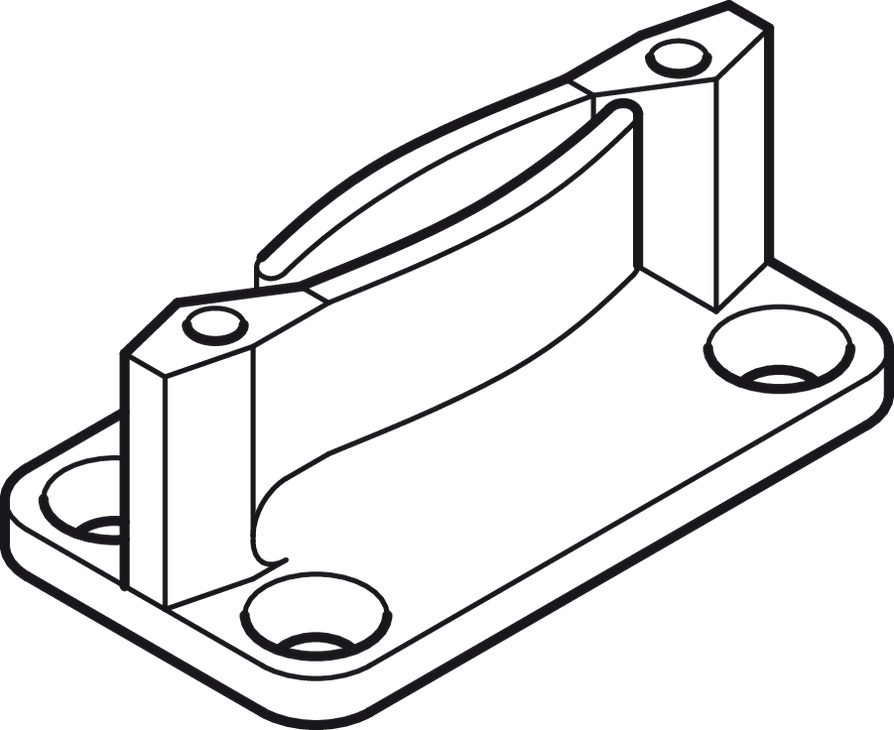

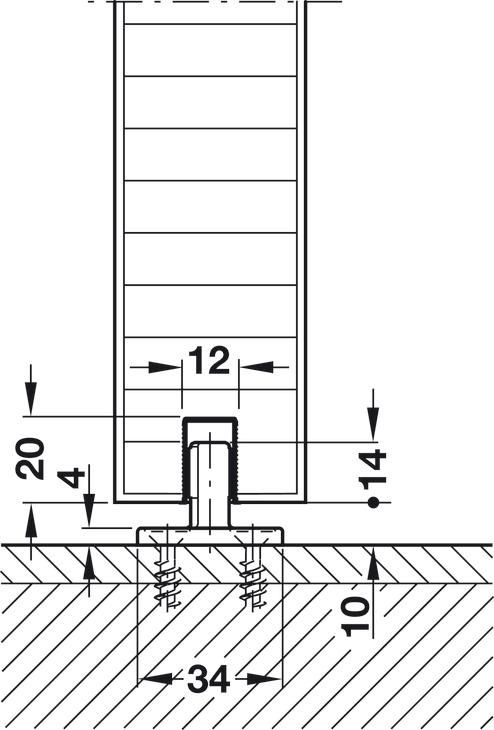

  • 1 Clear threshold floor guide 60 mm (2-3/8")
  • Accessories
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Running Track, Pre-drilled, Door Weight up to 120 kg (264 lbs.)
• Guide Rail, 20 x 12 mm (13/16" x 1/2"), Glue-in
