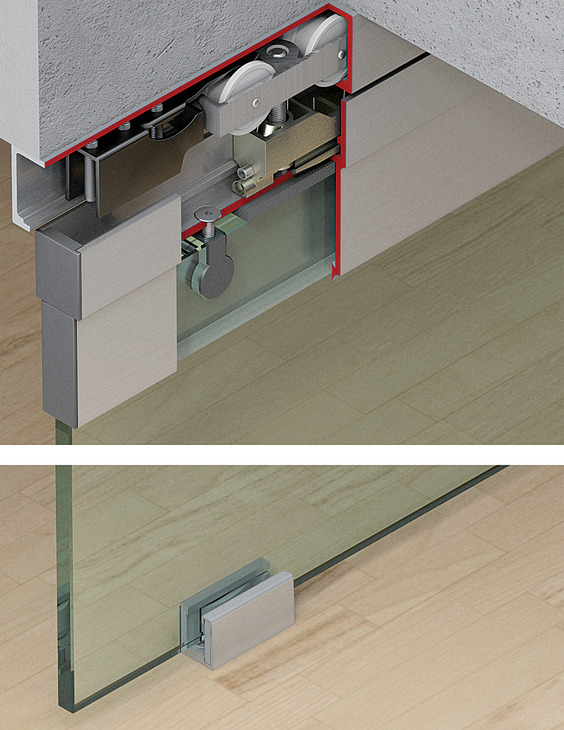

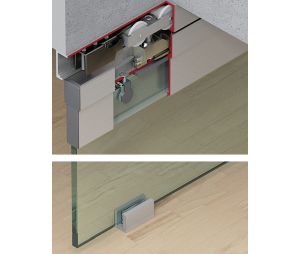

Hafele 941.20.011

• Sliding door fitting
• Hawa Junior 120/G
• Smooth and quiet operation
• Maintenance-free
• Simple installation
• Vertical adjustment without removing the glass door
• Elegant design of continuous top and bottom glass suspension profile
• Application: for 1 and 2 sliding wood doors
• Door weight: (264 lbs) 120 kg
• For glass thickness: (3/8, 15/32, 1/2") 10, 12 and 12.7 mm
• Supplied with:
  • 2 x running gear
  • 2 x suspension bolt
  • 2 x track stopper
  • 1 x cover cap
  • 1 x wall buffer
  • 1 x locking wrench
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Running track, pre-drilled, door weight up to 120 kg: 941.20.250, 941.20.300, 941.20.400, 941.20.600
• Lower Guide Channel, Pre-drilled: 941.00.925, 941.00.960, 946.03.600

Optional accessories:

• Support and Glass Suspension Profile, For glass thickness: (3/16 - 13/32") 8–10 mm: 942.56.765
• Support and Glass Suspension Profile, For glass thickness: (15/32 - 5/8") 12–16 mm: 942.56.865
• Cover Cap, for Glass Suspension Profile (15/32 - 5/8") 12–16 mm: 942.44.061
• Glass Holder Insert, with M6 x 30 (1-3/16") Screw: 940.84.024
• Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm: 940.40.032
• Door Stop, Floor Mounted, Aluminum: 940.40.052, 940.40.053
• Lower Guide, with Slider and Suspension Block: 946.12.060
• Lower Guide Pin, Anodized Aluminum: 940.84.033
