Hafele 941.04.017

• Sliding door fitting
• Suitable for: Soundproofing and thermally separating door systems, wall pocket solution

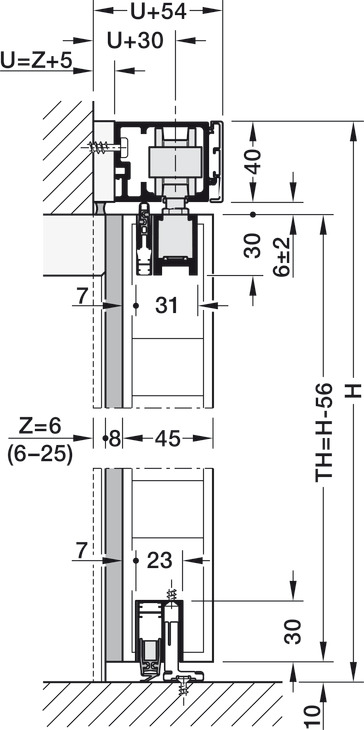

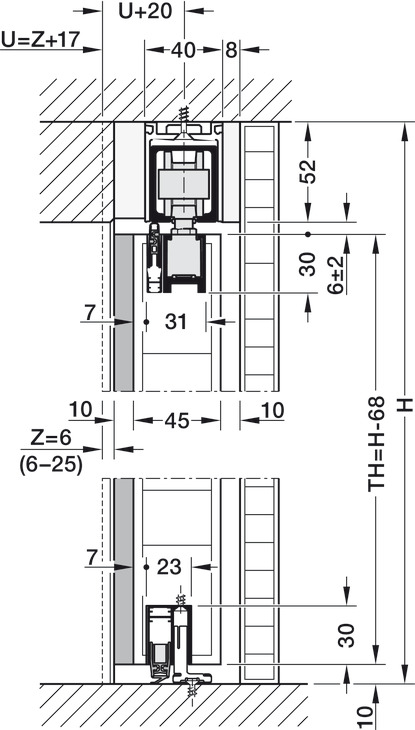

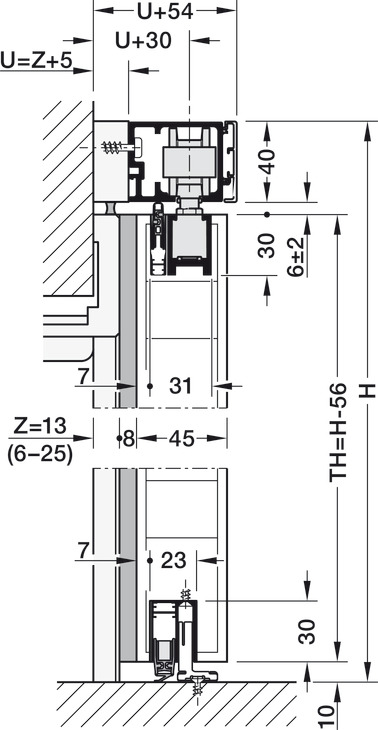

• Installation: Suspension with suspension carriage, suspension with recessed support profile
• Installation reference: The divider profile is fitted during the production of the pocket structure (model 100 B Pocket Acoustics)

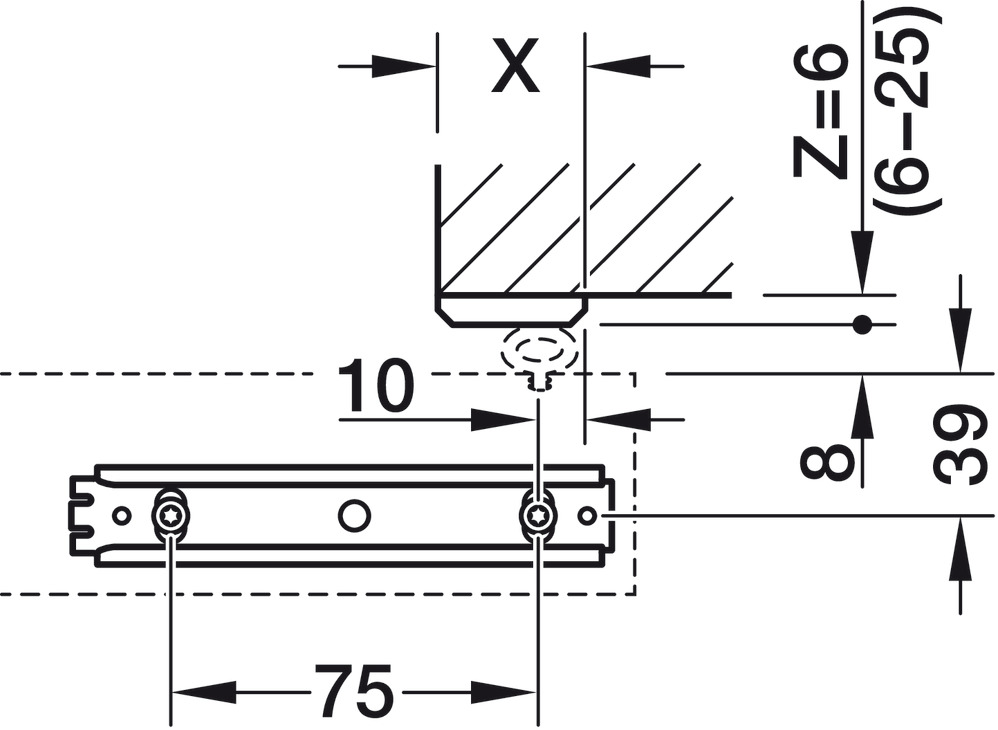

• Door processing: With recess
• Number of doors per system max.: 1
• For door weight: = 100 kg (= 220 lbs)

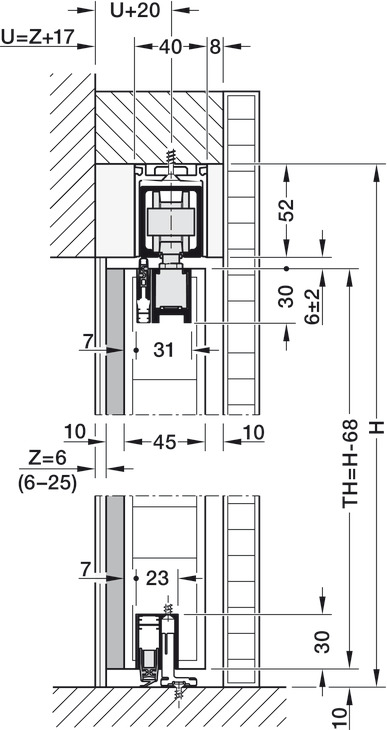

• For door height: = 2,500 mm (98-7/16")

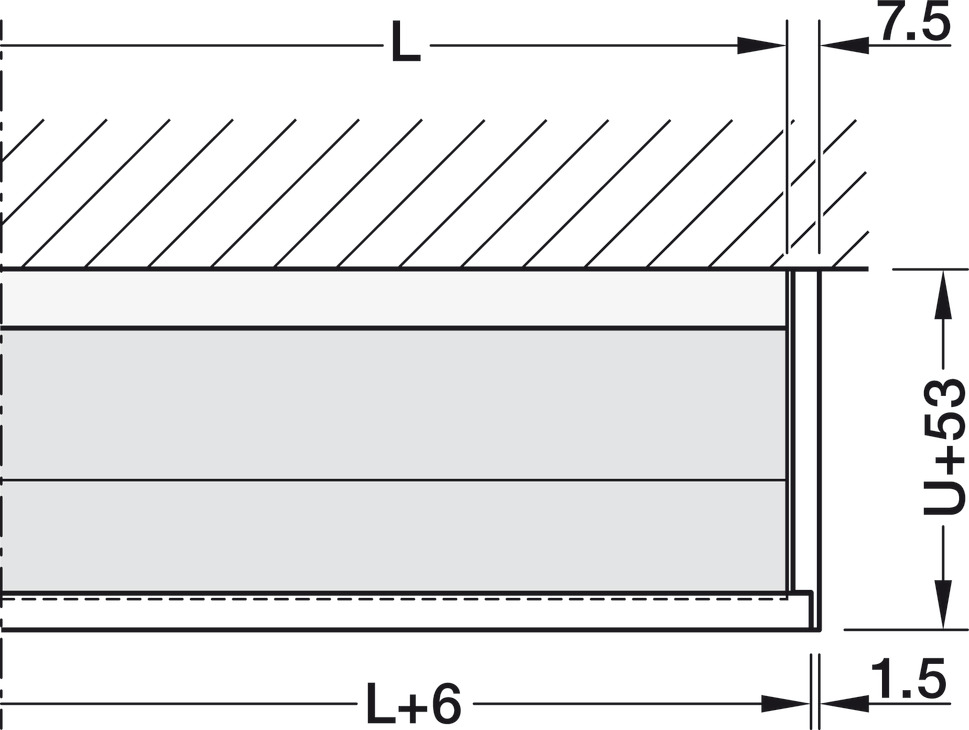

• For door width: 820 - 1300 mm (32-5/16" - 51-3/16")

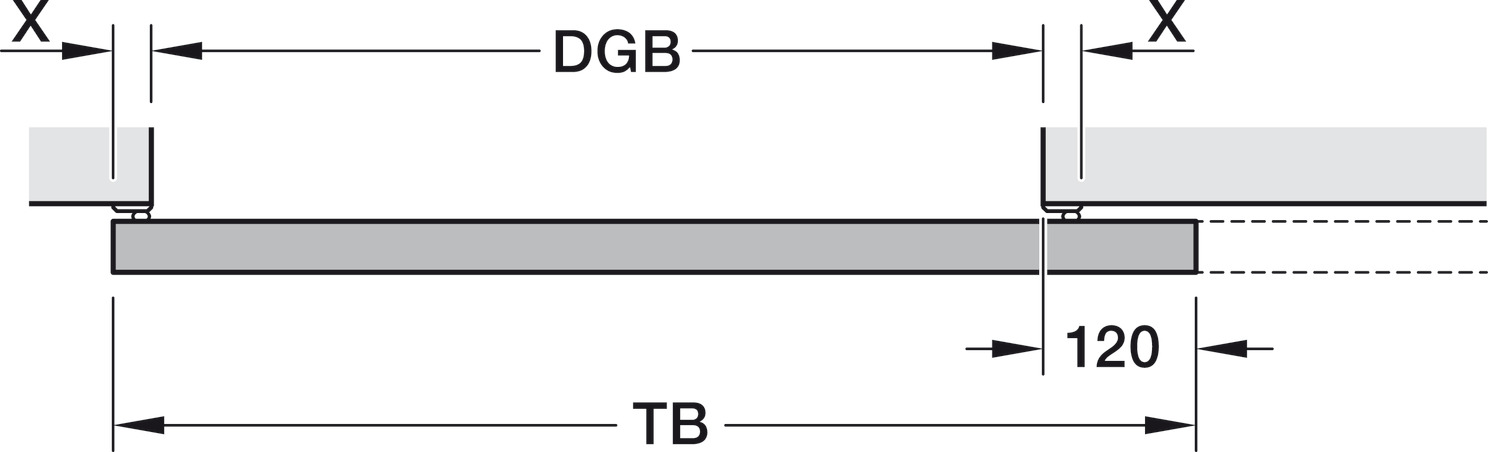

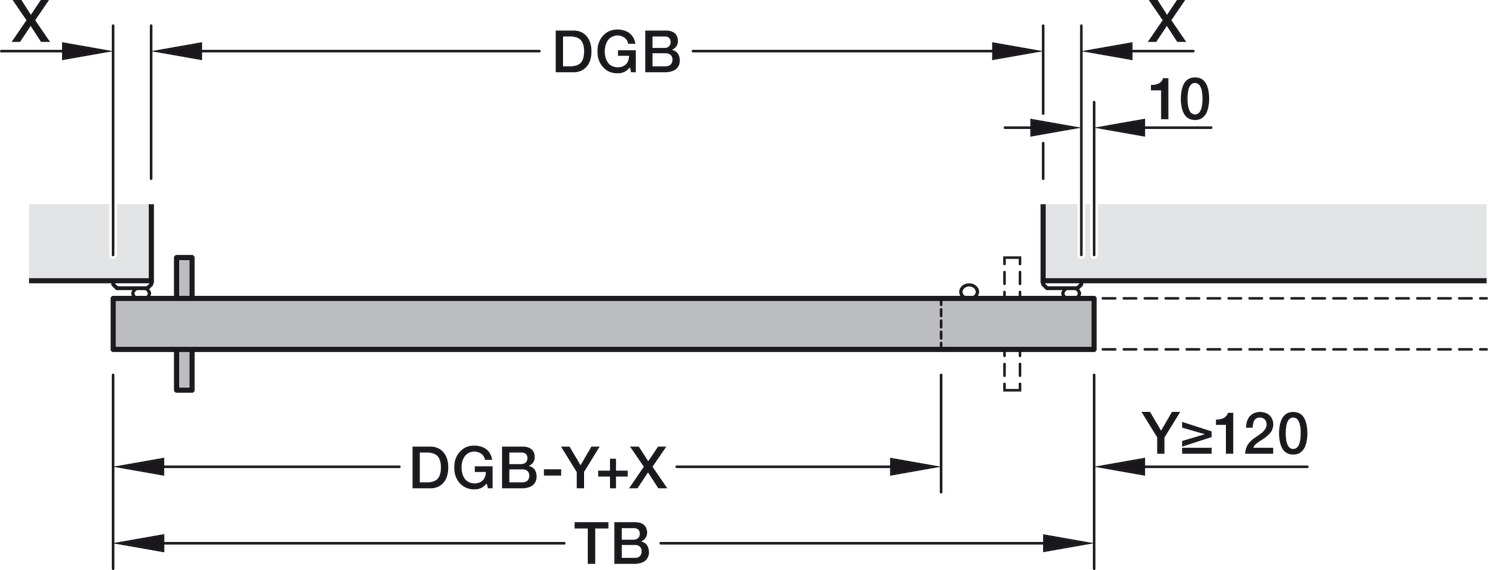

• Internal opening width: 750 - 1250 mm (29-1/2" - 49-7/32")

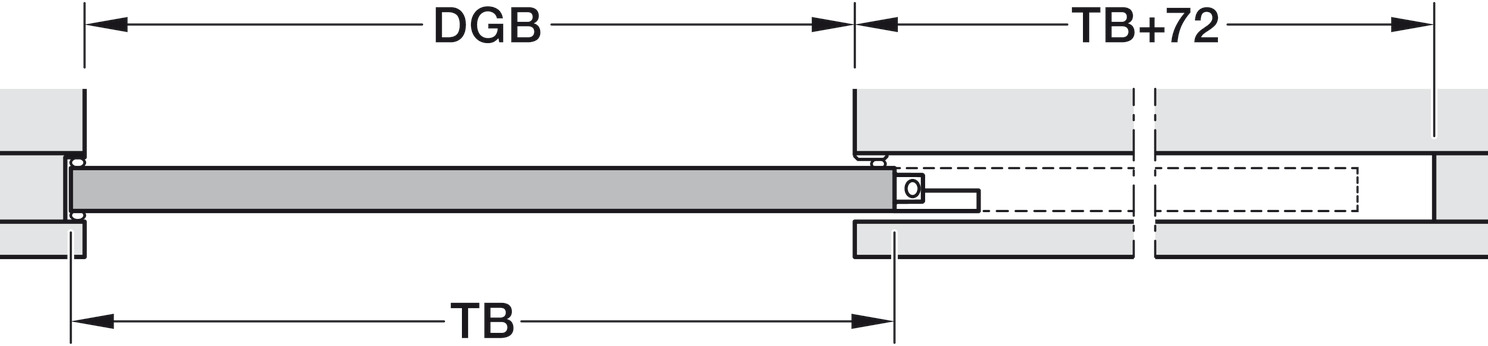

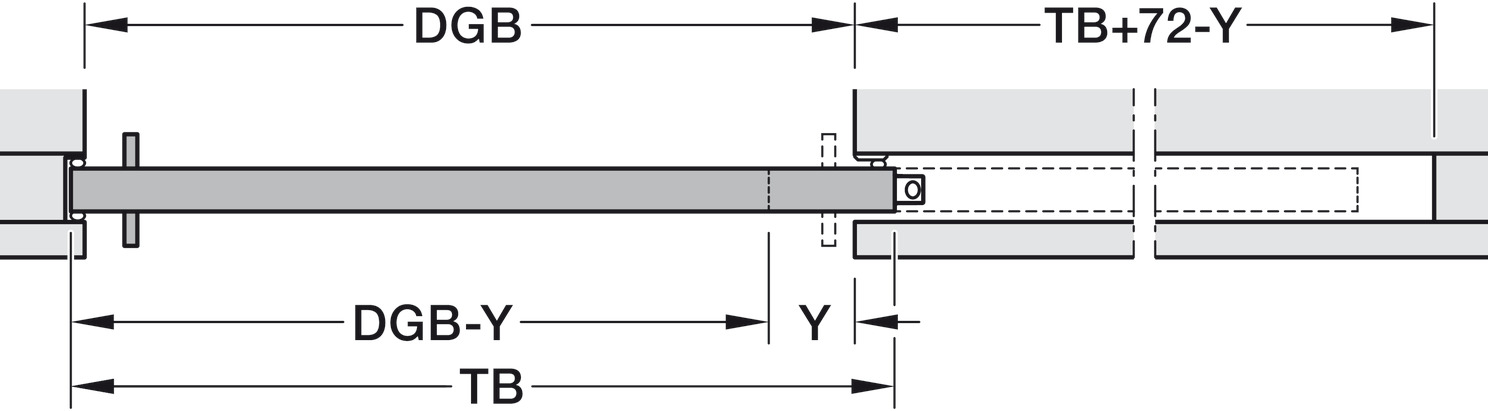

• Note on door width: The max. door width for the wall pocket solution is 800 mm (31-1/2").
• Effective damping of noise, drafts, odors and unwanted light incursions between two rooms
• With SoftStop on both sides, without soft close
• Low opening force < 30 N (6.7 lbs.)
• Sound rating depends on the door and wall construction a maximum sound insulation value of 38 decibels can be achieved.
• Note:
  • The contact surface for the vertical seal must be provided on site (min. 6 mm (1/4") projection in relation to the wall structure) e.g. using a block frame or perimeter frame.
  • Existing plinth strip on site can collide with the vertical seal, plan for doubling if necessary.
  • Gap dimension to floor: Floor gap of 8-12 mm can be taken up by the seal.
  • The use of a soft and self closing mechanism is possible at the opening side with partially opening doors.
  • Detailed information about the sound insulating values can be found at www.haefele.de.
• Supplied with:

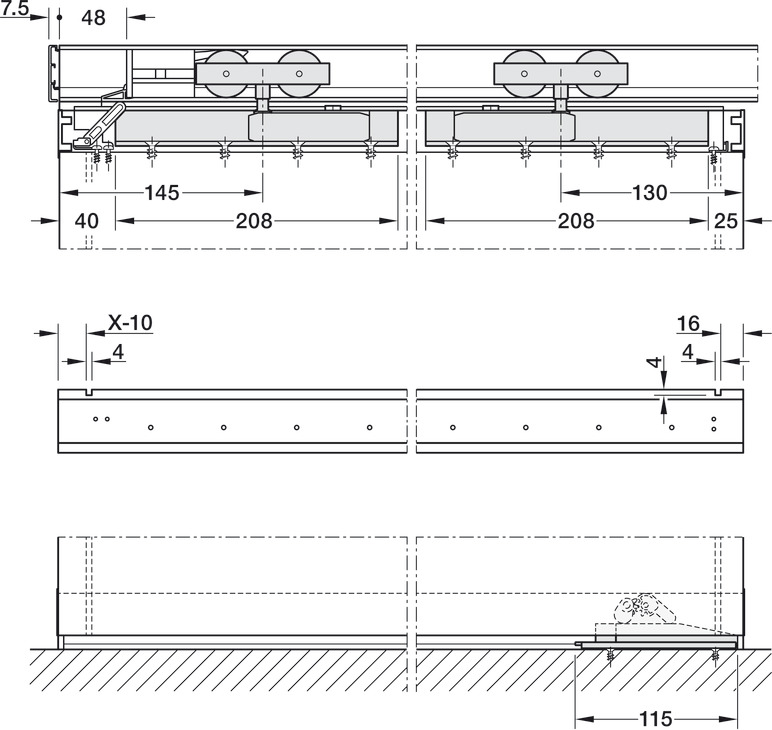

  • 2 Running gears
  • 2 Carrier profiles with suspension plate incl. M10 bolt

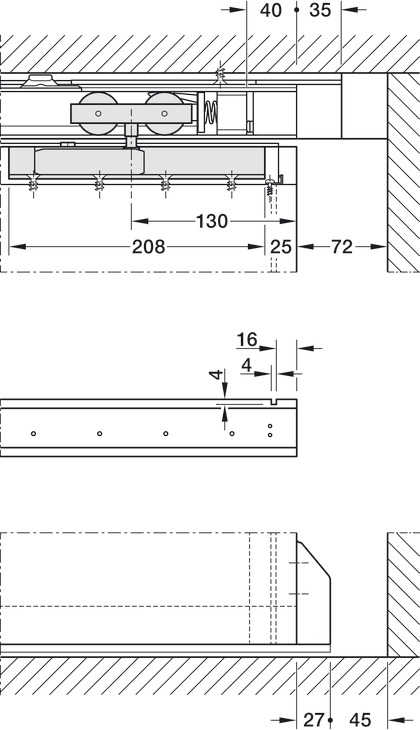

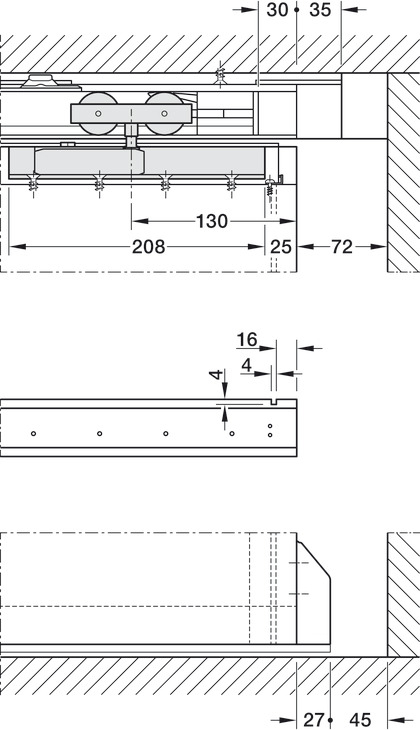

  • 1 SoftStop, with retaining spring and ramp
  • 1 SoftStop, with retaining spring
  • 1 Cover cap set, plastic, aluminum finish
  • 1 Adjustment wrench
• Additional information:
  • No end cap is available for ceiling installation with fascia on both sides.
  • A pair of end caps can be attached end to end and glued vertically in the center of the running track (optional).
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Running Track, For Wall Mounting, Pre-drilled, For Aluminium or Wooden Panel
• Fixing Profile, For Running Track with Bayonet Lock
• Vertical Seal: 940.00.500
• Upper Track, Pre-drilled
