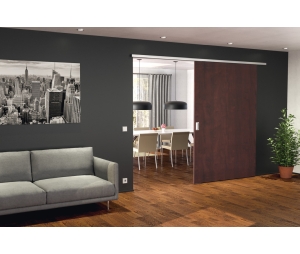

Hafele 941.04.004

• Sliding door fitting
• Model: 100 Z/100 Z Pocket
• With soft and self closing mechanism on both sides
• Adjustment facility: Height adjustment: ±4 mm (5/32"), door side adjustable, track buffer with adjustable retaining spring
• For door material: Wood
• For door thickness: 35 - 80 mm (1-3/8" - 3-1/6")
• For door weight: = 100 kg (= 220 lbs)
• For door width: 800 - 3000 mm (31-1/2" - 118-1/8")
• For door height: = 4000 mm (157-1/2")
• Note on door width: The max. door width for the pocket door solution is 1500 mm (59-1/16").

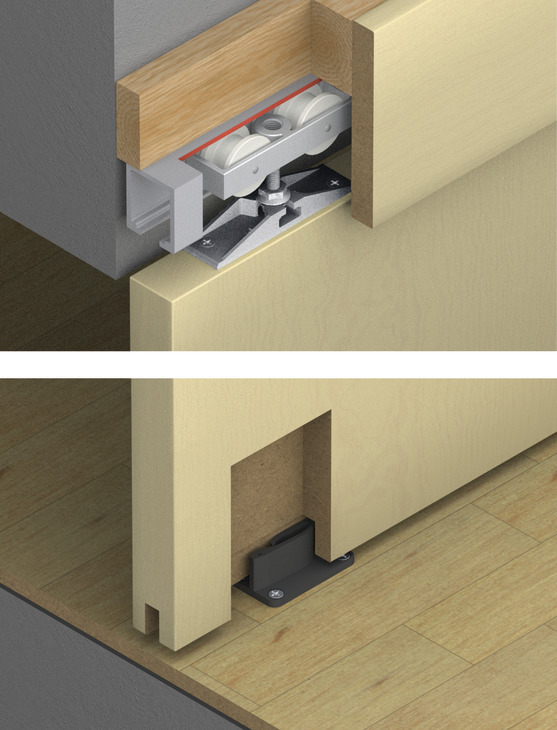

• Installation: Suspension with screwed on two-way suspension
• Installation reference:
  • The door can be installed and removed from the front or the side

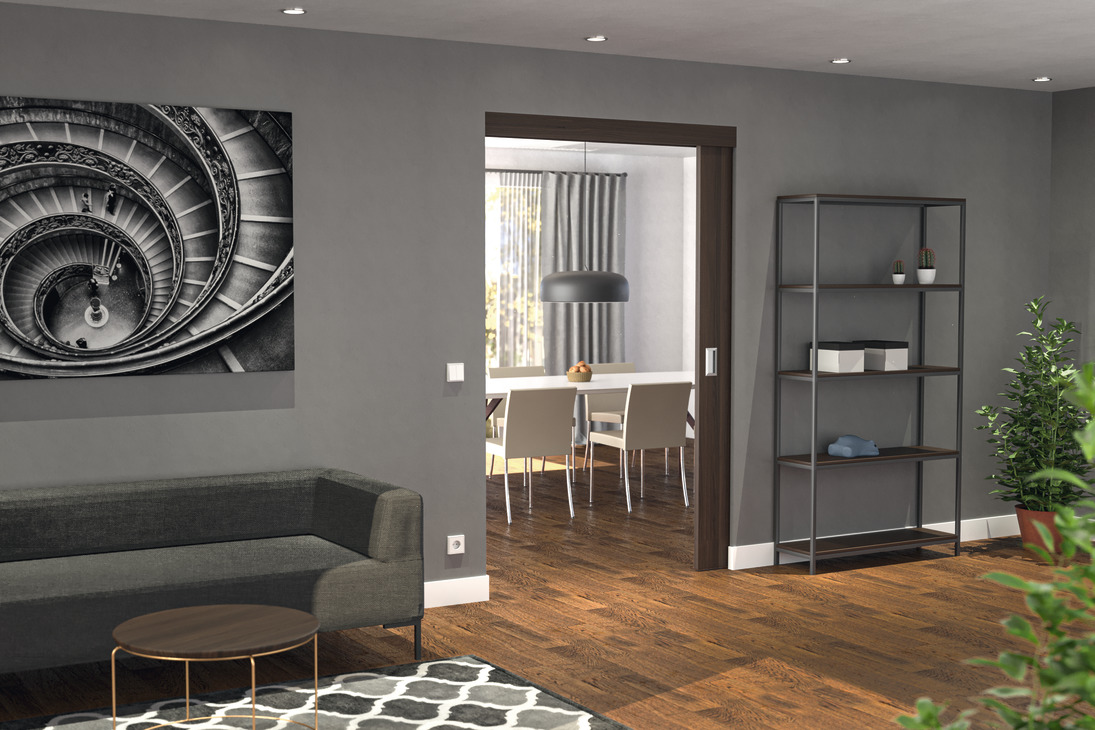

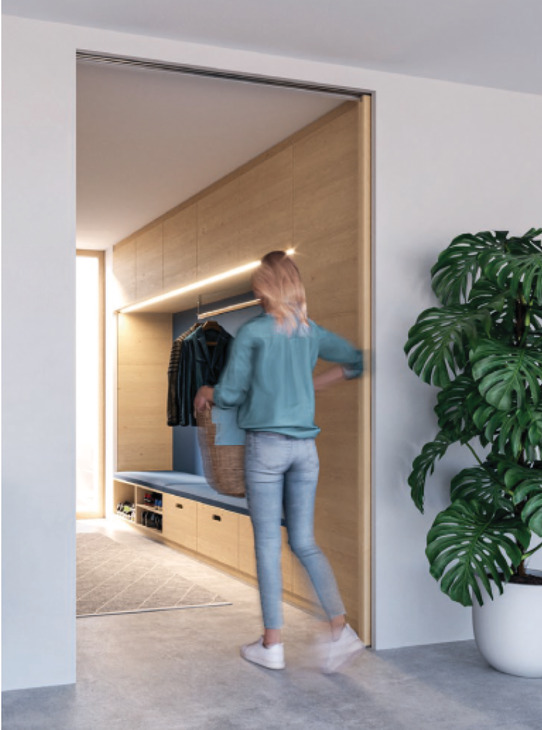

  • Pocket door solution:
  • Subsequent disassembly of the running track is possible without opening the wall
  • Running gear and soft and self closing mechanism can be removed
  • Stopper position in the wall pocket, readjustable
• Door processing: For screw fixing
• Number of doors: 1
• Number of doors per system max.: 1 to 2
• Controller installation options: Ceiling installation, wall mounting, wall pocket solution
• Running position: Top
• Low opening force – easy and convenient operation
• Barrier-free due to low operating force
• New, Hawa SoftMove 100 soft and self closing mechanism

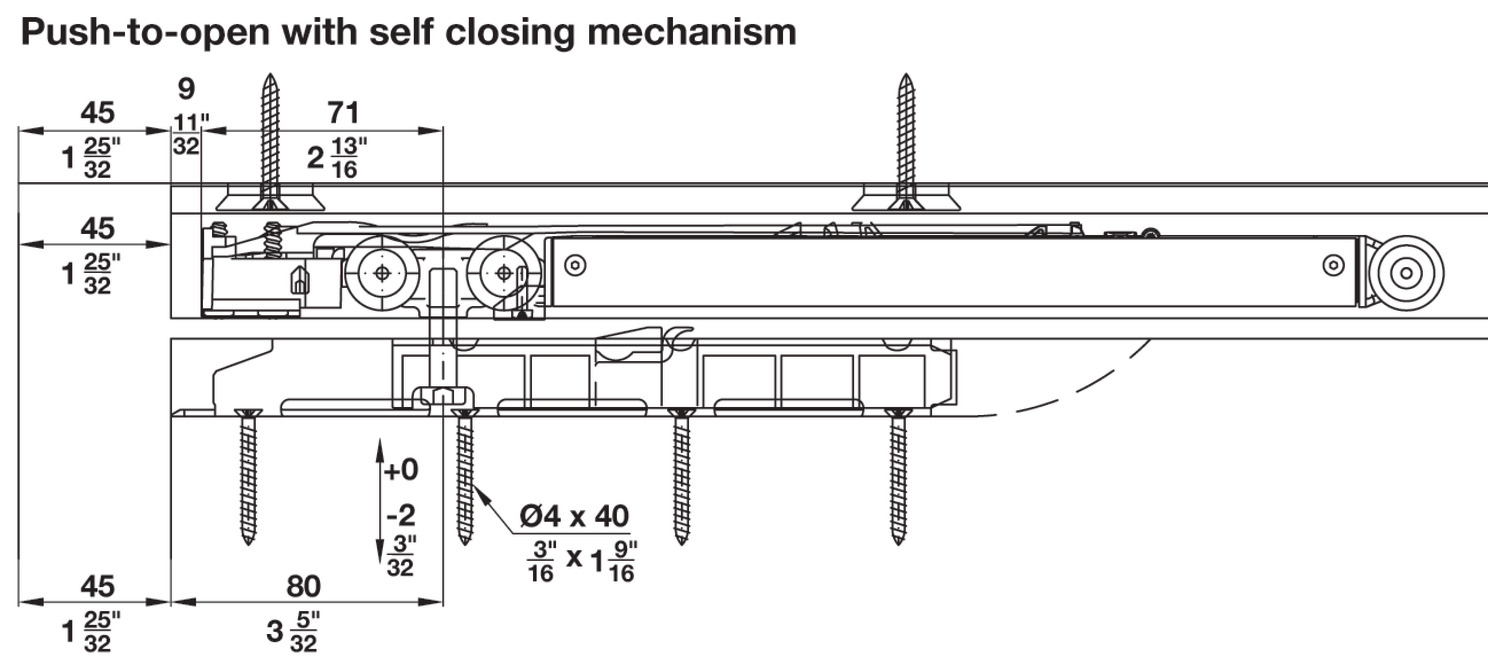

• Push-to-Open function due to spring buffer, for ejecting the fully inserted door from the wall pocket
• Supplied with:

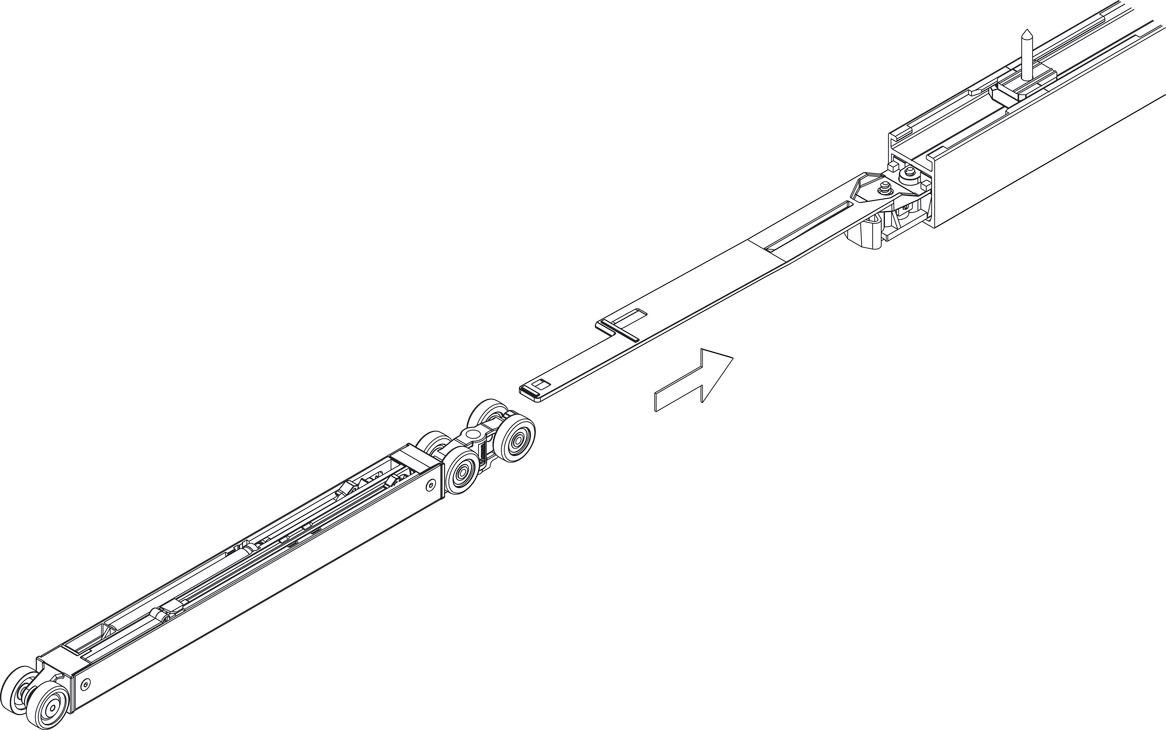

  • 2 Running gears with soft and self closing mechanism with release device and stopper
  • 2 Two-way suspensions
  • 1 Clear threshold floor guide 60 mm (2-3/8")
  • 1 Wall buffer
  • Accessories
• Additional information:
  • No end cap is available for ceiling installation with fascia on both sides.
  • A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, Pre-drilled
• Running Track, For Wall Mounting, Pre-drilled, For Aluminium or Wooden Panel
• Running Track, For Ceiling Installation, Pre-drilled, For Aluminium or Wooden Panel
• Guide Rail, 20 x 12 mm (13/16" x 1/2"), Glue-in: 940.41.130
