Hafele 941.02.036

• Sliding door hardware
• Model: 120P
• Version: Track buffer with retaining spring
• Running gear version: Running gear with ball bearing mounted rollers
• Without soft and self closing mechanism, with track buffer with retaining spring on both sides
• Adjustment facility: Height adjustment: +/-5 mm (3/16")
• For door material: Wood
• For door weight: 50 - 120 kg (110 - 264 lbs.)
• For door width: = 500 mm (19-11/16")
• Note on door weight: Per door
• Installation: Suspension with screwed on support flange
• Number of doors: 1
• Number of doors per system max.: 1 to 2
• Controller installation options: Ceiling installation, wall mounting
• Running position: Top
• Soft and self closing mechanism:
  • Low opening force – easy and convenient operation
  • Tested with increased closing speed up to 0.5 m/s
  • Can be retrofitted or replaced at any time
  • Accessibility: Opening force with door weight 50 kg: 18 N / 80 kg: 21 N
• Shock absorber:
  • Closing speed with shock absorber tested up to 0.4 m/s

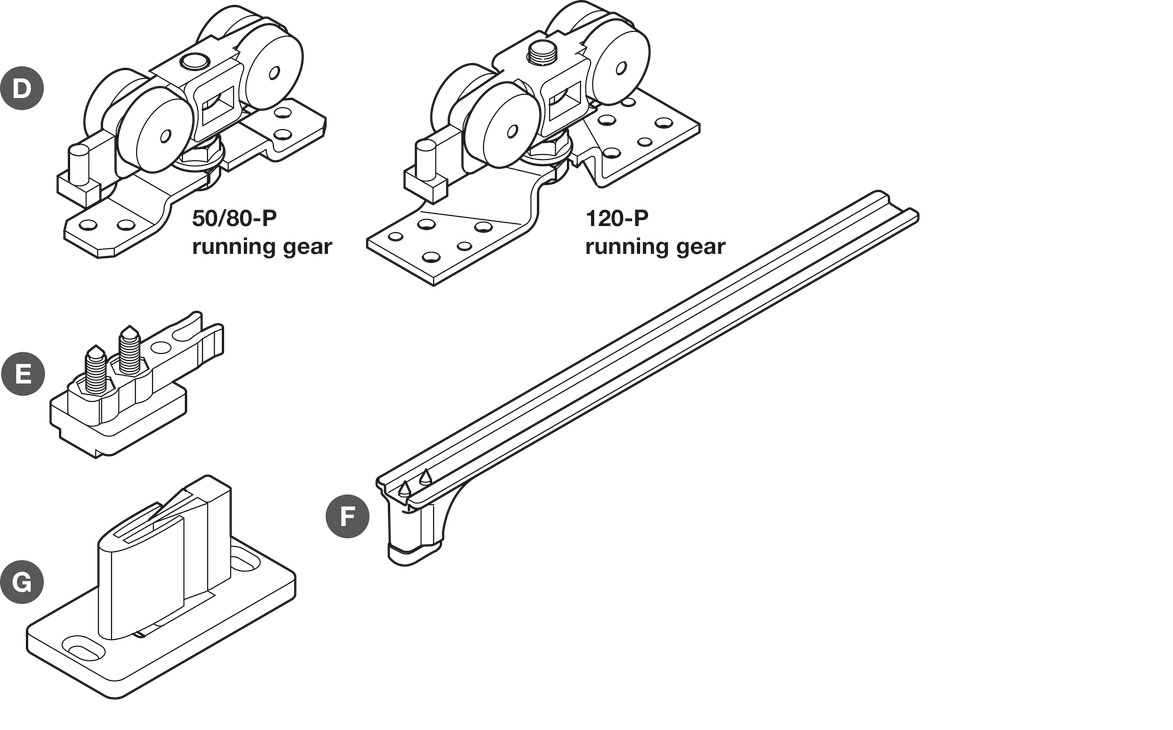

• Supplied with:
  • 2 Running gears
  • 1 Clear threshold floor guide
  • 2 Track buffers with retaining spring
• Order reference: Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.
• Additional information:
  • No end cap is available for ceiling installation with fascia on both sides.
  • A pair of end caps can be attached end to end and glued vertically in the centre of the running track (optional).
  • Please note when using shock absorber with retaining spring: The door may not close completely if the closing speed is too low, if it is too high, the door may bounce back slightly.
  • For sets without or with soft and self closing mechanism on one side: If required, soft and self closing mechanism or shock absorber can be retrofitted.
  • End cap for ceiling installation with fascia on both sides not available.
  • One pair of end caps can be glue fixed vertically in the centre of the running track (optional).
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Running Track, Pre-drilled, W x H: 31 x 33 mm (1-7/32" x 1-5/16")
• Single Running Track, Pre-drilled, W x H: 47.5 x 47 mm (1-7/8" x 1-27/32"): 940.43.930
• Single Upper Track, Wall Mounted
• Double Running Track, Pre-drilled, W x H: 70 x 33 mm (2-3/4" x 1-5/16")
• Double Running Track, Pre-drilled, W x H: 81 x 33 mm (3-3/16" x 1-5/16")
• Guide Track, Bottom
