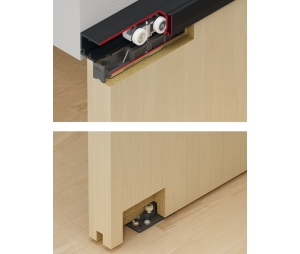

Hafele 941.00.055

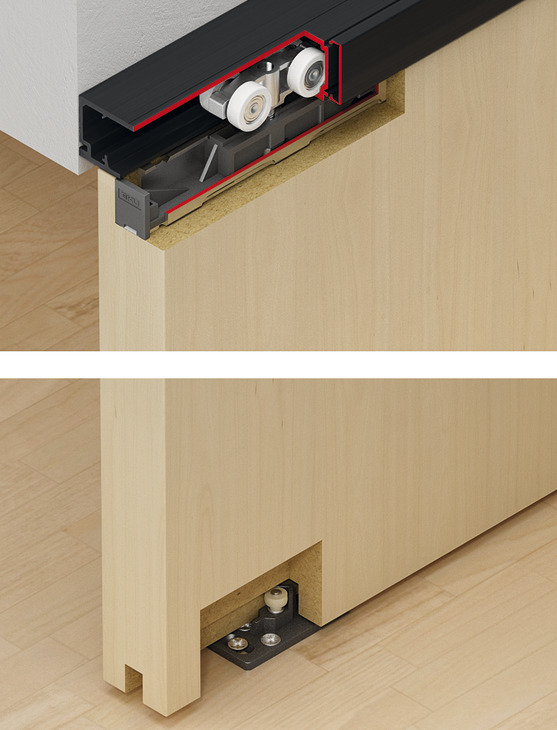

• Sliding door fitting
• Model: 100 HM/HMD
• With soft closing mechanism (optional)

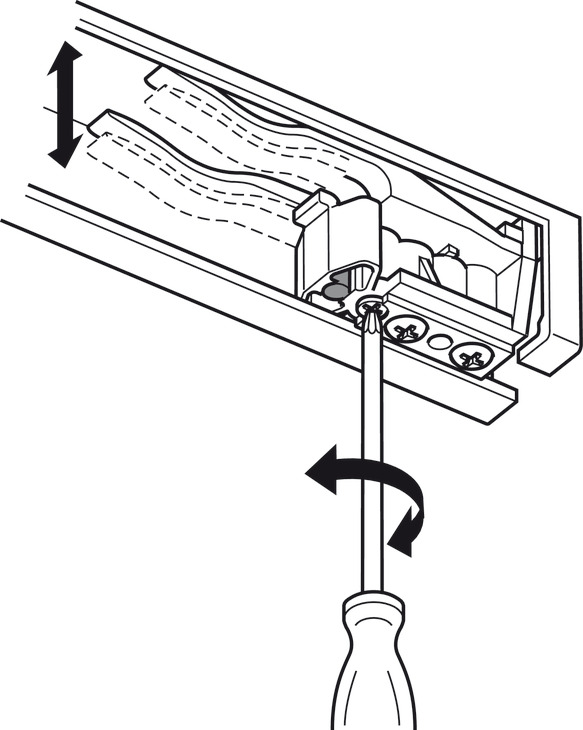

• Adjustment facility: Height adjustment: -3/+1 mm (-1/8"/+1/32")
• For door material: Wood
• For door thickness: 30 - 40 mm (1-3/16" - 1-9/16")
• For door weight: = 100 kg (220 lbs.)
• For door width: = 1600 mm (5' 3")
• For door height: = 2700 mm (8' 10-5/16")
• Number of doors: 1
• Number of doors per system max.: 1 to 2

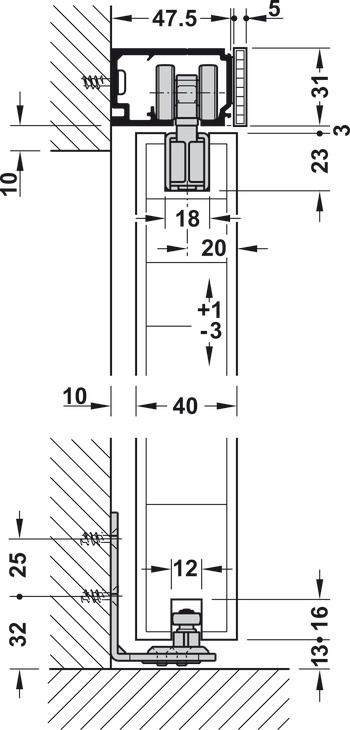

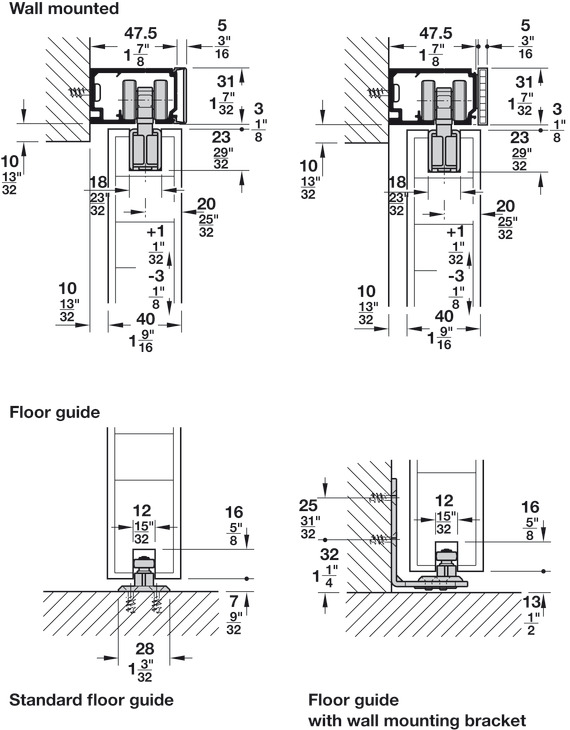

• Controller installation options: Wall mounting
• Running position: Top

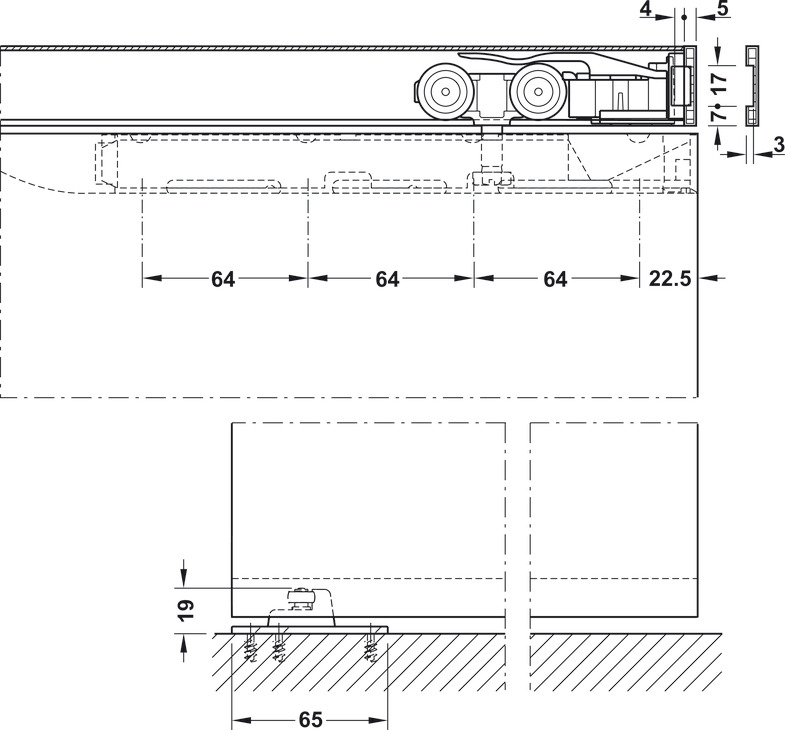

• Door processing: With recess
• Finish: Black
• Supplied with:
  • 2 Running gears with suspension screw and nut, M8
  • 2 Support profiles

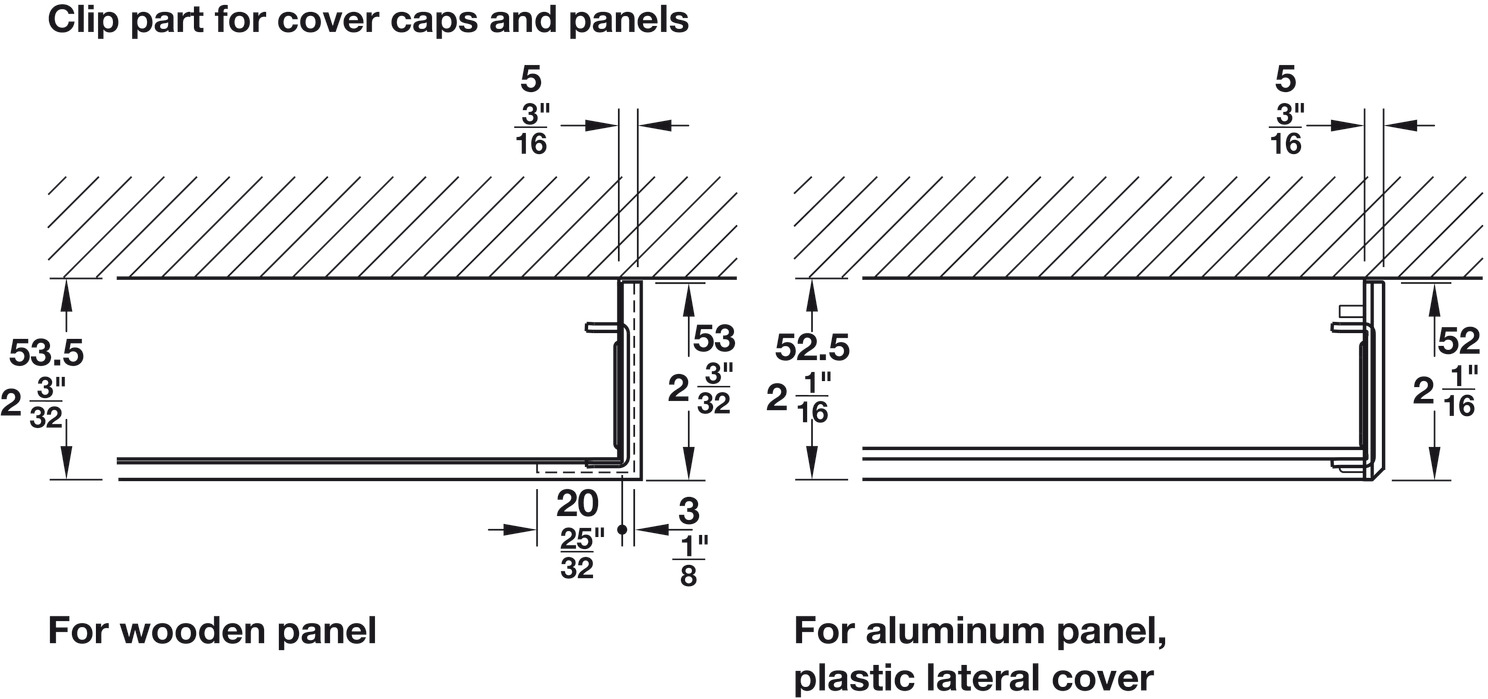

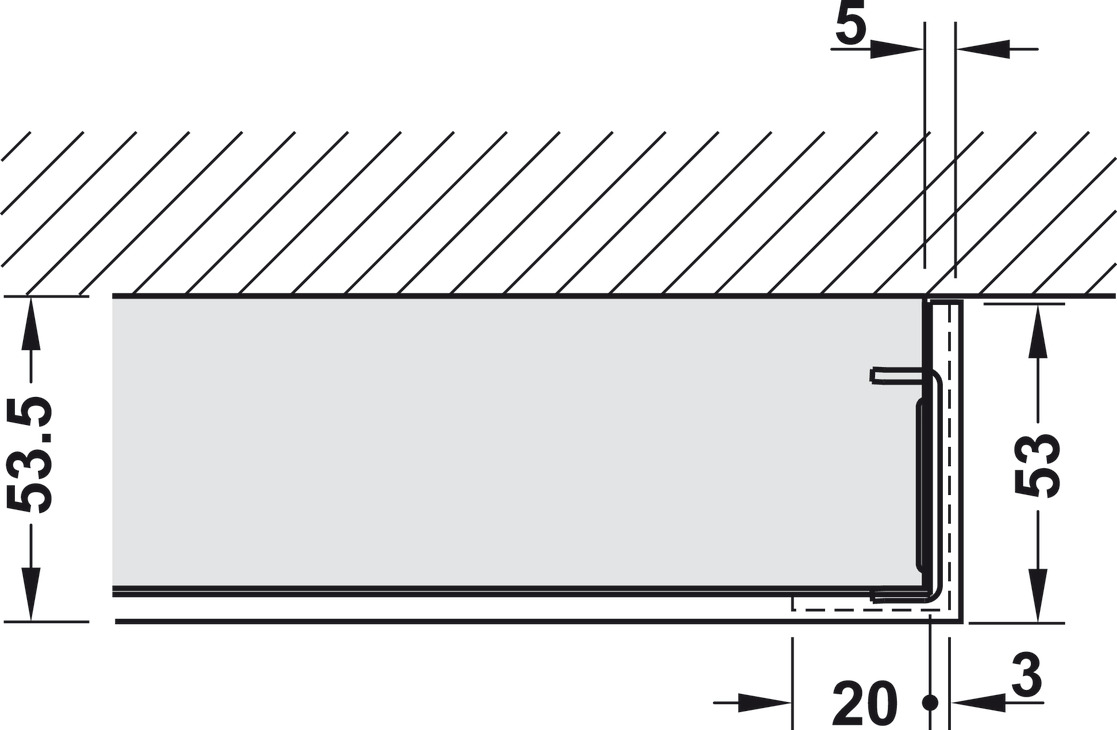

  • 2 Cover caps
  • 2 Track stoppers with retaining spring

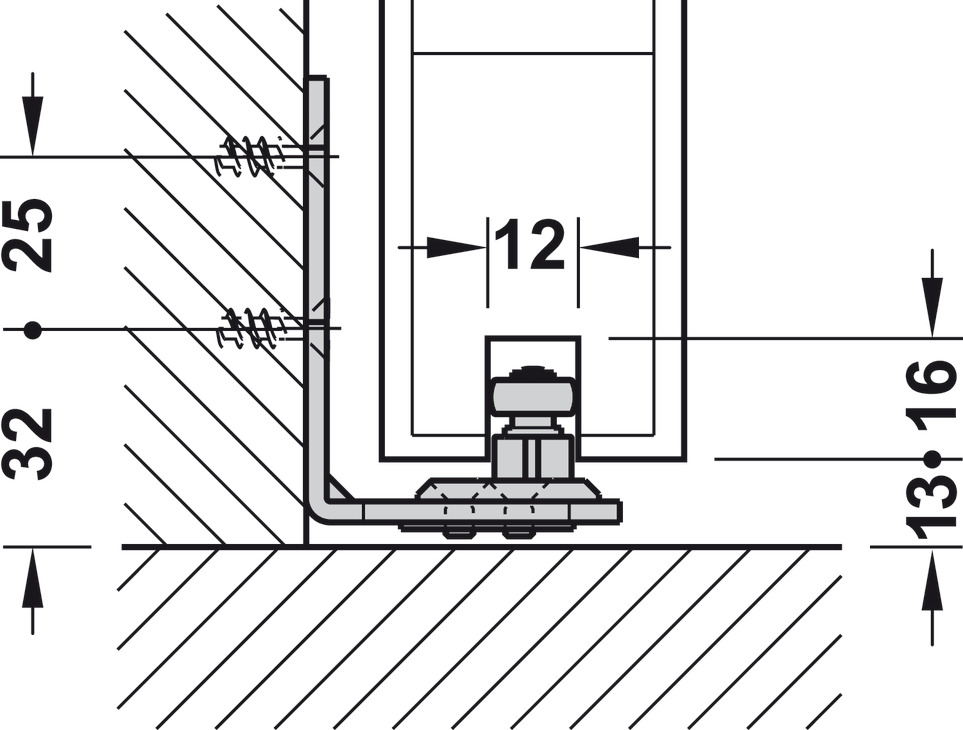

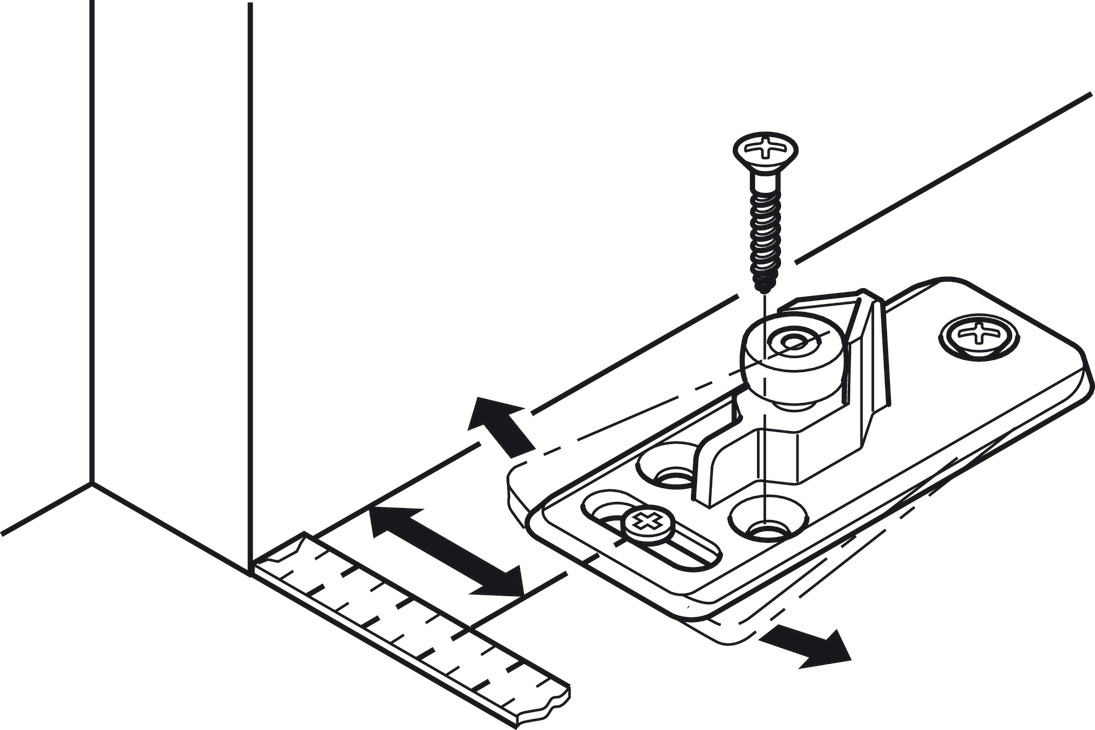

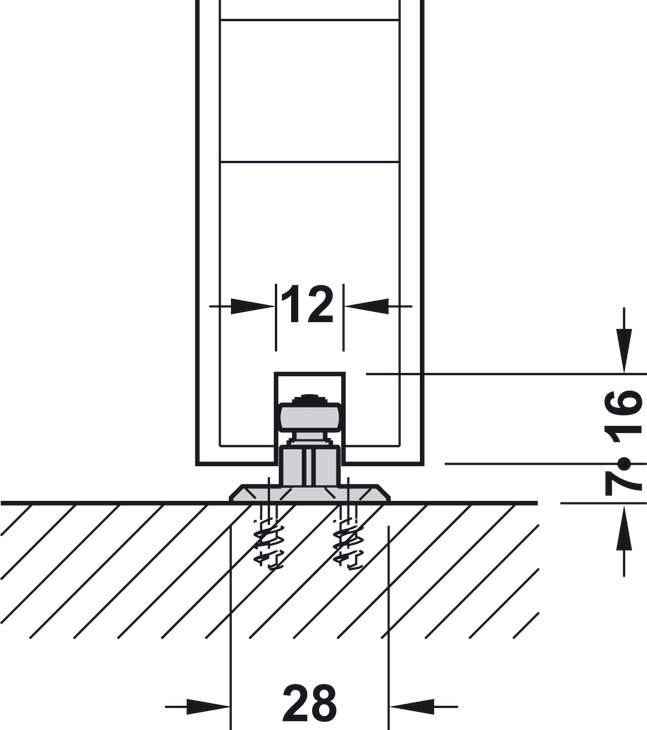

  • 1 Floor guide, adjustable
  • 1 Set of fixing screws
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

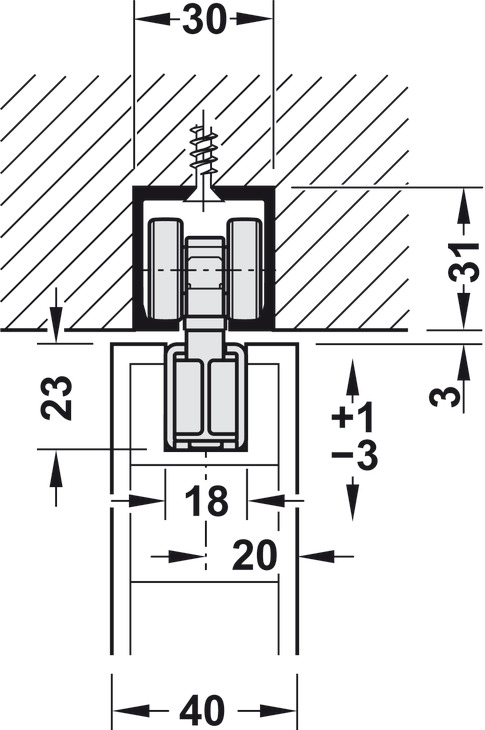

• Upper Track, Pre-drilled, W x H: 30 x 31 mm (1-3/16" x 1-7/32")
• Dual Running Track, Aluminum, Anodized
• Triple Running Track, Pre-drilled, W x H: 111 x 31 mm (4-3/8" x 1-7/32")

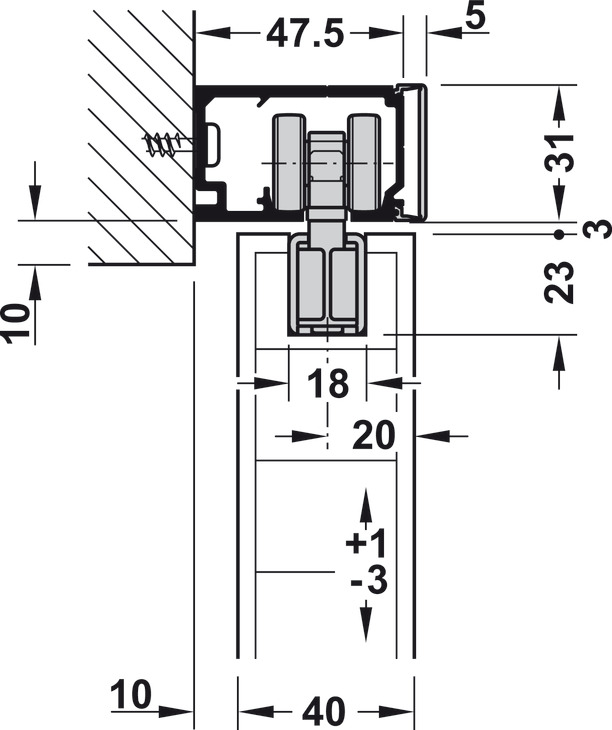

• Running Track, Pre-drilled, W x H: 47.5 x 31 mm (1-7/8" x 1-7/32")
• Running Track, With Recess for Installation Opening, Pre-drilled, W x H: 30 x 31 mm (1-3/16" x 1-7/32"): 941.00.251
• Running Track, Pre-drilled, For Ceiling Installation
