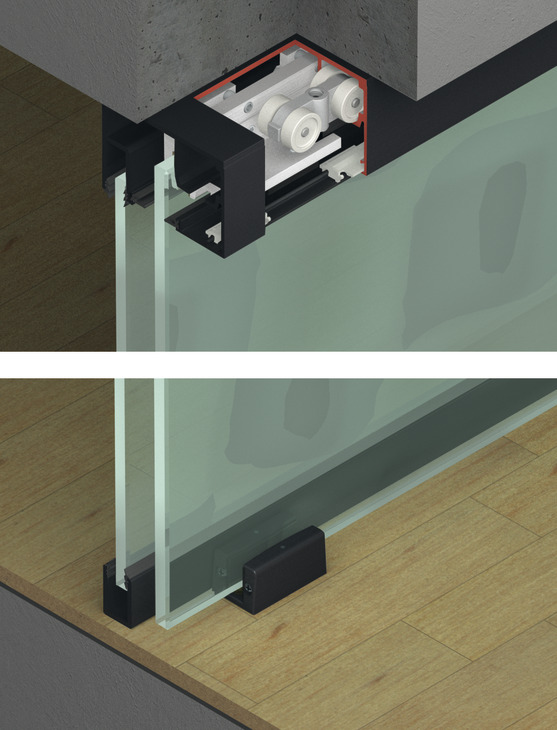

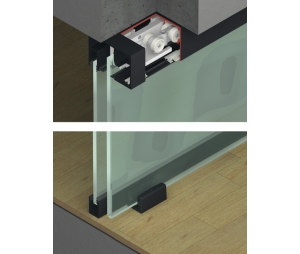

Hafele 941.00.053

• Sliding door fitting
• Model: 100 GW/GWF
• With soft closing mechanism (optional)
• Adjustment facility: Height adjustment: ±3 mm (1/8")
• For door material: Glass
• For glass type: Tempered safety glass
• For glass thickness with tempered safety glass: 8 mm (5/16"), 10 mm (13/32"), 12 mm (15/32"), 12.7 mm (1/2")
• For door weight: = 100 kg (220 lbs.)
• For door width: = 1600 mm (5' 3")
• For door height: = 2700 mm (8' 10-5/16")
• Number of doors: 1
• Number of doors per system max.: 1
• Controller installation options: Ceiling installation
• Running position: Top

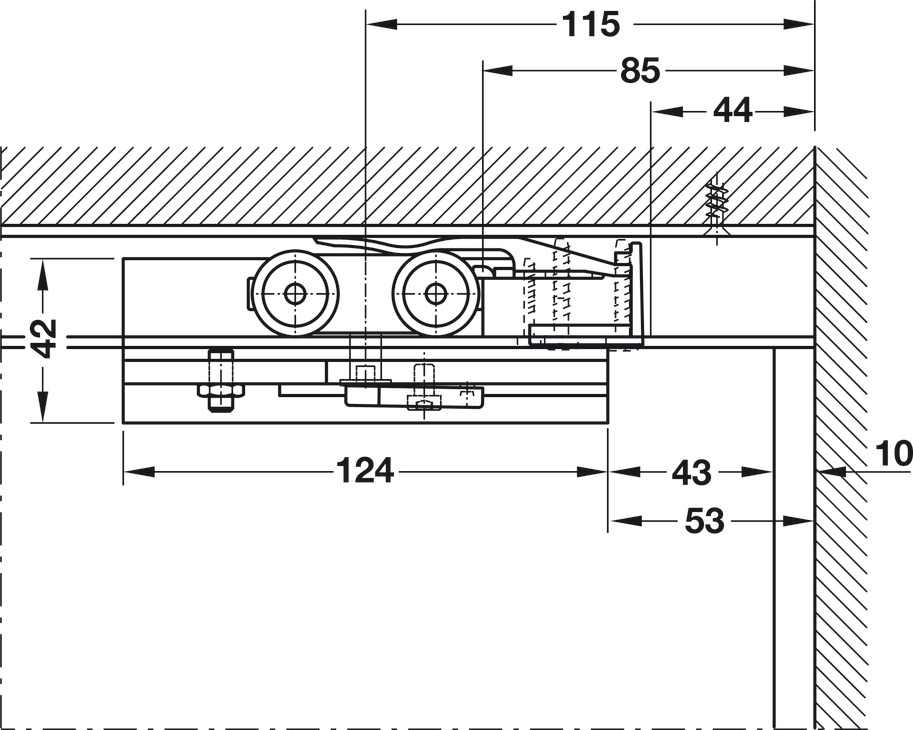

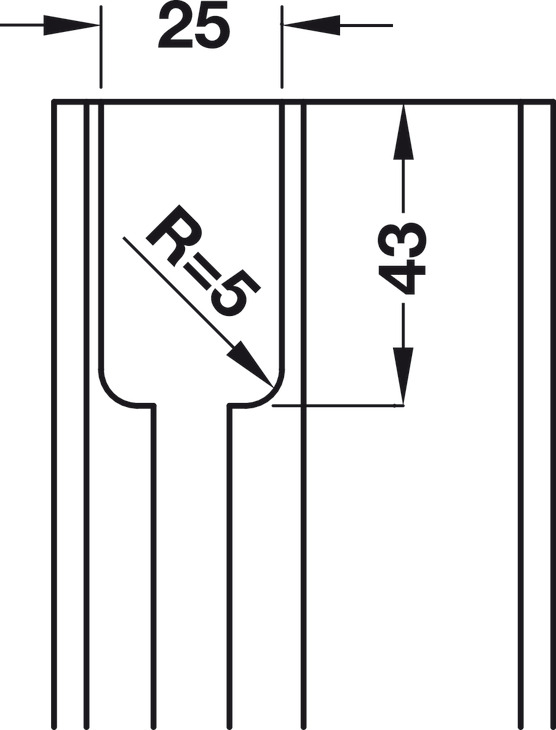

• Door processing: With recess
• Finish: Black anodized
• Supplied with:
  • 2 Running gears
  • 2 Suspension screws M8 x 25
  • 2 Clamping shoes
  • 2 Track buffers (1 with retaining spring, 1 without retaining spring)
  • 1 Wall buffer

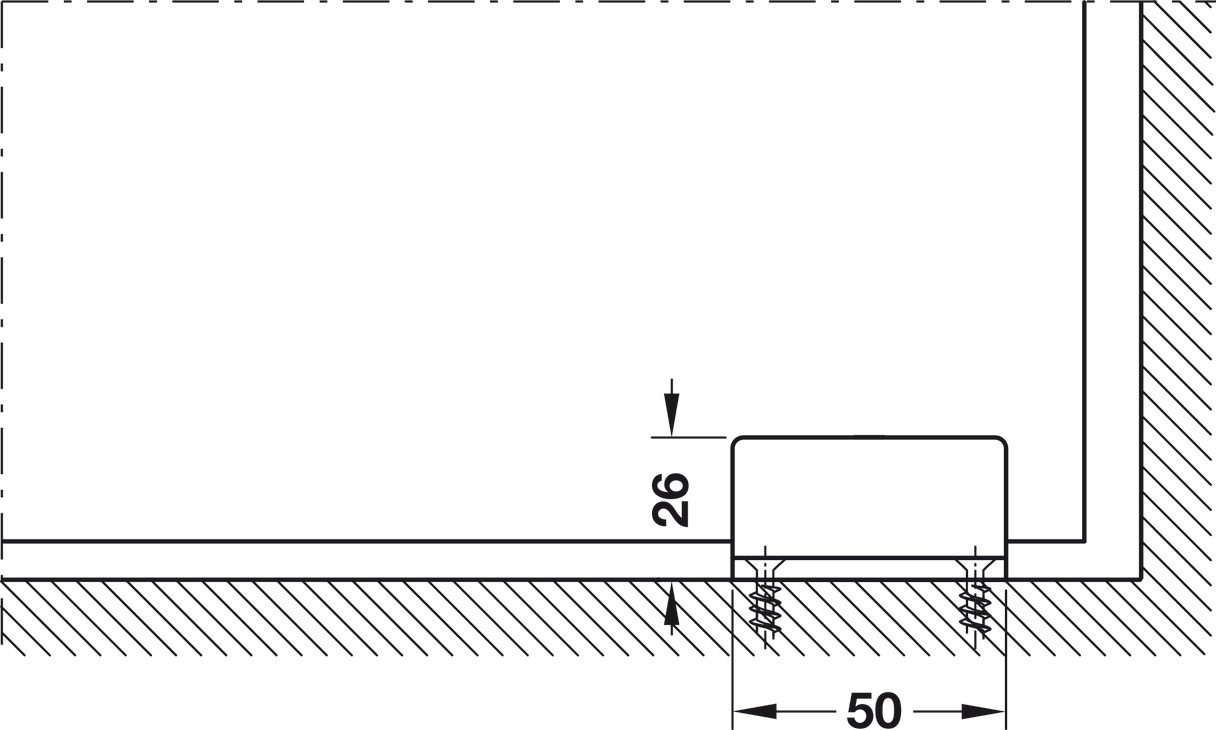

  • 1 Clear threshold floor guide
  • 12 Panel clips
  • 1 Set of fixing screws
• Additional information: Soft and self closing mechanism (optional for Hawa Porta 100 GW/GWF)
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

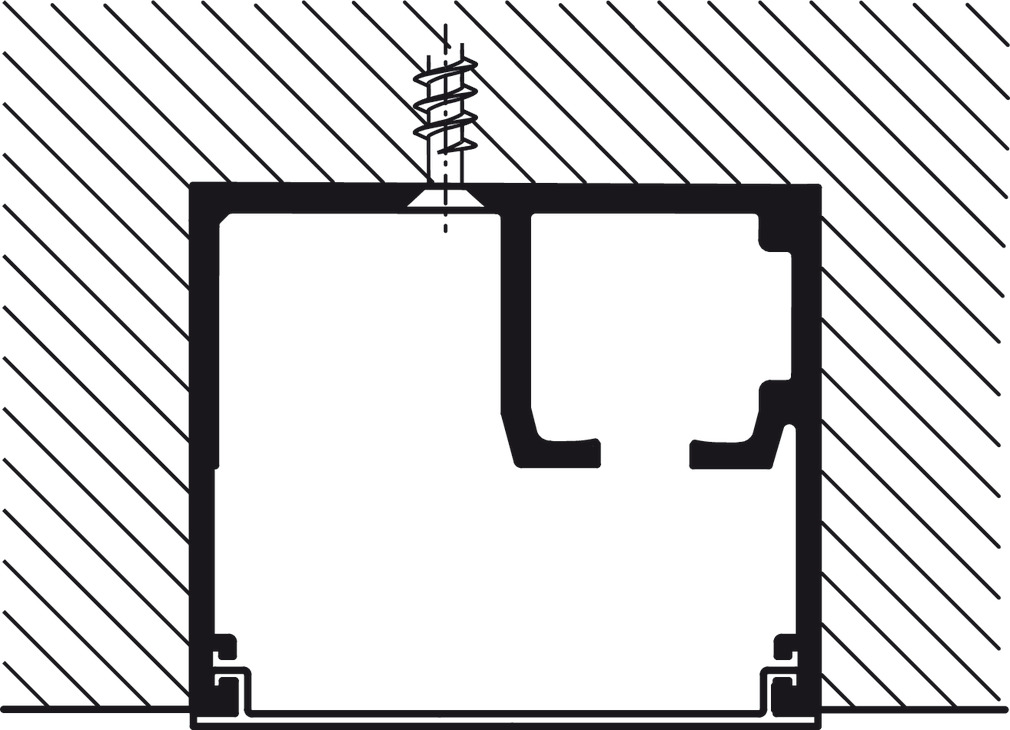

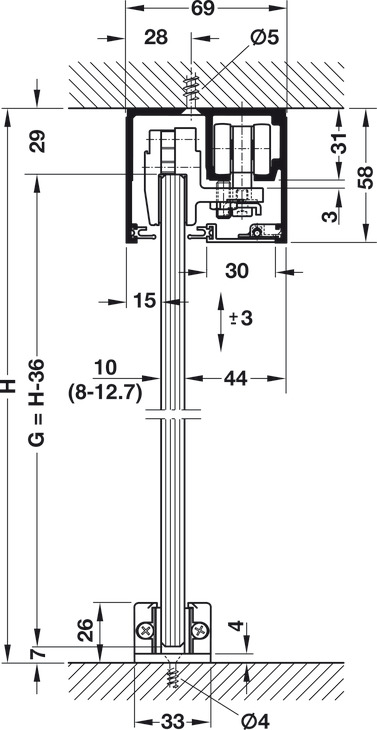

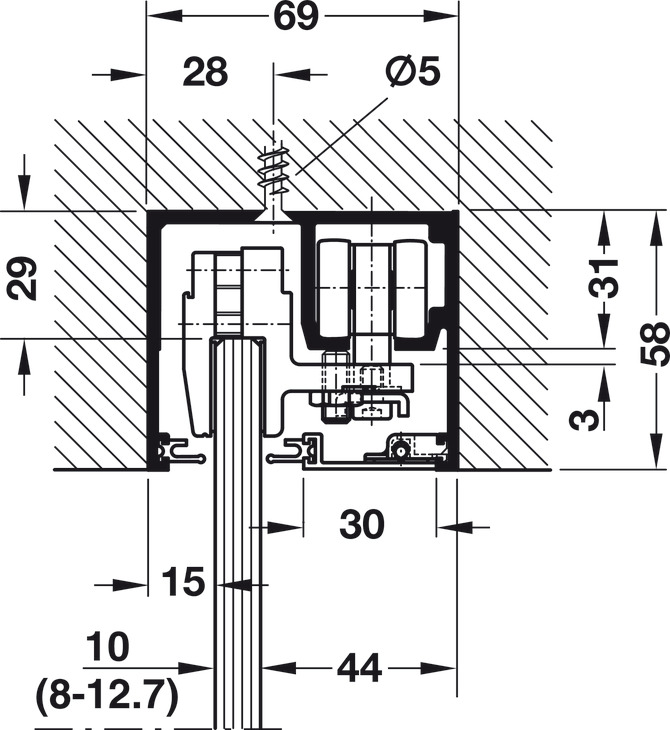

• Upper Track, Pre-drilled, 69 x 58 mm (2-23/32" x 2-9/32")
• Guide Channel, Lower, Pre-drilled

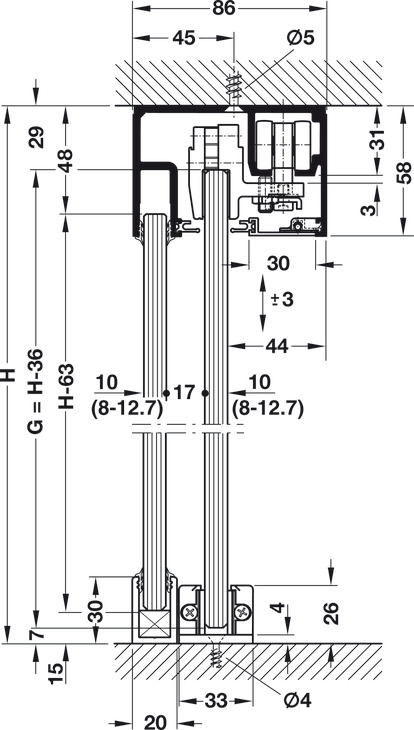

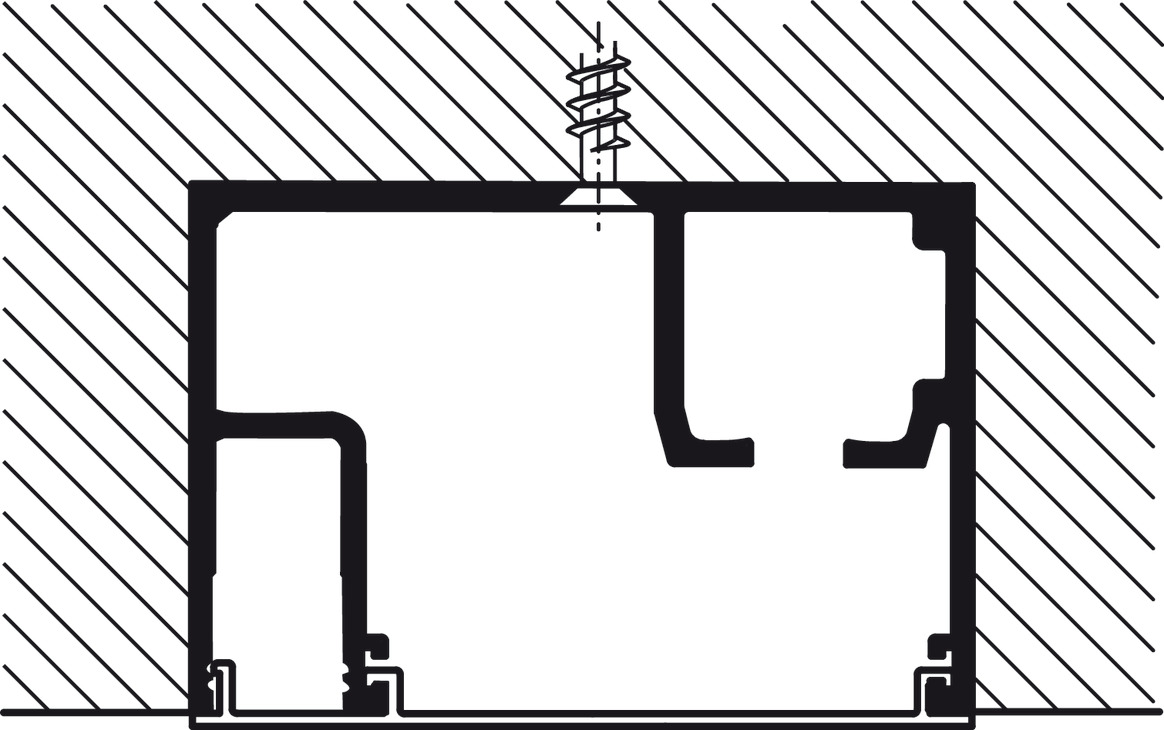

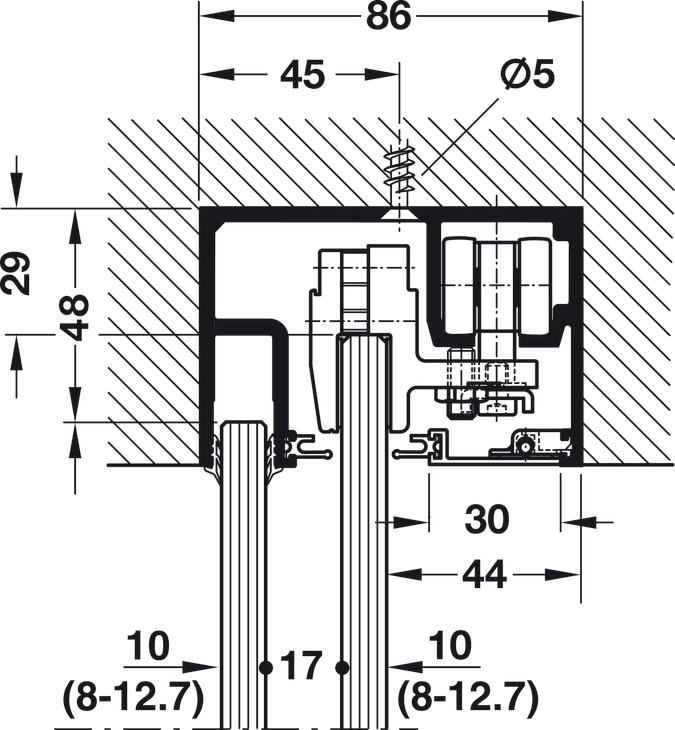

• Running Track, With Fixed Glass Fixing Profile
