- Sliding Door Hardware

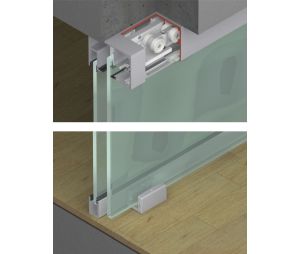

- EKU Porta 100 GW/GWF
- Top Hung System
- Set without running track
- Suitable for: Tempered safety glass
- Application:
- For 1-leaf sliding doors (for EKU Porta 100 GW)
- For 1-leaf and 2-leaf sliding doors with fixed glass fixing profile (for EKU Porta 100 GWF)
- Synchronized opening of 2 doors (EKU Porta 100 GW/GWF-Synchro)
- Standard: Certified in compliance with EN 1527:1998
- Class: - 6 2 0 - 0 - 1 3
- Installation: Wall mounting and ceiling installation

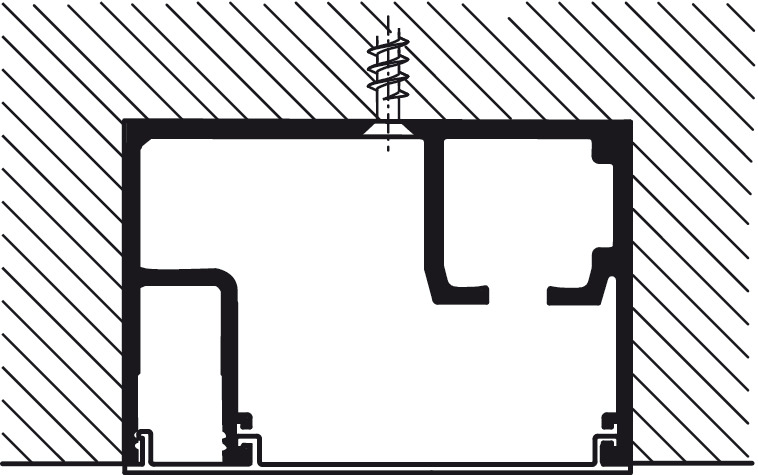

- Surface mounted or flush with ceiling (optional) (for EKU Porta 100 GW and GWF)
- Wet sealing of the fixed glass panels with silicone with glass thickness up to 10 mm (for EKU Porta 100 GWF)
- Door weight: less or equal than (220 lbs) 100 kg
- Door width: less or equal than (5' 3") 1,600 mm
- Door height: less or equal than (8' 10-5/16") 2,700 mm
- Adjustment: +/- (1/8") 3
- Finish: Silver coloured anodized
- Supplied with:

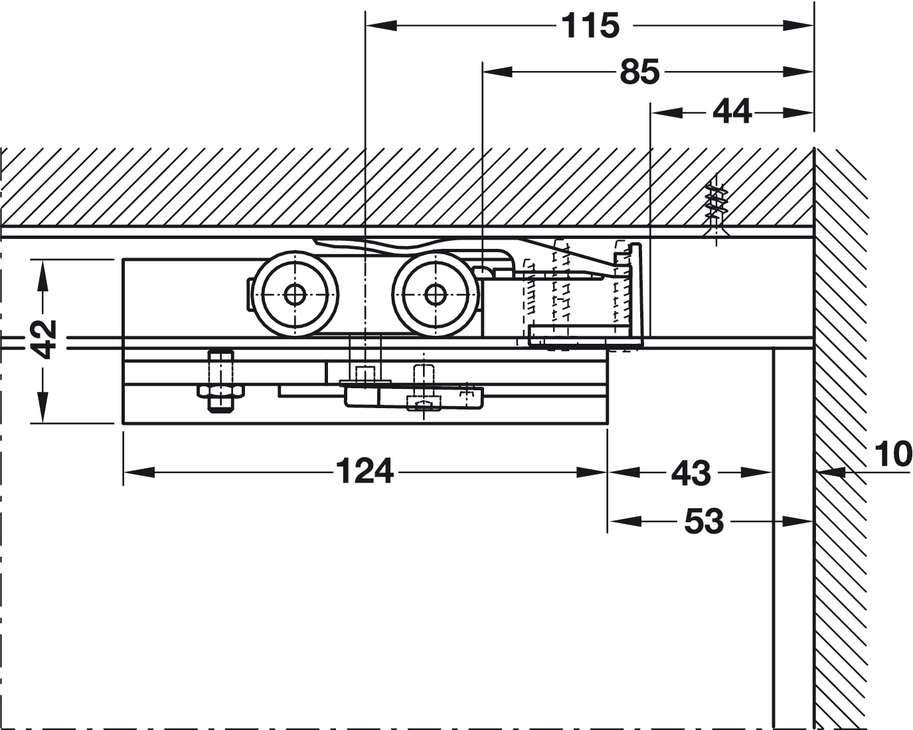

- 2 running gears
- 2 suspension screws M8 x 32
- 2 clamp shoes
- 2 track stoppers (1 with retaining spring, 1 without retaining spring)
- 1 wall buffer

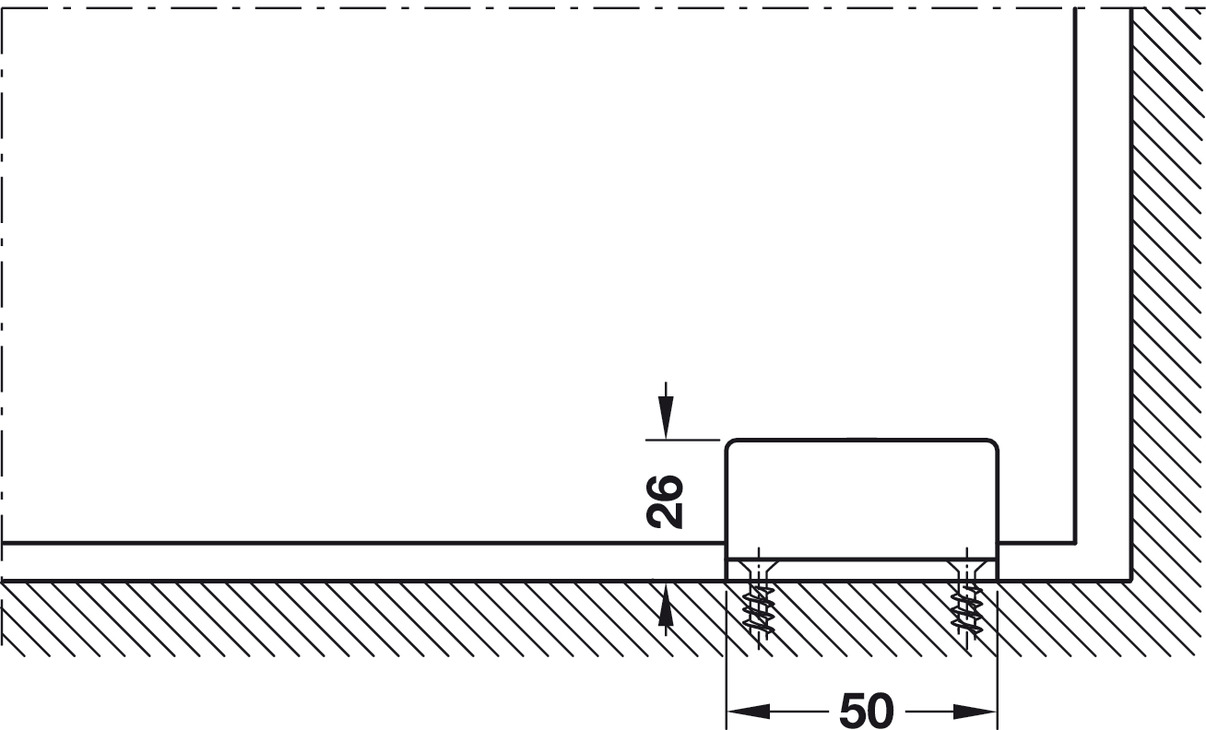

- 1 clear threshold floor guide
- 12 panel clips
- 1 set of fixing screws
- Packing & Sold as: Set.
- Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

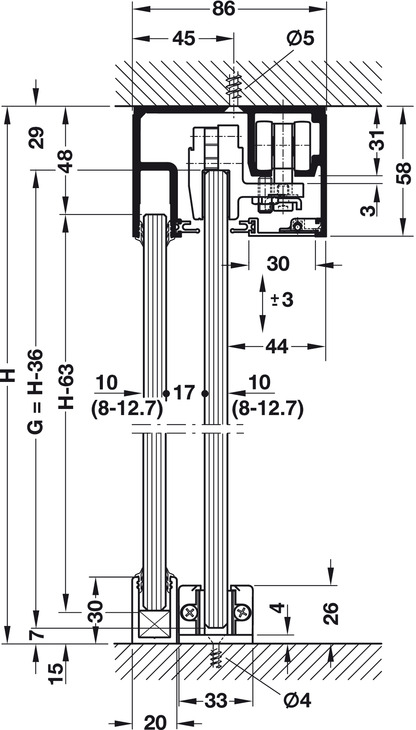

Required products: - Upper Track, With fixed glass fixing profile, 86 x 58 mm pre-drilled: 941.00.256, 941.00.356, 941.00.606

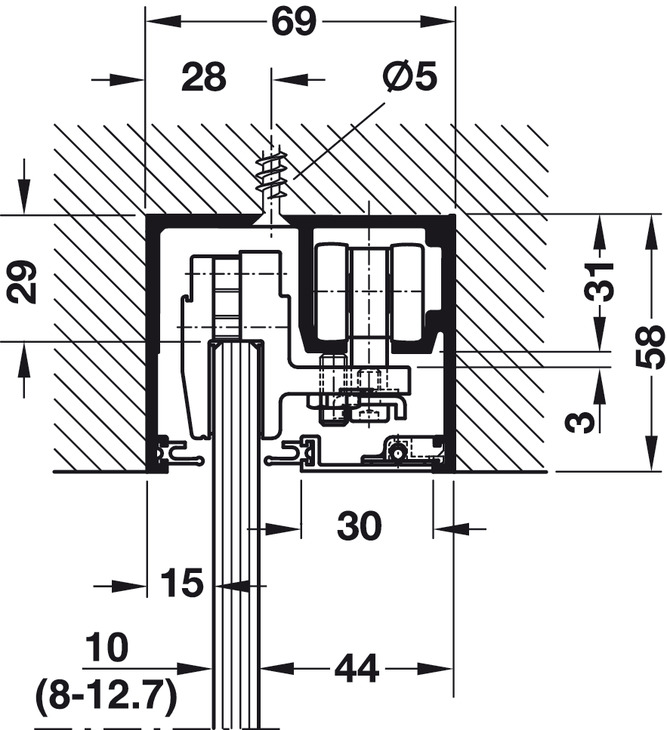

- Upper Track, Pre-drilled, (2-23/32" x 2-9/32") 69 x 58 mm: 941.00.425, 941.00.435, 941.00.460
- Guide Channel, Pre-drilled, 30 x 20 mm: 941.01.725, 941.01.735, 941.01.760
Optional accessories: - Door seals and accessories: 940.40.099, 940.80.099, 941.20.099
- Clip-on Fascia, (1-3/16" x 21/34") 30 x 8 mm: 941.01.025, 941.01.035, 941.01.060
- Wall Profile, 15 x 14 mm (5/8 x 9/16"): 941.12.525, 941.12.530
- Fixing Set, for Support Profile and Fixed Glazing Profile: 941.01.899
- Support Profile, for Fixed Glass, Pre-drilled: 941.01.825, 941.01.860
- Fixing Set, for Support Profile and Fixed Glazing Profile: 941.01.899
- Sealing Profile, for 8 and 10 mm (5/16" and 3/8") Glass: 941.00.103
- Seal, Black, Plastic: 941.00.094
- Disposable Cover: 941.00.207

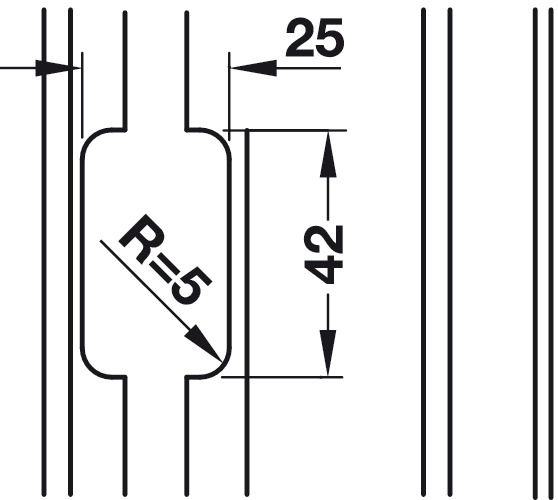

- Milling Jig, for Notched Service Access in Track: 941.00.095
- Wall Mounting Angle Profile, Pre-drilled: 941.01.226
- End Cap Set, to Mount Upper Track onto Angle Profile, up to 2.5 m (8' 2-7/16"): 941.00.077
- Screw Set, to Mount Upper Track onto Angle Profile, up to 2.5 m (8' 2-7/16"): 941.00.078
- End Cap Set, for Upper Track Only: 941.00.079
- Cover Cap, for Notched Service Access in Track: 940.60.094
- Milling Jig, For notched service access in track: 940.60.095
|
