Hafele 940.82.568

• Sliding Door Hardware
• Häfele Slido Classic 80-L
• Version: D
• Suitable for: Tempered safety glass, Laminated glass
• Version: With soft and self closing mechanism on both sides
• Application: For 1-leaf and 2-leaf sliding doors, For Silent Aluflex 80 door, top running
• Adjustment: Door height adjustable ±3 mm

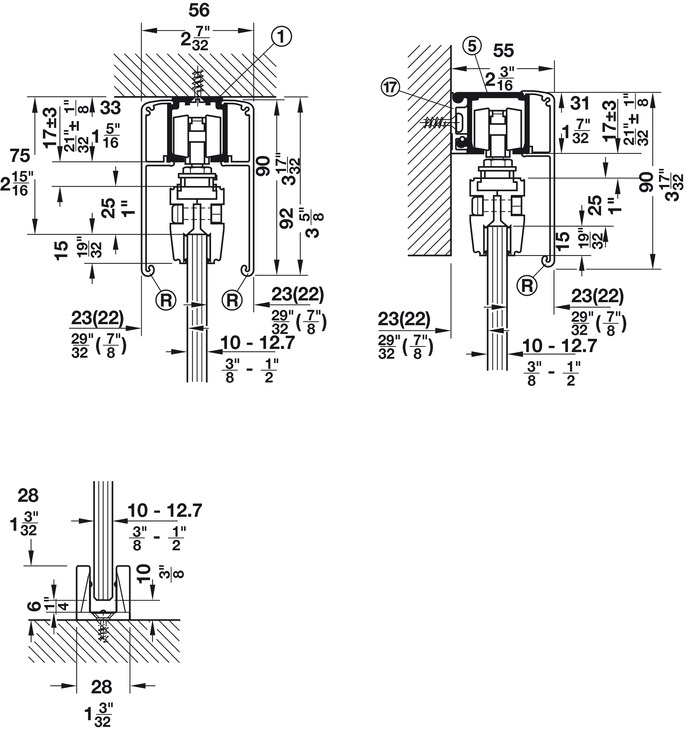

• Installation: Wall mounting and ceiling installation, suspension with flange clip, clamp connection (without tools and without glass drilling)
• Door weight: =80 kg
• For glass thickness: 10 and 12.7 mm (3/8" and 1/2"), laminated glass: 8–8.7 and 10–10.7 mm
• Door width: 889-1008 mm
• Supplied with:
  • 2 running gears with soft and self closing mechanism
  • 1 clear threshold floor guide

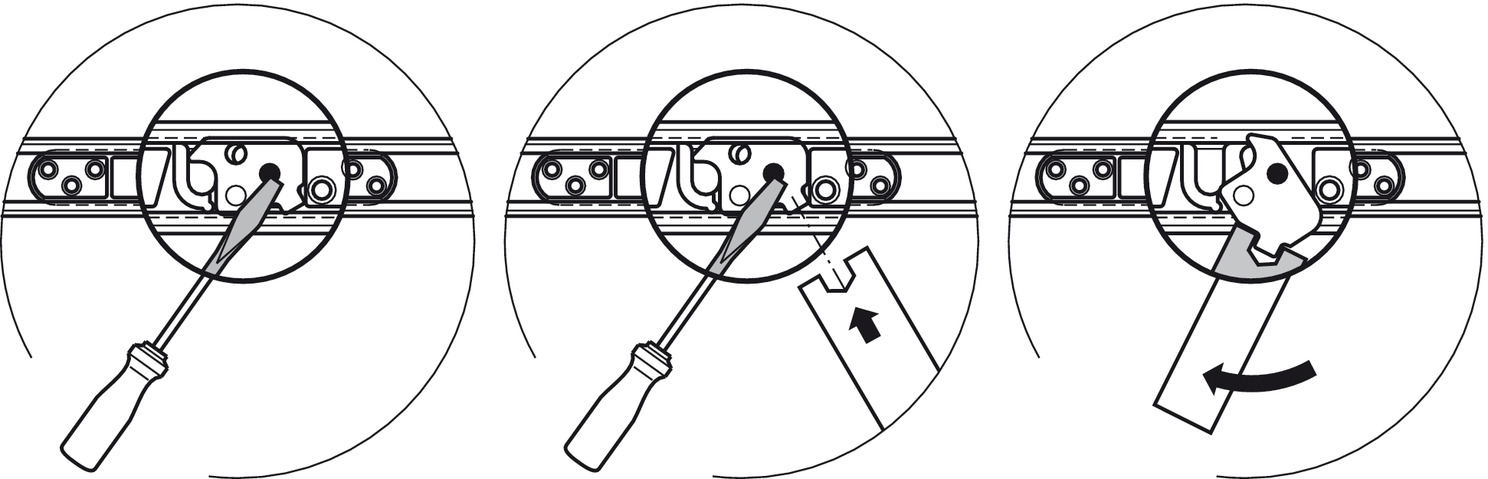

  • 2 release devices with stopper for soft and self closing mechanism
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Glass Clamp Shoe Set, Slido Classic 40-L to 120-L: 940.43.041, 940.43.043, 940.43.045, 940.43.067, 940.43.068, 940.43.069
• Single Running Track, Pre-drilled, W x H: 31 x 33 mm: 940.43.921, 940.43.922, 940.43.931, 940.43.932, 940.43.961, 940.43.962
• Double running track, Pre-drilled, W x H: 70 x 33 mm: 941.02.920, 941.02.930, 941.02.960
• Single running track, Pre-drilled, W x H: 47.5 x 47 mm: 940.43.920, 940.43.930, 940.43.960
• Mounting rail, Pre-drilled, width 19 mm: 941.25.821, 941.25.831
• Mounting rail, Pre-drilled, width 8 mm: 941.25.820, 941.25.830

Optional accessories:

• Track stopper: 940.42.070, 940.42.071, 940.42.072
• Sliding door locks: 941.24.022
• Track cleaner: 941.00.099
• Fixed Glass Fixing Profile, For Upper Running Track: 940.43.820, 940.43.860
• Cover for Unused Aperture, in Fixed Glass Fixing Profile: 940.43.038
• Fixed Glass Fixing Profile, For Wall or Floor: 940.43.822, 940.43.862
• Gasket, For Glass Thickness (3/8") 10mm: 940.43.035
• Mounting bracket, for Häfele Slido Classic: 940.42.061, 940.42.063, 940.62.061
• Wrench, for Height Adjustment: 940.43.032
• Retaining Bolts and Screws, For running track and mounting rail: 941.25.090
• Floor Guide, For glass sliding doors: 940.82.030
• Centering Door Stop, For glass thickness 8, 10, 12 mm: 940.82.070
• Clip-On Cover, Height 52 mm, for glass clamp shoe: 940.43.123, 940.43.133, 940.43.163
• Clip-On Fascia, For Running Track: 941.25.720, 941.25.760
• Clip panel, For running track, for integration in suspended ceilings: 940.43.620, 940.43.630
• End Cap Set, For Clip-On Fascia Cover: 941.25.030, 941.25.032, 941.25.038, 941.25.039
• End cap set, for running track and panel ?: 940.43.028, 940.43.037
