Hafele 940.82.140

• Sliding door fitting
• Model: 80-L
• Without soft and self closing mechanism

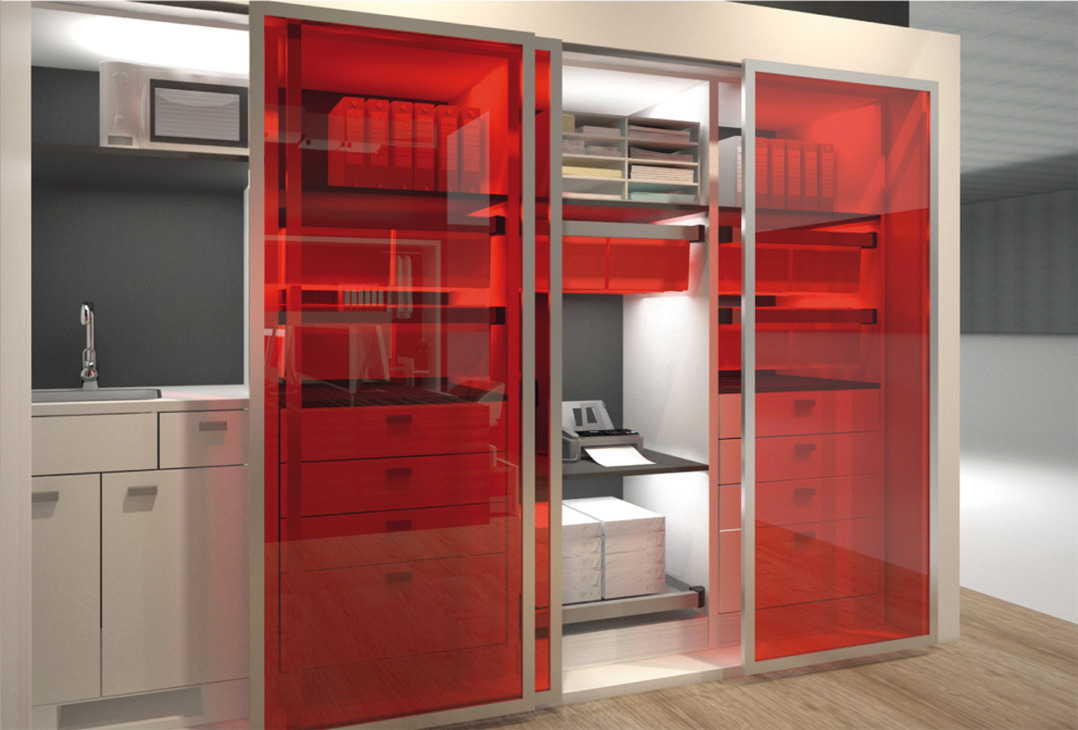

• Area of application: Aluminium frame doors for wooden or glass/mirror panels
• Adjustment facility: Height adjustment: ±3 mm (1/8")
• For door weight: = 80 kg (176 lbs.)
• For door width: 500 - 1200 mm (19-11/16" - 47-1/4")
• For door height: = 2500 mm (98-7/16")

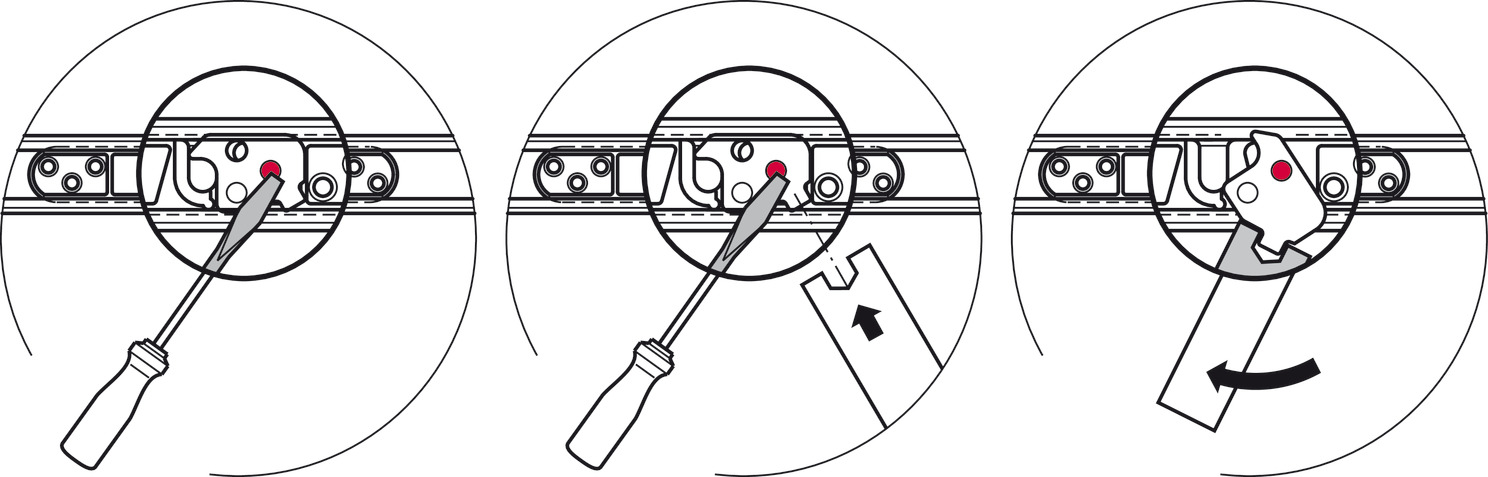

• Installation: Positive-fit clamp connection (without tools)
• Number of doors: 1
• Number of doors per system max.: 1 to 2

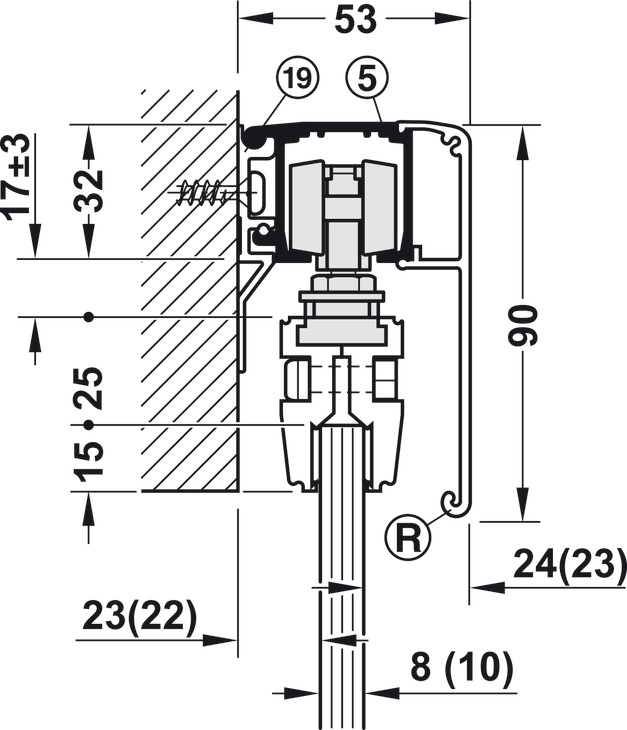

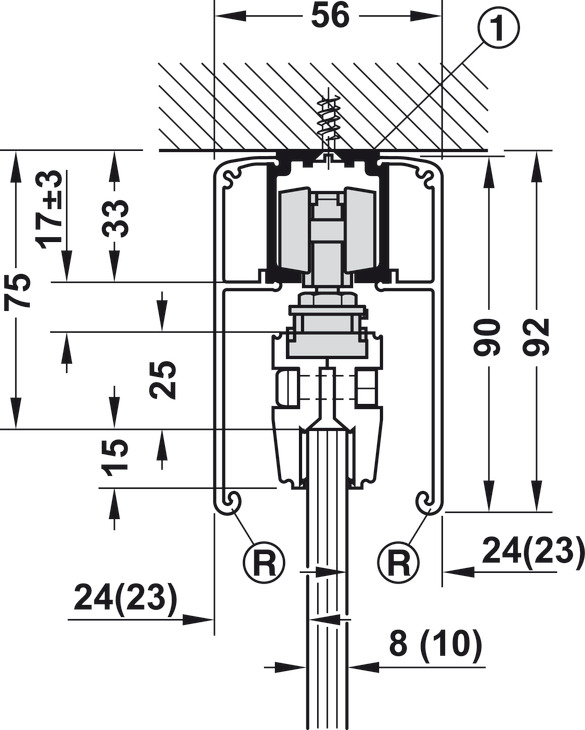

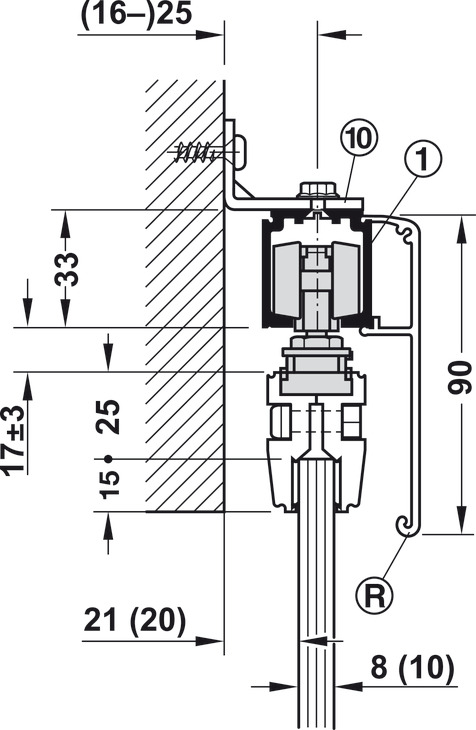

• Controller installation options: Ceiling installation, wall mounting
• Material/finish:
  • Running gear: Steel
  • Guide rollers: Plastic
  • Axis: Steel
• Supplied with:

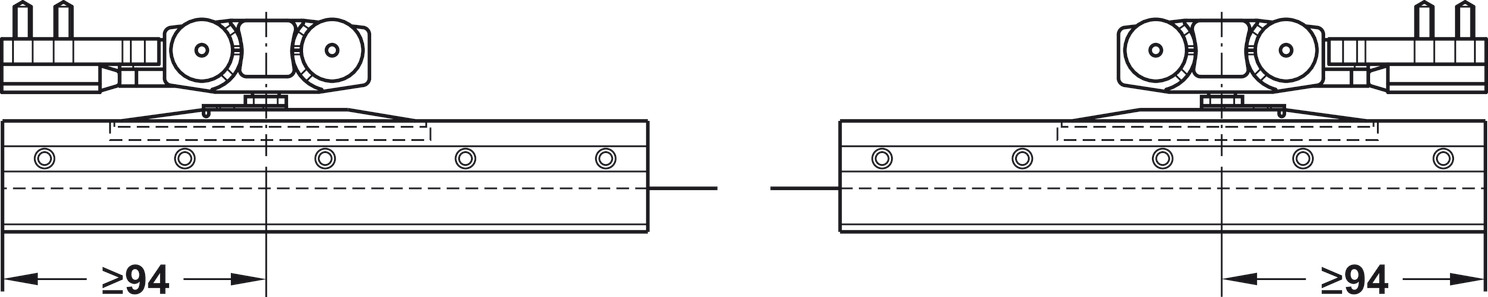

  • 2 Running gears

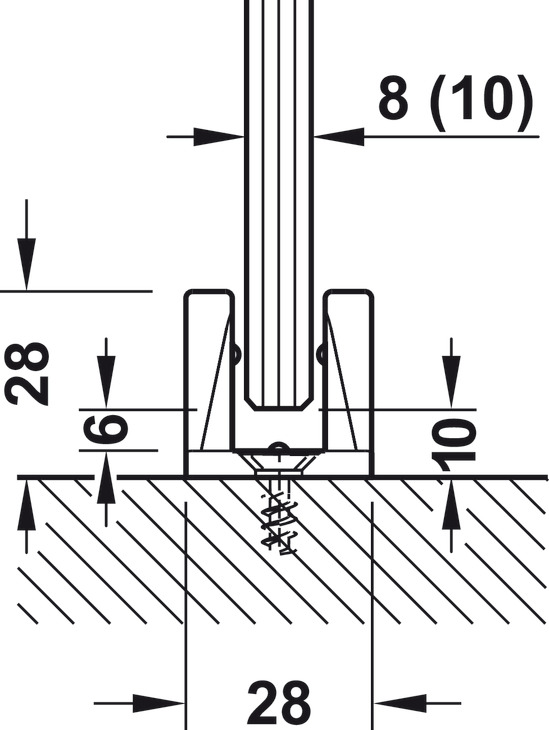

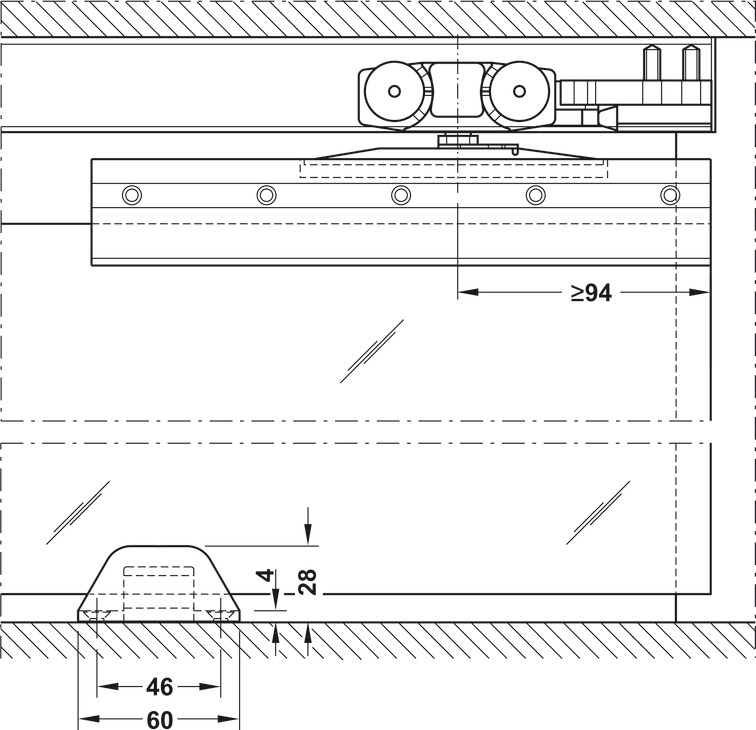

  • 1 Floor guide
  • 2 Clip-in door stoppers
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Additional information:
  • Wooden and glass panels possible.
  • PETG and acrylic glass panels cannot be used due to the torsional stiffness of the material.
  • A special service for you is our Service+ Customised - customised configuration of Silent Aluflex systems.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

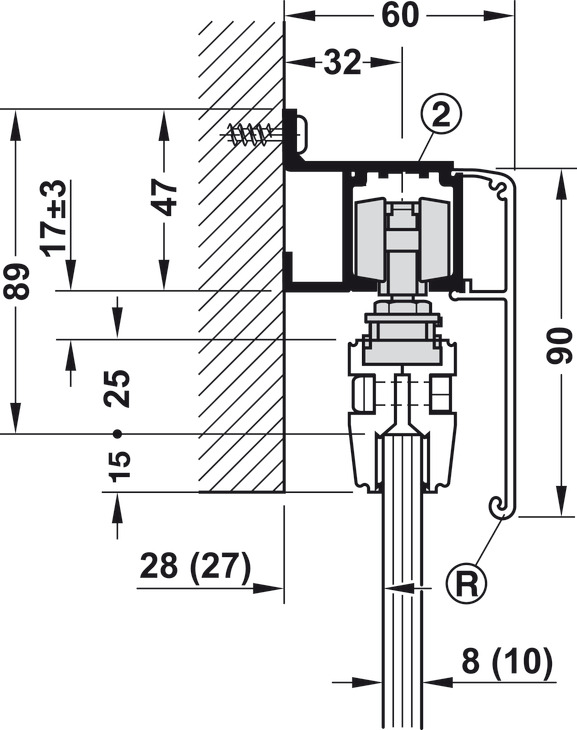

• Single Running Track, Pre-drilled, W x H: 31 x 33 mm (1-7/32" x 1-5/16")
• Mounting Rail, Pre-drilled, 8 mm (5/16") Width
