Hafele 940.80.120

• Sliding Door Hardware
• Hawa Junior 80/B-Pocket
• Application: For 1-leaf sliding doors for wall pocket installation
• Without running track
• Version: With long hanger bolt (+20 mm)

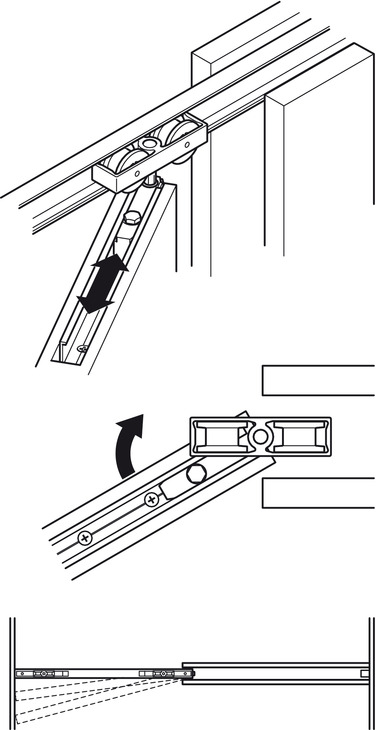

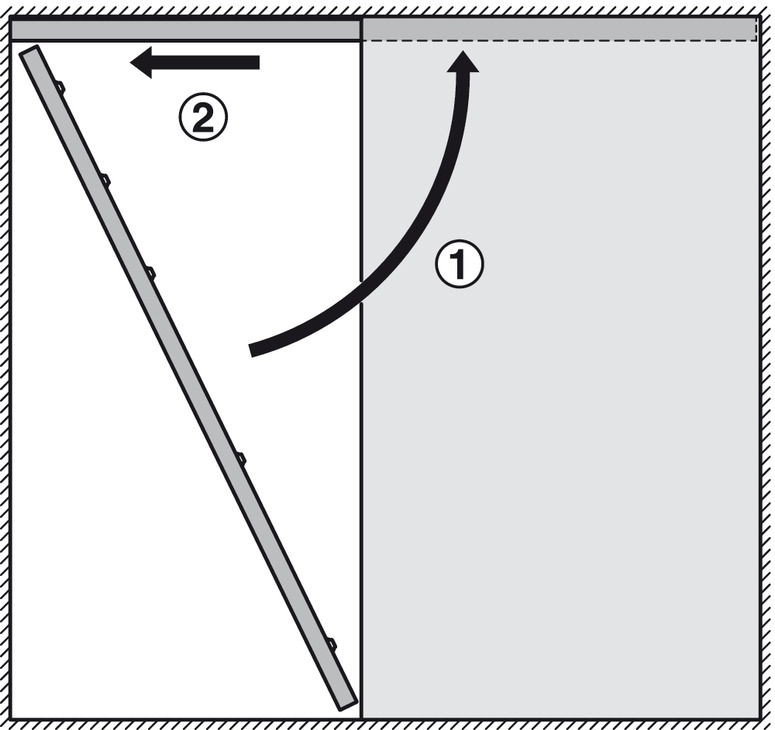

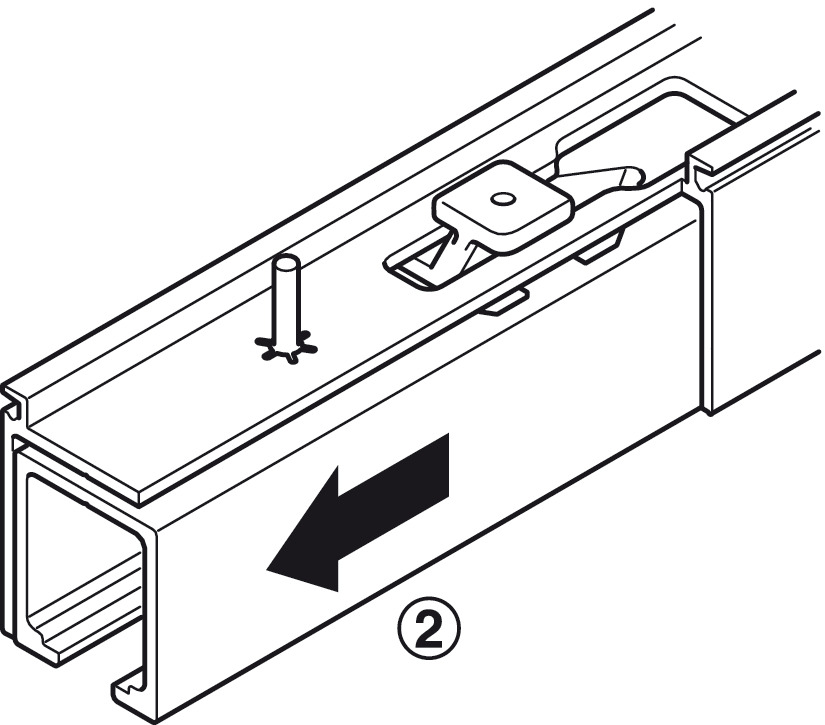

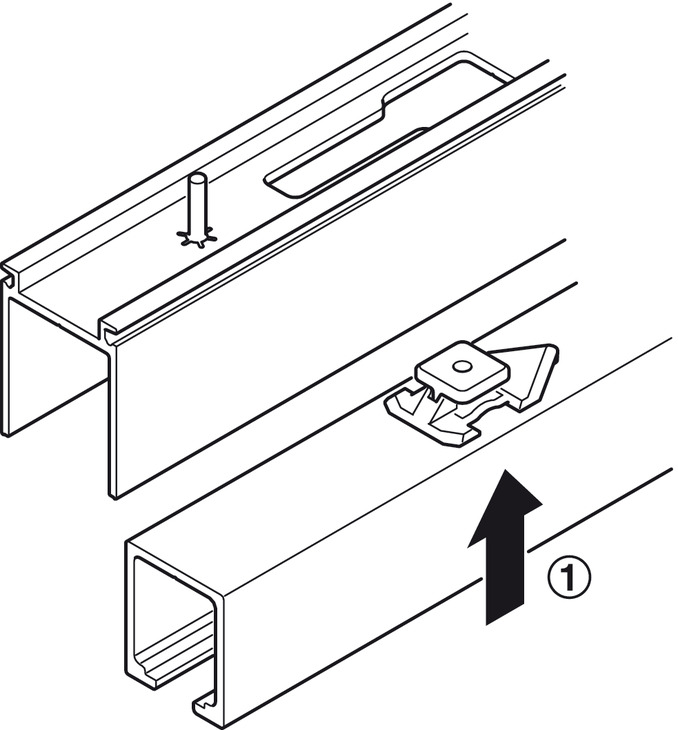

• Functionality: Running track can be removed after installation without wall opening, running gear and soft and self closing mechanism can be removed, stopper position inside wall pocket can be adjusted after installation
• Standard: Certified in compliance with EN 1527:1998
• Class: 6 2 0 - 0 - 1 3
• Door width: (27-9/16" - 59-1/16") 700-1,500 mm
• Door weight: (176 lbs) 80 kg
• Door thickness: up to (1-3/16") 30 mm
• Features: Min. installation height
• For door weight up to: 80 kg
• Adjustment:

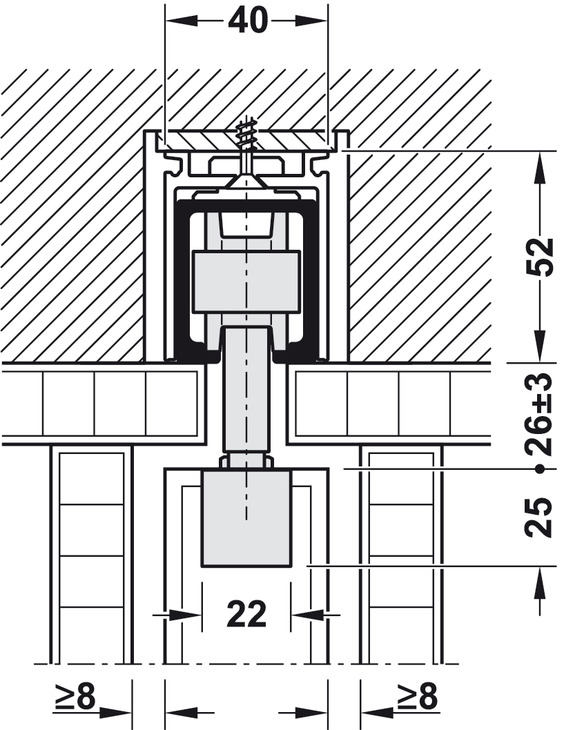

  • Door height adjustable +/- (1/8") 3 mm, with integrated anti-twist protection
  • Horizontal adjusting distance in lengthways direction in bayonet mount +/-( 5/16") 8 mm
• Supplied with:

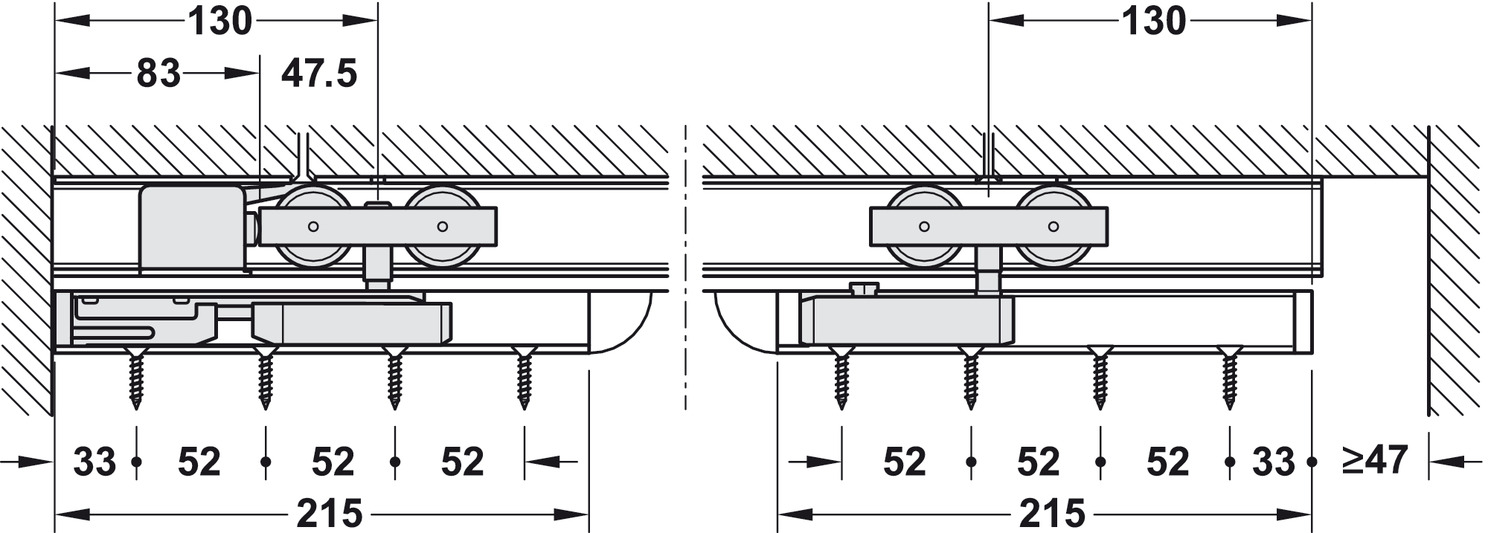

  • 2 running gears (2 rollers) with support profile, suspension carriage and long hanger bolt M10 (+20 mm)
  • 1 track buffer with retaining spring
  • 1 wall buffer

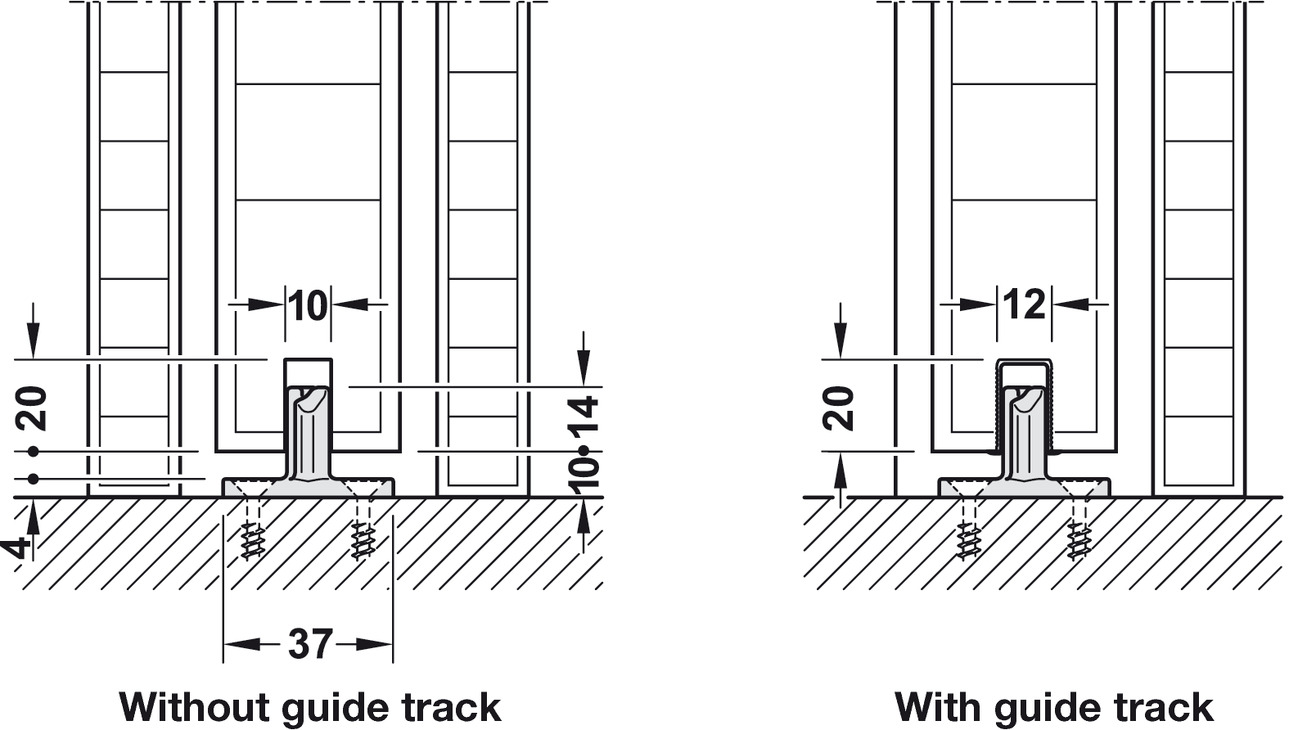

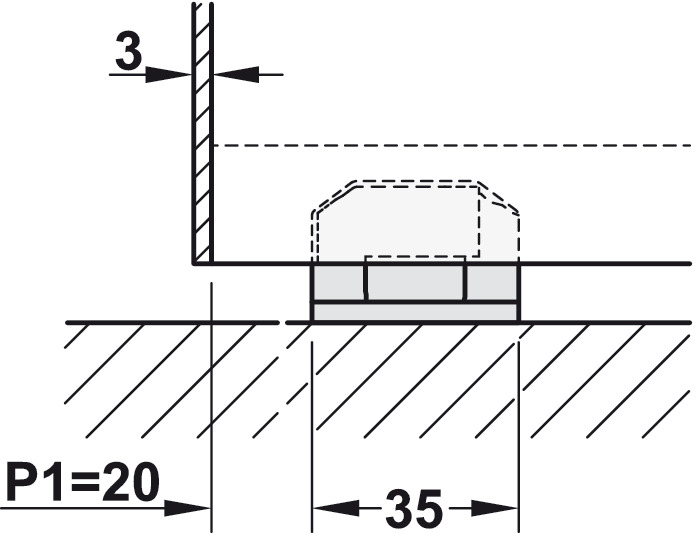

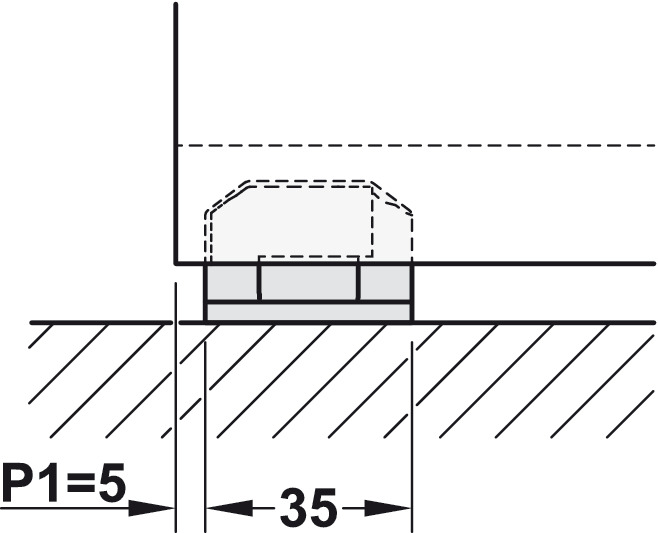

  • 1 floor guide with zero clearance
  • 1 spanner for suspension carriage
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, pre-drilled, door weight up to 80 kg: 940.80.140, 940.80.160, 940.80.180, 940.80.200, 940.80.220, 940.80.250, 940.80.300, 940.80.400, 940.80.600
• Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in: 940.41.130

Optional accessories:

• SoftMove 80 soft and self closing mechanism: 940.80.046
• Track Stopper, with Adjustable Retention Spring: 940.80.040
