Hafele 940.80.090

• Sliding Door Hardware
• Hawa Telescopic 80/G

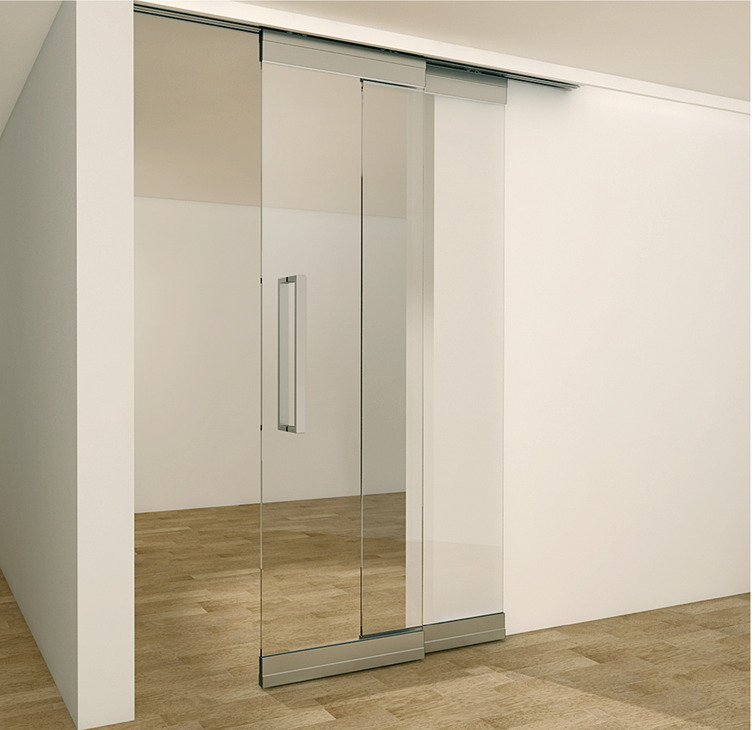

• Application: For telescopic opening of 2 sliding doors to the right and to the left

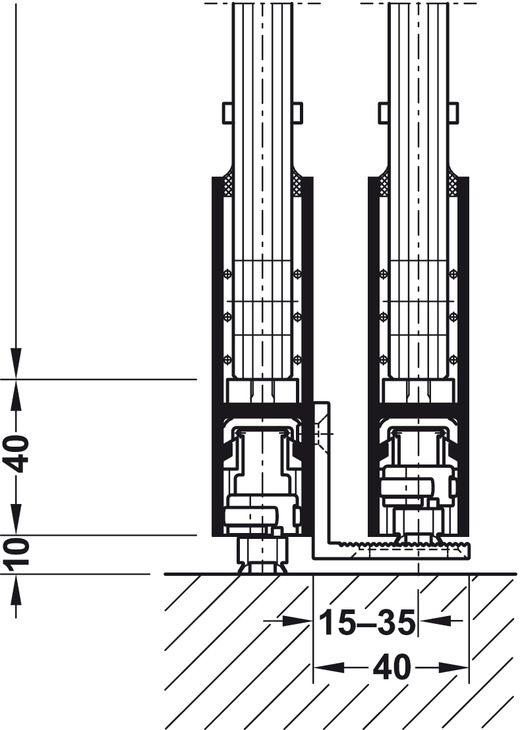

• Without running track, with floor guide
• Smooth quiet operation
• Maintenance-free
• Suspension by positive-fit glass connection with glass holder
• Door height adjustable
• Door weight Max: (176 lbs) 80 kg
• For glass thickness: (5/16 - 5/8") 8 - 16 mm
• For door width: (19-11/16" - 39-3/8") 500 - 1000 mm
• Supplied with:
  • 4 x running gear
  • 4 x suspension block
  • 4 x cover cap
  • 8 x glass holder
  • 3 x suspension block
  • 1 x track stopper
  • 2 x deflection roller
  • 1 x follower
  • 1 x toothed belt
  • 1 x clamp
  • 1 x driver counter plate
  • 1 x buffer
  • 2 x guide
  • 3 x suspension block
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, pre-drilled, door weight up to 80 kg: 940.80.140, 940.80.160, 940.80.180, 940.80.200, 940.80.220, 940.80.250, 940.80.300, 940.80.400, 940.80.600
• Lower Guide Channel, Pre-drilled: 946.03.600

Optional accessories:

• Support and Glass Suspension Profile, For glass thickness: (3/16 - 13/32") 8-10 mm: 942.56.765
• Support and Glass Suspension Profile, For glass thickness: (15/32 - 5/8") 12-16 mm: 942.56.865
• Cover Cap, for Glass Suspension Profile (15/32 - 5/8") 12-16 mm: 940.84.024
• Glass Holder Insert, with M6 x 30 (1-3/16") Screw: 940.40.032
• Single Lower Guide, Zero clearance, for glass thickness 8, 10, 12 (12.7) mm: 940.40.052, 940.40.053
• Lower Guide, with Slider and Suspension Block: 946.12.060
