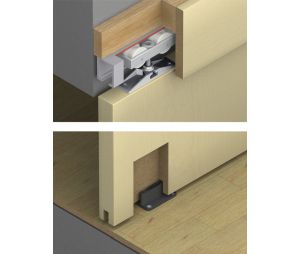

Hafele 940.80.001

• Sliding Door Hardware
• Hawa Junior 80/Z

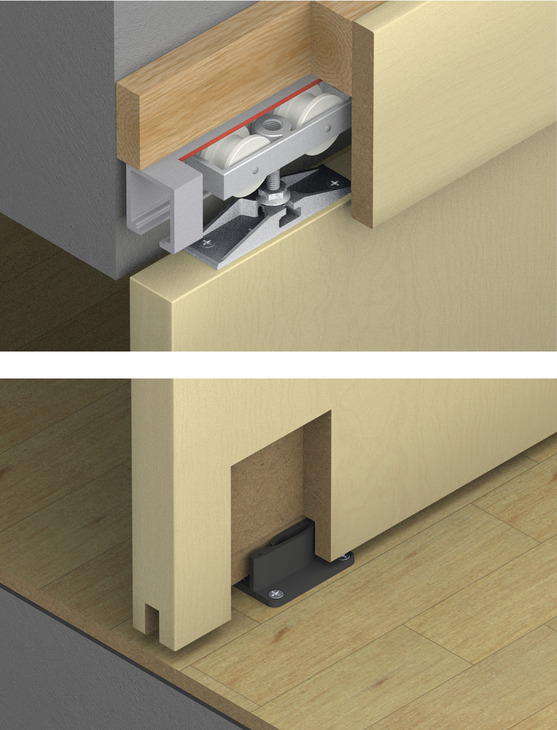

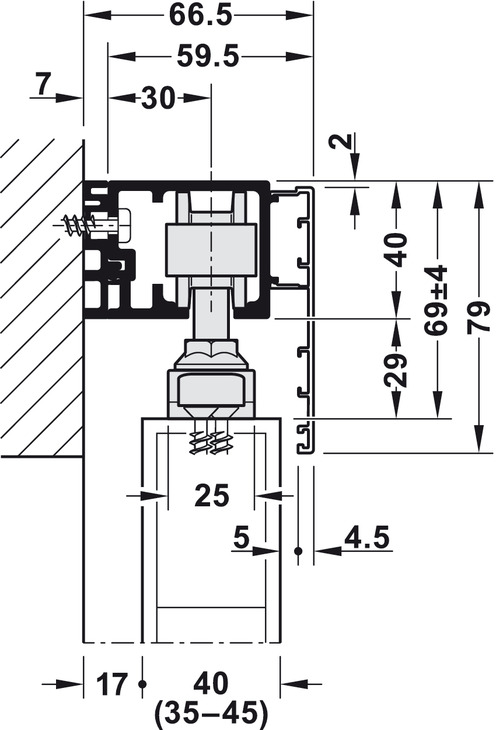

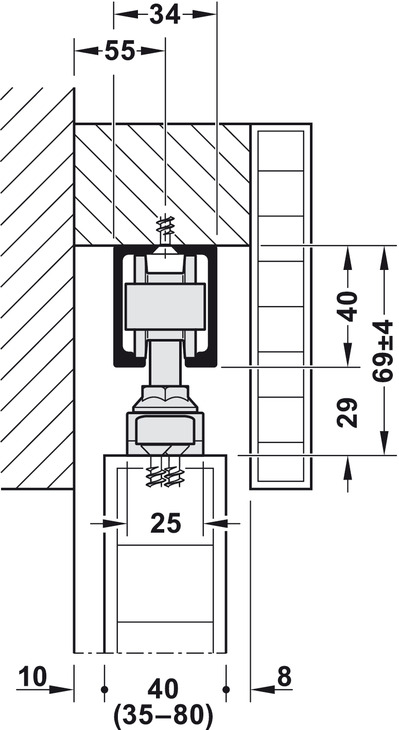

• Top Hung System
• Version: With 1 track buffer/1 wall buffer

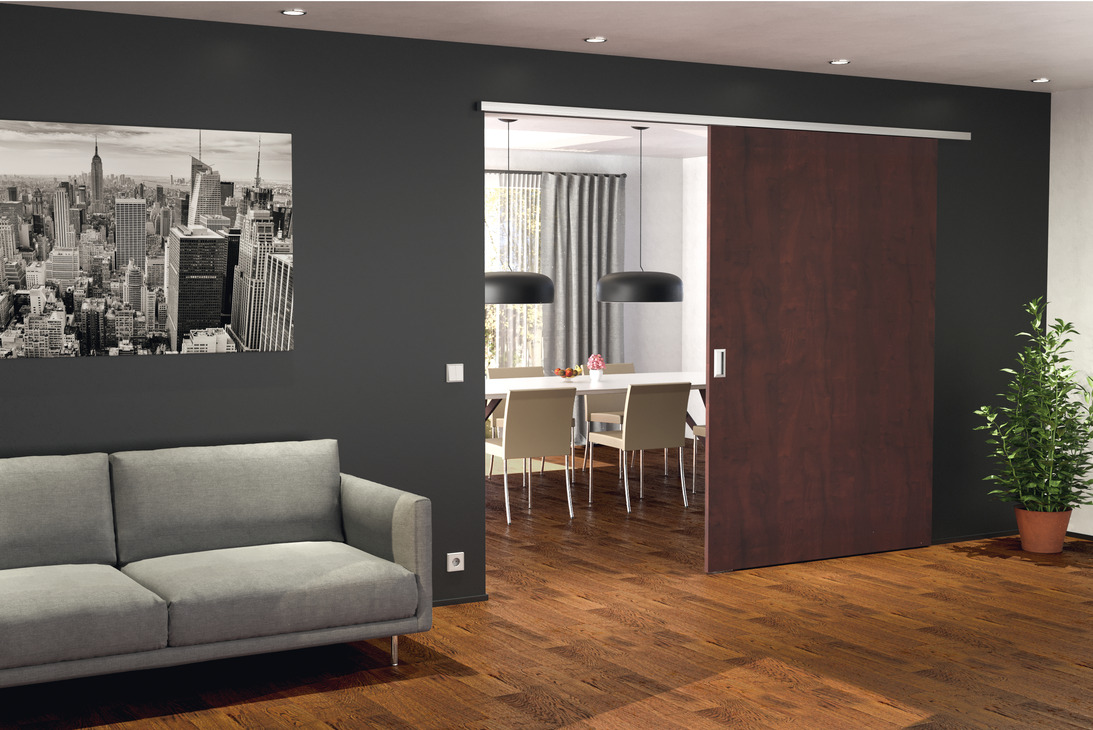

• Application: For 1-leaf sliding doors
• Smooth quiet operation
• Outstanding durability
• Rattle-free bottom guide
• Simple installation
• Special two-way suspension
• Vertically and laterally adjustable
• Door stop with adjustable retention spring
• Load bearing capacity: (176 lbs.) 80 kg
• For door thickness: (1") 26 mm

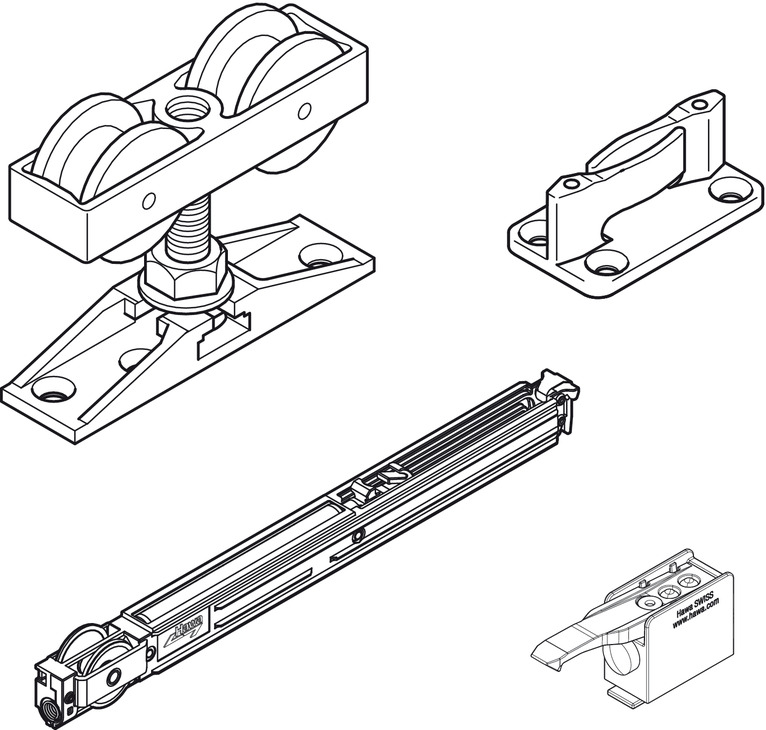

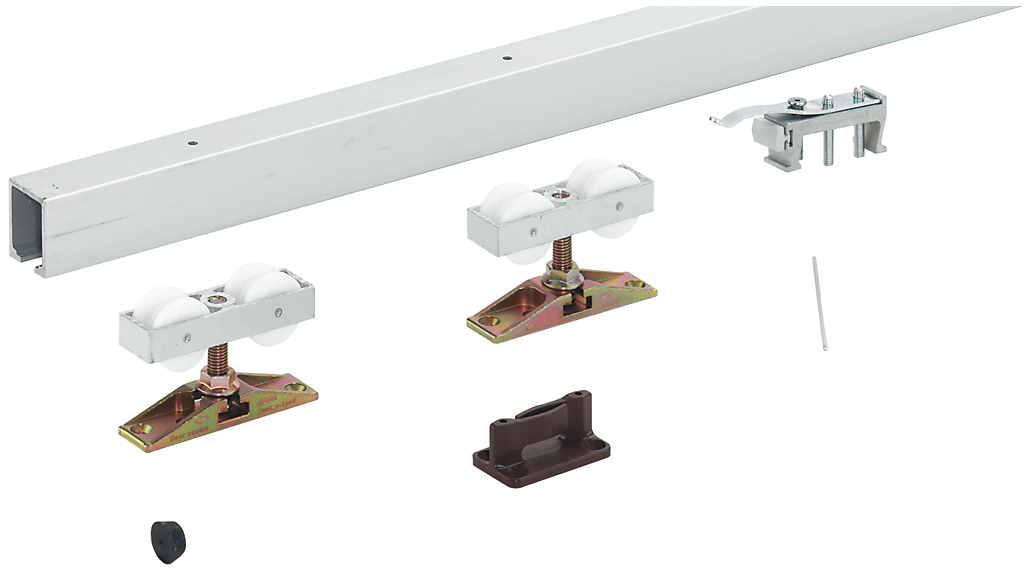

• Supplied with:
  • 2 running gears
  • 2 two-way suspension fittings with hanger bolts and nut, M10

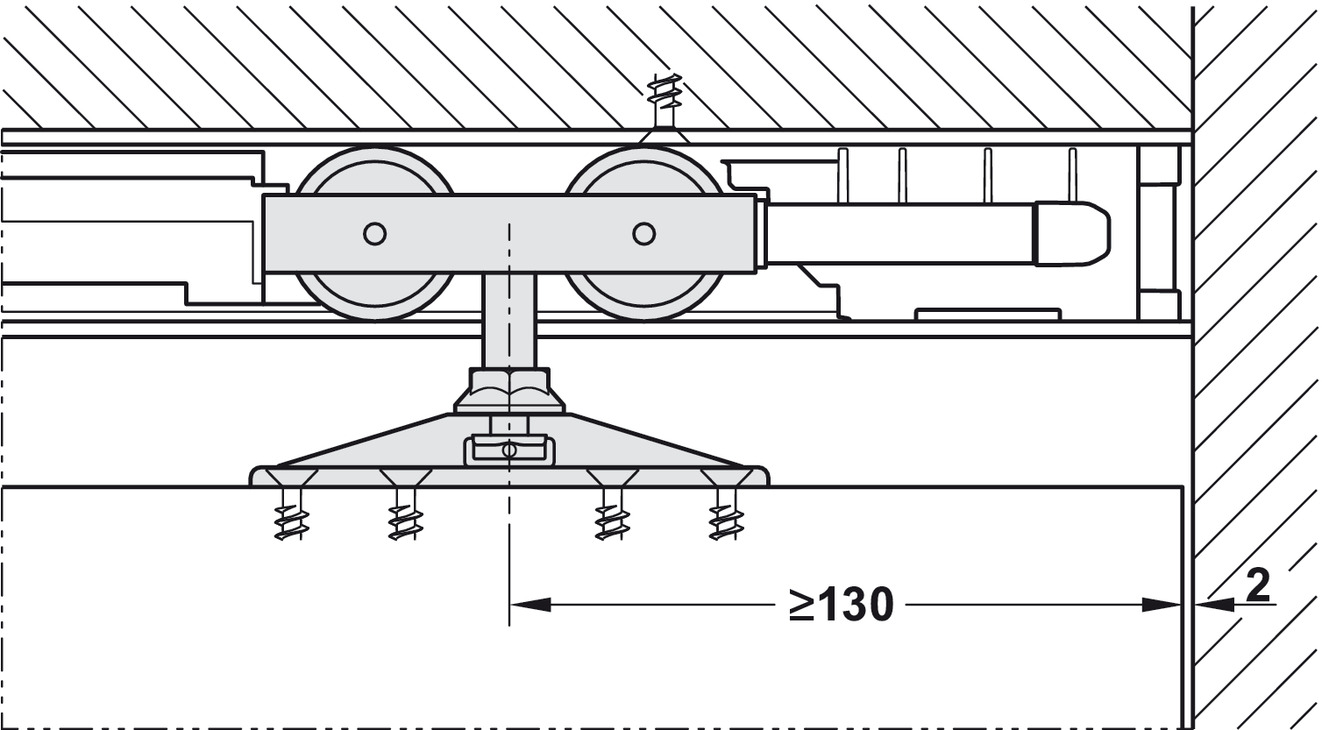

  • 1 track buffer with retaining spring

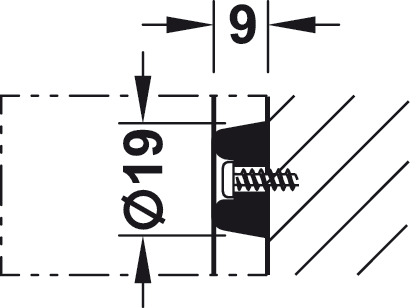

  • 1 wall buffer

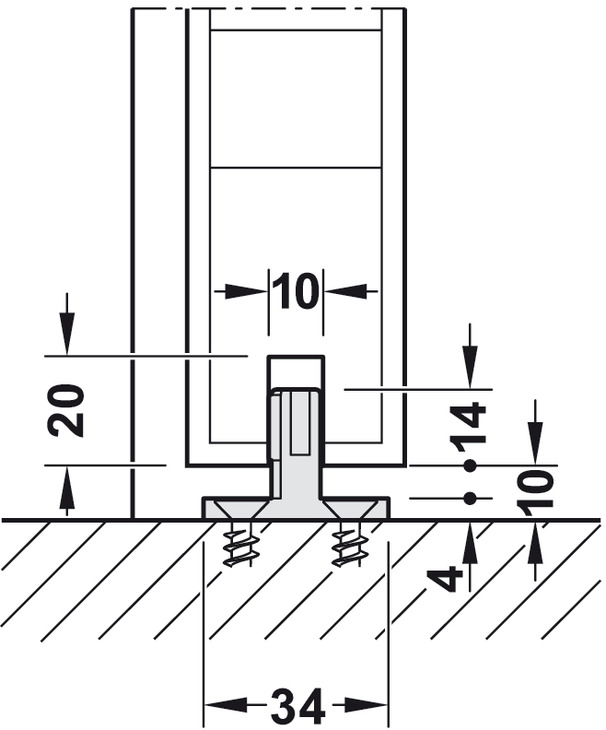

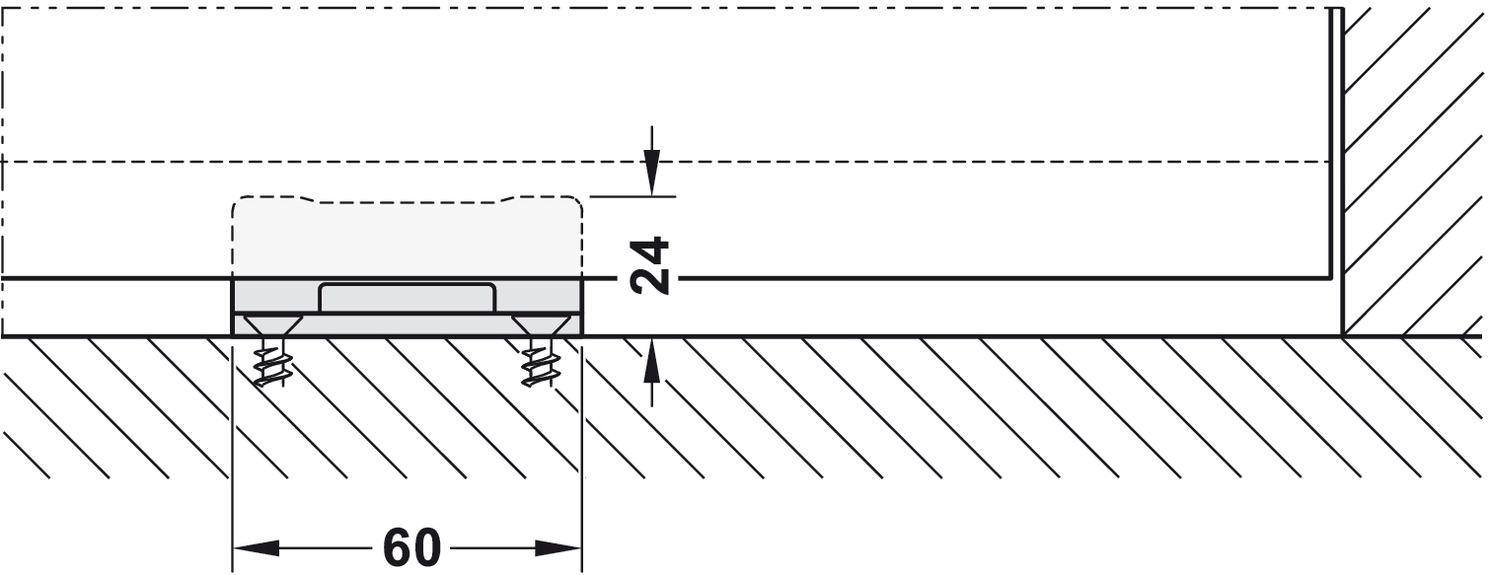

  • 1 floor guide with zero clearance
  • 1 height adjusting pin
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

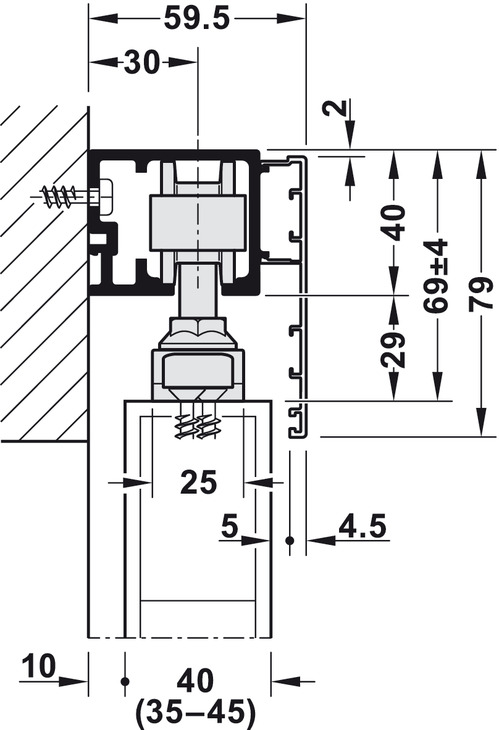

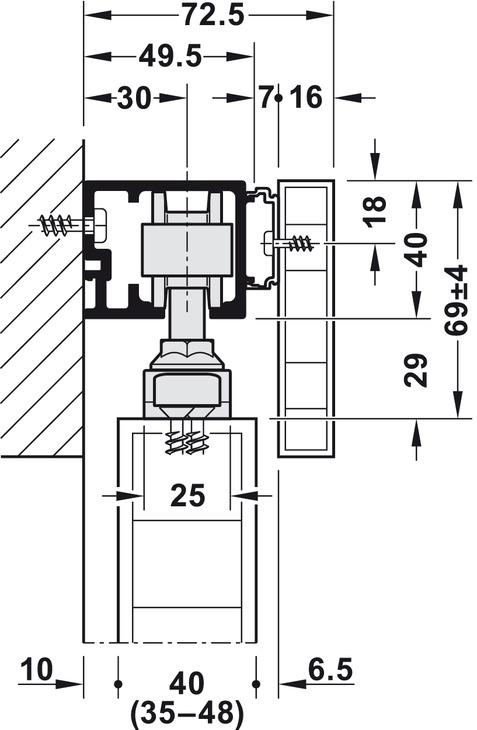

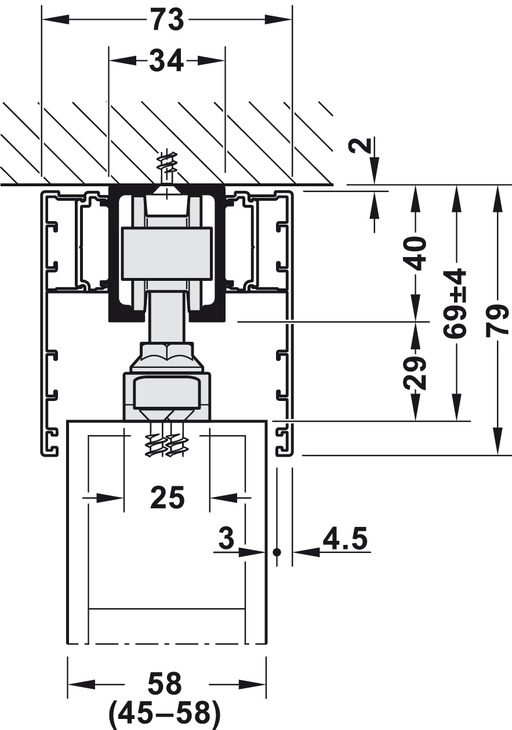

• Upper Track, pre-drilled, door weight up to 80 kg: 940.80.140, 940.80.160, 940.80.180, 940.80.200, 940.80.220, 940.80.250, 940.80.300, 940.80.400, 940.80.600

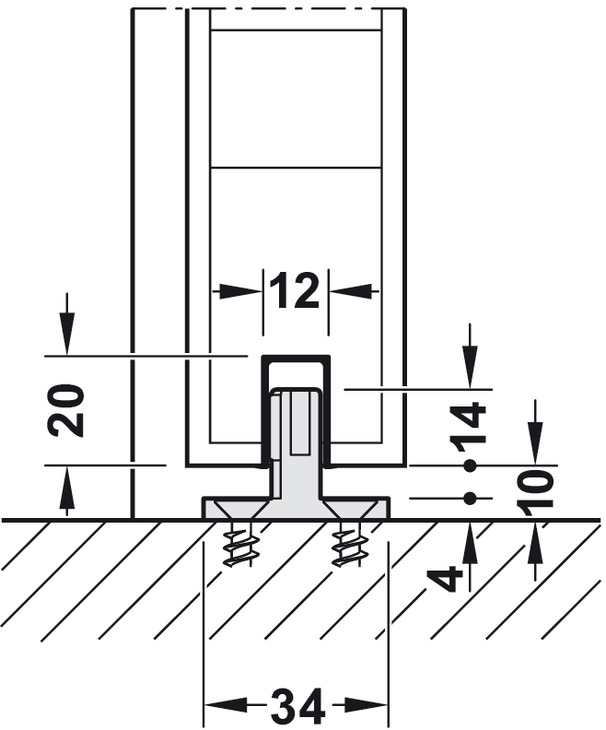

• Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in: 940.41.130

Optional accessories:

• Soft and self closing mechanism: 940.80.043
• Mortise locks: 946.21.100
