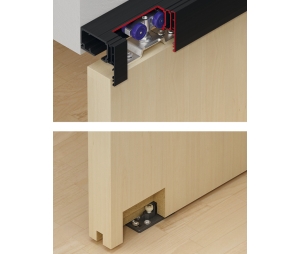

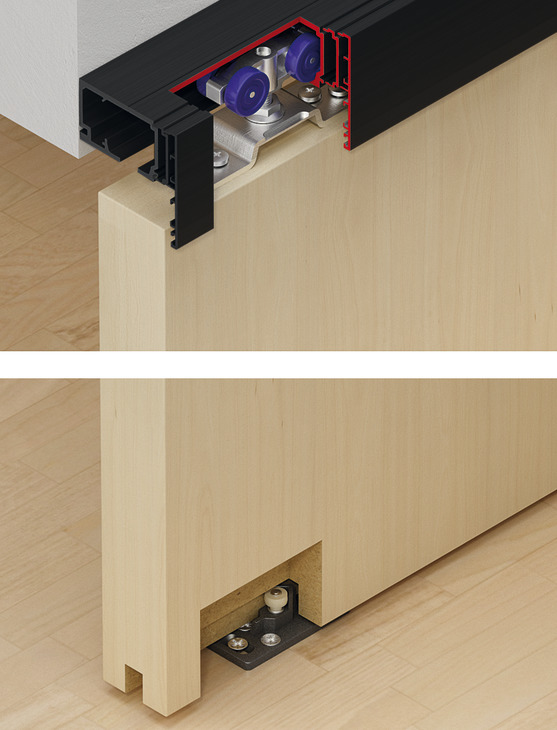

Hafele 940.60.134

• Sliding door fitting
• Model: 60 H/HC
• With soft closing mechanism (optional)
• Area of application: For 1-leaf and 2-leaf sliding doors
• For door material: Wood
• For door weight: = 60 kg (132 lbs.)
• For door height: = 2700 mm (8' 10-5/16")
• For door width: = 1600 mm (5' 3")

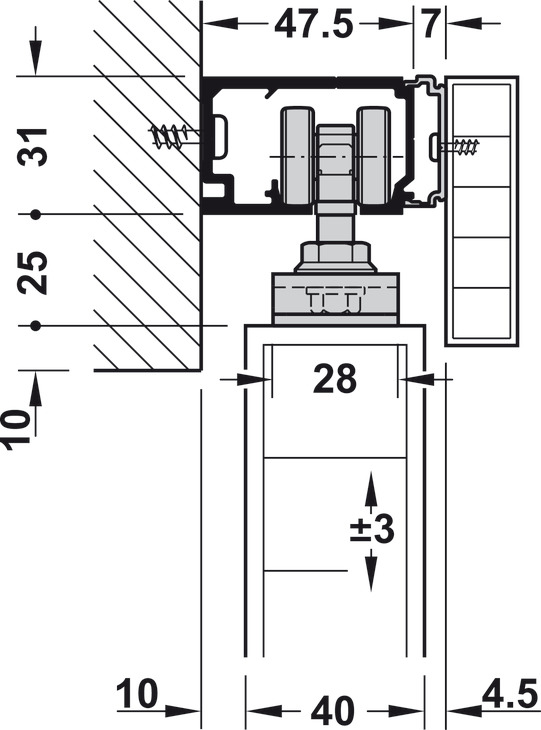

• For door thickness: 28 - 40 mm (1-1/8" - 1-9/16")

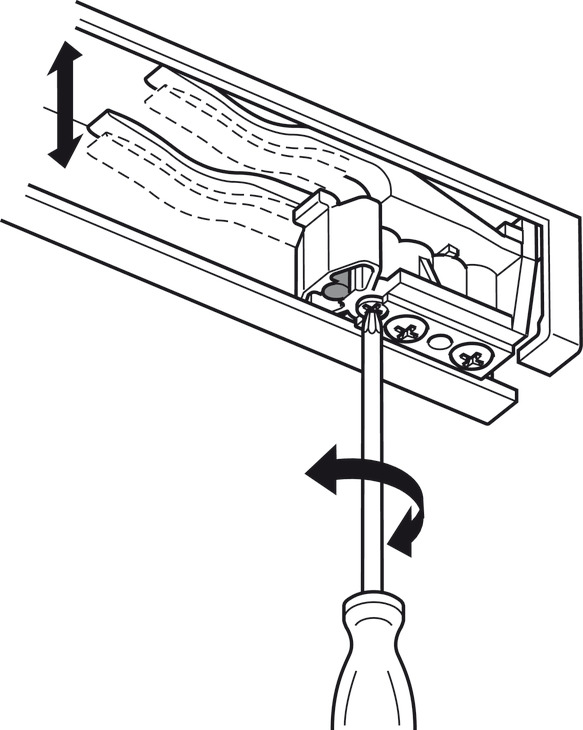

• Height adjustment: ±3 mm (1/8")
• Number of doors per system max.: 1 to 2
• Number of doors: 1

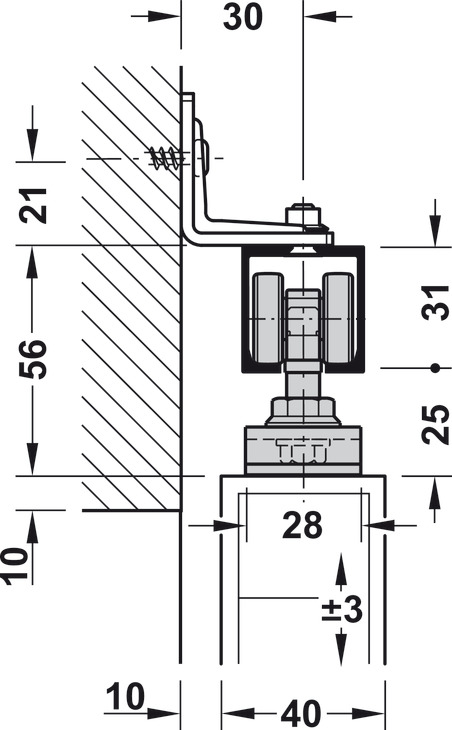

• Controller installation options: Wall mounting
• Running position: Top
• Door processing: For screw fixing
• Finish: Black
• Supplied with:

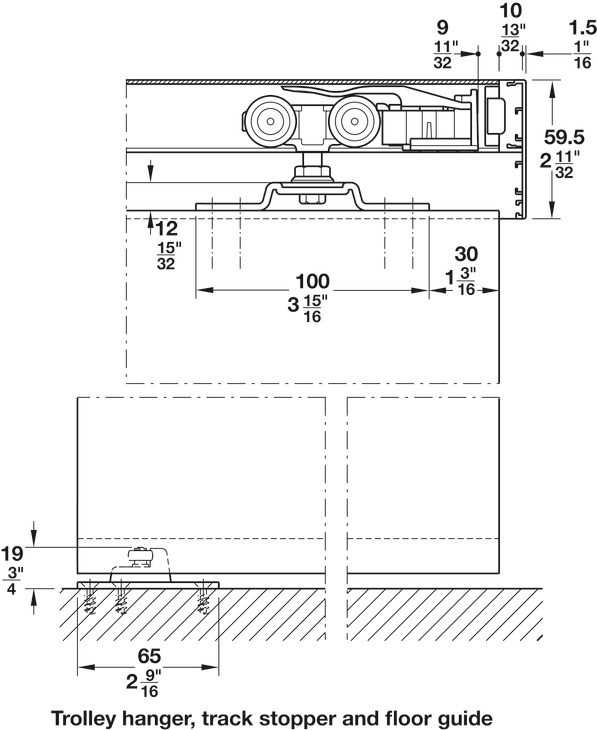

  • 2 Running gears with suspension screw and nut, M8

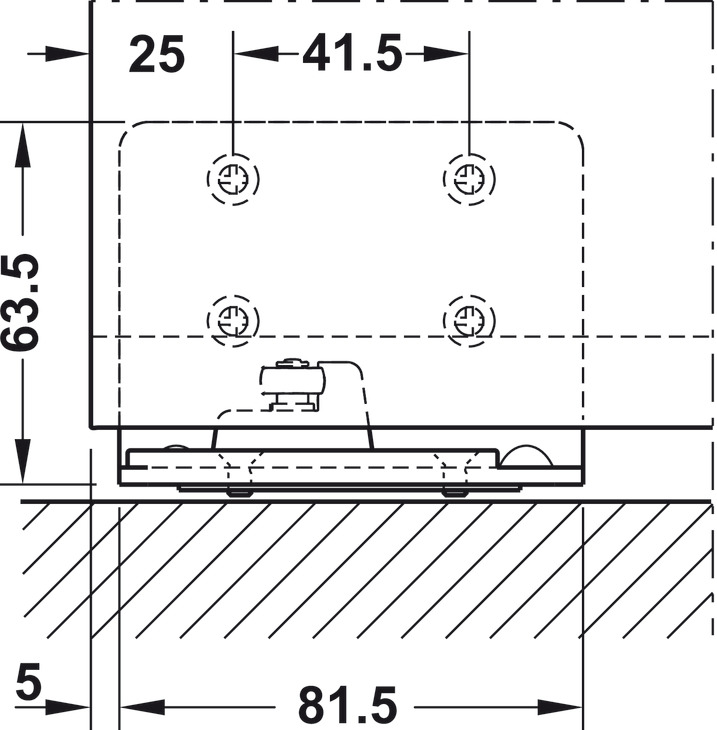

  • 2 Support flanges
  • 2 Track stoppers with retaining spring

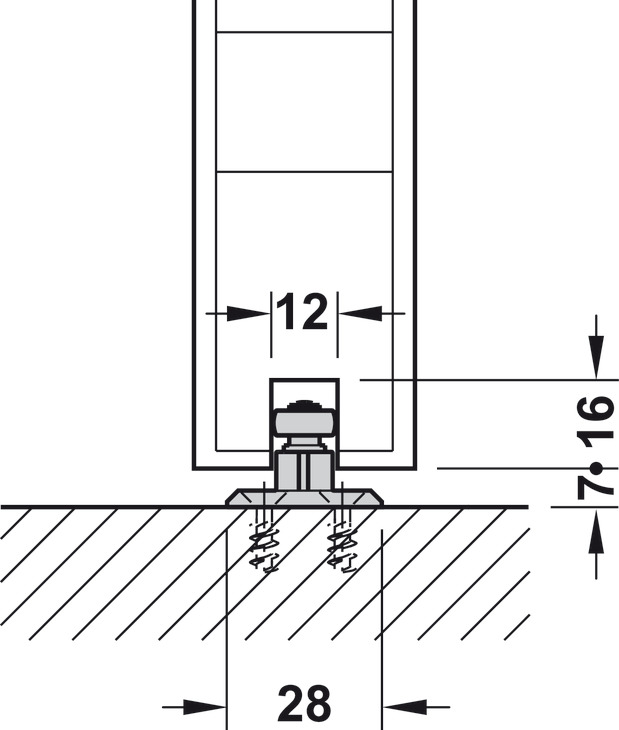

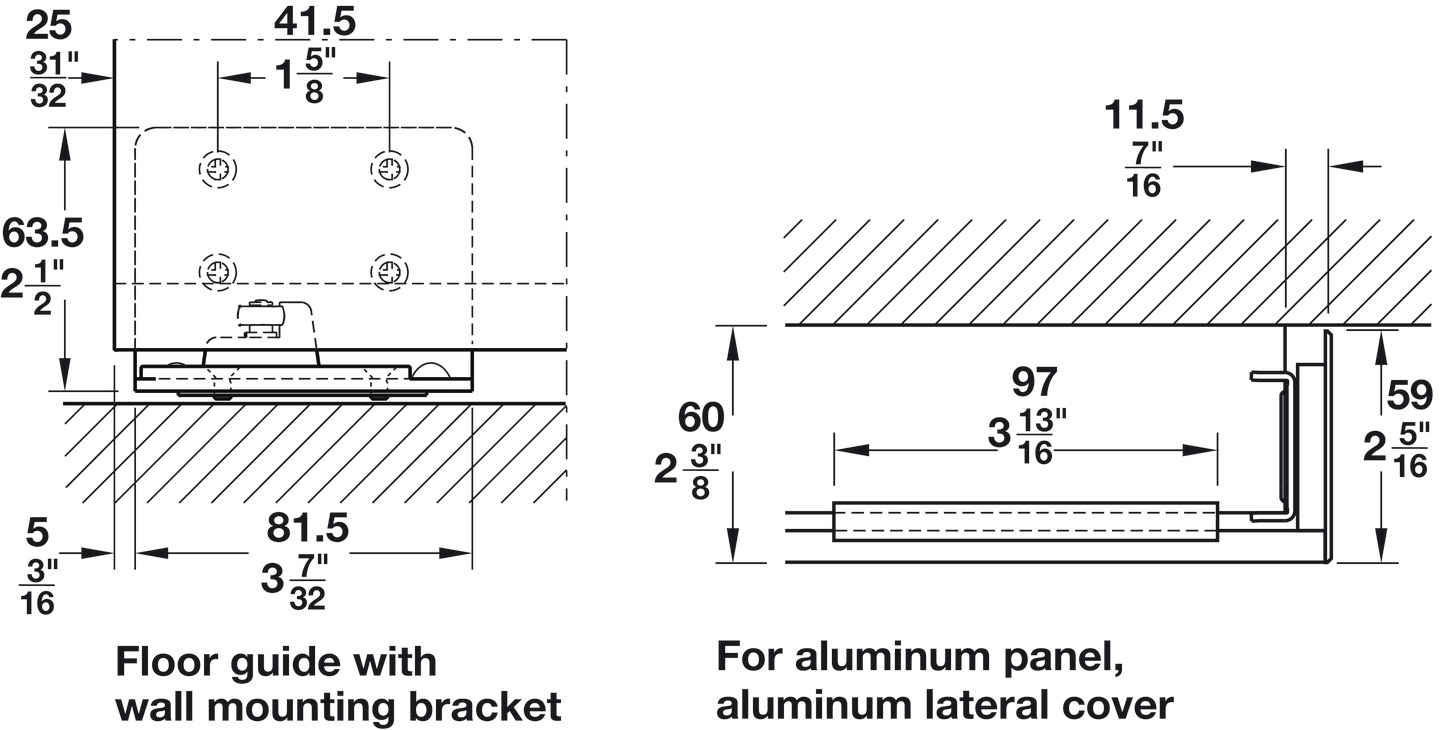

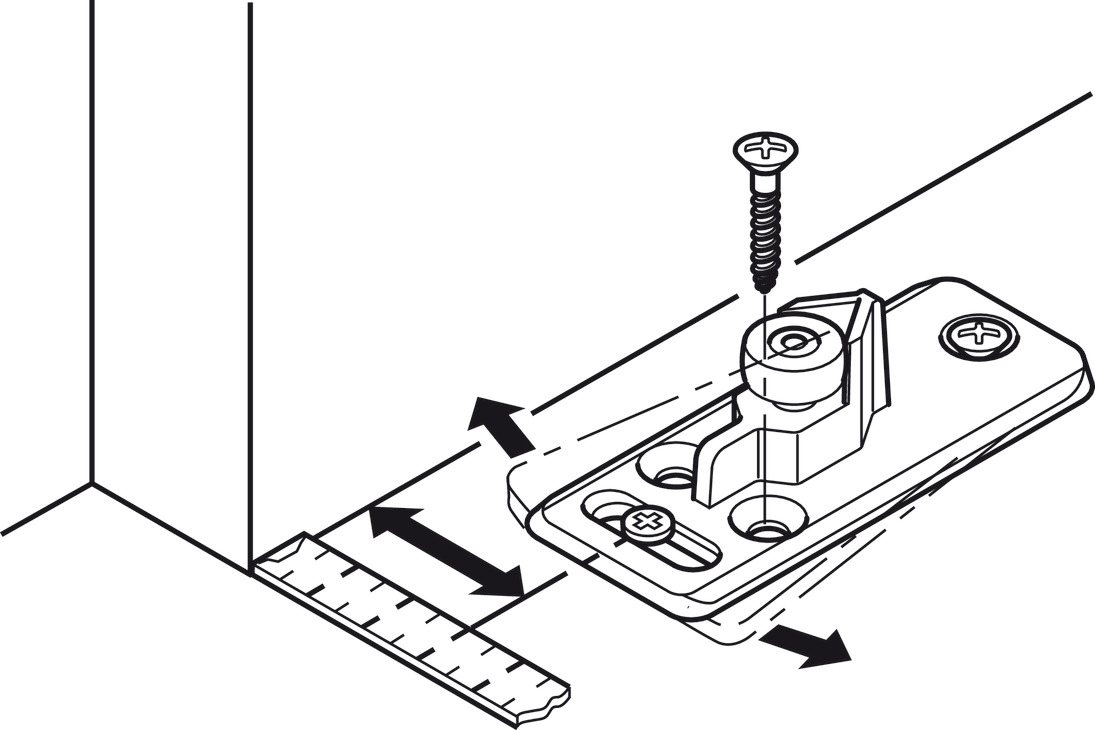

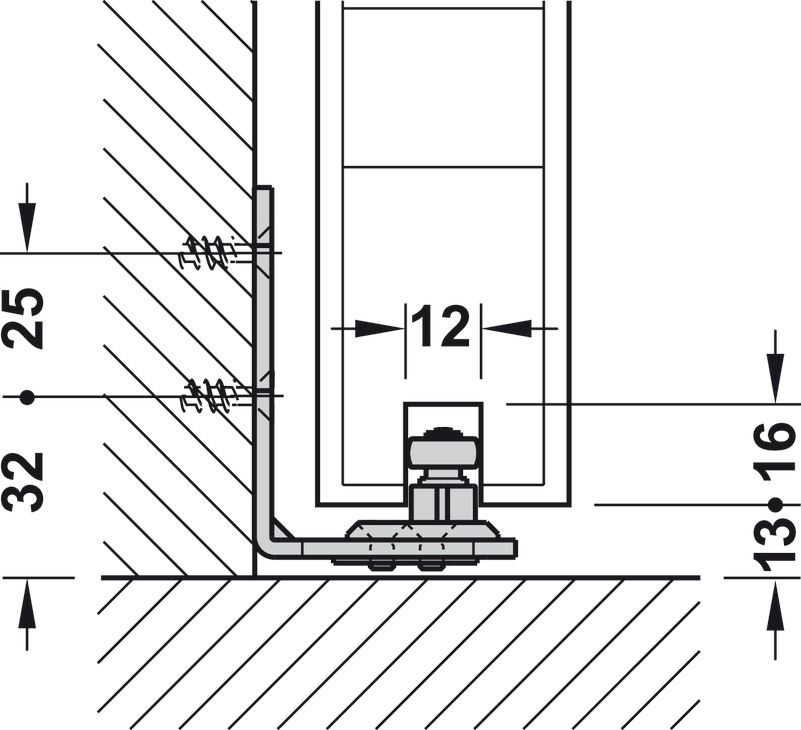

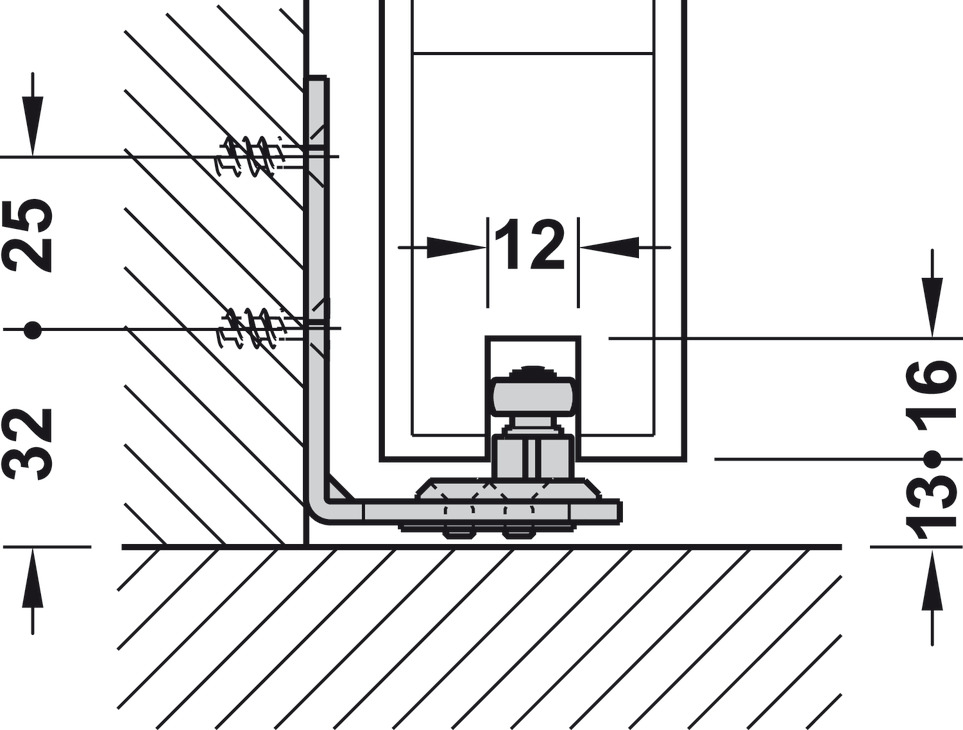

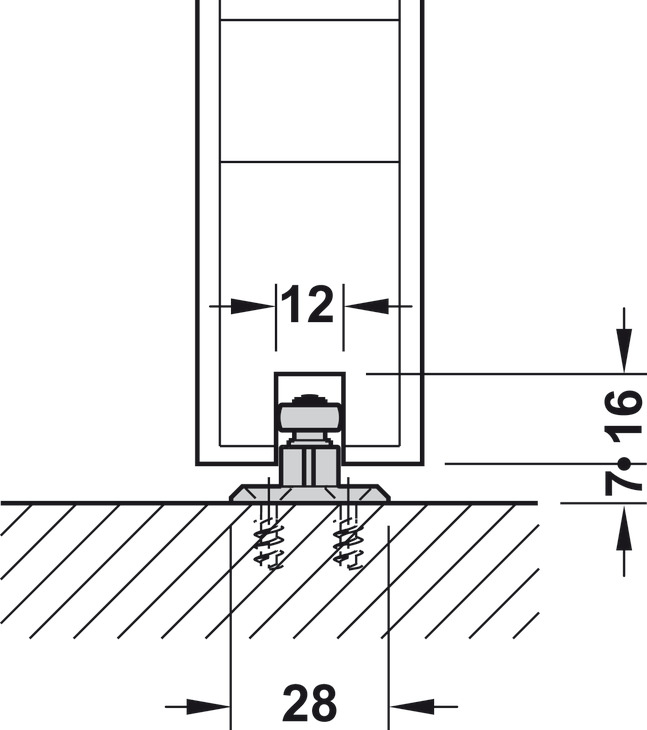

  • 1 Floor guide, adjustable
  • 1 Set of fixing screws
• Order reference: Please order 2 sets for 2-leaf sliding doors.
• Additional information: Dormotion soft and self closing mechanism (optional)
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

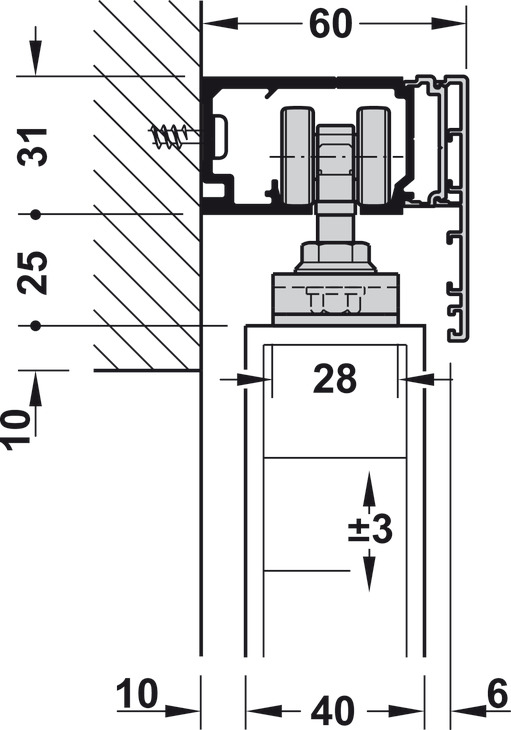

• Single Running Track, Pre-drilled, For Wall Mounting or Ceiling Installation, 39 x 41 mm (1-17/32" x 1-5/8") (W x H)
• Dual Running Track, Aluminum, Anodized
• Triple Running Track, Pre-drilled, 111 x 31 mm (4-3/8" x 1-7/32") (W x H)
• Running Track, Pre-drilled, 47.5 x 31 mm (1-7/8" x 1-7/32") (W x H)

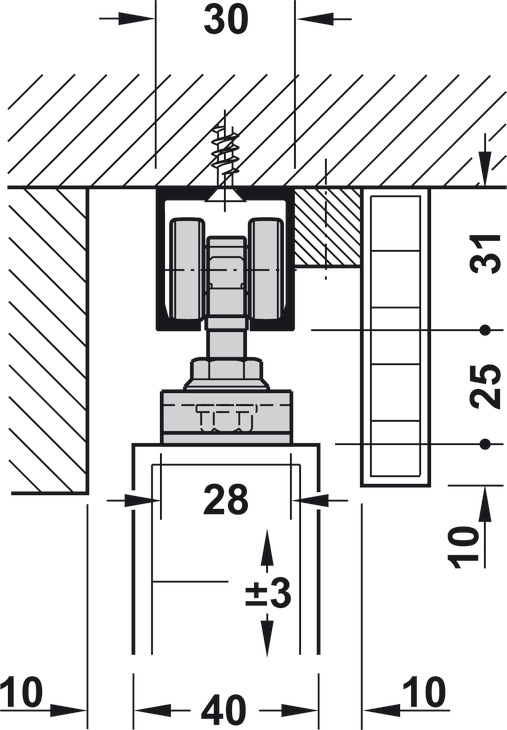

• Upper Track, Pre-drilled, 30 x 31 mm (1-3/16" x 1-7/32") (W x H)
