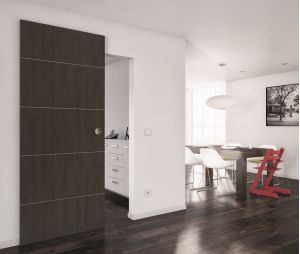

Hafele 940.59.009

• Sliding Door Hardware
• Slido Design 80-M
• Application:
  • For private residential areas
  • For 1-leaf sliding doors
  • For hard floors (laminate, PVC, tiles) and soft floors (carpet, cork - only for use in combination with bottom track)
• Suitable for: For 1 sliding door, for hard (laminate, PVC, tiles) and soft floors (carpet, cork - only with running track)
• Set with running track for 1 door
• Version: Invisible running equipment integrated in door
• Installation: Wall mounting, floor must be even and level
• Door weight: less or equal than (176 lbs) 80 kg
• Adjustment:
  • Distance door to wall +4 mm (adjustment on both sides, for compensating uneven walls)
  • Height +/-2 mm
• Door width: 1800 mm
• Length: 1800 mm
• Supplied with:
  • 1 running track
  • 1 running gear
  • 2 Soft and self closing mechanisms
  • 1 guide track
  • 1 floor guide
  • 1 set of guide rollers
  • 1 set of end caps (1 pair black, 1 pair silver colored)
  • 2 spacers
  • 1 floor mounted door stop (for optional use)
  • 2 hex keys
  • 1 open-ended spanner
• Note 1: A slight trace of wear may appear on the floor, depending on material.
• Note 2: Tile gaps are noticeable when moving the door.
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Bottom track, For soft floors: 940.59.802, 940.59.803, 940.59.812, 940.59.813
