- Sliding Door Hardware

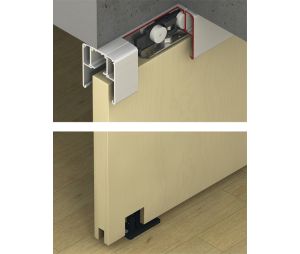

- Slido Classic 40-O

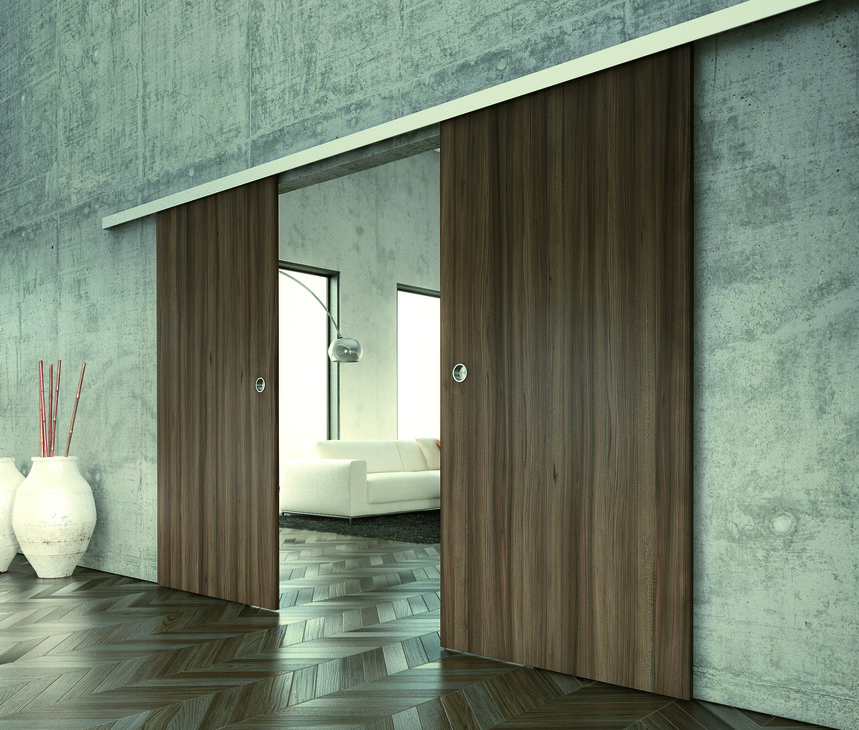

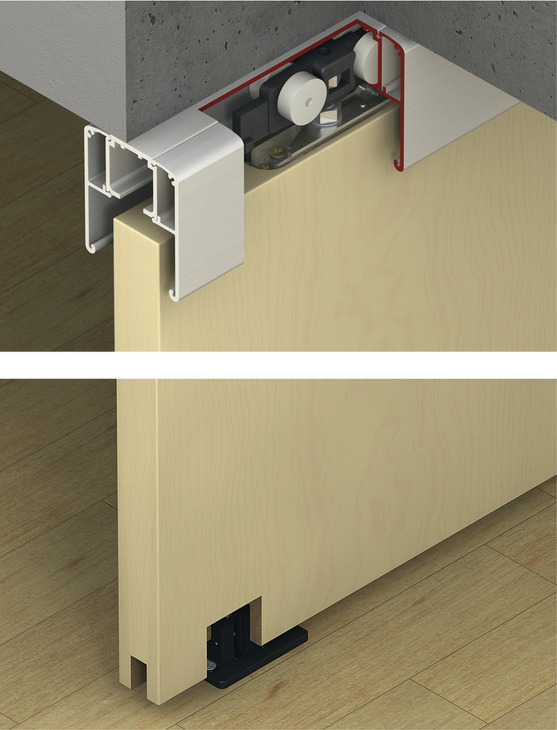

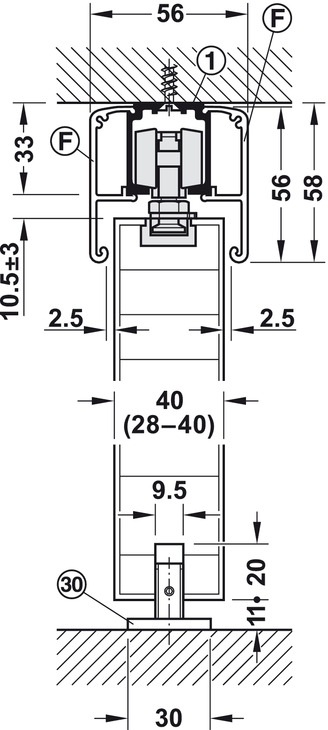

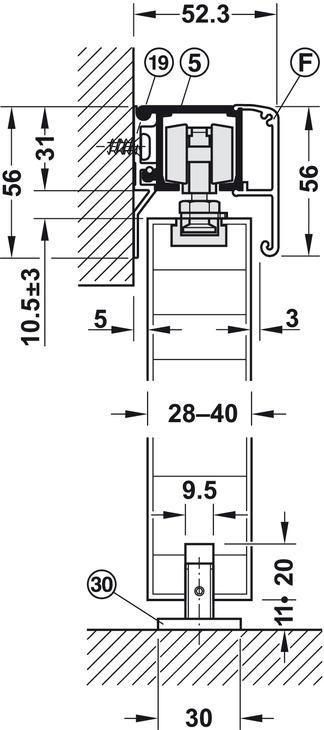

- For 1-leaf wooden sliding doors, ceiling and wall installation
- Version: Without soft and self closing mechanism

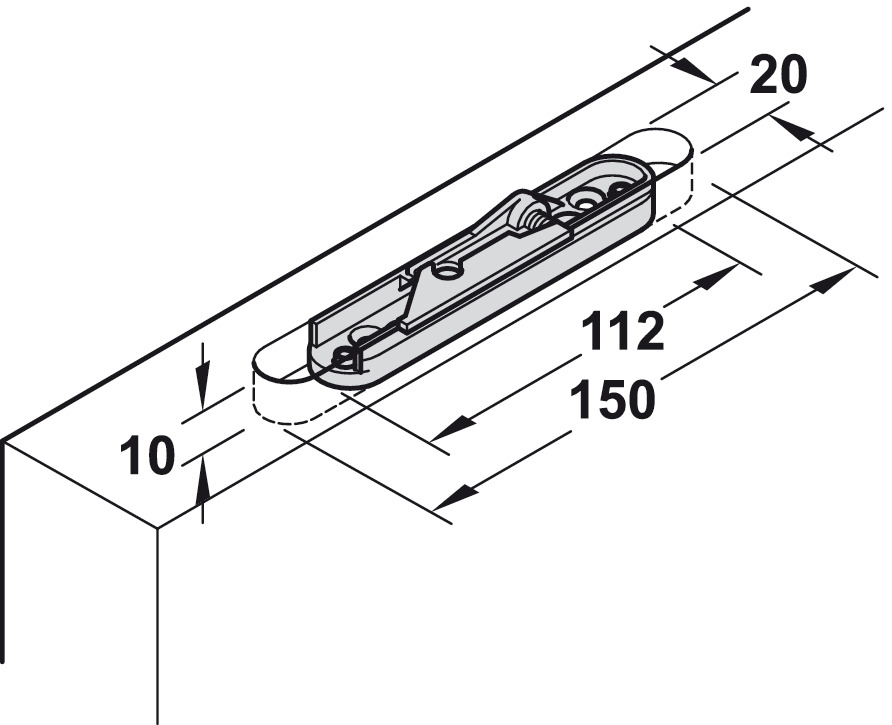

- Mounting: Recessed door connection
- Suitable for: For a single sliding door without running track
- Door weight: (88 lbs) =40 kg
- Adjustment Height: (1/8") +/-3
- Note: End cap for ceiling installation with fascia on both sides not available. One pair of end caps can be glue fixed vertically in the centre of the running track (optional).
- Supplied with:

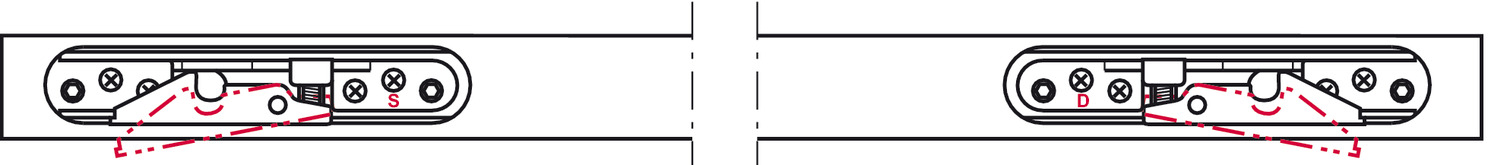

- Running gear - left
- Running gear - right
- Floor guide
- 2 x Track stopper
- Order reference: Please order track, panels and accessories separately. Order 2 sets for 2-leaf sliding doors.
- Packing & Sold as: Set.
- Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.
Required products: - Single Running Track, Pre-drilled, W x H: 31 x 33 mm: 940.43.921, 940.43.922, 940.43.931, 940.43.932, 940.43.961, 940.43.962
- Double running track, Pre-drilled, W x H: 70 x 33 mm: 941.02.920, 941.02.930, 941.02.960
- Double Running Track, Pre-drilled, W x H: 81 x 33 mm: 941.02.820, 941.02.821, 941.02.830, 941.02.831, 941.02.860
- Single running track, Pre-drilled, W x H: 47.5 x 47 mm: 940.43.920, 940.43.930, 940.43.960
- Mounting rail, Pre-drilled, width 19 mm: 941.25.821, 941.25.831
- Mounting rail, Pre-drilled, width 8 mm: 941.25.820, 941.25.830
Optional accessories: - Clip panel, For running track, Height 56 mm: 940.43.123, 940.43.133, 940.43.163
- Clip panel, For running track, for integration in suspended ceilings: 940.43.620, 940.43.630
- End cap set, For running track: 940.43.065
- End cap set, For Häfele Slido Classic, height 56 mm: 940.43.028, 940.43.037
- Floor Guide, Plastic, Grey: 940.42.031
- Floor Guide, Slido Classic 40-P-120-P: 940.42.030
- Guide Track, Bottom: 940.42.050, 940.42.051
- Mounting bracket, for Häfele Slido Classic: 940.42.061, 940.42.063, 940.62.061
- Wrench, for Height Adjustment: 940.43.032
- Retaining Bolts and Screws, For running track and mounting rail: 941.25.090
- Additional set, For Häfele Slido Classic 40-P-120-P, 40-O-120-O, 40-I-120-I stacking: 940.44.001
- Door seals for sliding doors: 946.24.600
- Mortice locks: 946.21.100
- Clip panel, For running track, height: 68 mm: 940.43.120, 940.43.130, 940.43.160
- Clip panel, For running track: 940.43.220, 940.43.230, 940.43.260
- End Cap Set, For Häfele Slido Classic, Height 68 mm: 940.43.030, 941.25.035, 941.62.020
- End Cap Set, For panel: 940.43.020, 940.43.031, 941.25.037
- Cable, With Plastic Sheathing: 940.44.079
- Impact Dampener, For Slido Classic Sliding Door Fittings, Wooden and Glass Doors: 940.42.070, 940.42.071, 940.42.072
- Floor guide, Plastic: 942.35.400
|
