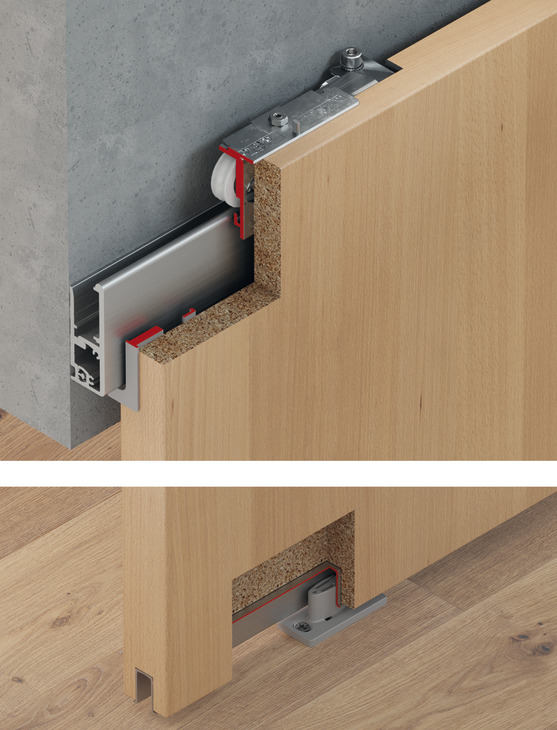

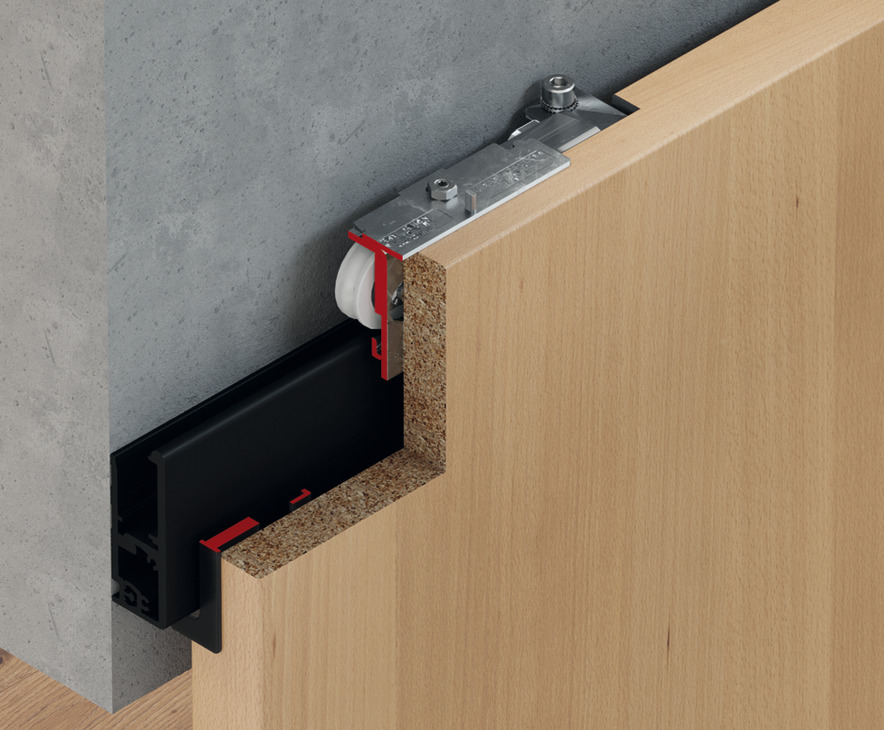

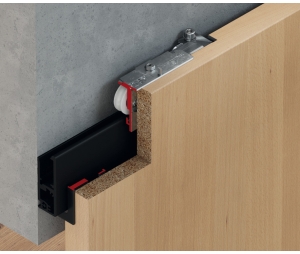

Hafele 940.42.069

• Sliding door fitting
• Model: 80X
• Version: Soft close on both sides
• Area of application: For 1 door
• For door weight: = 80 kg (176 lbs.)
• For door width: = 600 mm (23-5/8")
• Height adjustment: ±2 mm (3/32")

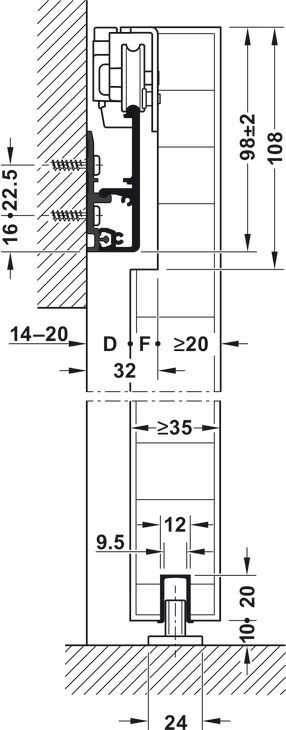

• Installation reference: Wall mounted with a wall clearance between 14 - 20 mm (9/16" - 23/32")
• Supplied with:

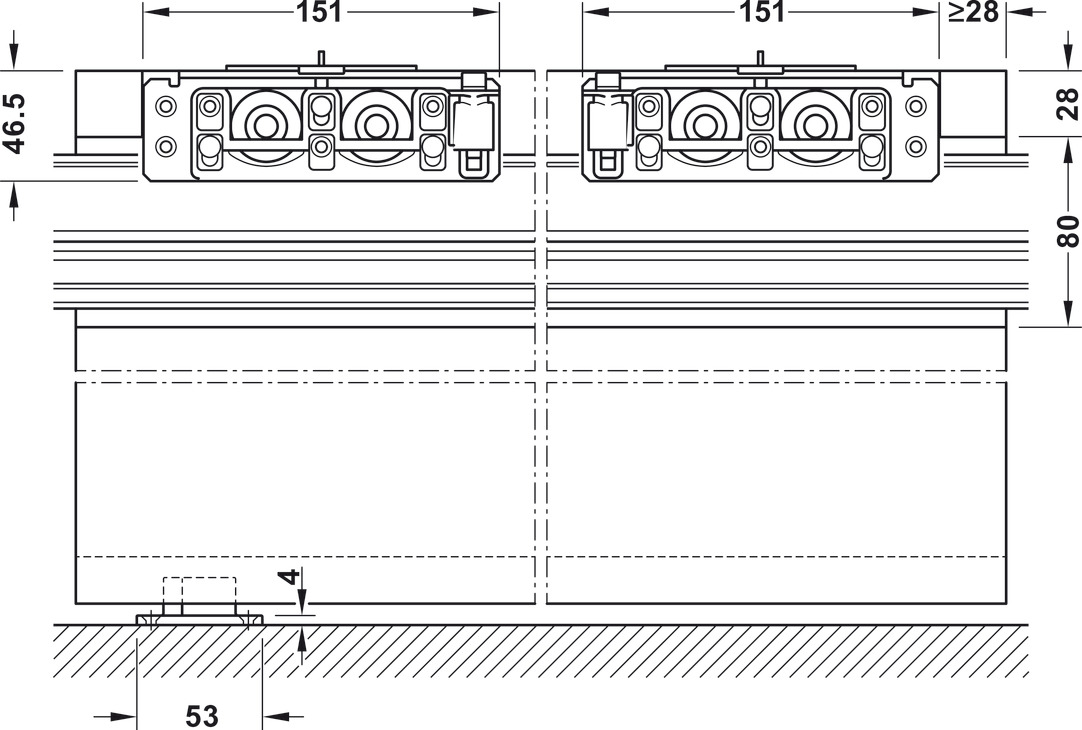

  • 2 Running gears
  • 2 Soft close mechanisms with integrated door stop
  • 2 Cover caps for door, sliver colored
  • 2 Cover caps for door, black
  • 2 Cover caps for running track, sliver colored
  • 2 Cover caps for running track, black

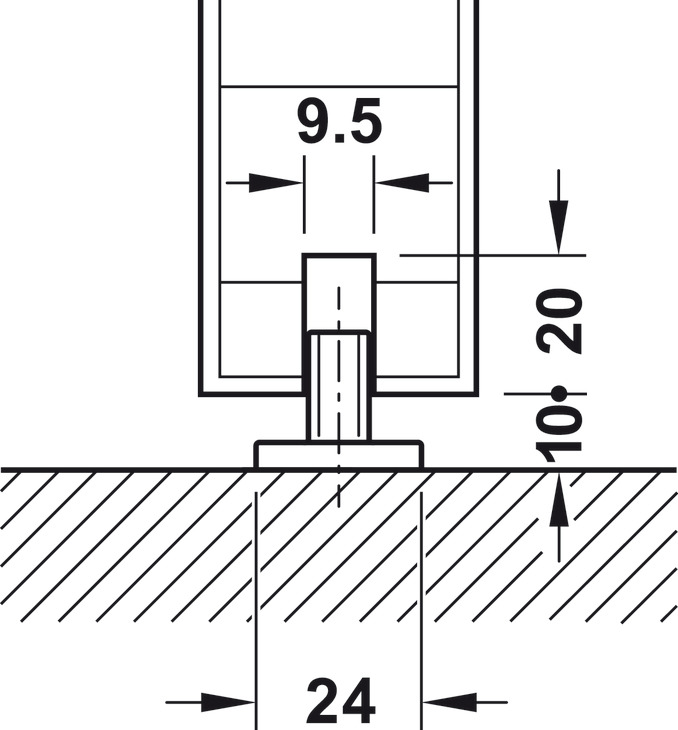

  • 1 Rattle-free floor guide
  • 12 Mounting clips for running track and fascia

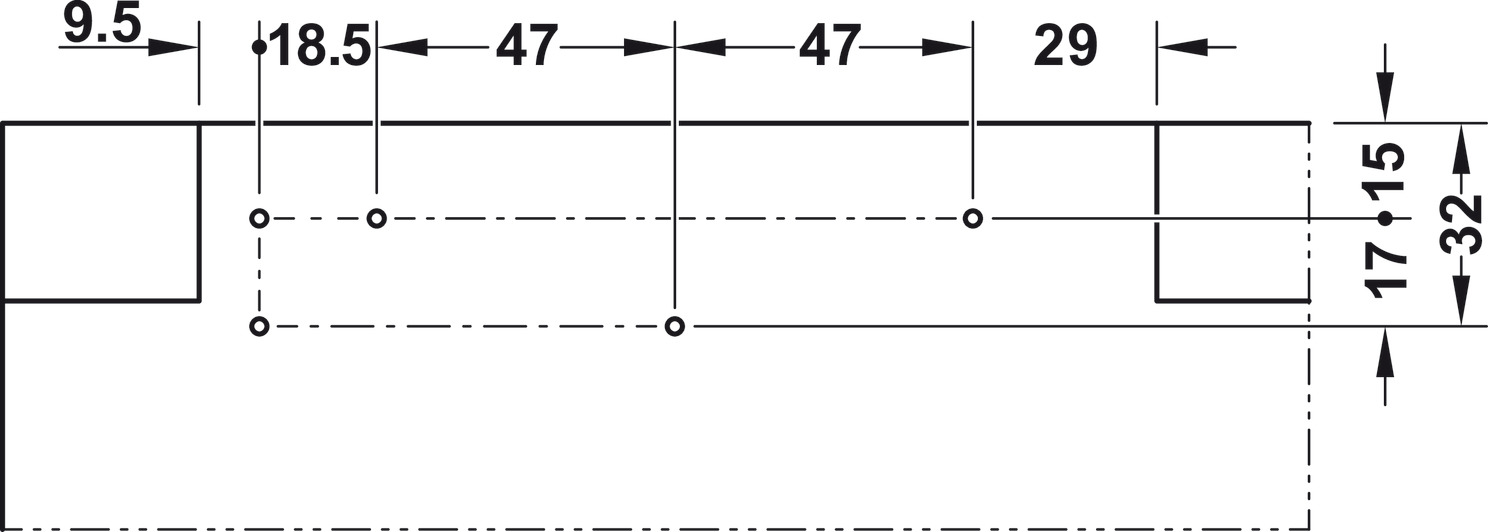

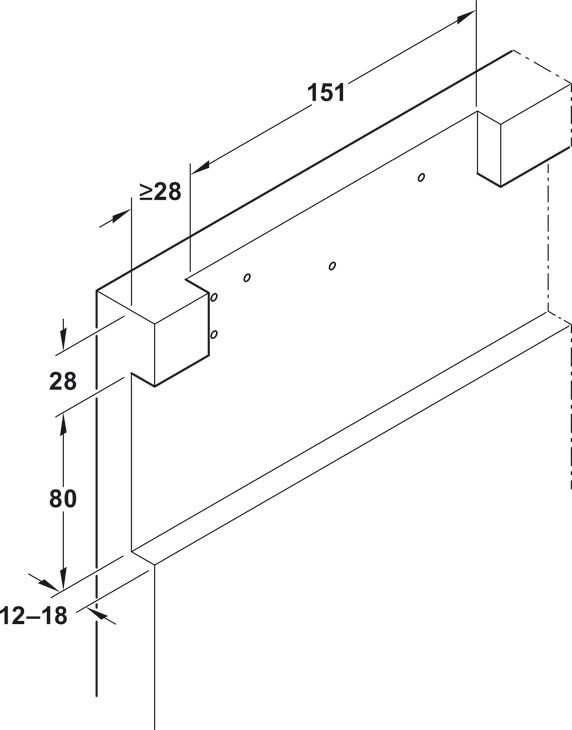

• Additional information: Pre-defined screw positions simplify installation. We recommend pilot drilling the drilling pattern when making the recess.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Running Track and Fascia, For Slido D-Line41
• Mounting Rail, For Slido D-Line41 80X, Pre-drilled
• Guide Track, Bottom
