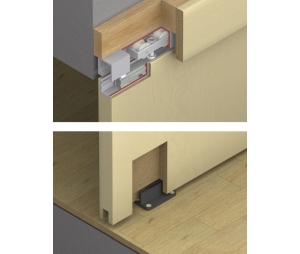

Hafele 940.41.017

• Sliding door hardware
• Model: 40 B
• Version: With track buffers on both sides
• Area of application:
  • For 1 and 2 sliding wood doors

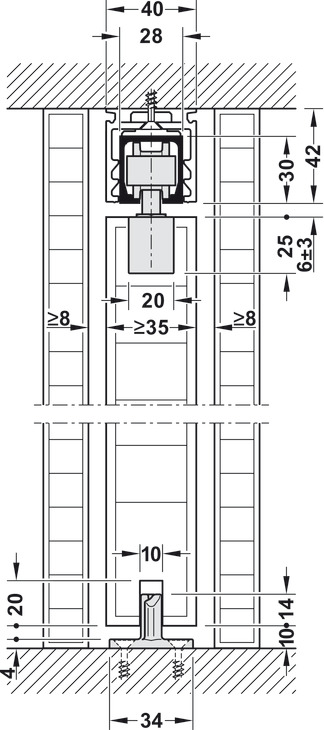

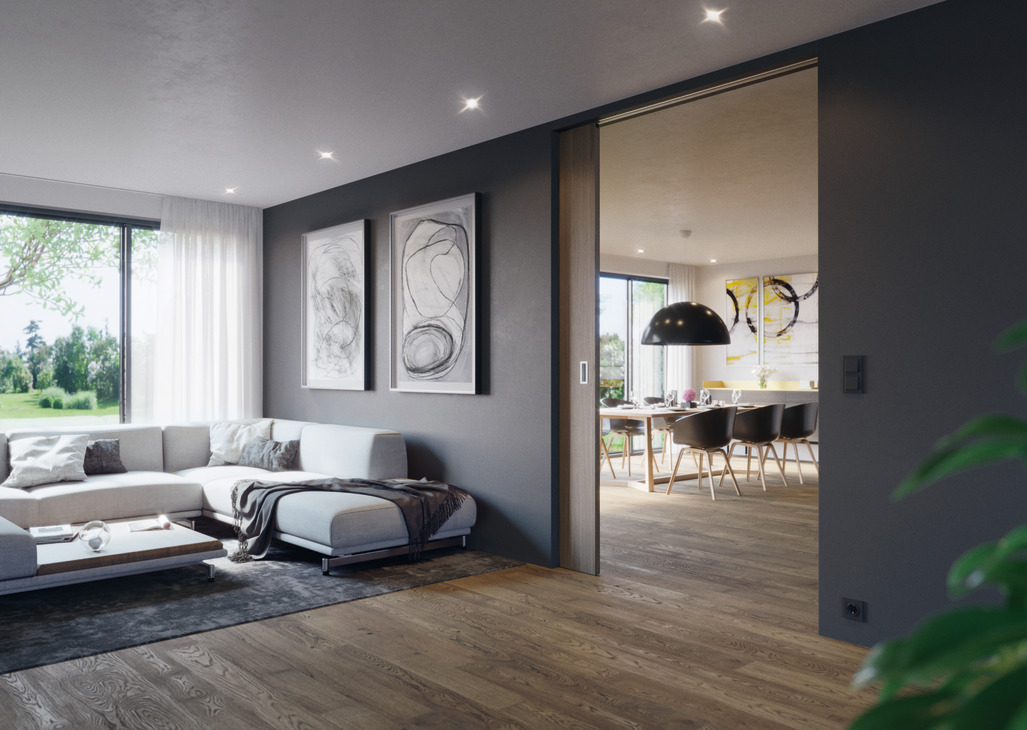

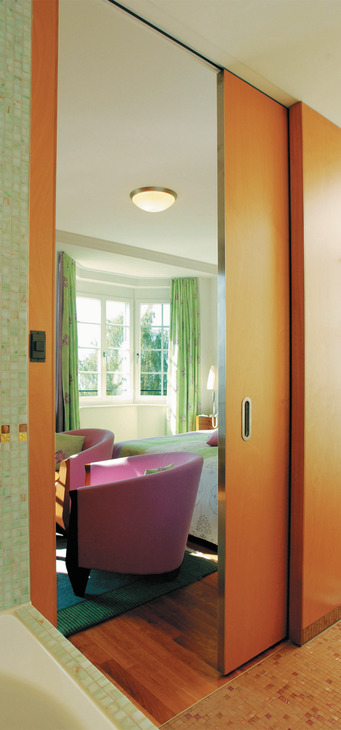

  • For 1-leaf sliding doors for wall pocket installation
• Standard: Certified in compliance with EN 1527:2013
• For door material: Wood
• For door weight: = 40 kg (88 lbs.)
• For door width: = 3000 mm (9' 10-1/8")
• For door height: = 4000 mm (13' 1-1/2")
• Adjustment facility:
  • Height adjustment: ±3 mm (1/8")
  • With integrated anti-twist protection
  • Track buffer with adjustable retaining spring
• For door thickness min.: 25 mm (1")
• Note on door width: The max. door width for the pocket door solution is 1250 mm (49-3/16").
• Number of doors: 1
• Number of doors per system max.: 1 to 2

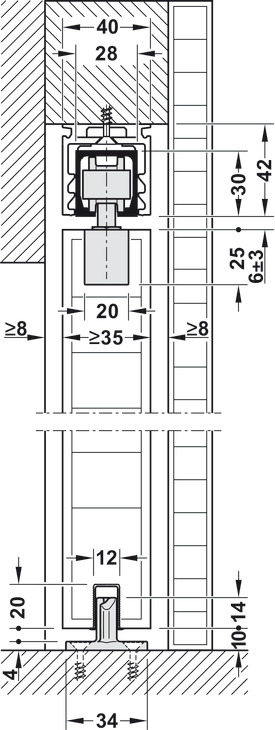

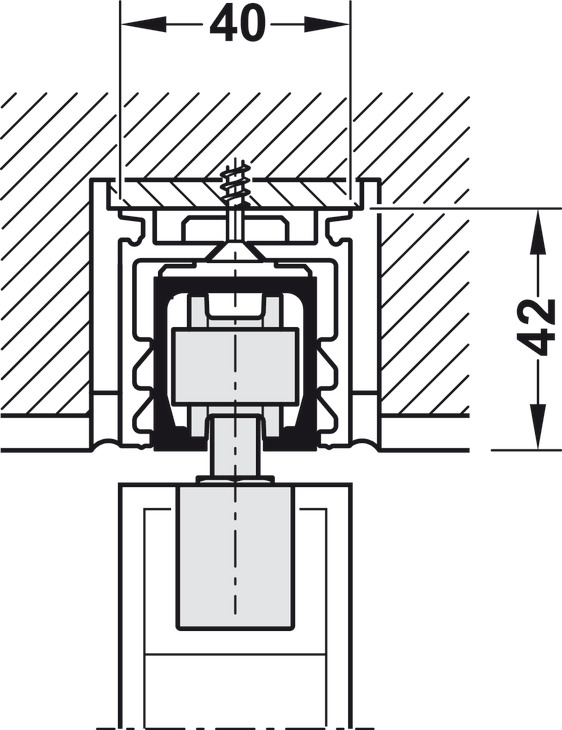

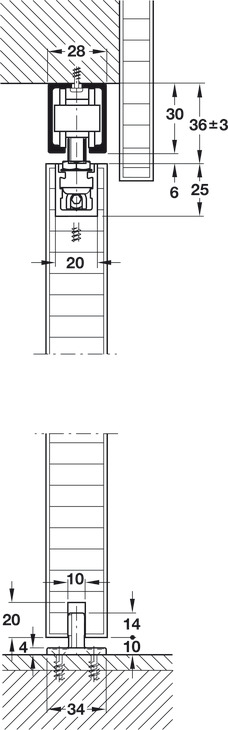

• Installation: Suspension with recessed support profile
• Controller installation options: Ceiling installation, wall mounting, integrated ceiling installation, wall pocket solution
• Installation reference:
  • Pocket door solution:
  • Subsequent disassembly of the running track is possible without opening the wall
  • Running gear and soft and self closing mechanism can be removed
  • Stopper position in the wall pocket, readjustable
• Running position: Top
• Door processing: With recess
• Smooth quiet operation
• Outstanding durability

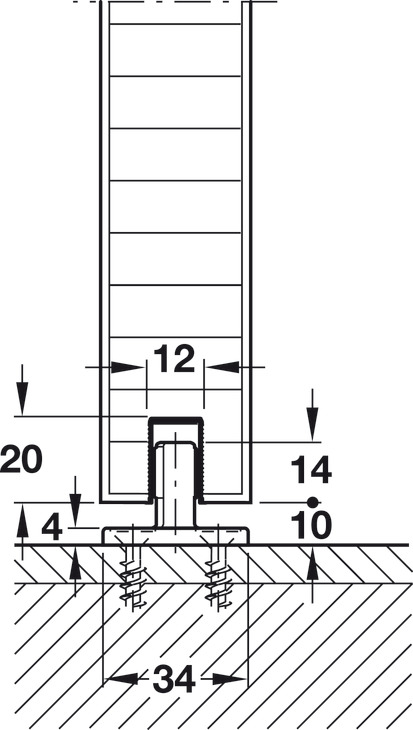

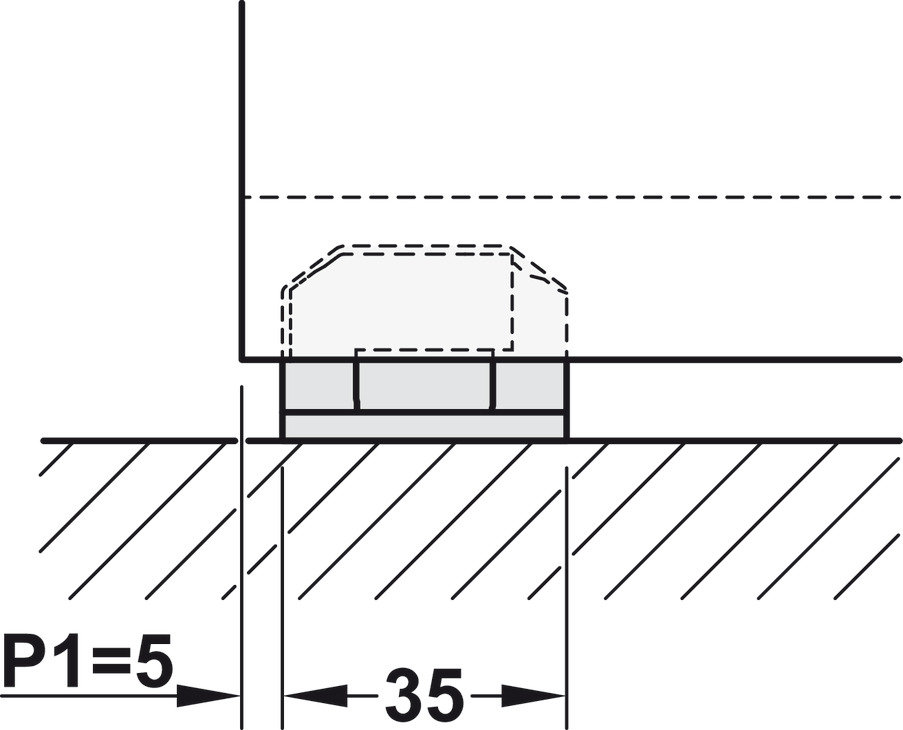

• Rattle-free bottom guide
• Minimum installation height

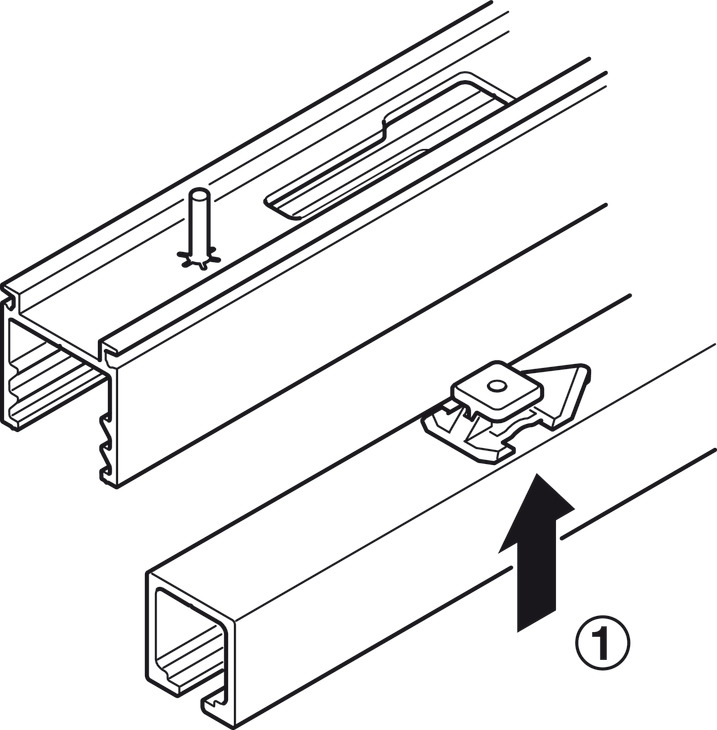

• Suspension with carrier profile
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, HAWA Junior 40
• Guide Rail, 20 x 12 mm (13/16" x 1/2"), Glue-in: 940.41.130
