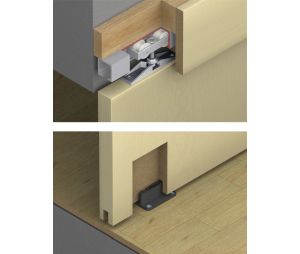

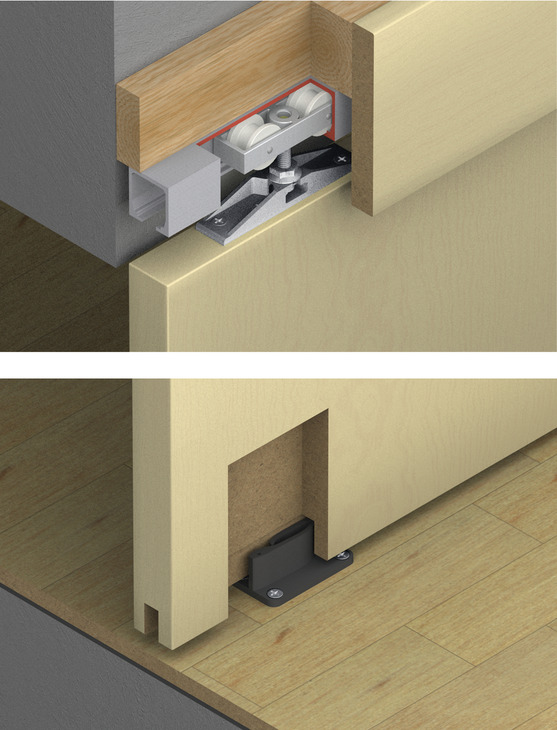

Hafele 940.41.006

• Sliding Door Hardware
• Hawa Junior 40/Z
• Application: For 1 and 2 sliding wood doors
• Smooth, quiet operation
• Outstanding durability
• Rattle-free bottom guide
• Simple installation
• Special two-way suspension
• Load bearing capacity: (88 lbs) 40 kg
• For door thickness Min: (7/8") 22 mm
• Adjustment:
  • Vertically and laterally adjustable
  • Door stop with adjustable retention spring
• Supplied with:
  • 2 running gears
  • 2 two-way suspension fittings with hanger bolts and nut, M8
  • 1 track buffer with retaining spring
  • 1 wall buffer

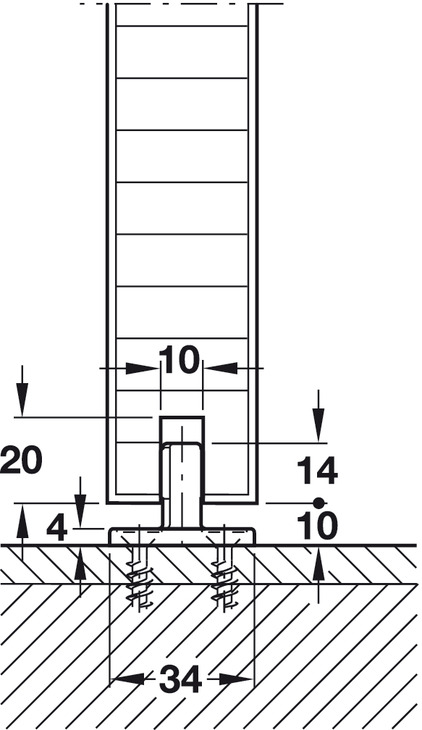

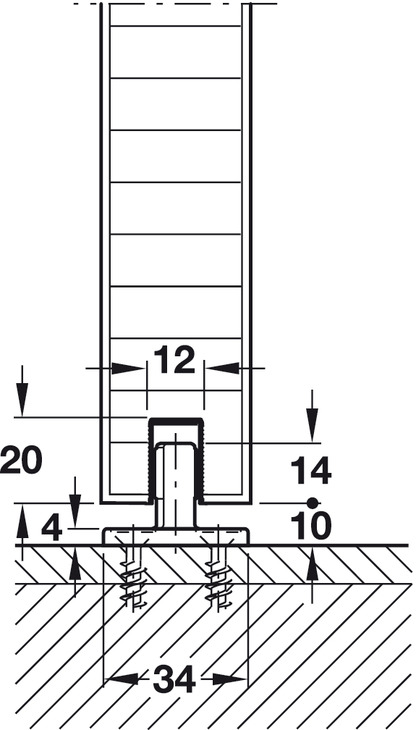

  • 1 floor guide with zero clearance
  • 1 height adjusting pin
• Order reference: Order 2 sets for 2-leaf sliding doors.
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, HAWA Dorado 40 Infront: 940.40.140, 940.40.160, 940.40.180, 940.40.200, 940.40.300, 940.40.400, 940.40.600, 940.80.633

Optional accessories:

• Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in: 940.41.130
• Mortice locks: 946.21.100
• Door seals for sliding doors: 946.24.600
• SoftMove 40 soft and self closing mechanism: 940.80.330
