Hafele 940.41.002

• Sliding Door Hardware
• HAWA Telescopic 40/4
• Top Hung System
• Application: For 4 sliding wood doors
• Note: In addition, 4 sets of HAWA Junior 80/Z must be ordered with each Telescopic 40/4 fitting set.
• Smooth, quiet operation
• Outstanding durability
• Rattle-free bottom guide

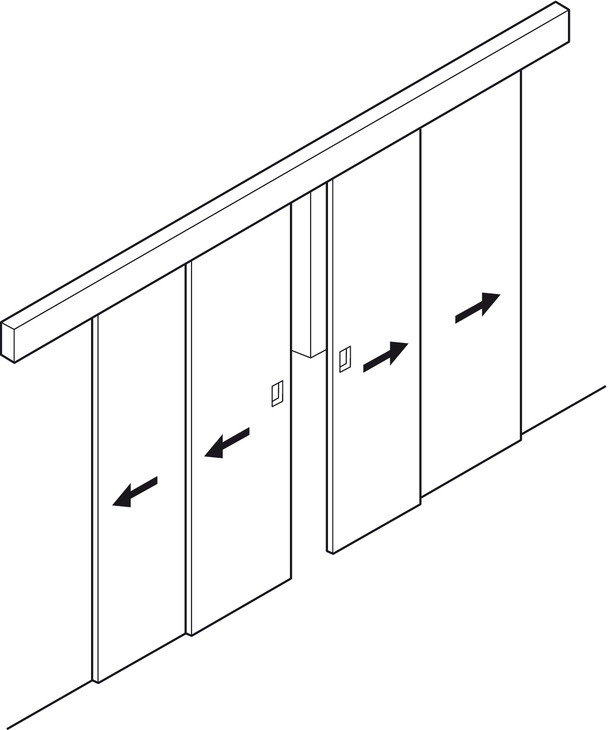

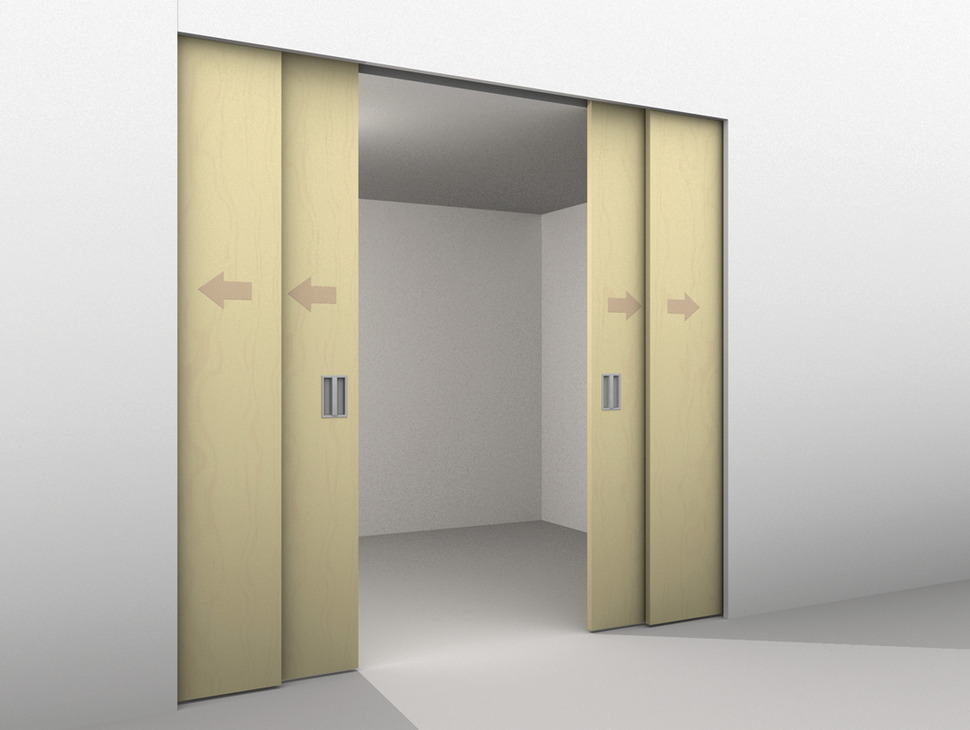

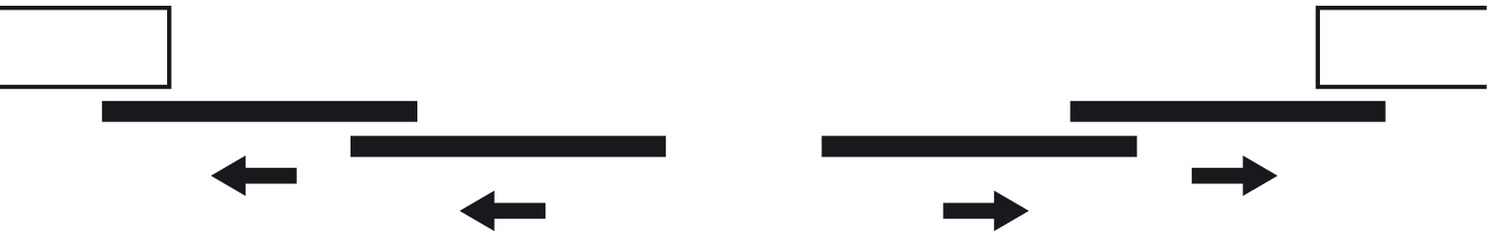

• Simultaneous opening and closing of 4 sliding doors
• Special two-way suspension
• Vertically and laterally adjustable
• Door stop with adjustable retention spring
• Load bearing capacity: (88 lbs) 40 kg per sliding door kg
• For door thickness: (1-9/16" - 1-7/8") 40 - 47 mm

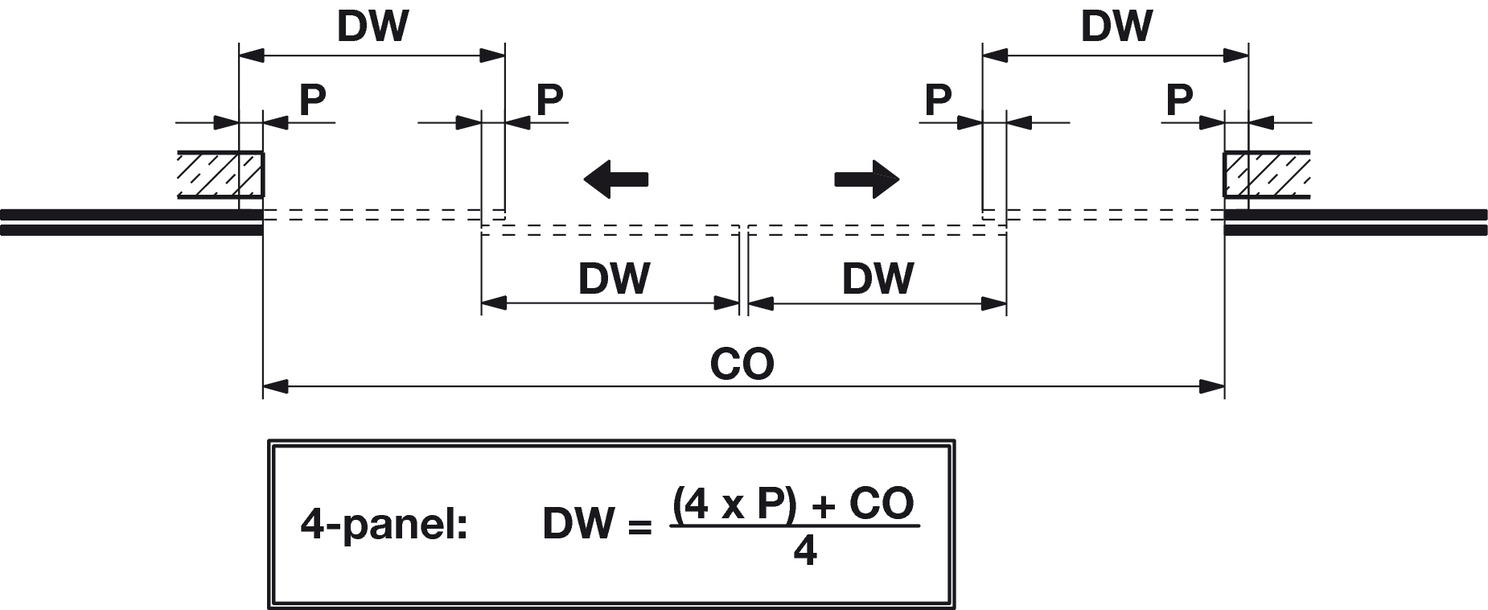

• For door width: (19-11/16" - 31-1/2") 500 - 800 mm
• Adjustment: Door height and side adjustable
• Supplied with:
  • 2 x wide driver
  • 2 x long guide pulley wheel
  • 2 x short guide pulley wheel
  • 2 x toothed belt mounting device
  • 2 x 2.7m toothed belt
  • 1 x 10 m toothed belt
  • 2 x driver counter plate
  • 2 x floor guides
  • 2 x defection rollers
  • 1 x clamping element for ends of toothed belt
  • 2 x clamping element for continuous toothed belt
• Order reference: Please order 4 Hawa-Junior 80/Z sets separately. Please order running tracks separately.
• Packing & Sold as: Set.
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Upper Track, pre-drilled, door weight up to 80 kg: 940.80.140, 940.80.160, 940.80.180, 940.80.200, 940.80.220, 940.80.250, 940.80.300, 940.80.400, 940.80.600
• Guide Rail, 20 x 12 (13/16" x 1/2"), Glue-in: 940.41.130

Optional accessories:

• Mortise locks: 946.21.100
• Door seals for sliding doors: 946.24.600
• Accessories for Hawa wooden sliding doors: 940.40.071
