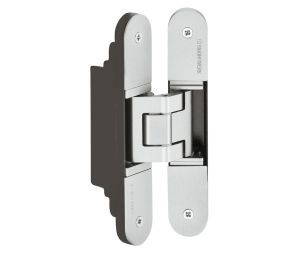

Hafele 924.17.152

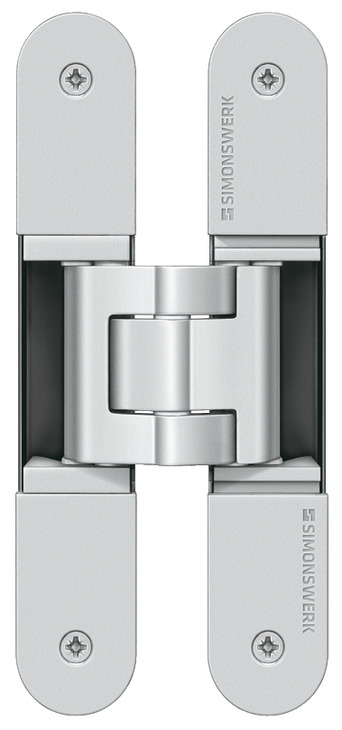

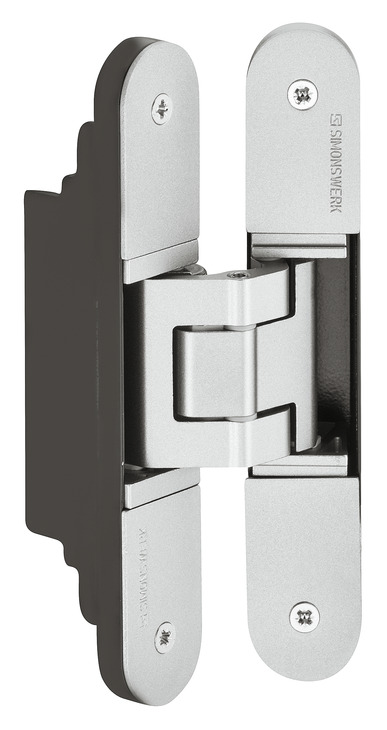

• Concealed Hinge
• TECTUS TE 340 3D
• Application:

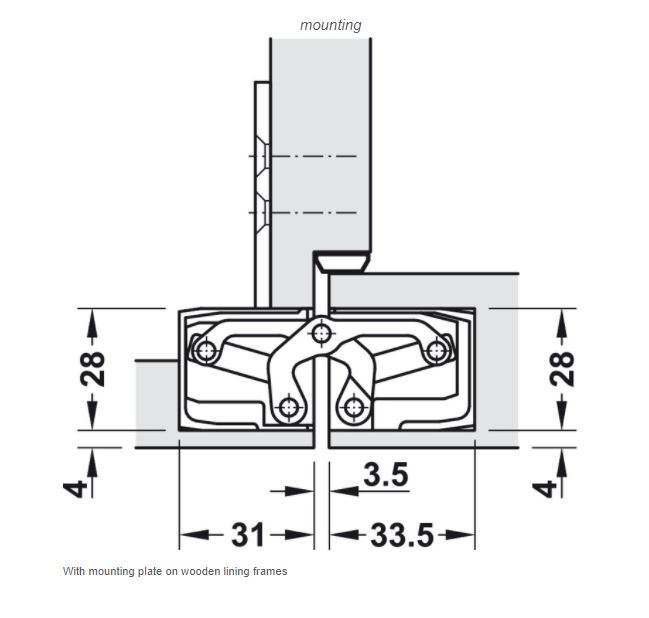

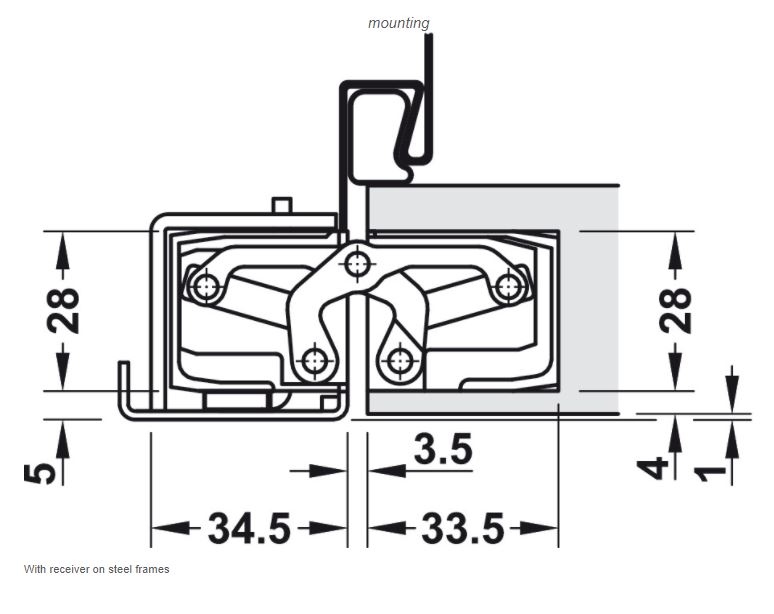

  • Used in door frames made out of hollow metal or wood in flush interior doors
  • UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors)
• Suitable for: Left and right hand applications
• Bearing: Maintenance-free slide bearings
• Adjustment: Continuously 3D adjustable: Width and height +/-3 mm (1/8"), Depth: +/-1.0 mm (1/16")

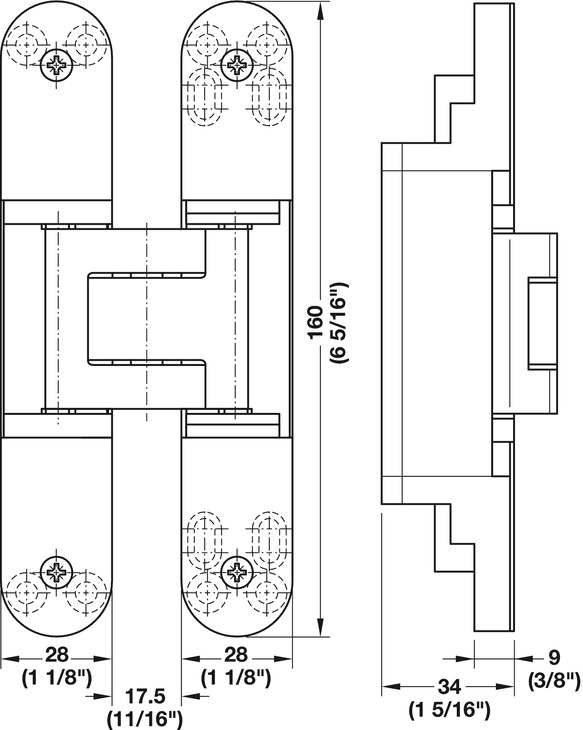

• Size: 160 mm (6-5/16")
• Door weight: less or equal than (176 lbs.) 80 kg
• Door thickness: up to (1-3/8") 35 mm
• Opening angle: less or equal than 180°

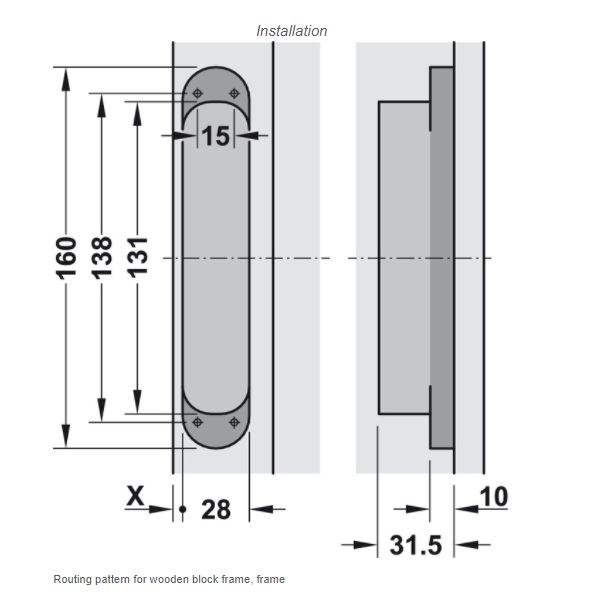

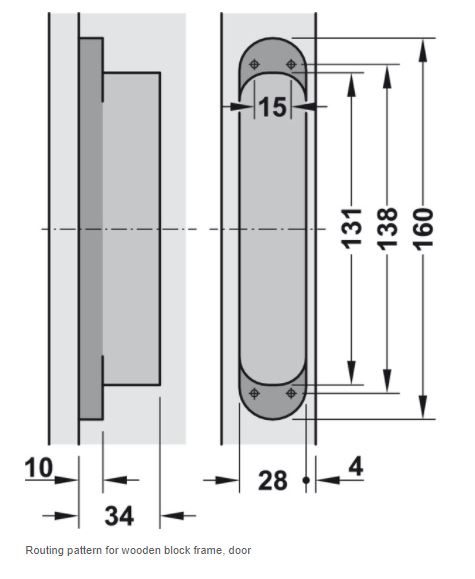

• Router diameter:
  • Bit: (3/4") 19 mm
  • Guide: (1") 25.4 mm
• Material: Aluminum die-cast
• Finish: Dark Bronze
• Images may not represent actual product and finish.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Routing Template, for Tectus TE: 922.15.661, 922.15.662, 922.15.663, 922.15.664, 922.15.665, 922.15.666, 922.15.667
