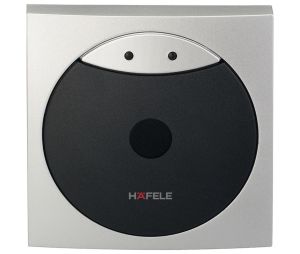

Hafele 917.41.142

• Multi-Output Wall Terminal
• Reader & Control Module
• Dialock
• Wall Terminal 2000 Tag-it™
• Features: With Tag-it™-ISO-Processor
• Application:

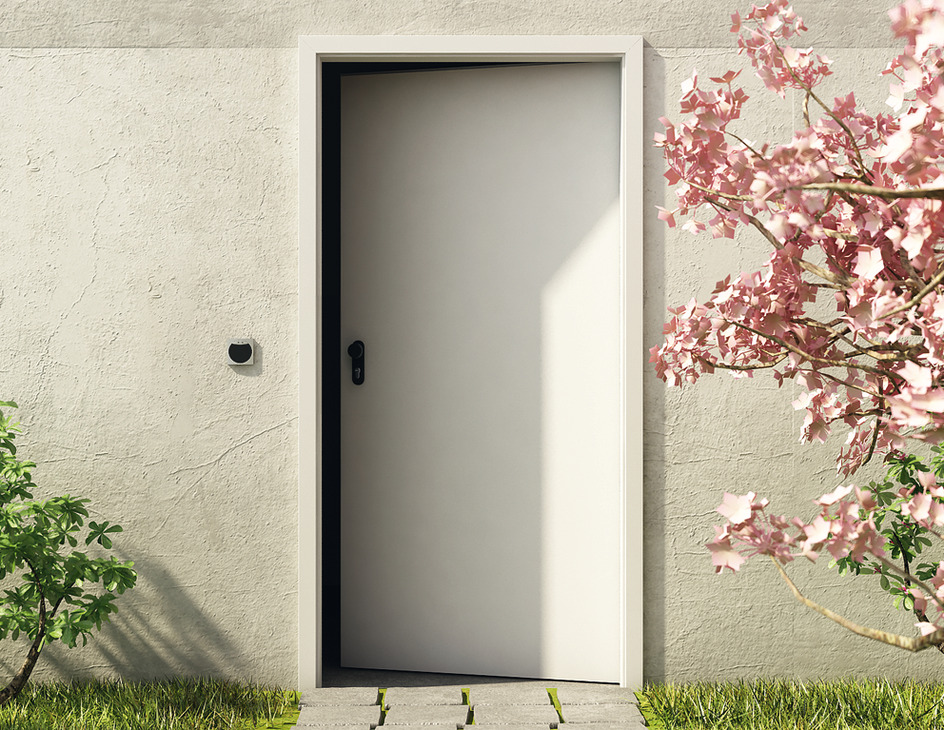

  • For interior and exterior use
  • For controlling of elevator control systems
  • Intelligent wall terminal for special applications
• Functionality:
  • Intelligent wall terminal, for special applications, touch-free activation with Dialock key
  • Selective control of up to 4 relay output ports
  • Red/green LEDs for indication of locking and unlocking
  • With integrated real-time clock for programming time restricted locking authorisations (setting of time zones)
  • With audit trail of all processes
  • With 4 input ports for analysing input signals (e.g. reed contact for door monitoring)
• Wall reader:
  • Degree of protection: IP65
  • Ambient temperature (operation): –20 °C to +70 °C
  • Power supply: 12–24 V DC ±20%
  • Connection: Screw terminals, for e.g. J-Y(St)Y2x2x0.8 mm, max. 100 m

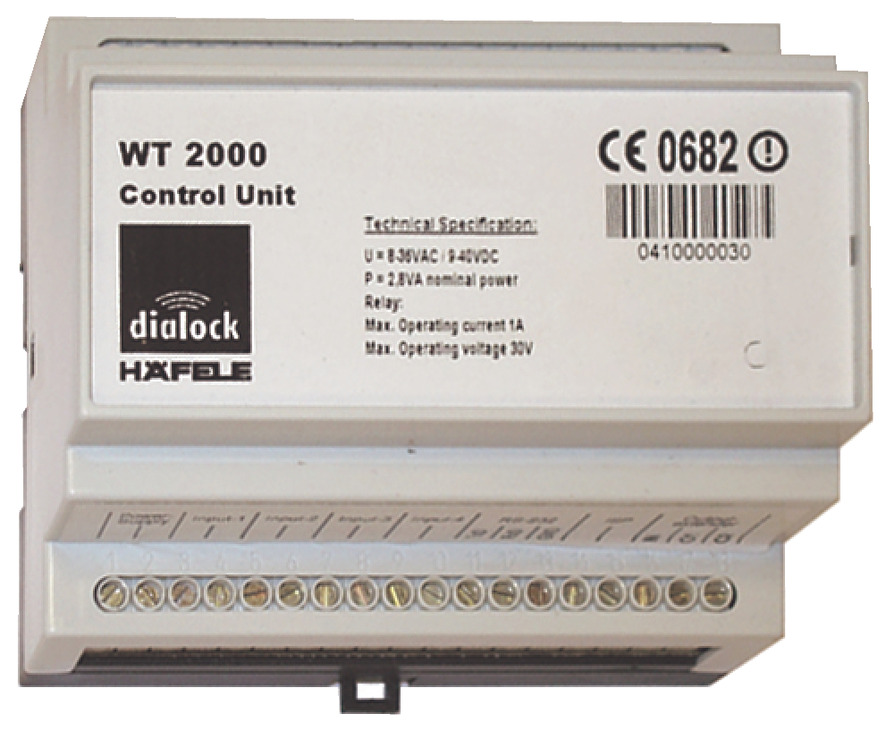

• Electronic control unit:
  • Degree of protection: IP20
  • Ambient temperature (operation): –20 °C to +70 °C
  • Voltage supply: 9–40 V DC or 8–36 V AC
  • Current consumption: <150 mA, max. 300 mA
  • Contact rating of relays:
    • Voltage: =60 V DC or <125 V AC
    • Switching current: =2 A (momentary)
    • Switching capacity: =30 W or <60 VA
    • Continuous current: =1 A
  • Data storage in the event of a power failure: =10 years
  • Relative humidity: 0–95 % (not condensed)
  • Connection: Screw terminals 2.5 mm2
  • Hat rail installation M36 rail technology: 6 joint units
• Notes for operation and installation:
  • Connection between wall reader and electronic control unit with four core installation cable in compliance with VDE 0815. Type J-Y (St) Y 2 x 2 x 0.8 mm (twisted pair, shielded), max. length 100 m

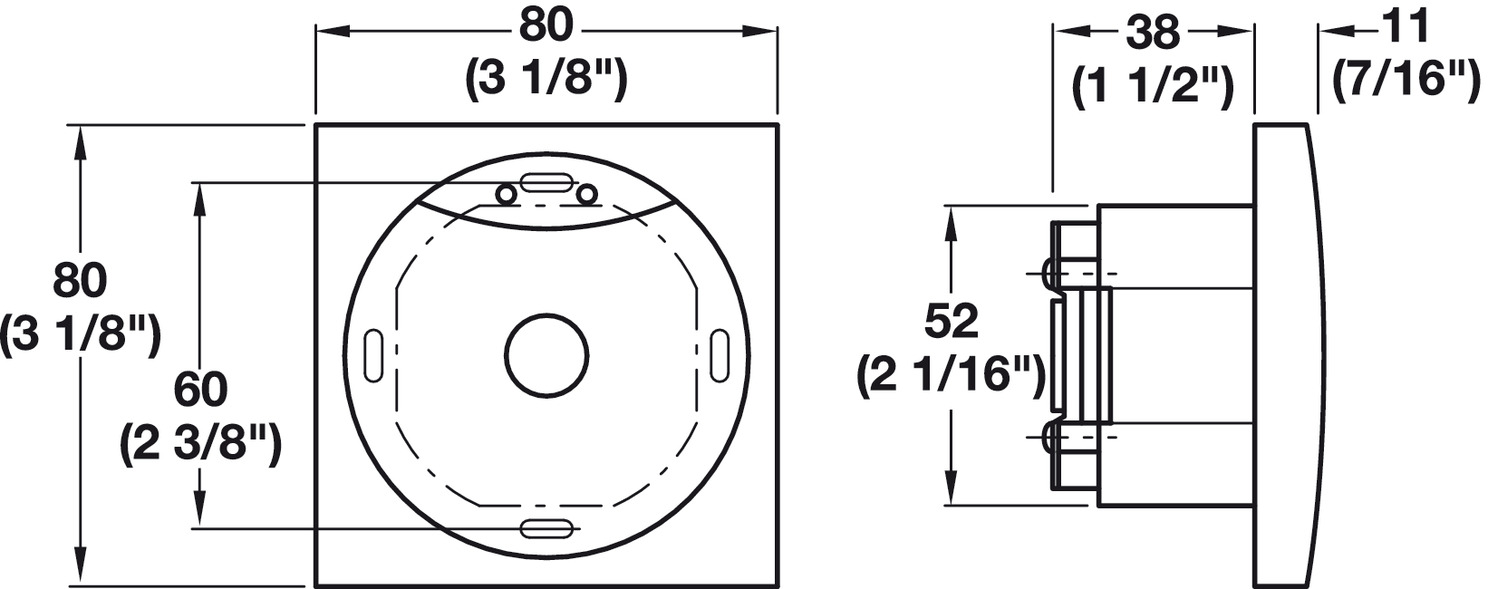

  • Installation of wall reader in flush mounted box with 2 device fastening screws (distance 60 mm in compliance with DIN).Make sure the fastening points on the flush mounted box are horizontal.
  • Minimum distance between 2 wall readers 250 mm
  • The installation of the wall reader in metal surroundings must be planned
  • Programming during stand-alone operation is not possible. Planning by Dialock specialists is required
  • Following furniture locks can be connected to the MLA 8: EFL 3, EFL 6, EFL 41
  • The MLA 8 R with relay output ports can be used for any electrical load (e.g. electric strike)
• Supplied with:

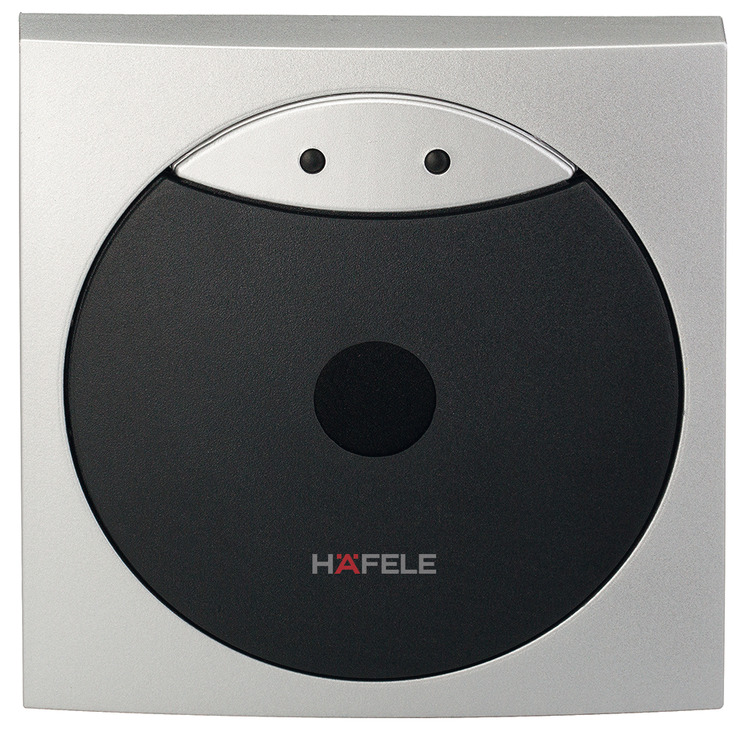

  • 1 R2 wall reader, standard design with frame
  • 1 electronic control unit in housing for hat rail installation
• Order reference: Please order supplementary and optional components, e.g. energy control terminal, power supply and lock, separately.
• Packing & Sold as: Set
• Note: Unit of measure is set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Additional Wall Reader, WT 100: 917.41.950
