Hafele 850.00.984

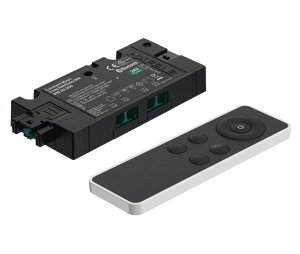

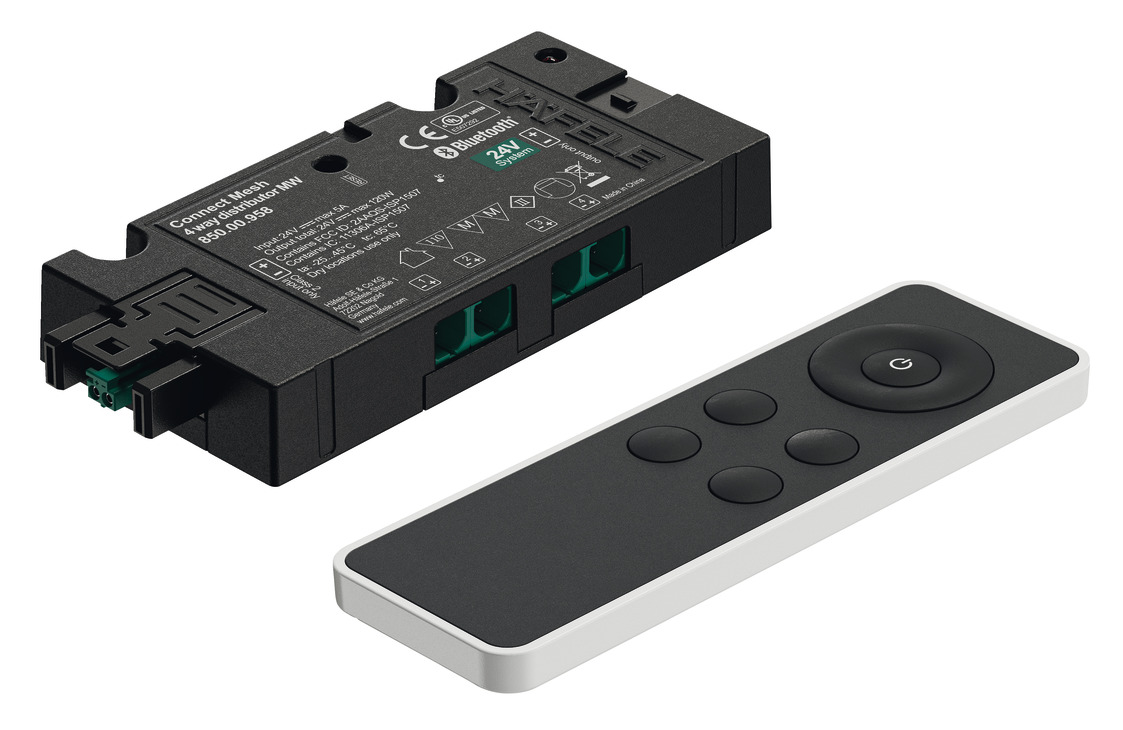

Name: Hafele 850.00.984 Distributor and Remote Control Set, Hafele Connect Mesh Eco, Multi-White, 4-Port, 24 V, Connected in the Factory for Immediate Start-up, 72 W, Plastic, Black
Brand: Hafele
SKU: Hafele 850.00.984
Price: 119.74 USD

Hafele 850.00.984 Distributor and Remote Control Set, Hafele Connect Mesh Eco, Multi-White, 4-Port, 24 V, Connected in the Factory for Immediate Start-up, 72 W, Plastic, Black

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 850.00.984 Distributor and Remote Control Set, Hafele Connect Mesh Eco, Multi-White, 4-Port, 24 V, Connected in the Factory for Immediate Start-up, 72 W, Plastic, Black

Price: $119.74 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 375

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 850.00.984 Distributor and Remote Control Set, Hafele Connect Mesh Eco, Multi-White, 4-Port, 24 V, Connected in the Factory for Immediate Start-up, 72 W, Plastic, Black

Distributor and Remote Control Set
Distributor and remote are “pre-paired"; no app required
3-wire Multi-white ports; no adapters needed
Ideal for smaller installations with up to 4 distributors and 1 remote control
4-port Connect Mesh RGB Distributor (Up to 3 additional distributors can be added to the network)
1-Channel Functionality:
- By default, the remote controls all the lights together.
- When you select one of the four channels on the remote, the remote will only control the lights connected to the mesh box that was assigned to that channel during the provisioning process.
Area of application: For on/off switching and dimming (0-100%) and multi-white colour change
Suitable for: Multi-white lights
Low voltage plug: Loox5 2-pin 24 V
Input ports: 1 x plug, Loox5 2-pin 24 V box to box
Connections: 1 x socket, Loox5 2-pin 24 V box to box
Connected output ports: 4 x sockets, Loox5 3-pin MW 24 V
Power rating: 72.00 W
Current carrying capacity: 3.00 A
Color system: MW
Dimensions:
- Distributor: 105 x 50 x 16 mm (4-1/8" x 2" x 5/8")
- Remote control: 125 x 40 x 12 mm (4-15/16" x 1-5/8" x 15/32")
Number of controls for each installation max.: 4.00
Distance between controls max.: 10.00 m (32.8 ft.)
Standby power consumption: 0.50 W
Material: Plastic
Finish: Black
Supplied with:
- 1 4-port connect mesh multi-white distributor
- 1 Remote control with CR2032 battery
Order reference:
- Connect Mesh 4-port series multi-white networks are expandable to up to 4 distributors.
- Please order additional distributors and power supplies separately.
- Note nominal voltage!
Additional information:

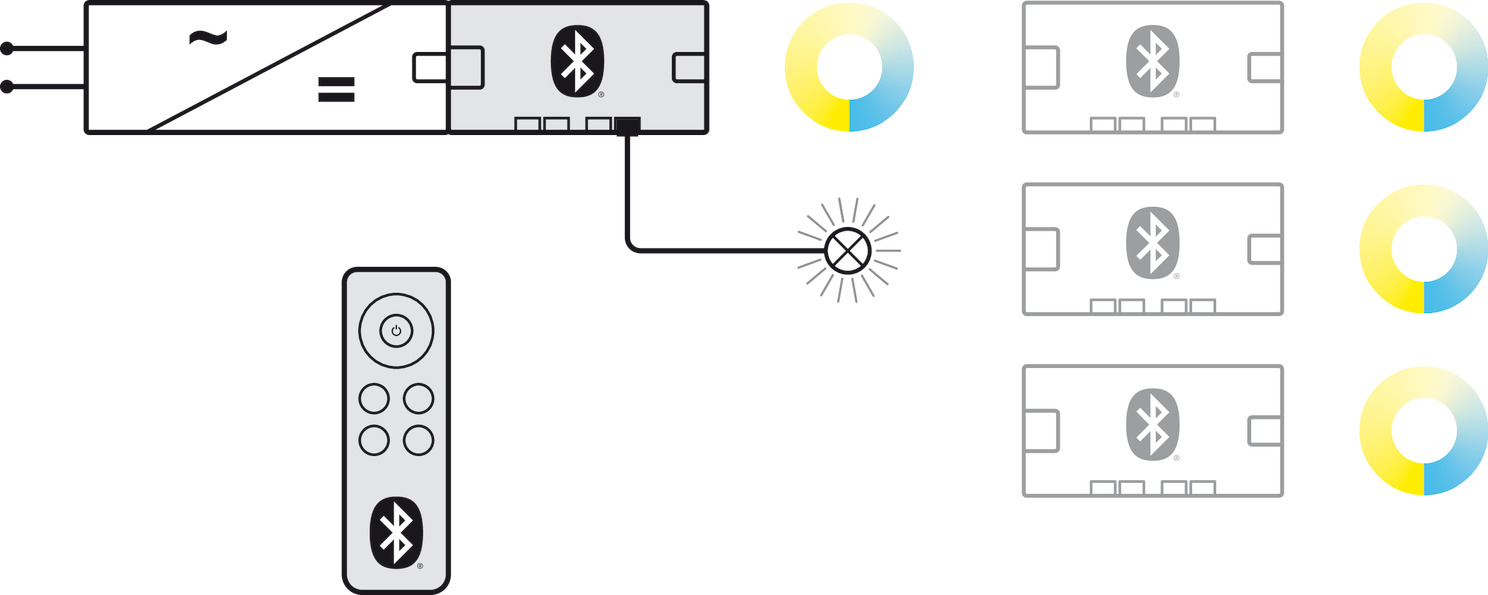

- Use the remote control to select one of max. four distributors (distributors 1, 2, 3 or 4) and simultaneously control all four outputs at this distributor (on/off, light colour, dimming level).
- Memory function after power loss = Remembers last state.
- For full Connect Mesh functionality with switching function and app control, please use the Hafele Connect Mesh 6-way distributor.
- Distance information within the network applies to a clear line of sight.
- Obstacles and sources of electromagnetic interference can reduce the range.
- Adding another 4-port distributor can be used as a signal booster to compensate for the loss of range.
- Maximum cable length from the power supply to the distributor is 2 m (6.5 ft.)
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
