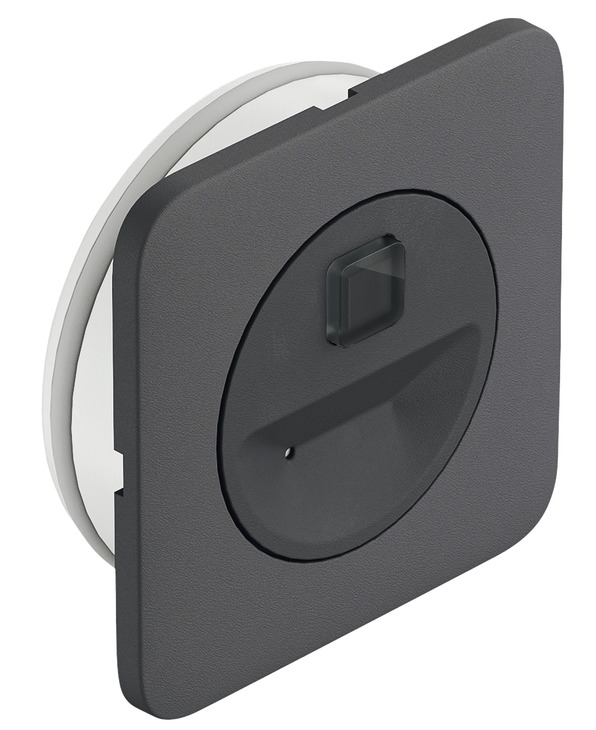

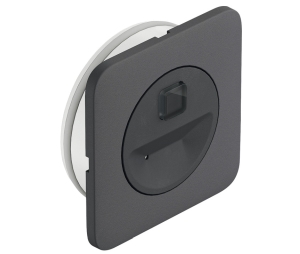

Hafele 850.00.955

• Motion detector
• Version: Direct powered
• Area of application: For controlling components of a Hafele Connect Mesh network
• Voltage: 24.00 V
• Switching function: On/Off, Dawn threshold value
• Installation: For screwing, For mounting in drilled hole and for clamp fixing
• Installation reference: Recess in drilled hole or surface mount with supplied switch housing
• Signal transmission: Wired
• Certification of independent testing institutes: VDE
• International certifications: USA FCC, Japan JATE TELEC MIC, Great Britain UKCA
• Protection class: III
• Signal transmission technology: Bluetooth
• Degree of protection: IP20
• Labels for correct purpose of use: Only to be used in enclosed, dry rooms.
• Ambient temperature: -20 - 35 °C
• Low voltage plug: Loox 2-pin 24 V
• Low voltage socket: Loox5 modular with snap-in connector 24 V

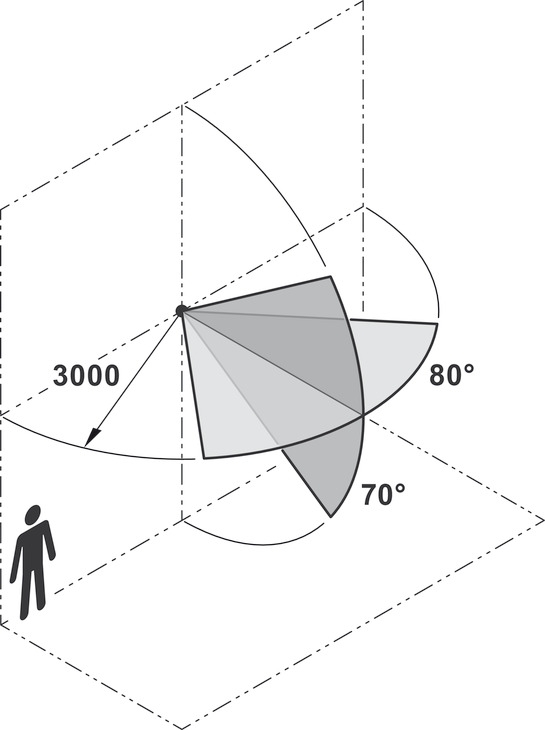

• Sensor range: 3000 mm (approximately 10 ft.)
• Sensor angle: 80.00 °
• Vertical sensor bracket: 70.00 °
• Drill hole: 40 mm (1-5/8")
• Power consumption: 2.00 W
• Dimensions:

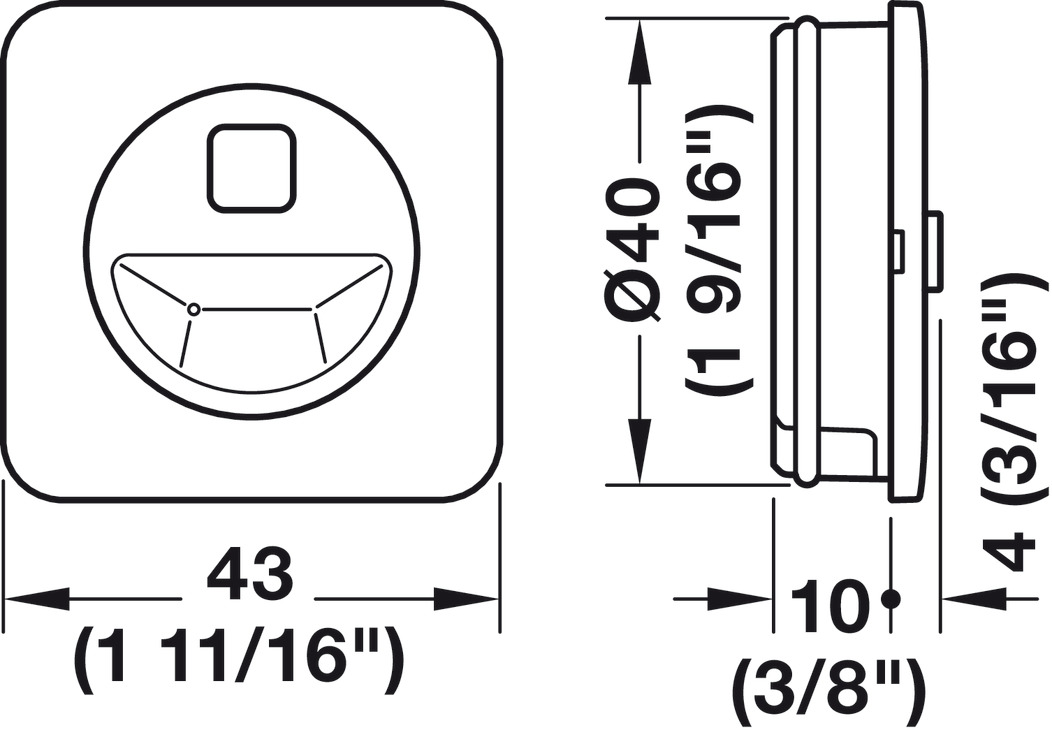

  • Switch (Length x Width): 43 x 43 mm (1-11/16" x 1-11/16")

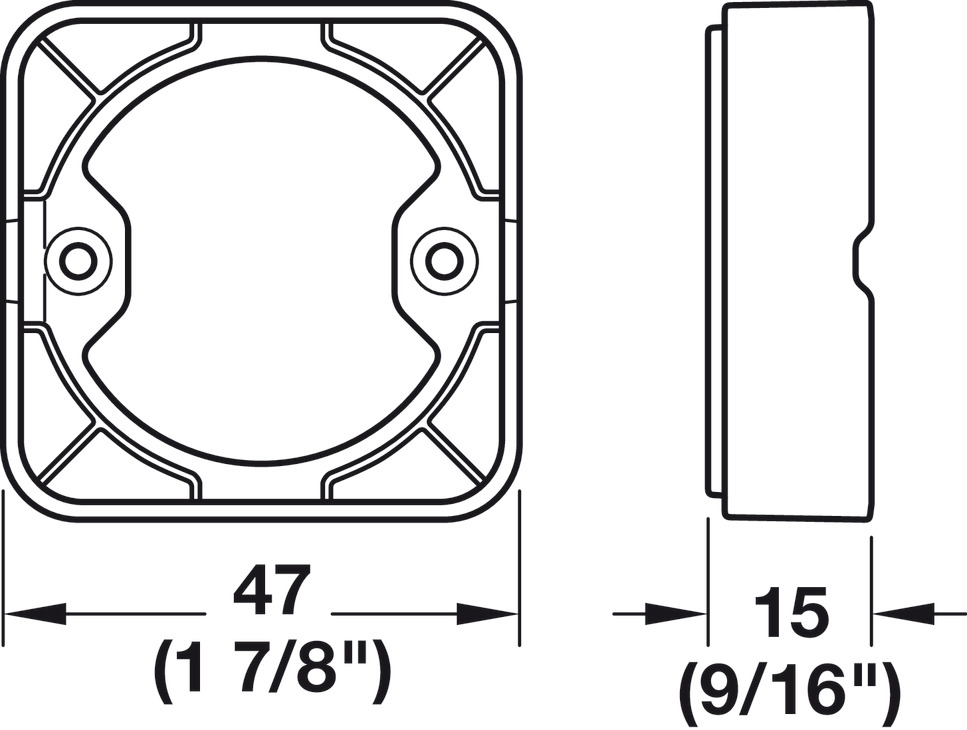

  • Housing (Length x Width x Height): 47 x 47 x 15 mm (1-7/8" x 1-7/8" x 9/16")
• Material: Plastic
• Finish: Black
• Supplied with:
  • 1 Motion detector switch
  • 1 Surface mount housing
  • 1 12 V or 24 V Modular lead cable (833.95.788 or 833.95.791)
• Order reference: Please order Hafele Connect Mesh distributor separately.
• Additional information:
  • Use the Hafele Connect Mesh app to pair the switch to a group of lights and to customize settings for run time, brightness threshold and soft-off settings.

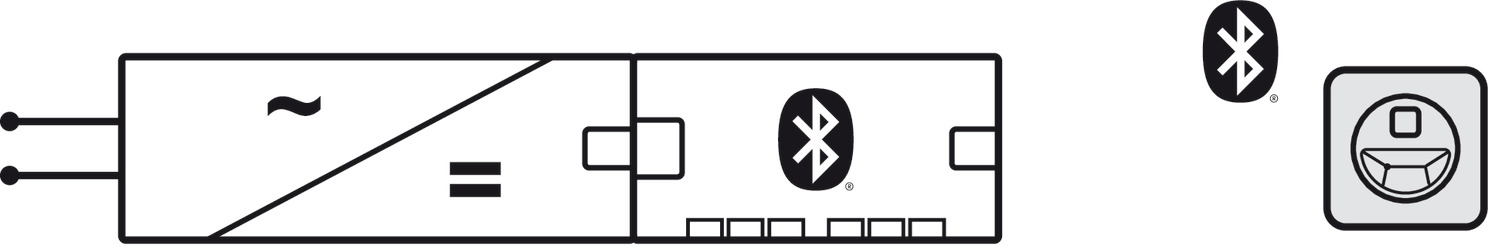

  • The modular lead cables are for power supply only. The switching signal is transmitted via Bluetooth.
  • Motion detector can only control lights that are connected to a Hafele Connect Mesh network.
• This Item includes the following free of charge Item: 833.95.791
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Required products:

• Distributor, Hafele Connect Mesh 24 V 2-pin (monochrome): 850.00.043
