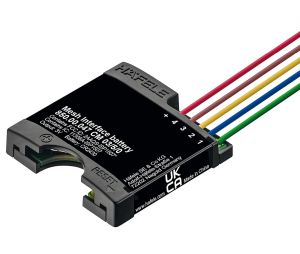

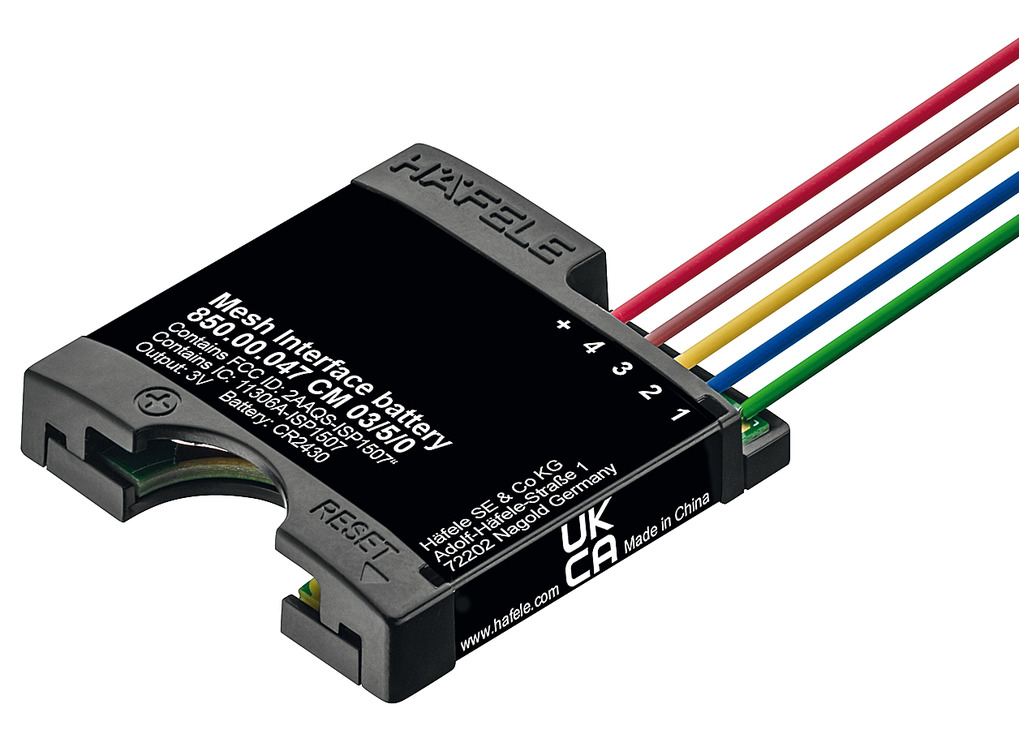

Hafele 850.00.047

• Interface, Battery Operated
• Uses switches in the design of the house installation for the control of furniture and room lights with Häfele Connect Mesh
• Application: for controlling components on the 6-way distributor Häfele Connect Mesh (all functions that are possible by pressing or holding a button)
• Suitable for installation in switch boxes
• Functionality:
• Program switch buttons via Häfele Connect Mesh app to control every node of the network
• Each time a switch button is pressed, the interface converts it into radio signals. No load flows through the switch

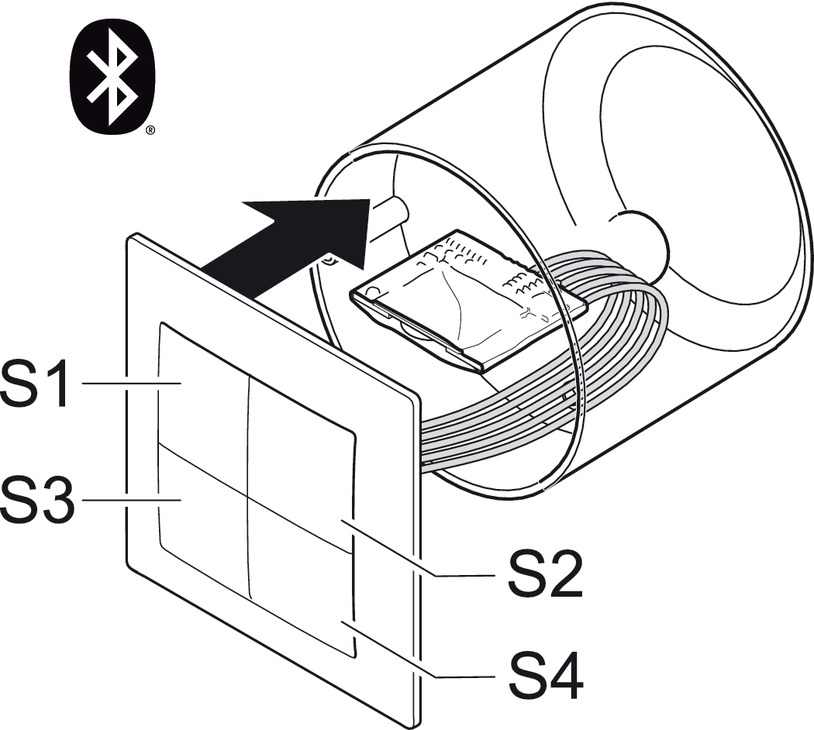

• Number of connections: 4 switching inputs for conventional 4-fold wall switches (double rocker with 4 active touch fields)
• Width: (9/32") 7 mm
• Height: (1-9/16") 39 mm
• Length: (1-7/8") 48 mm
• Material: Plastic
• Supplied with 1 x 4-channel interface

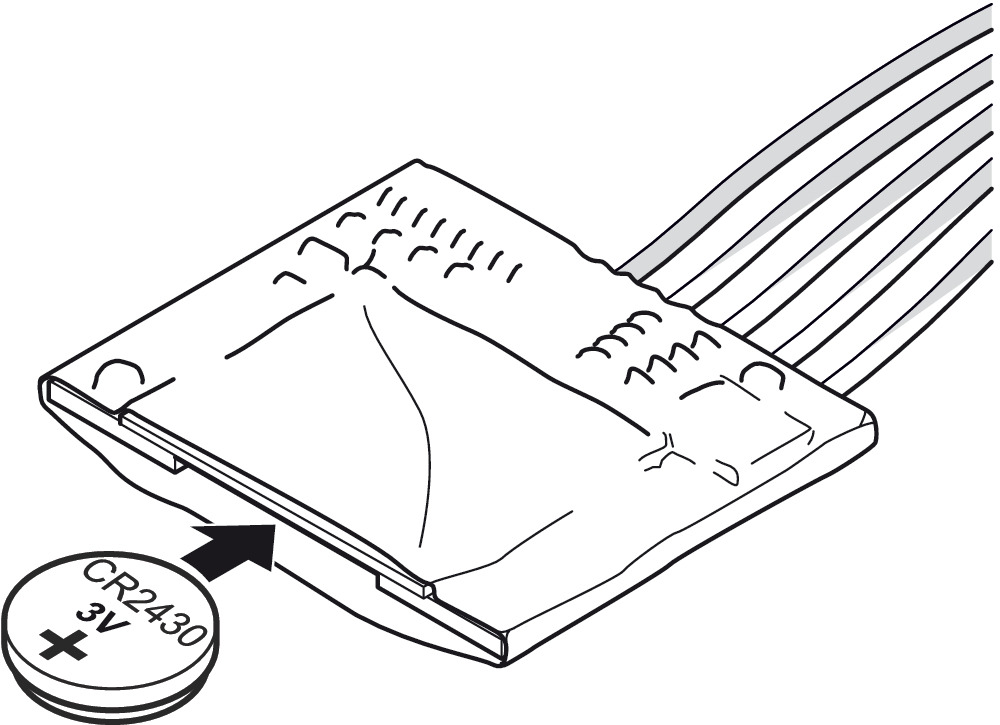

• Order 1 replaceable CR2430 button cell lithium battery (1 x 002.99.034) separately.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Distributor, Häfele Connect Mesh, 6-way, with switching function: 850.00.042, 850.00.043
• Replacement Battery, Lithium-ion, 3V: 002.99.034
