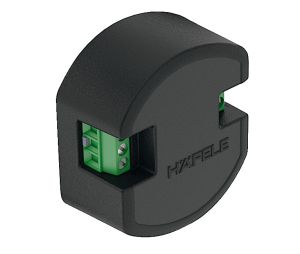

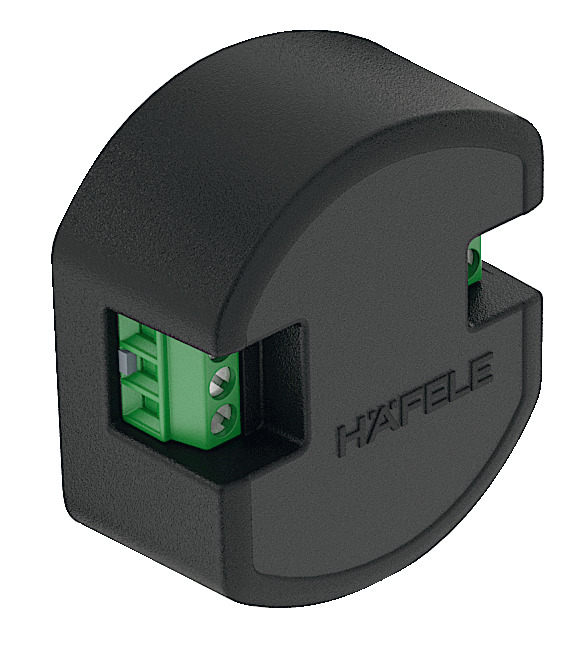

Hafele 850.00.046

• Interface
• Use switches in the design of the house installation for the control of furniture and room lights with Hafele Connect Mesh
• For on/off control of room lighting or other home installations via the Häfele Connect Mesh and for integrating conventional wall-mounted push button switches into the Häfele Connect Mesh

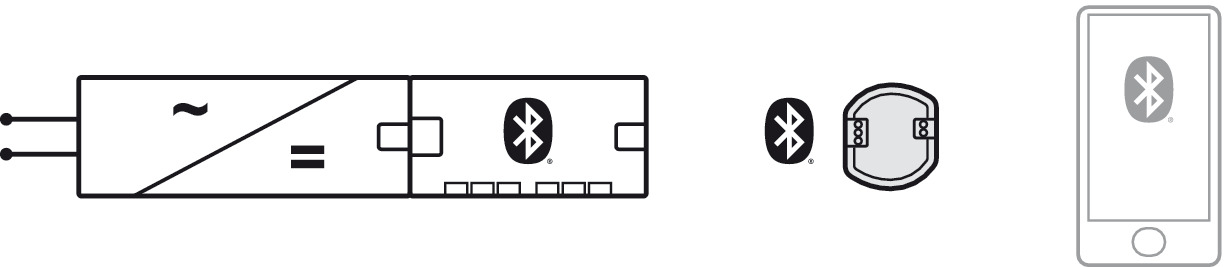

• Function programmable via app, each active component can control each passive component

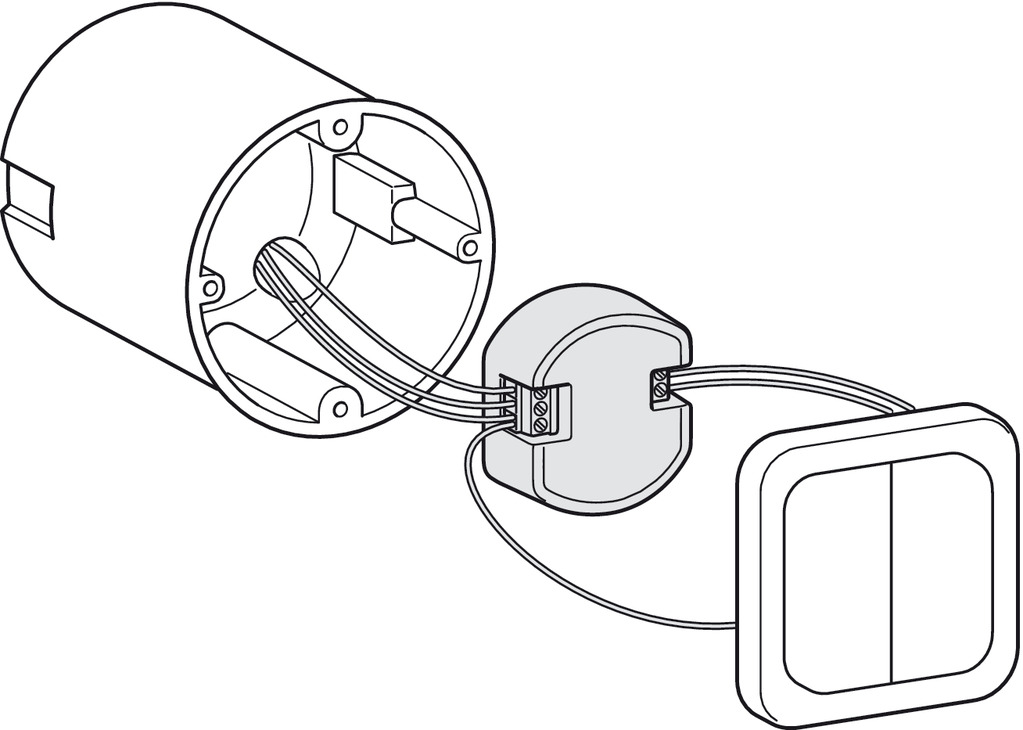

• Installation: suitable for installation in switch boxes. Recommended switch box depth: 60 mm (2-3/8").
• 2-channel interface

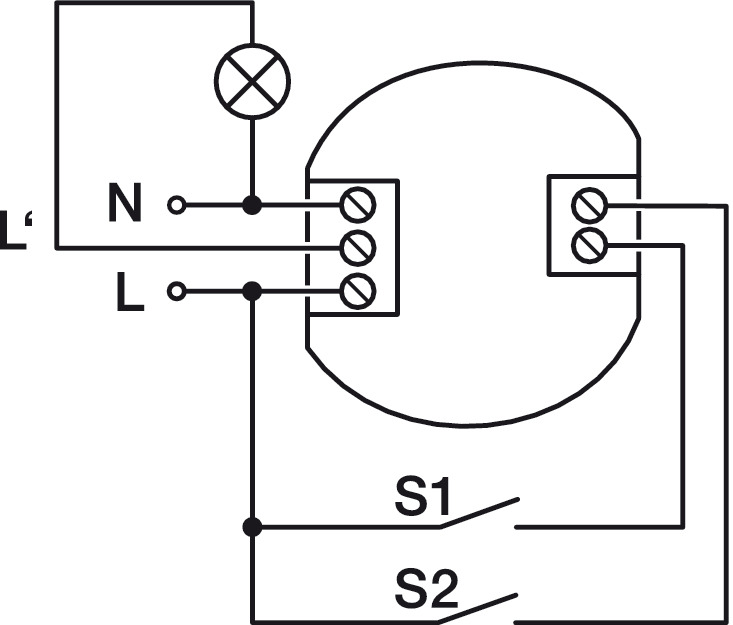

• Number of connections: 2 switching input port for conventional wall-mounted toggles switches (double-throw), 1 output port for on/off switching of 80–230 V, 3 A (can be controlled from any active component of the network)

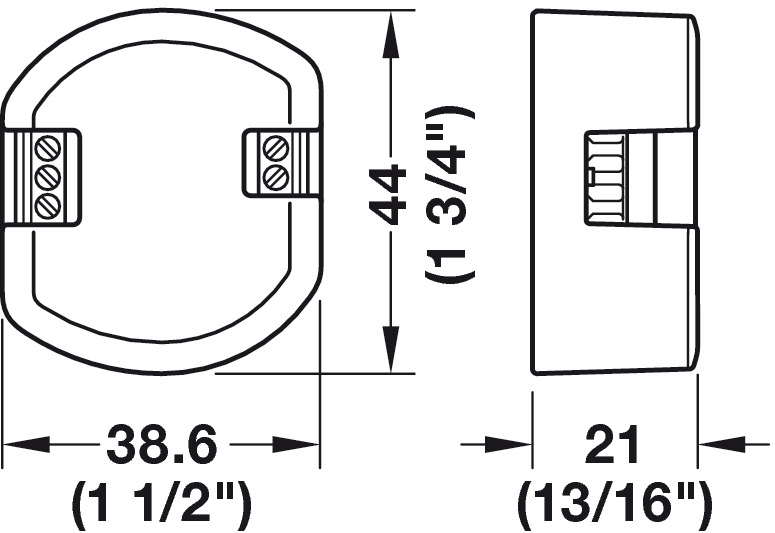

• Dimensions L x W x H: (1-9/16 x 1-3/4 x 13/16") 39 x 44 x 21 mm
• Material: Plastic
• Finish: Black
• Supplied with 1 x 2-channel interface
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Distributor, Häfele Connect Mesh, 6-way, with switching function: 850.00.042, 850.00.043
