Hafele 833.95.010

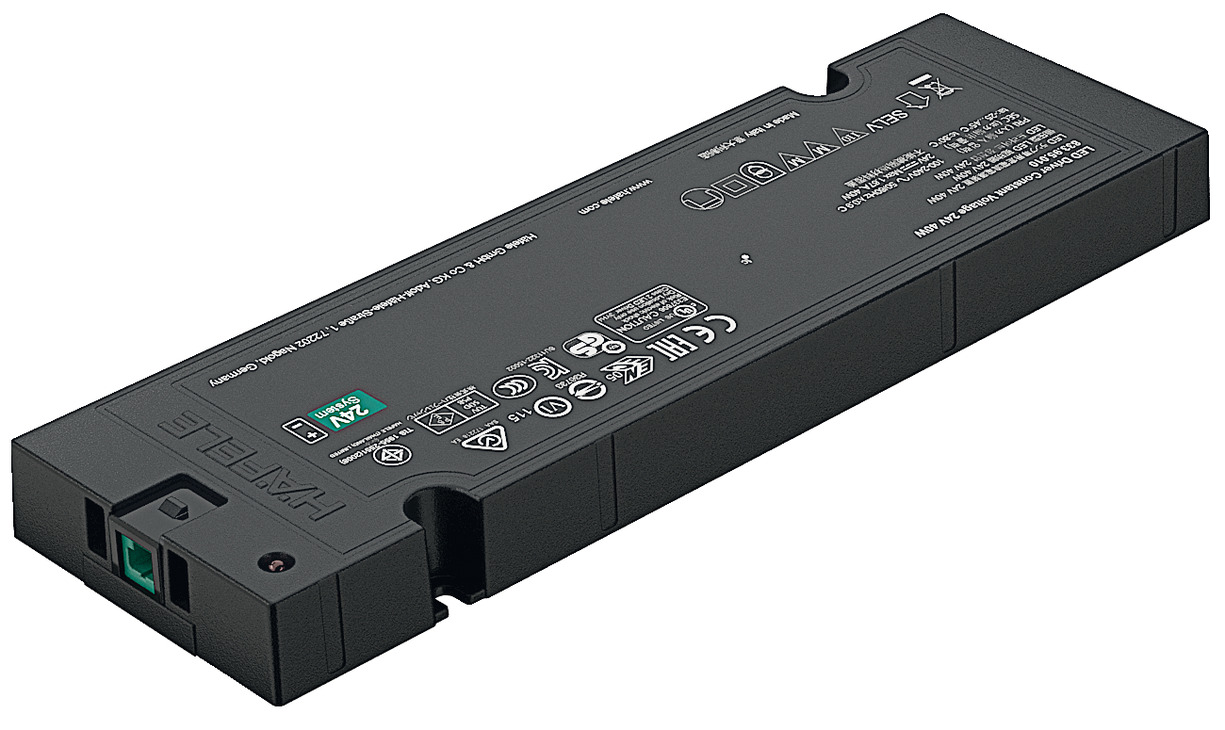

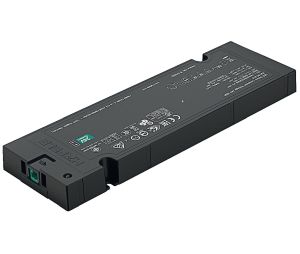

• Driver, Häfele Loox5
• Version: with overload protection
• Provide for sufficient air supply and circulation at the mounting location!
• Maximum lead length from the Loox5 driver to the device is 10 m.
• Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver (12 V or 24 V).
• With efficiency factor correction
• Extremely flat, 16 mm
• 24 V drivers with Loox5 generation plug system
• Suitable for use within closet storage spaces
• IP Code: IP20
• Voltage: 24 V
• Input voltage: 100–240 V; 50–60 Hz
• Output voltage: DC 24 V
• Output wattage: 40 W
• Output current: 1.67 A
• Stand-by power consumption: 0.3 W
• Number of connections: 1 x socket Loox5 24 V
• Life time: > 70.000 h
• Ambient temperature: -25 up to +45
• Safety: Class 2
• Dimensions (L x W x H): (7-1/2" x 2-3/8" x 5/8") 191 x 60 x 16 mm
• Material: Plastic
• Finish: Black
• Supplied with 1 driver with mounting accessories
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Required products:

• Mains lead, country-specific, C7 socket on cable: 833.89.000, 833.89.002, 833.89.005, 833.89.006, 833.89.008, 833.89.050
• Optional accessories:

  • Häfele Connect Mesh 6-way distributor, with switching function: 850.00.042, 850.00.043
  • Häfele Loox5 box to box 6-way distributor with switching function: 833.77.833, 833.77.834
  • Häfele Loox5 6-way distributor without switching function: 833.77.839
  • Extension lead, Häfele Loox5 monochrome, 24 V, 18 AWG: 833.75.755, 833.75.756, 833.95.717, 833.95.718, 833.95.719, 833.95.721
