Hafele 833.89.292

copy to clipboard

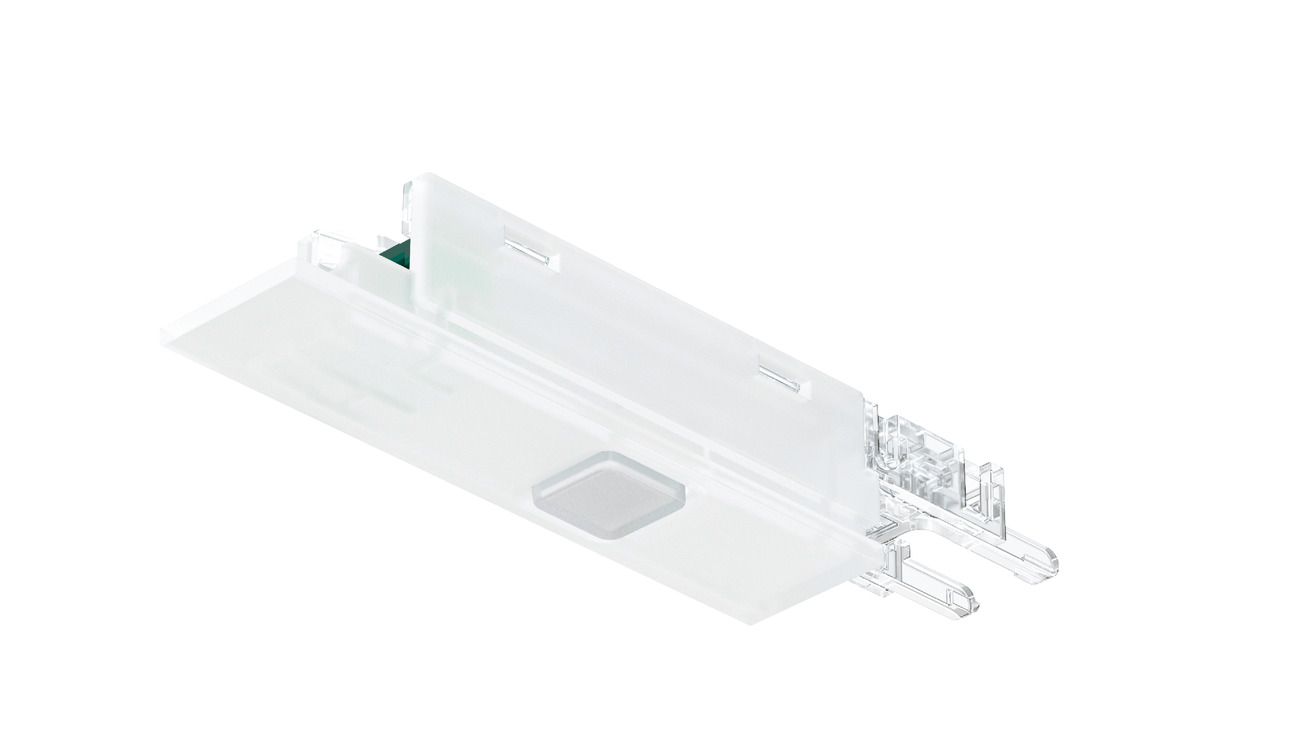

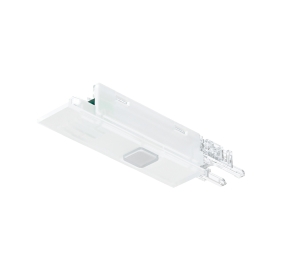

Hafele 833.89.292 Loox5 Motion Detector, Häfele Loox5, For Aluminum Profile, Modular, Automatic On/Off Switching, 60 Seconds Delay Time, Plastic, Opal

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Hafele 833.89.292 Loox5 Motion Detector, Häfele Loox5, For Aluminum Profile, Modular, Automatic On/Off Switching, 60 Seconds Delay Time, Plastic, Opal
More from Hafele
Price: $28.58 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Charlotte, NC Warehouse Qty: 446
For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Hafele 833.89.292 Loox5 Motion Detector, Häfele Loox5, For Aluminum Profile, Modular, Automatic On/Off Switching, 60 Seconds Delay Time, Plastic, Opal
  • Loox5 Motion Detector
  • Application: For monochrome Loox LED strips 8 mm (5/16") in Loox5 aluminum profiles with 11 mm (7/16") internal width
  • Suitable for: Profiles 1103, 1105, 2102, 2103, 2104

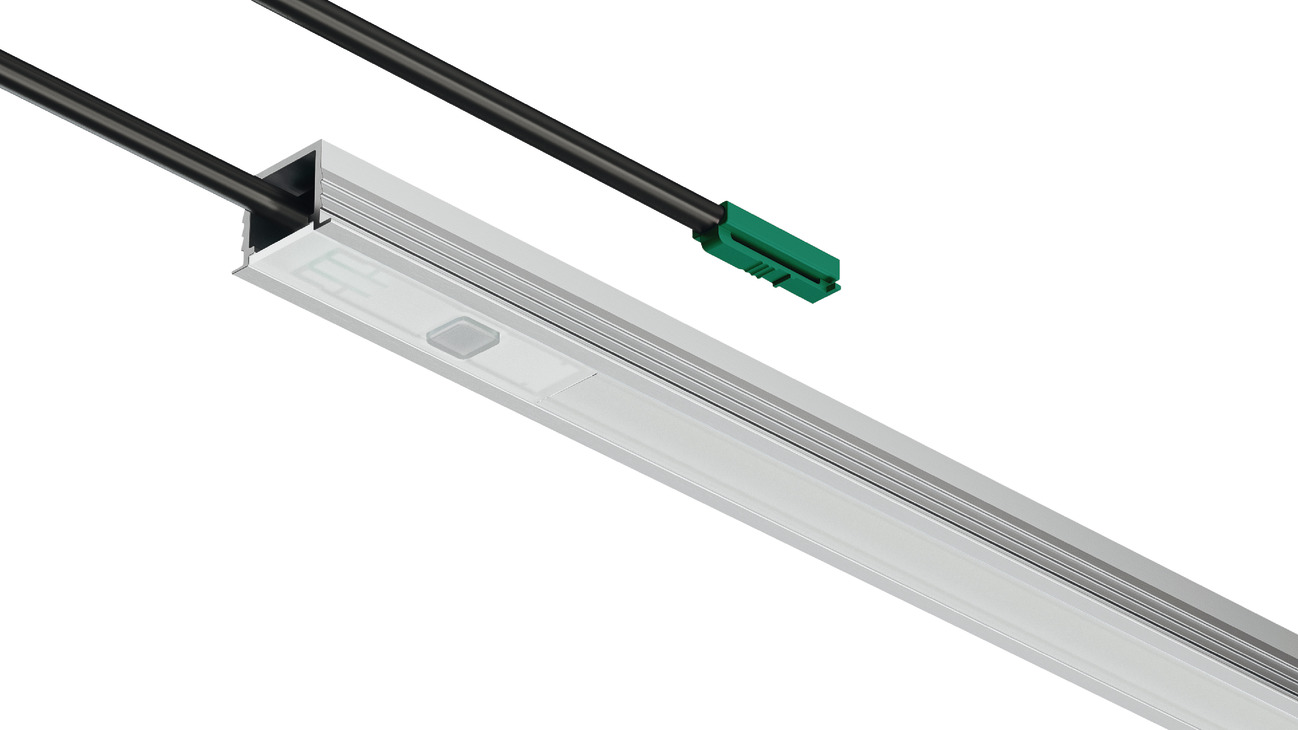

  • Installation: For sliding into aluminum profile

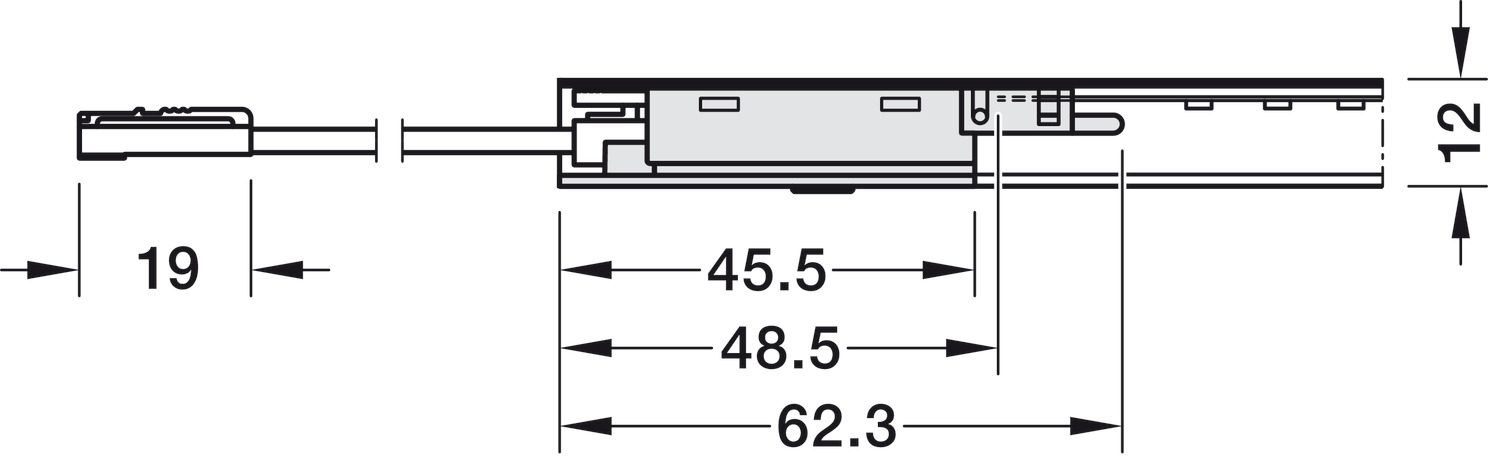

  • Installation reference: Shorten LED strip light by approx. 50 mm (1-15/16") in relation to the total length of the aluminum profile. Shorten the diffuser by 45.5 mm (1-13/16").
  • Switching function: Soft On/Off, Touchless
  • Delay time: 60 seconds
  • Input ports: 1 x socket, Loox5 modular with catch 2-pole 24 V
  • Connected output ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
  • Memory function: No
  • Low voltage plug: Loox5 mini LED 24 V
  • Power rating: 120 W

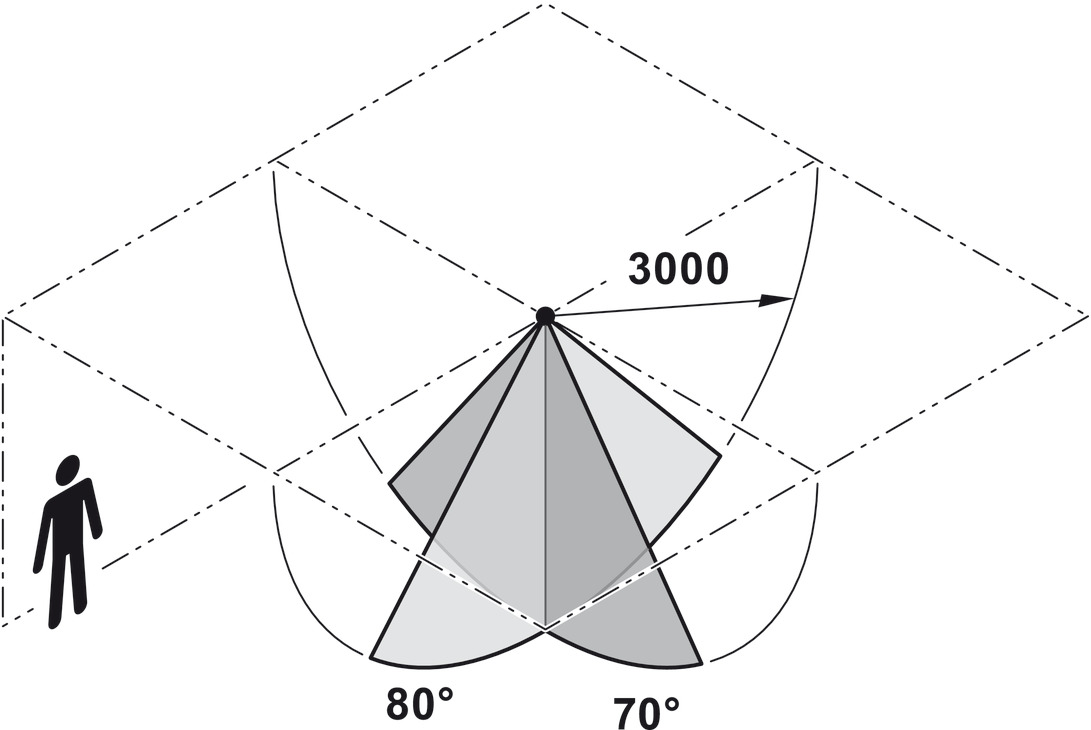

  • Sensor range: 3 m (10 ft.)
  • Sensor angle: 80 °
  • Vertical sensor bracket: 70 °
  • Material: Plastic
  • Finish: Opal
  • Order reference:
    • Please order modular lead separately:
      • 12 V/5 A, 2000 mm (78-3/4"): 833.95.830
      • 12 V/5 A, 1000 mm (39-3/8"): 833.95.831
      • 24 V/5 A, 2000 mm (78-3/4"): 833.95.835
      • 24 V/5 A, 1000 mm (39-3/8"): 833.95.836
  • Packing & Sold as: Each.
  • Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
