Hafele 833.89.291

Name: Hafele 833.89.291 Loox5 Inline Dimmer, For Aluminum Profiles, Modular, Soft On/Off Switching with Dimming, 24 V Voltage, 120 W Max. Connected Wattage, Plastic, Opal
Brand: Hafele
SKU: Hafele 833.89.291
Price: 29.7 USD

Hafele 833.89.291 Loox5 Inline Dimmer, For Aluminum Profiles, Modular, Soft On/Off Switching with Dimming, 24 V Voltage, 120 W Max. Connected Wattage, Plastic, Opal

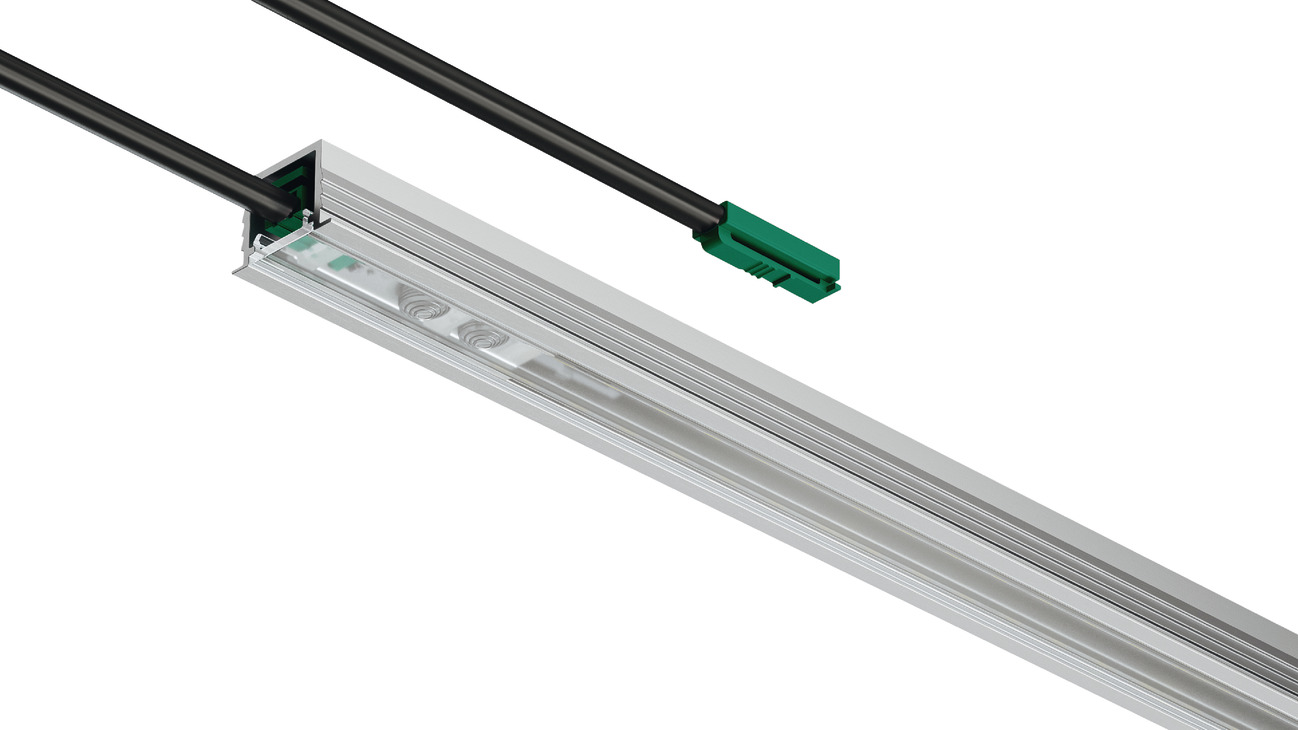

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 833.89.291 Loox5 Inline Dimmer, For Aluminum Profiles, Modular, Soft On/Off Switching with Dimming, 24 V Voltage, 120 W Max. Connected Wattage, Plastic, Opal

Price: $29.70 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 231

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 833.89.291 Loox5 Inline Dimmer, For Aluminum Profiles, Modular, Soft On/Off Switching with Dimming, 24 V Voltage, 120 W Max. Connected Wattage, Plastic, Opal

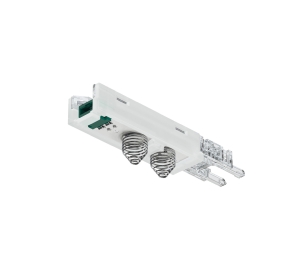

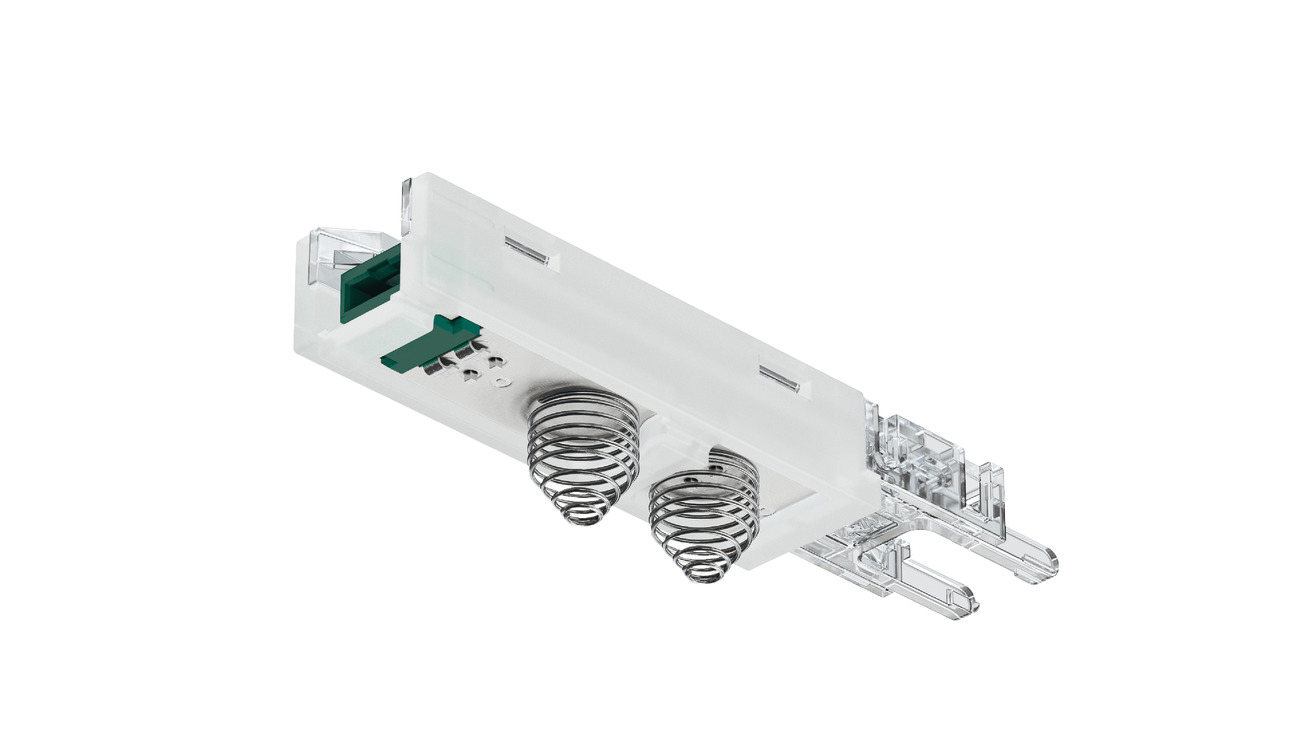

Loox5 Inline Dimmer
Application: For monochrome Loox LED strips 8 mm (5/16") in Loox5 aluminum profiles with 11 mm (7/16") internal width
Suitable for: Profiles 1103, 1105, 2102, 2103, 2104
Installation: For sliding into aluminum profile
Installation reference:
- Can be used for other aluminium profiles with a similar clear internal height to the specified models (approx. 12-14 mm).
- Shorten LED strip light by approx. 50 mm in relation to the total length of the aluminium profile.
- No diffuser shortening required, since the diffuser covers the dimmer.
- Concealed installation beneath diffuser.
Switching function: Soft On/Off
Switching contact: With touch
Input ports: 1 x socket, Loox5 modular with catch 2-pole 24 V
Connected output ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
Memory function: Yes
Low voltage plug: Loox5 mini LED 24 V
Power rating: 120 W
Material: Plastic
Finish: Opal
Order reference:
- Please order lead (modular with Loox5 2-pin snap-in connector) separately.
- Please note nominal voltage and current carrying capacity!
Additional information:
- Dimming range: 5% - 100%
- Dimming level is retained after switching off (memory function). The light stays off in the de-energised condition.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
