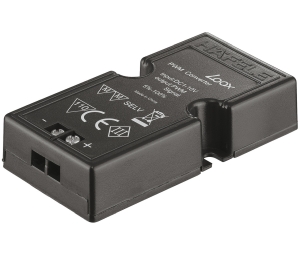

Hafele 833.89.144

Name: Hafele 833.89.144 Dimmer Interface, 0 - 10 V, Modular For 12 V and 24 V System, 1-10 V, For 12 V, 24 V and 350 mA Systems, Plastic, Black
Brand: Hafele
SKU: Hafele 833.89.144
Price: 32.86 USD

Hafele 833.89.144 Dimmer Interface, 0 - 10 V, Modular For 12 V and 24 V System, 1-10 V, For 12 V, 24 V and 350 mA Systems, Plastic, Black

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 833.89.144 Dimmer Interface, 0 - 10 V, Modular For 12 V and 24 V System, 1-10 V, For 12 V, 24 V and 350 mA Systems, Plastic, Black

Price: $32.86 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 267

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 833.89.144 Dimmer Interface, 0 - 10 V, Modular For 12 V and 24 V System, 1-10 V, For 12 V, 24 V and 350 mA Systems, Plastic, Black

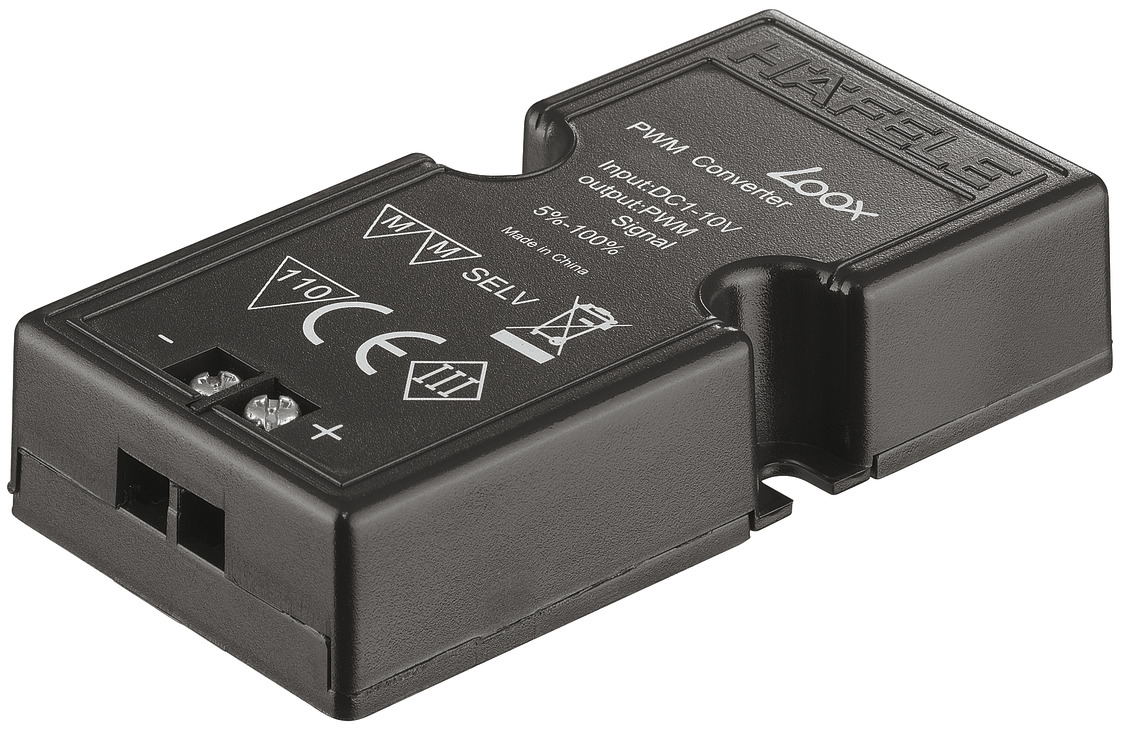

Dimmer Interface
Version: For lead with snap-in connector

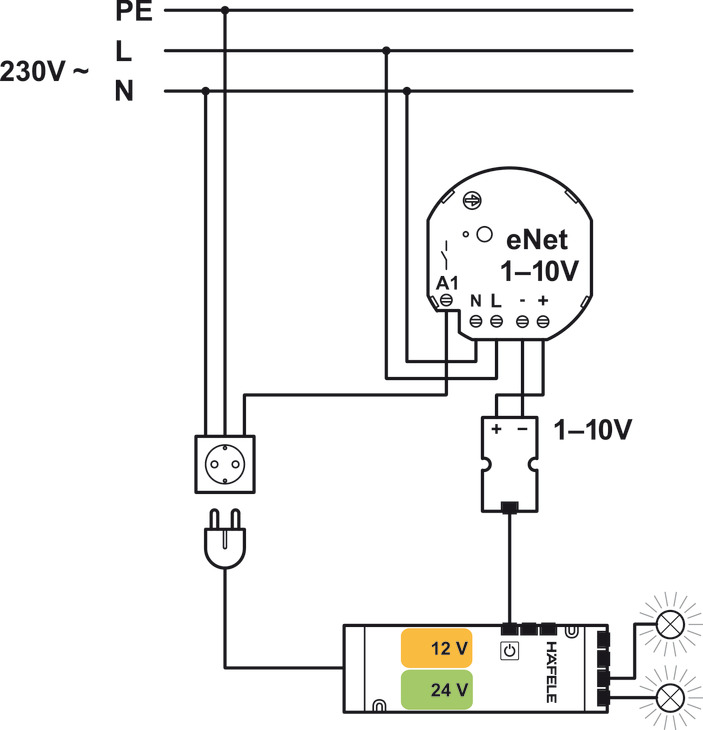

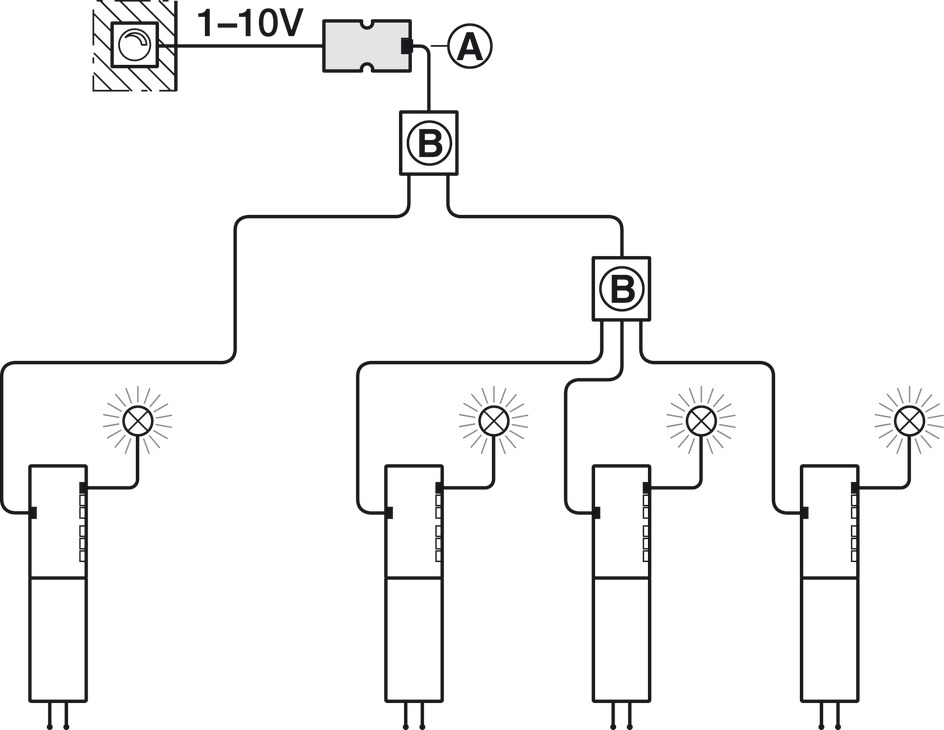

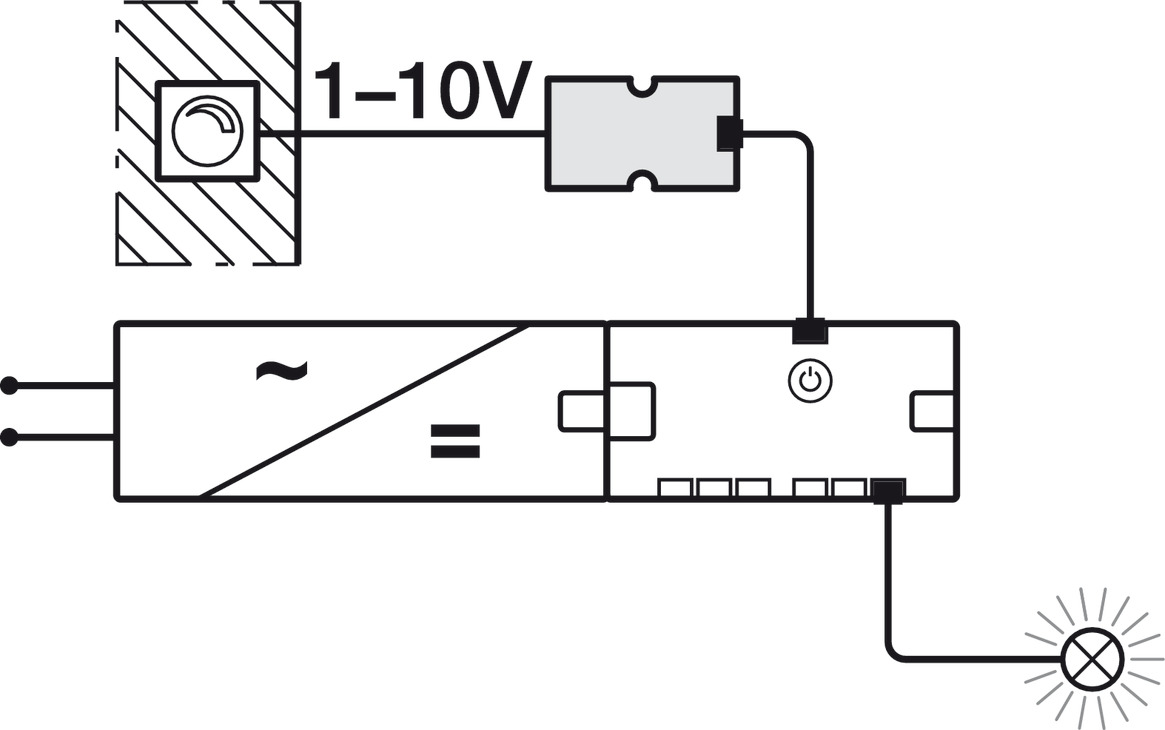

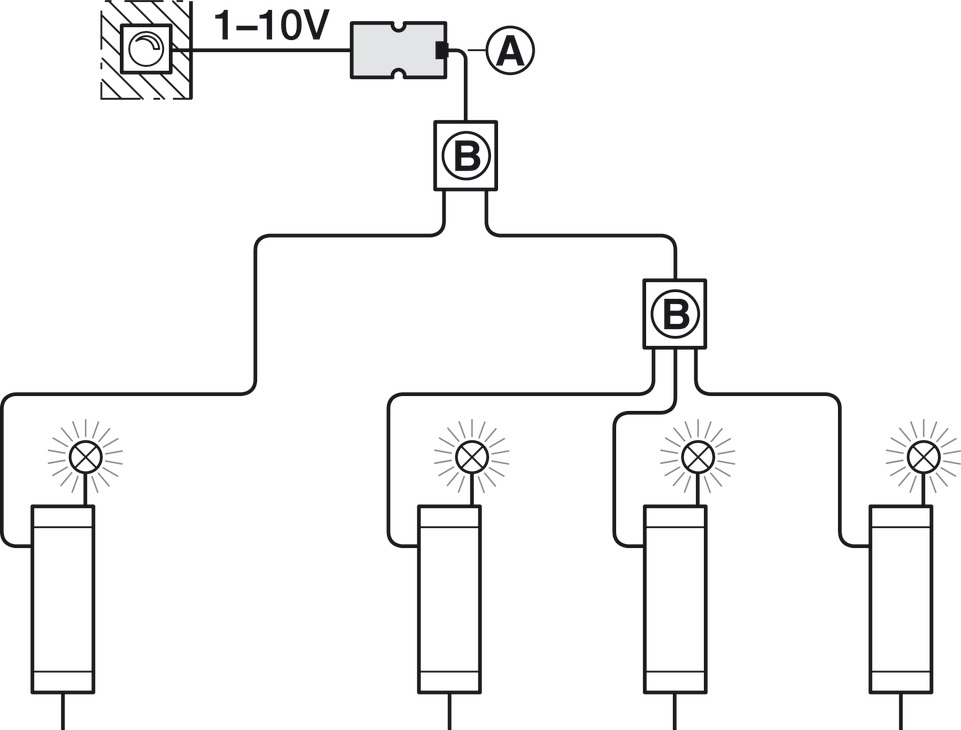

Application: For dimming lights at a Loox driver 12 V or 24 V using wall dimmer with on/off function and control output 1-10 V
Design advantage: Wall dimmers can be used for the control of furniture lights in the design of the house installation
Installation reference: Dimmer (e.g. Gira 030900) and cavity wall box required on site.
Input signal: 1-10 V
Degree of protection: IP20
Dimensions:
- Length: 69 mm (2-11/16")
- Width: 35 mm (1-3/8")
- Height: 13.5 mm (9/16")
Material: Plastic
Finish: Black
Order reference: Please order lead with snap-in connector for modular switches.

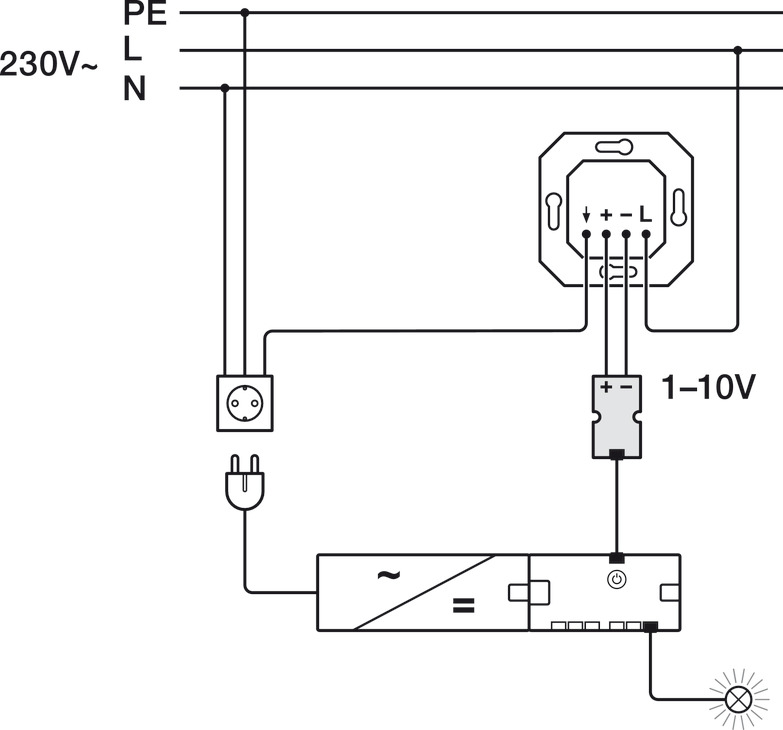

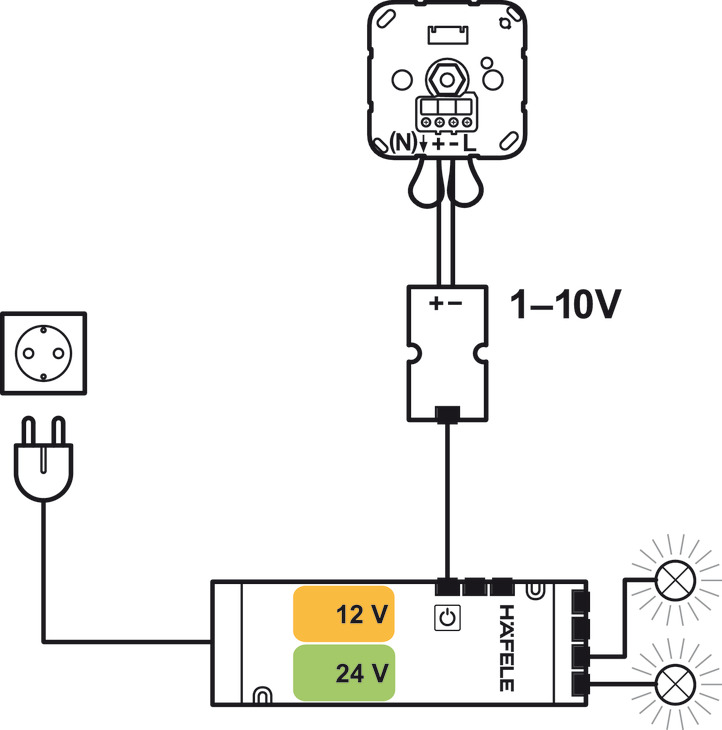

Additional information: Use dimmer only, if monochrome lights are connected. Not suitable for the connection of converters or control devices. Direct connection to a normal household dimmer with a 0-10 V control output and connection via a lead with snap-in connector for modular switches to the switching input of a 12 V or 24 V Loox driver or a distributor.
Packing & Sold as: Each.
Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
