Hafele 833.75.754

Name: Hafele 833.75.754 CL3R Extension Lead, Häfele Loox5 Monochrome, 24 V, 18 AWG, 2000 mm Length, Set
Brand: Hafele
SKU: Hafele 833.75.754
Price: 11.69 USD

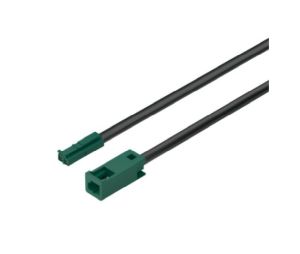

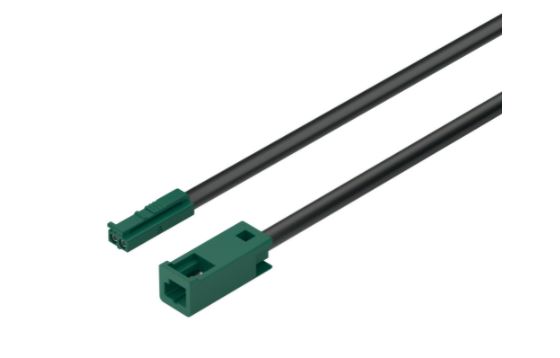

Hafele 833.75.754 CL3R Extension Lead, Häfele Loox5 Monochrome, 24 V, 18 AWG, 2000 mm Length, Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Hafele 833.75.754 CL3R Extension Lead, Häfele Loox5 Monochrome, 24 V, 18 AWG, 2000 mm Length, Set

Price: $11.69 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Charlotte, NC Warehouse Qty: 9257

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Hafele 833.75.754 CL3R Extension Lead, Häfele Loox5 Monochrome, 24 V, 18 AWG, 2000 mm Length, Set

CL3R Extension Lead
Häfele Loox5 Monochrome
This product is covered under Häfele's Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
Maximum lead length from the Loox5 driver to the device is 10 m.
Long cable lengths in combination with large loads (strip light lengths) can result in voltage losses in the cable. These lead to visible loss of brightness in the lights. The illuminance listed with the lights has been determined with the rated output voltage of the driver (12 V or 24 V).
Meets the following codes for wire and cable locations:

NEC article 411 Lighting systems operating at 30 V or less attached to Class 2 power
NEC article 725.135 Installation of Class 2 cable
NEC article 411.5 Specific Location Requirements

Application: in-wall leads, designed to be routed behind the drywall
Cable type:

Wire gauge: 18 AWG
Wire type: CL3R
Construction: 2-conductor
Stranded Copper rating: Cclass 2, double insulated

Volts: 24 V
Current carrying capacity: 5 A

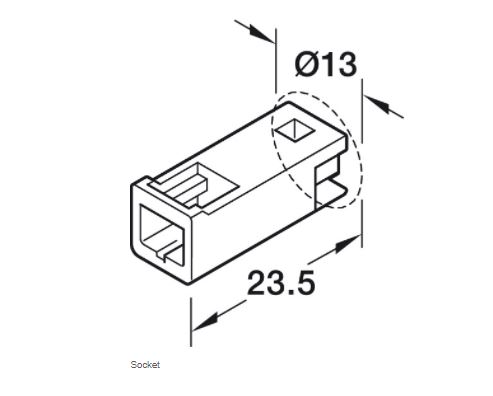

Drill hole diameter: plug 8 mm (5/16"); socket 13 mm (1/2")
Length: (78-3/4") 2000 mm
Material: Plastic
Supplied with

1 extension lead

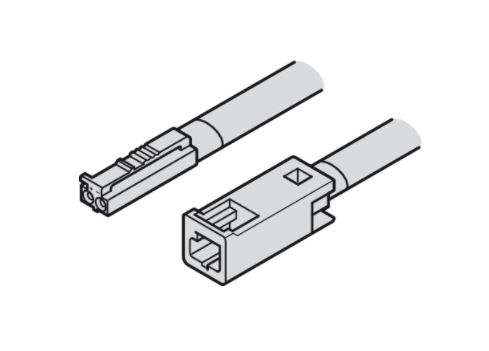

1 plug/1 socket

This product is covered under Häfele's Lifetime Guarantee in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
Packing & Sold as: Set
Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
