Hafele 833.74.349

• LED Silicone Strip Light

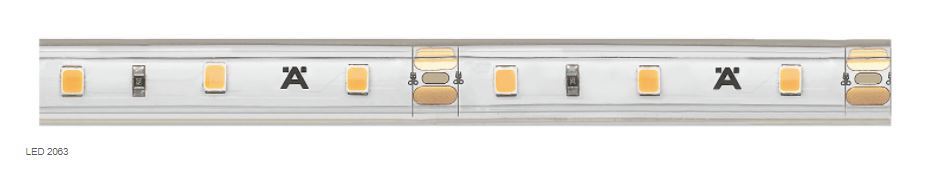

• Model: LED 2063
• Maximum visual strip length applies for an imperceptible drop in luminous flux of max. 30%.
• Maximum wattage-dependent strip length on the driver, see technical data for LED strip lights.
• Degree of protection IP44 when using leads and end cap set for Loox5 LED silicone strip lights.
• Alternatively IP20 with leads and clips for monochrome Loox5 LED strip lights 8 mm wide.
• Equipped with high-quality Samsung LEDs
• Loox lights and drivers are “Suitable for use within closet storage spaces"
• Application: for universal use in furniture
• Installation: Self-adhesive
• Dimmable: YES
• IP Code: IP20
• Voltage: 12 V
• Wattage per meter: 4.8 W
• Number of LEDs: 60
• Weighted energy consumption: 5.3 kWh/1,000 h
• Life time: L80/B10 >50000 h
• Energy efficiency class: A+
• Color rendering index: >90
• Color rendering index R9: >50

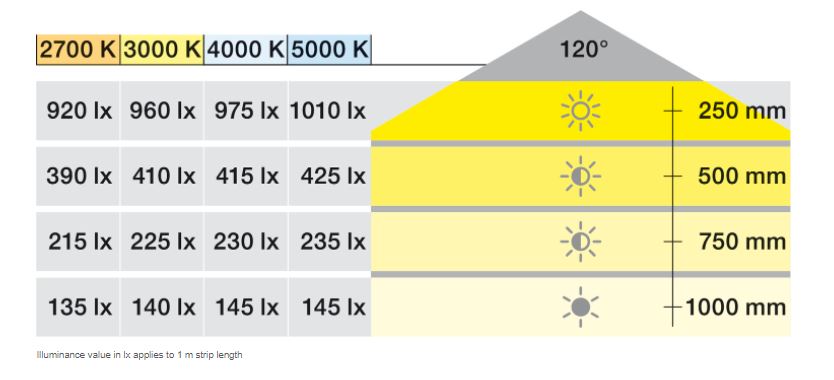

• Light output per meter: 440 lm
• Color temperature: 3000 K - Warm White

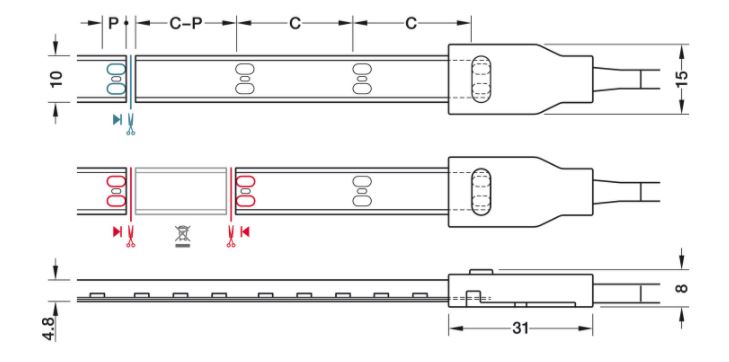

• Cut length C: 50 mm
• Length contact surface P: 4 mm
• Max. lenght strip visual: 6 m
• Width:
• Strip: (5/16") 8 mm
• Silicone sleeve: (3/8") 10 mm
• Height:
• Strip: (1/16") 1.3 mm
• Silicone sleeve: (3/16") 4.8 mm
• Length: (590-9/16") 15 m
• Material: Silicone
• Finish: White

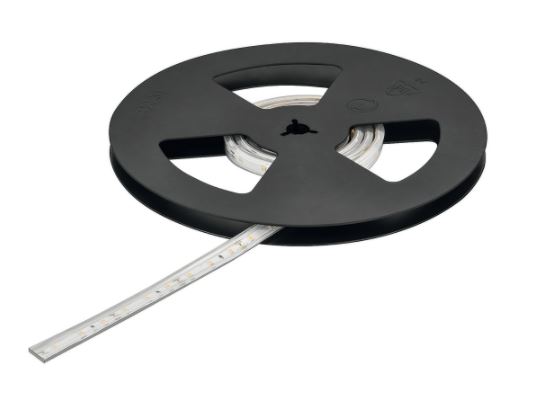

• Supplied with 1 roll
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Required products:

• Lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"), 12 V, AWG 18: 833.93.736, 833.95.700, 833.95.701
• Lead, Häfele Loox5, for LED silicone strip light, monochrome, (5/16") 8 mm, 12 V: 833.95.703

Optional accessories:

• Interconnecting lead, Häfele Loox5, for LED silicone strip light, monochrome, 8 mm (5/16"): 833.89.203, 833.89.204, 833.89.205
• End cap set, with adhesive, for LED silicone strip light (5/16") 8 mm: 833.89.184
• Stripper: 006.13.485
• Interconnecting lead, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"): 833.89.191, 833.89.192, 833.89.193
• Clip connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"): 833.89.206
• Corner connector, Häfele Loox5 for LED strip light monochrome 8 mm (5/16"): 833.89.187
• Remote control, Häfele Connect Mesh: 850.00.040
