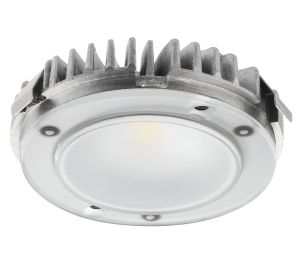

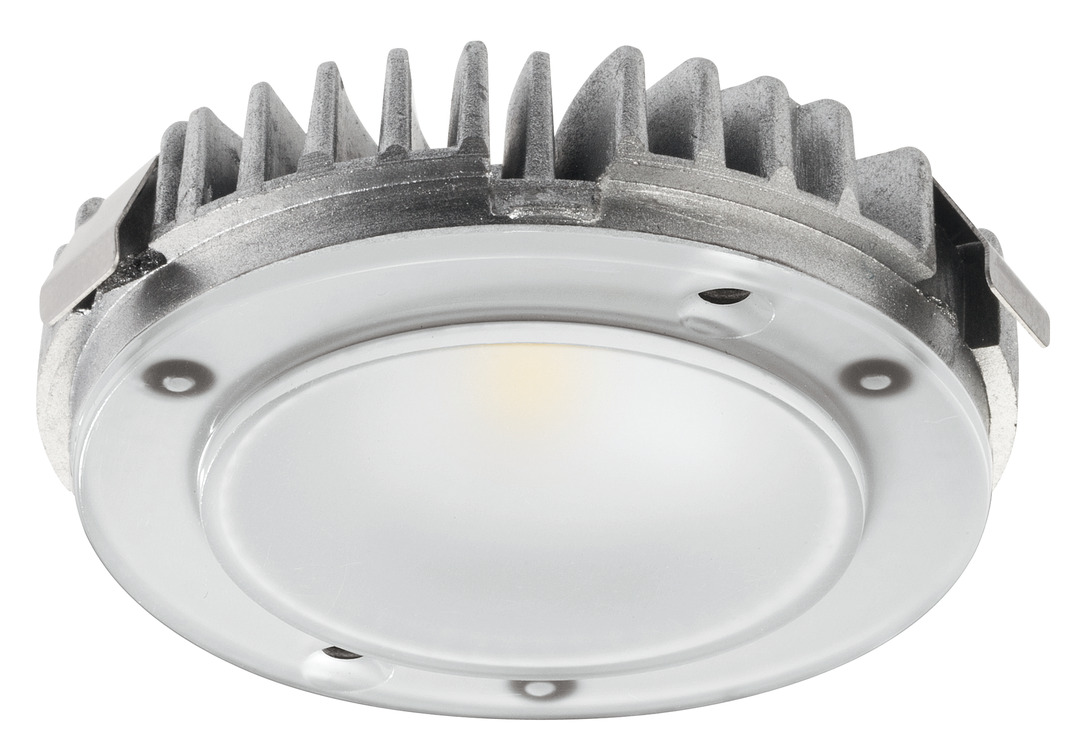

- Modular Puck Light
- Model: LED 2091
- Version: Multi-white
- The IP44 degree of protection is reduced to IP20 when mounting as downlight or recess mounting with through hole.
- Color control only via 6-way distributor Häfele Connect Mesh with multi-white adapter and remote control or smartphone.
- Loox lights and drivers are “Suitable for use within closet storage spaces"

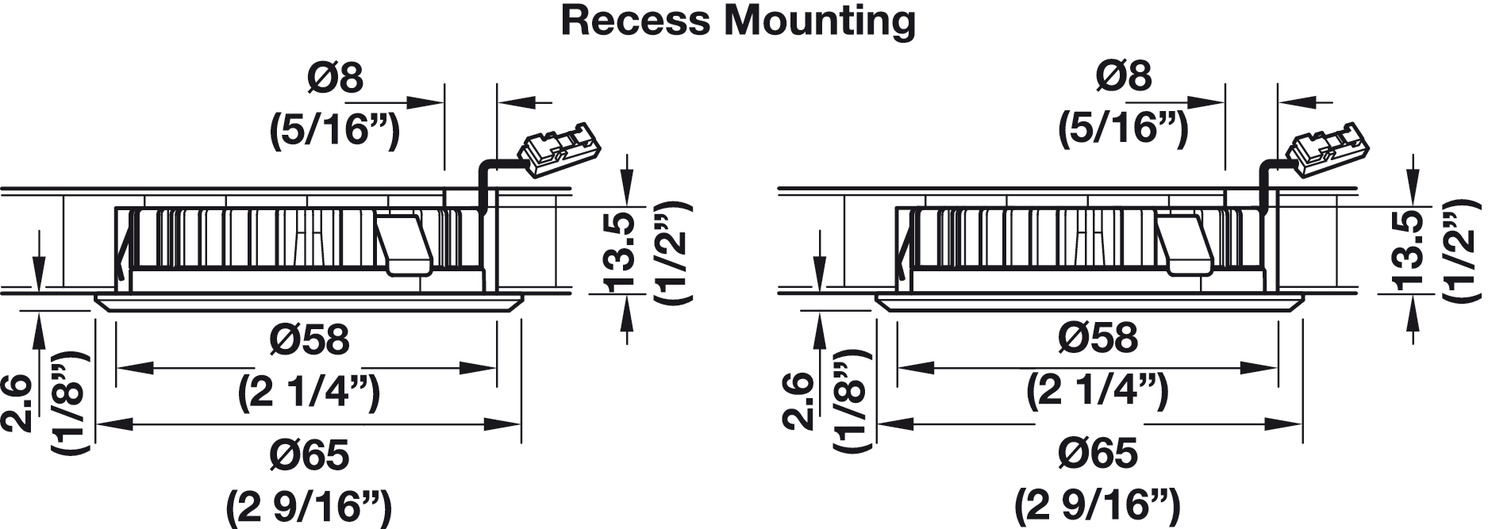

- Installation: for mounting in drilled hole, for clamp fixing or for screw fixing
- Dimmable: YES
- Voltage: 12 V
- Wattage: 3.4 W
- Weighted energy consumption: 3.74 kWh/1,000 h
- IP Code:
- IP44 (recess mounted light)
- IP20 (surface mounted downlight)
- Energy efficiency class: A+
- Color rendering index R9: >55

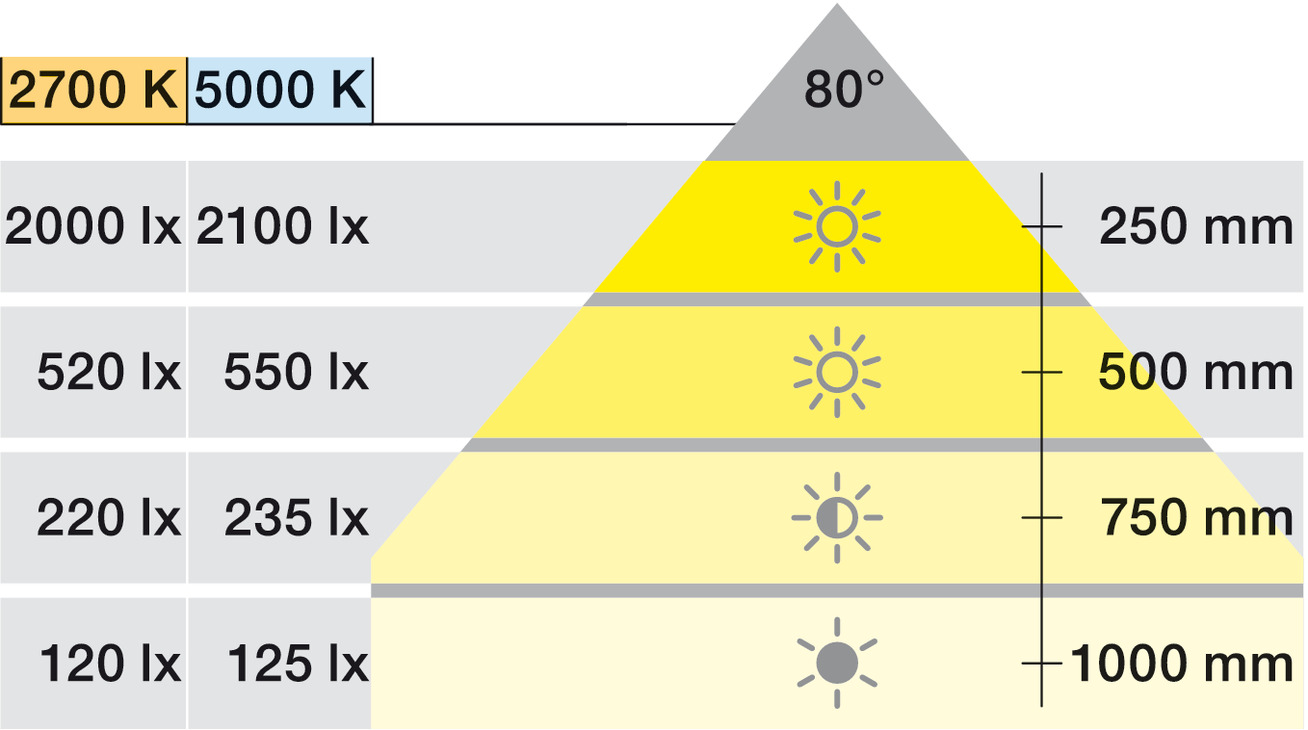

- Luminous flux: warm white: 240, cool white: 270 lm
- Luminous efficacy (Lm/W): warm white: 72, cool white: 80 Lm/W
- Light color: warm white: 2700 K to cool white: 5000 K
- Drill hole diameter: (2-5/16") 58 mm
- Material: Aluminum
- Supplied with 1 light module
- Packing & Sold as: Each.
- Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

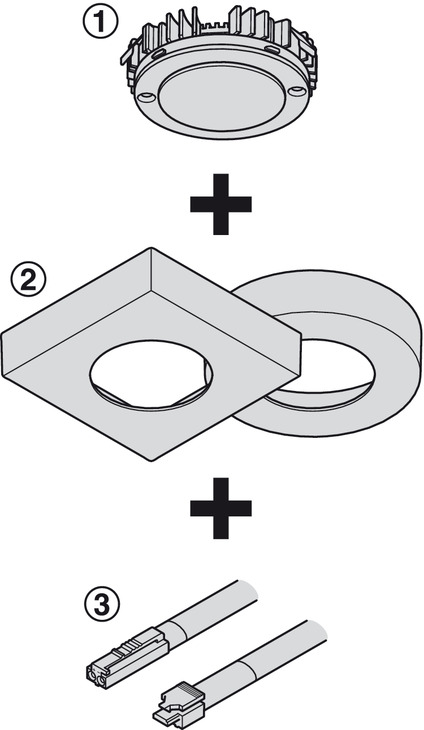

Required products: - Driver, Häfele Loox5, Constant voltage, 12 V: 833.95.000, 833.95.002, 833.95.003
- Lead with Snap-In Connector, Häfele Loox5, 3-wire 24 AWG, 12 V: 833.95.787
- Distributor, Häfele Connect Mesh, 6-way, with switching function: 850.00.042
- Lead with Snap-In Connector, Häfele Loox5, 3-wire 24 AWG, 12 V: 833.95.745
- Recess Mount Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092: 833.72.126, 833.72.127, 833.72.168, 833.72.170, 833.72.171, 833.72.172, 833.72.174, 833.72.175, 833.72.381, 833.72.382, 833.72.383, 833.72.384, 833.72.385
- Surface Mounted Housing Trim Ring, for Loox LED 2025/2026, 2091/3091, 2092/3092: 833.72.124, 833.72.125, 833.72.160, 833.72.162, 833.72.163, 833.72.164, 833.72.166, 833.72.167, 833.72.192, 833.72.193, 833.72.194, 833.72.195, 833.72.196, 833.72.197
Optional accessories: |
