Hafele 822.53.372

• Docking Drawer
• Model: 1514-160W
• Docking Drawer Blade Duo and Blade feature one size for all outlets for easy specification and installation
• All outlets can charge & power all of your devices
• Simplified electrical connection; every outlet now just plugs in
• 15 amp solutions feature 14 AWG cord approved for residential and commercial installations, most other devices do not use this approved power cord

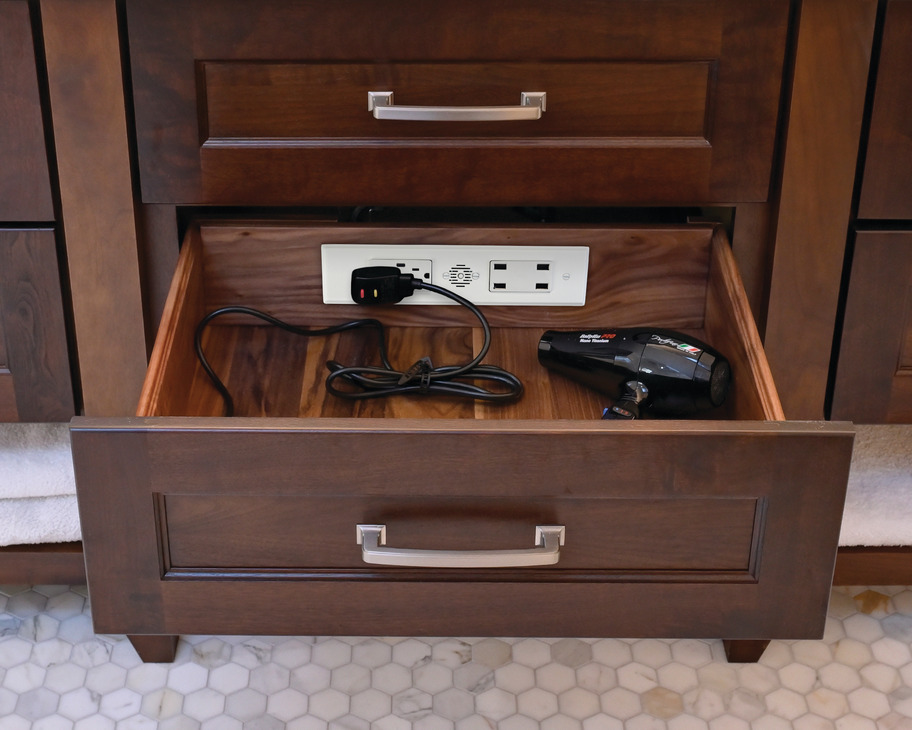

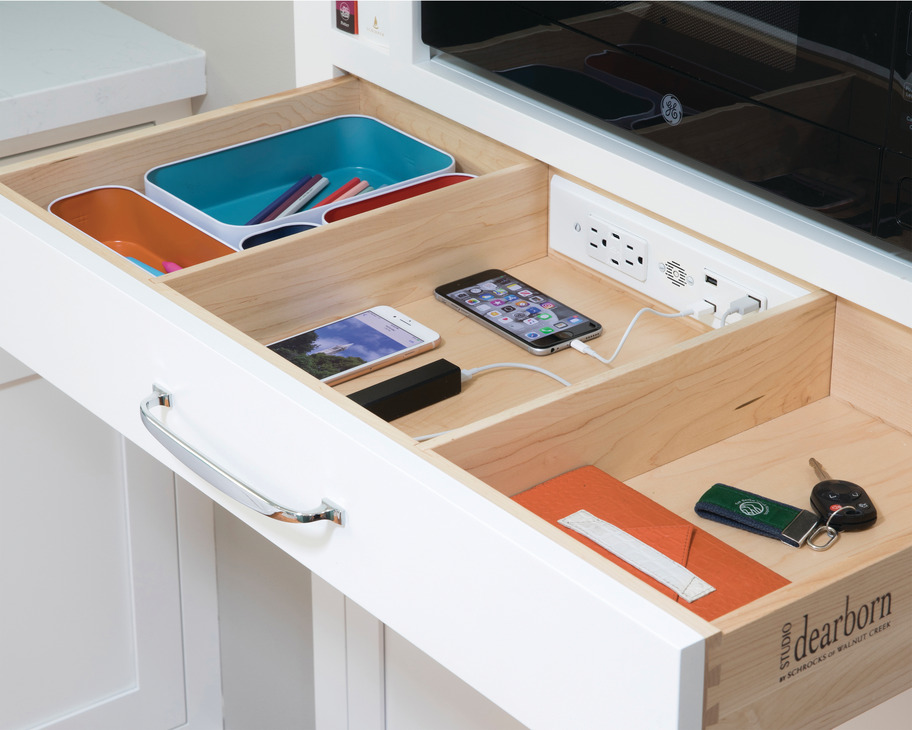

• Keep your devices plugged in, ready to use and neatly stowed
• Cabinet Specifications: Fits cabinet depths =610 mm (24") with a minimum drawer box width (OD) =380 mm (15")
• Minimum space behind drawer box: 51 mm (2")
• Minimum interior drawer box height: 76 mm (3")
• Electrical Specifications:
• 1.37 m (4 1/2') NEMA 5-15P power cord plugs into a NEMA 5-15R receptacle
• 15 amp outlets with 14 AWG cord approved for residential and commercial Installations
• Max rated current: 15 amps @ 120 VAC
• USB-C (Power Delivery): 3 amps @ 9 VDC" (30W)
• USB-A: 3.6 amps @ 5VDC or 4.2 amps @ 5VDC
• Interlock Thermostat de-energizes outlet when the surrounding temperature exceeds 120°F
• Optional Safety Interlock Box adds a limit switch that senses the drawer position and de-energizes the outlet when the drawer starts to close (Note: Safety Interlock Box is optional in the United States. Required in Canada to satisfy the requirements of the Canadian Electrical Code (CEC).
• Benefits of Docking Drawer series with USB-C with Power Delivery:
• USB-C is the new USB standard that is maturing in the market
• Faster - USB-C (PD) can charge your device up to 70% faster than standard 12W charging found in USB-A ports. Therefore, your devices will need less time to reach a full charge. A quick 10-minute charge with USB-C (PD) might be all you need to get going.
• More Powerful - With up to 2X more power than typical USB ports, Docking Drawer with USB-C (PD) have up to 30W of power available and can charge larger devices like tablets and laptops with just a USB-C cable.
• Safer - Docking Drawer series with USB-C (PD) contain a smart chip which makes charging safer with 3 key features: 1) Recognizes and optimizes the charging requirements for each individual device and is especially designed to handle new higher levels of power. 2) Built-in overcurrent protection safely keeps devices from receiving too much power. 3) Features an internal thermoregulator to prevent electronics from overheating, which is not available for USB-A.

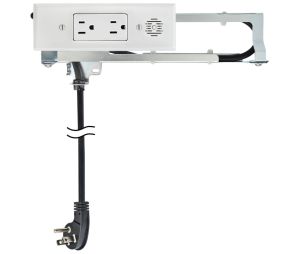

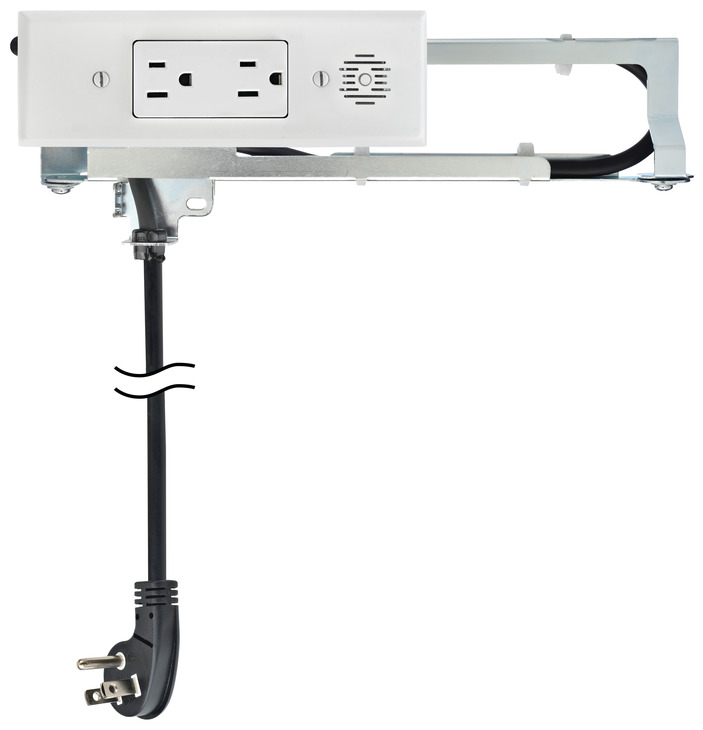

• Features: with 2 x AC outlets
• Mounting:
• Horizontally or vertically, left or right
• Works with side-mount, under-mount and soft closing slides
• A standard 15 amp household outlet is needed, and will need to be within 4 1/2’ of cabinet
• Material: Metal with Plastic and Electrical Components
• Finish: White
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.

Optional accessories:

• Safety Interlock Box, for Docking Drawer: 822.53.395, 822.53.396
