Hafele 793.00.302

• S 80 Sliding Door Kit
• For 3/4" Doors
• Vertical handle profiles are used as handles and prevent door from warping
• Side profiles can be used as handles
• Optional soft closers are available
• Quick and easy installation
• Smooth and quiet operation
• A kit is for assembly of one sliding door
• Track sold separately
• Application: for (3/4") 19 mm doors
• Load bearing capacity: max: up to (220 lbs) 100 kg
• Material: Anodized Aluminum
• Finish: Matt
• Supplied with:

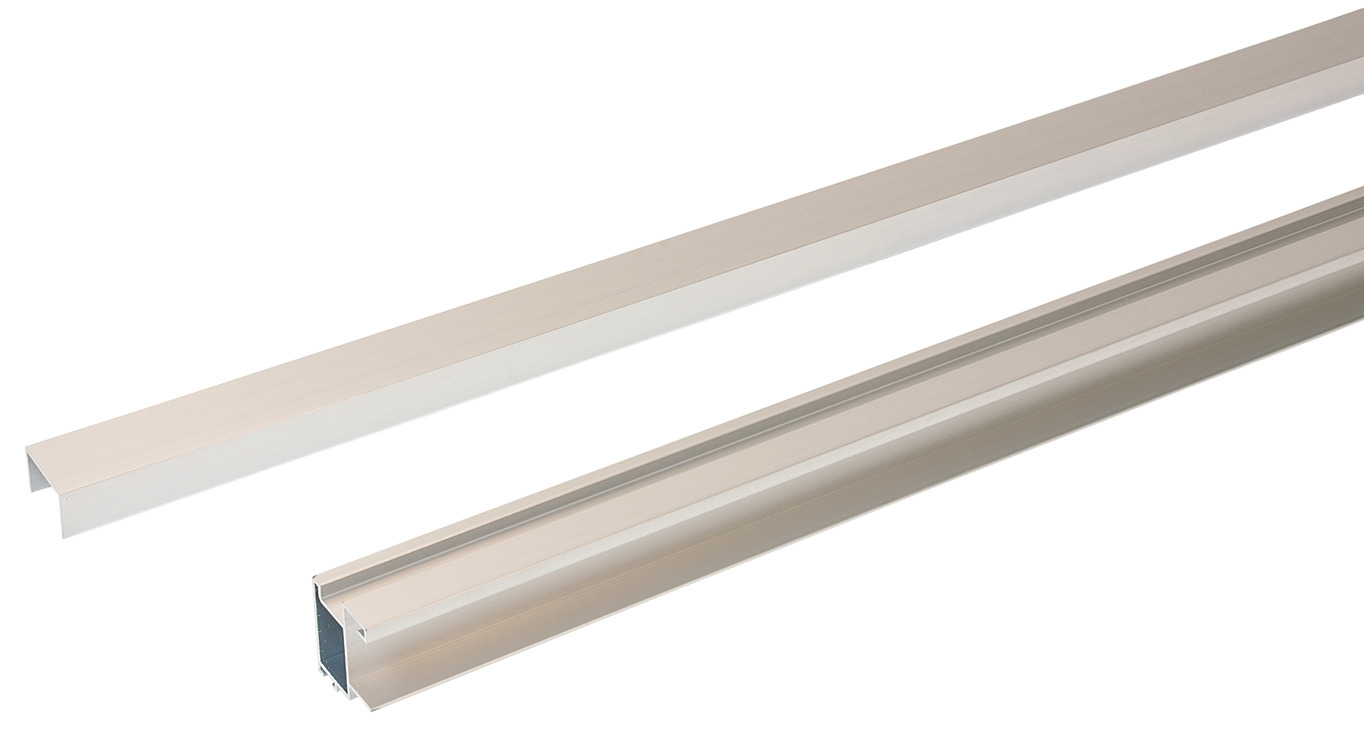

• 2 Vertical Handle Profiles (2.7 m, 8' 10-5/16"), Anodized Aluminum

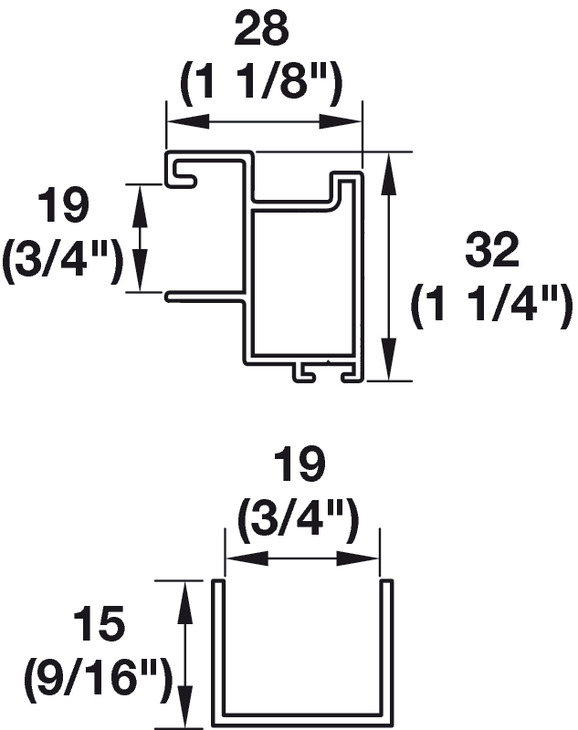

• 2 Upper/Lower Door Profile (1.2 m, 3' 11-1/4"), Anodized Aluminum
• 2 Lower rollers, Steel, zinc-plated, plastic
• 2 Upper rollers, Steel, zinc-plated, plastic
• 1 Brush seal
• 1 Door stopper, Plastic
• 16 screws, Steel
• Packing & Sold as: Set
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Track Set, for S 80 Sliding Door: 793.00.306, 793.00.307, 793.00.310, 793.00.311,793.00.323, 793.00.324

Optional accessories:

• Soft Closer, for S 80 Sliding Door: 793.00.312, 793.00.313, 793.00.325, 793.00.335
• Divider Profile, for 3/4" S 80 Sliding Door: 793.00.318, 793.00.319, 793.00.327
• Fitting, for S 80 Sliding Door: 793.00.328
• Gasket, for S 80 Sliding Door: 793.00.334
