Hafele 637.80.353
Hafele 637.80.353

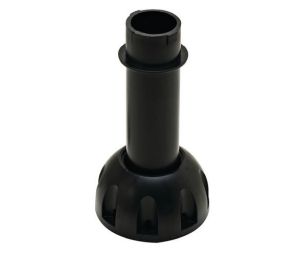

Hafele 637.80.353 Adjustment Foot/Tube, 78 mm Diameter, 150 mm Base Height, Plastic, Black, Set Of 4 Pieces
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
9.33 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 456
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

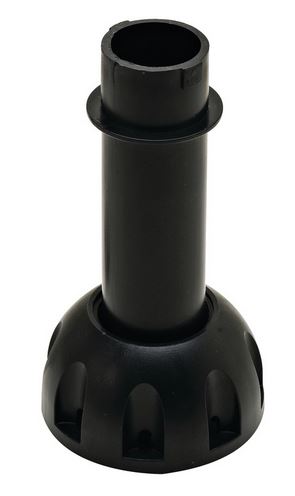

Hafele 637.80.353 Adjustment Foot/Tube, 78 mm Diameter, 150 mm Base Height, Plastic, Black, Set Of 4 Pieces
Adjustment Foot/Tube
78 mm Diameter
150 mm (6") Base Height
Adjustment: Range: -10/+18 mm
Installation:

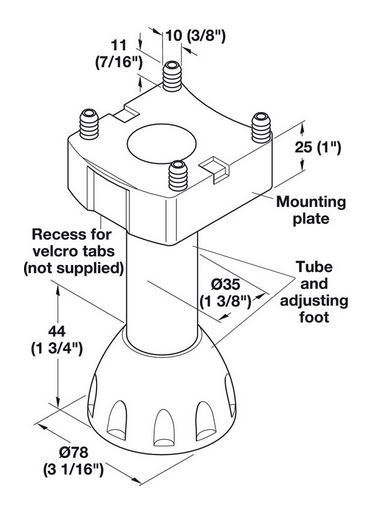

Heights listed are total, including mounting plate, tube and adjusting foot

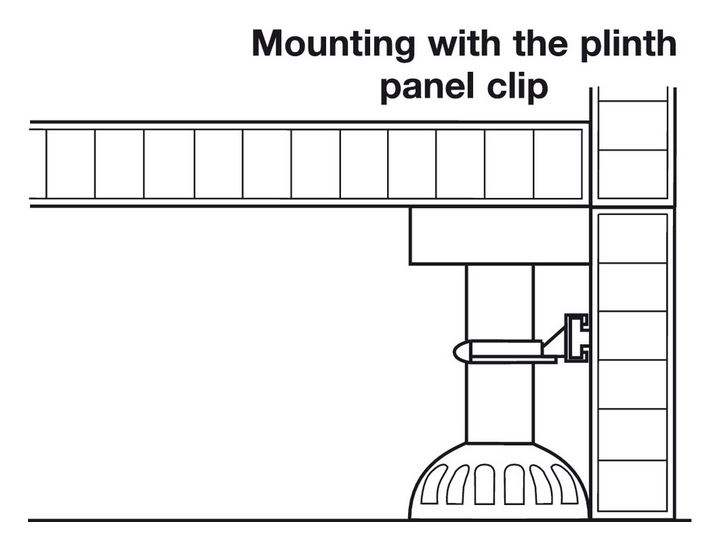

Plinth panel attaches with the clips shown, or with Velcro applied to the mounting plate recess
Bayonet locking of the tube in the mounting plate prevents the tube from pulling out during tilting, especially on tall cabinets
Load bearing capacity per leg: (330 lbs) 150 kg
Finish: Black
Material: Plastic
Supplied with: 4 feet, 4 tubes, pre-mounted nails
Packing & Sold as:
Set.
Note:
Unit of measure is Set. When you buy a quantity of 4 you will get one set. Price is for one set.
Required products:
Square Mounting Plate, for Ø78 mm Adjustment Foot/Tube:
637.79.300
,
637.79.301
Optional accessories:
Plinth Panel Clip, for Ø46 mm Adjustment Foot/Tube:
637.81.588
Plinth Panel Clip, for Ø46 mm Adjustment Foot/Tube, Groove Mounted:
637.81.590

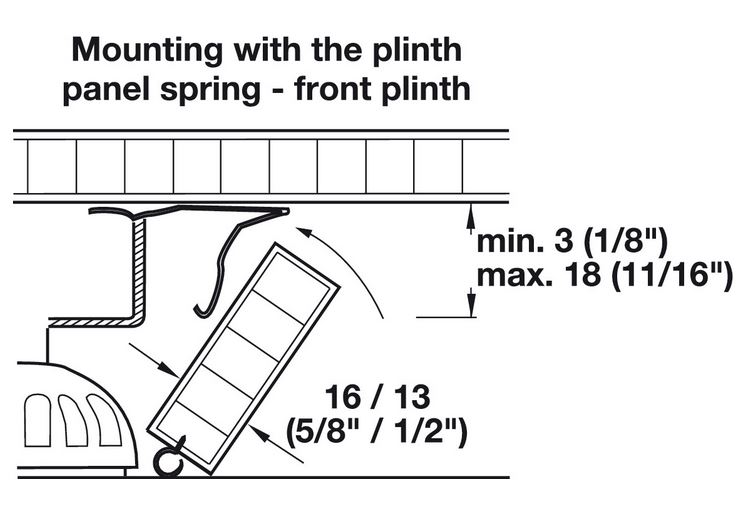

Plinth Panel Spring, for Front Plinth:
637.81.330
Catalog Page
