Hafele 553.31.813
Hafele 553.31.813

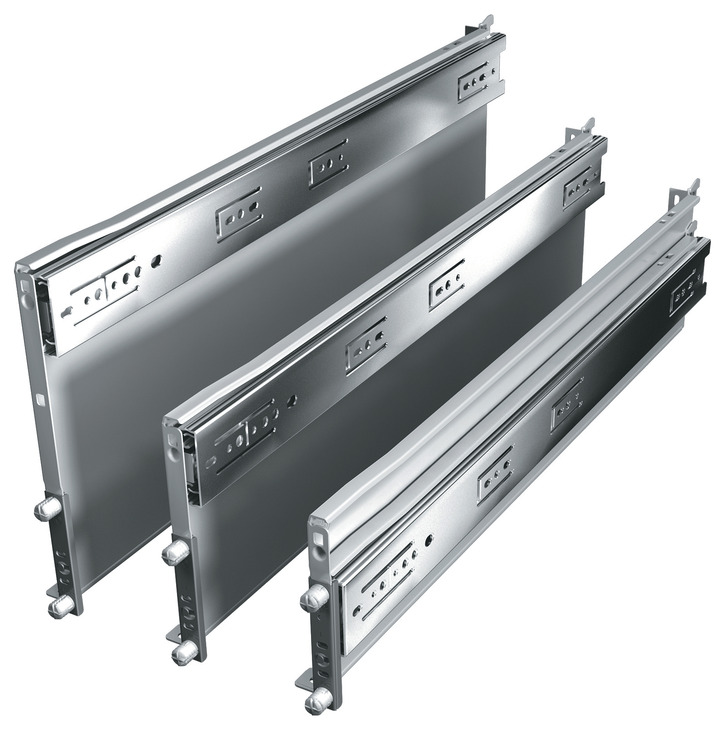

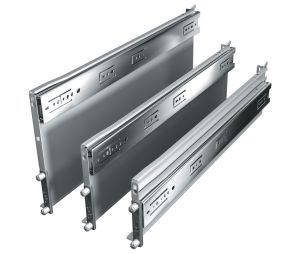

Hafele 553.31.813 Drawer System Slide, Zbox, 3-3/8" (85 mm) Height Grass, (15-3/4") 400 mm Length, Steel, Epoxy Powder Coated White, Box of 5 Sets
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
190.68 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
Charlotte, NC Warehouse Qty: 205
For quantities beyond the "In Stock" above, the item(s)
ships in 15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $0.00 worth of product from Hafele to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Hafele 553.31.813 Drawer System Slide, Zbox, 3-3/8" (85 mm) Height Grass, (15-3/4") 400 mm Length, Steel, Epoxy Powder Coated White, Box of 5 Sets
Drawer System Slide
Zbox
Model series: 6023
Load bearing capacity: (100 lbs) 45 kg

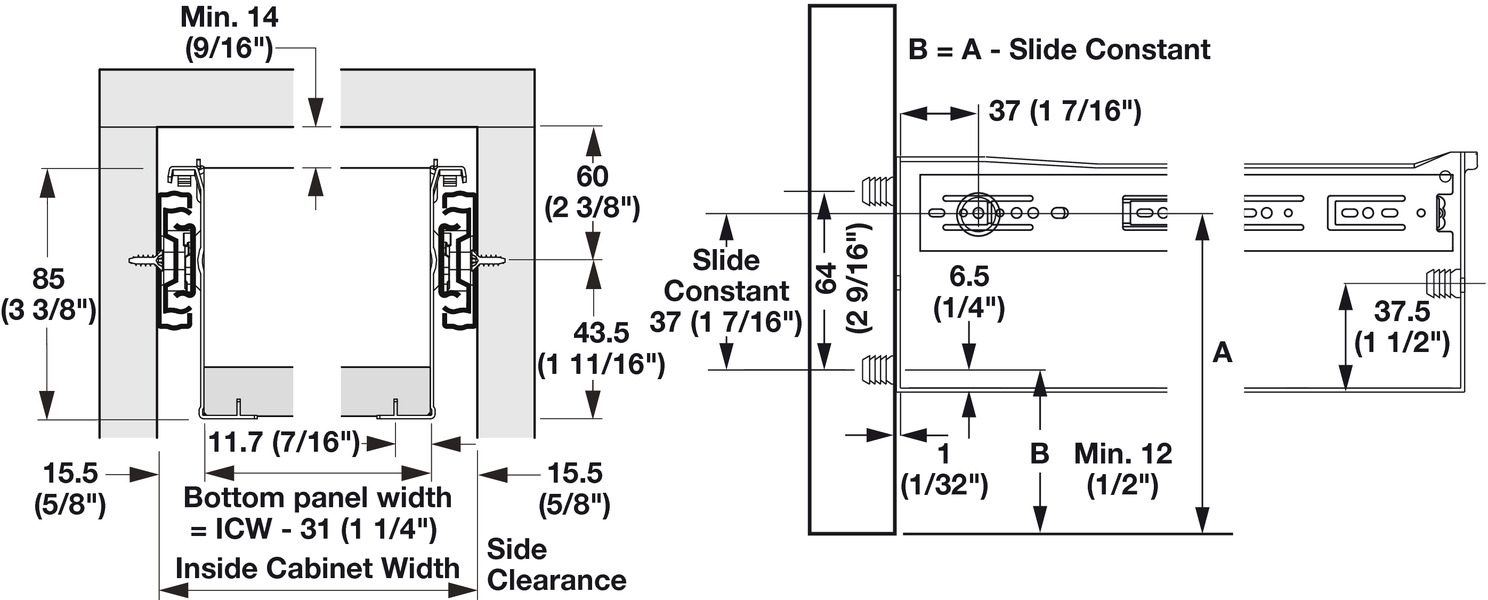

Height: 3-3/8" (85 mm)
Length: (15-3/4") 400 mm
Grass
Height: (8-3/8") 213 mm
Adjustment:
Height: +/- 2 mm
Side: +/- 1.5 mm
Mounting: Frameless or face framed mounting

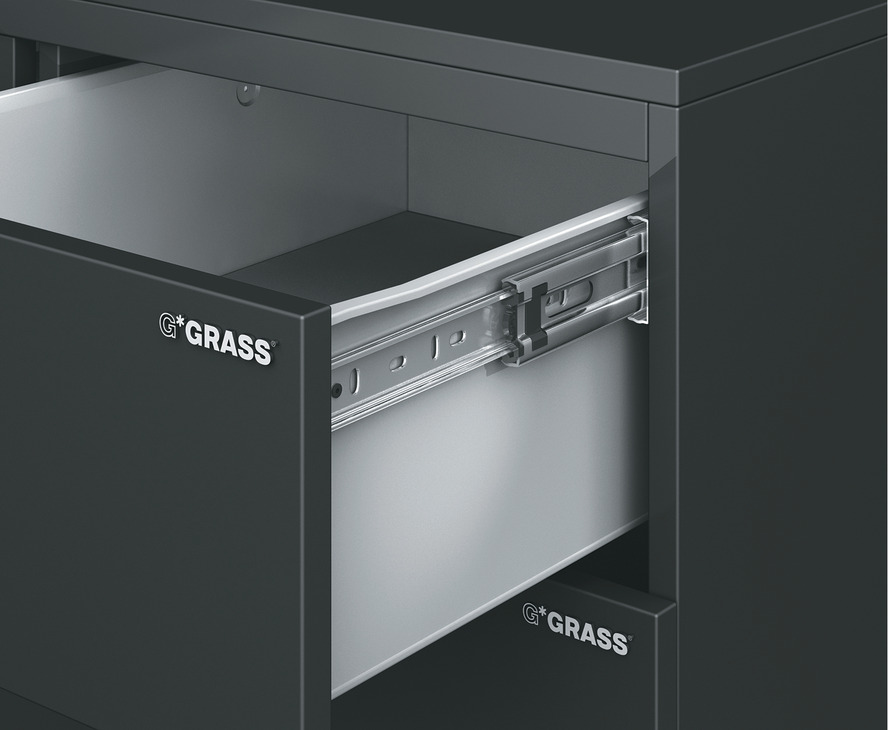

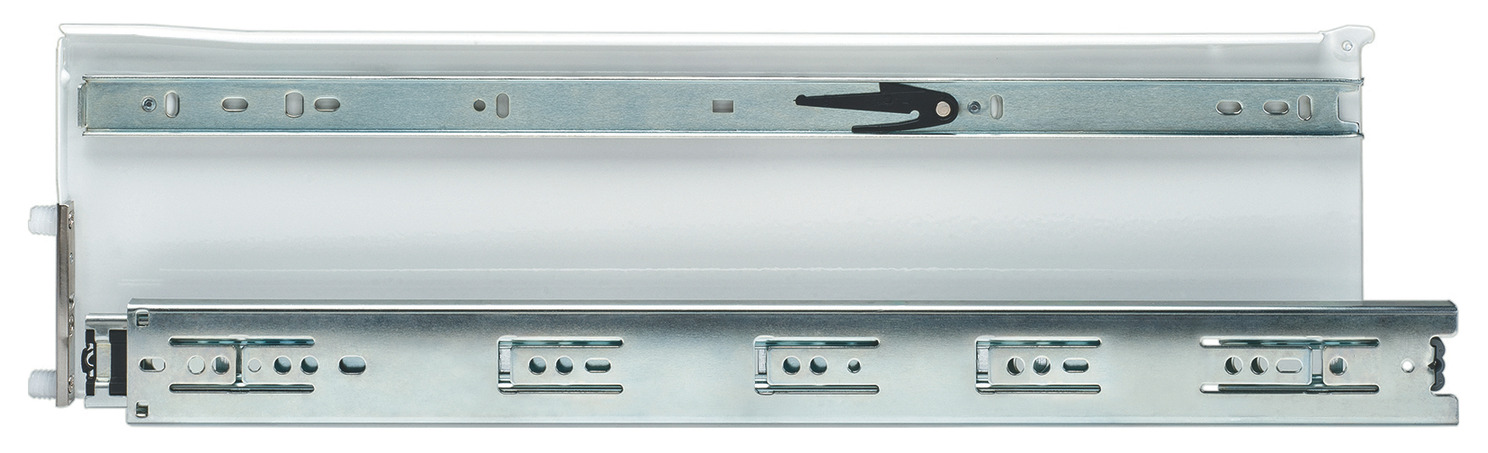

Integrated side mount ball bearing telescopic full extension drawer slide and metal drawer side
Easy lever disconnect
Hold in detent ensures drawers stay closed
Made in USA
Meets & exceeds ANSI/BHMA 156.9 Grade 1 testing
SPQs are non-breakable
Material: Sides & Slides: Steel
Finish:
Sides: Epoxy powder coated white
Slides: Zinc coated white
Set include: 5 Left & right DMs (drawer member), 5 Left & right CMs (cabinet member).SPQs are non-breakable
Packing & Sold as:
Set.
Note:
Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
Optional accessories:
Face Frame Rear Bracket, for Zbox:
553.31.990
Catalog Page
