Hafele 551.80.000

• Eject Unit
• Tipmatic Soft-Close For Grass Nova Pro Drawer Side Runner Systems
• Minimum front gap 2.5 mm
• Depth adjustment: –1/+3 mm
• Installation: The eject unit is attached to the drawer sides without tools and secured with screw
• Application:
  • For drawers and pull outs for door front fixing, with Soft-close soft closing system
  • For all nominal lengths and weight classes
• Touch to open and gentle closing perfectly combined
• Large release area provided by synchronisation rod
• Opening and closing function combined in one unit
• Same unit for all nominal lengths and weight classes thanks to 3-way adjustment of the ejection force
• Full extension
• Mechanical opening system for handle-free fronts
• Tool-free assembly
• One unit for all Nova Pro Scala lengths and weights
• Wide activation zone due to synchronization bar

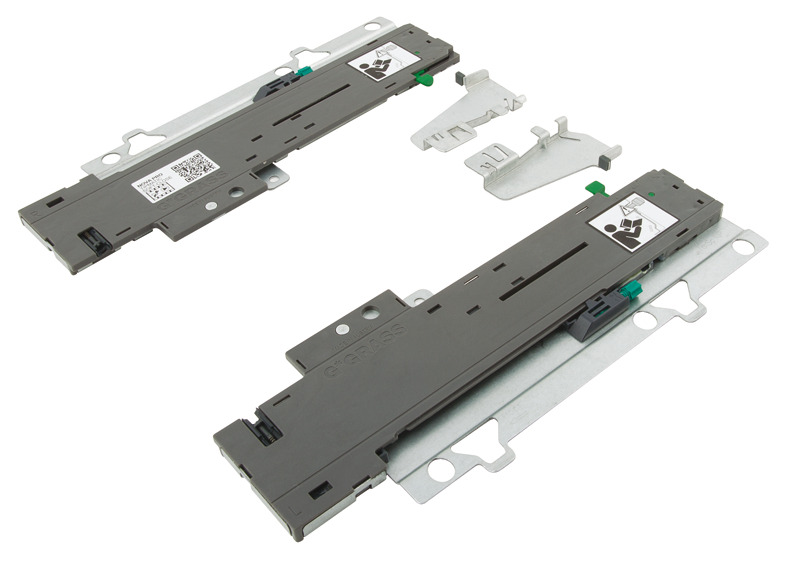

• Supplied with: Unit, Activator
• Order reference: Synchronization rod not supplied, please order separately.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Optional accessories:

• Synchronization Bar, For Timpatic Soft-Close eject unit, for Grass Nova Pro Scala drawer side runner system: 551.90.160, 551.90.161
• Synchronization Bar Support, For Synchronization Rod, for Grass Nova Pro Scala drawer side runner system: 551.80.005
