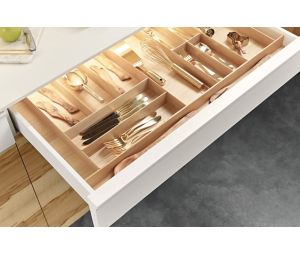

Hafele 550.42.746

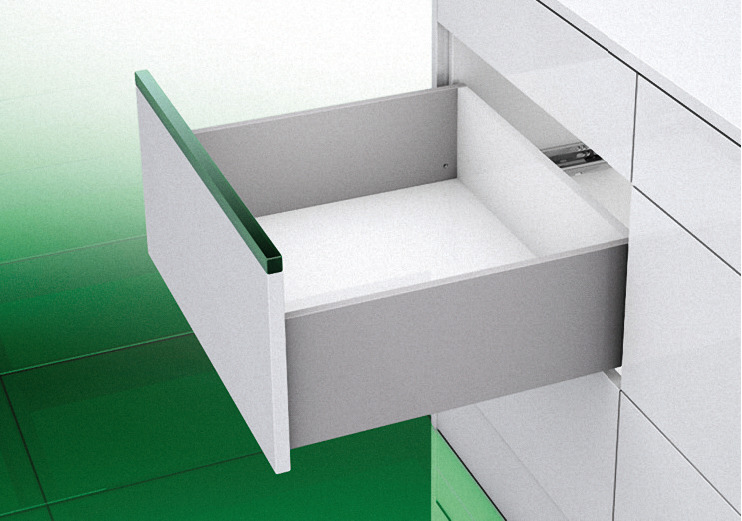

• Grass Vionaro Drawer System

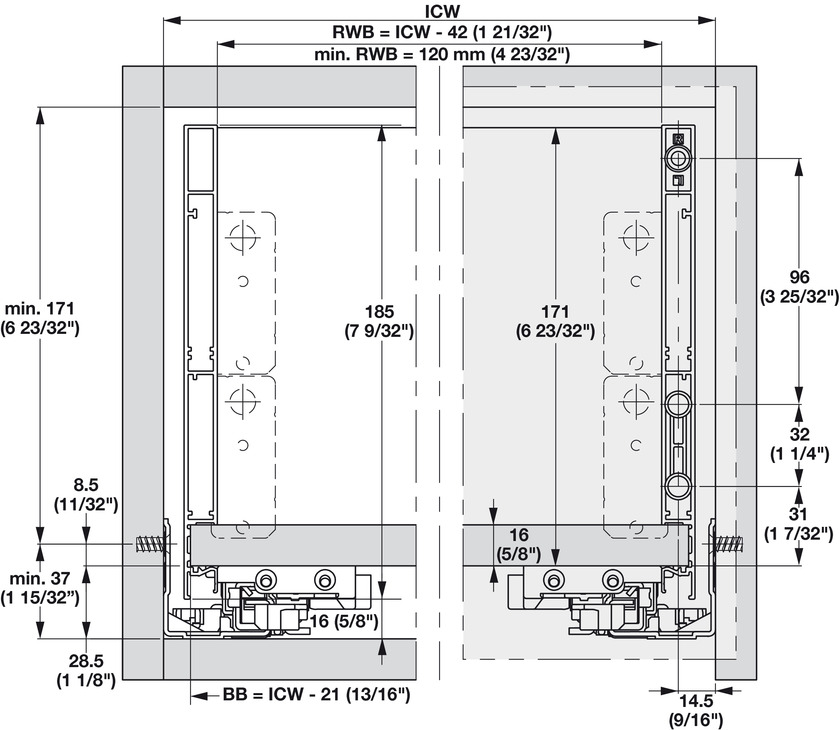

• Side Height: (4-3/4") 121 mm
• Drawer Length: 457 mm (18")
• Drawer width: max. 48"
• 90° straight corners and sides
• Slimline 13 mm (1/2") side width
• Integrated height and side adjustment, tilt adjustment at back
• The complete drawer system for modern cabinetry
• Application: For face frame and frameless cabinets
• For use only with Dynapro concealed undermount slides
• Tool free assembly
• Optional 4D depth adjustment
• Material: Steel
• Color: White
• Finish: Zinc-Plated
• Vionaro only works with Dynapro 16 2-D, please order separately.
• Packing & Sold in: Pair.
• Note: Unit of measure is Pair. When you buy a quantity of 1 you will get one pair. Price is for one pair.

Required products:

• Locking Devices with Flange, for Grass Vionaro Drawer System: 433.19.007, 433.19.008, 433.19.025, 550.47.352
• Adapter Set for Grass Vionaro Drawer System, for 121 mm (7-1/4") Side Height: 550.47.552, 550.47.352, 550.47.755
• Marking Jig, for Grass Vionaro Drawer System: 550.47.931
• Grass Dynapro 16 Full Extension Slide, 100 lbs.: 433.19.456, 433.19.456, 433.19.448, 433.19.447, 433.19.441, 433.19.440, 433.19.433, 433.19.432, 433.19.425, 433.19.424

Optional accessories:

• Front Panel for Grass Vionaro, for Side Height: (3-1/2") 89 mm: 550.46.320, 550.46.520, 550.46.720
• Front Panel Kits for Grass Vionaro, for Side Height: (3-1/2") 89 mm: 550.47.360, 550.47.560, 550.47.760
