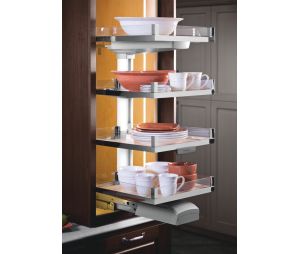

- Tray
- For Lavido Pantry Pull-Out
- Width: (15-3/4") 400 mm
- For cabinet width: (18") 450 mm
- Tempered glass sides come standard and are removable.
- Width dimensions are actual tray widths.
- Material:
- Shelf: Melamine
- Surround: Steel
- Finish:
- Shelf: White
- Surround: Chrome
- Images may not represent actual product and finish.
- Supplied with: 1 tray with integrated top runner, 3 height adjustable trays, 4 accessory boxes, 1 support bracket, 1 fixing brace, 1 handle for mounting to the bottom of tray
- Required to order 1 tray set, additional individual trays can be ordered separately.
- Optional to add individual trays – recommended to use 5 trays for pantries from 1448 mm to 1956 mm (57" to 77") and 6 trays over 1956 mm (77"). Required to order 1 tray set, additional individual trays can be ordered separately.
- There are 3 components you need to order for the Lavido Pantry: Pantry Frame, Trays, Full Extension Runner
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

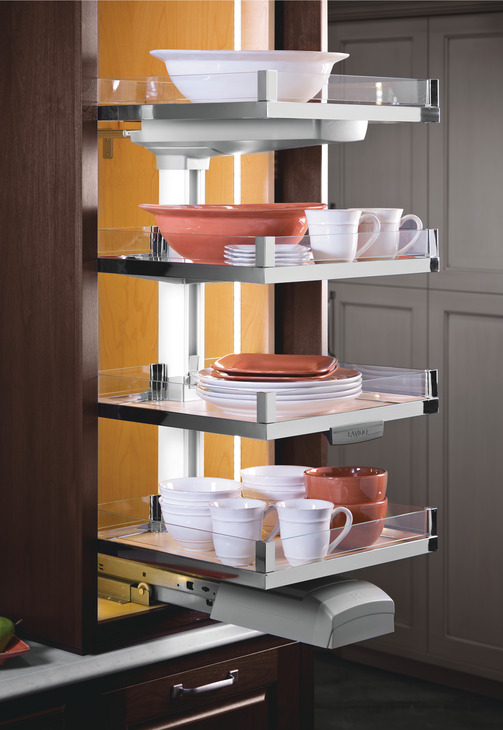

LAVIDO Pantry Pull-Out: - This extremely flexible pantry storage solution provides high visibility and easy-to-reach access from three sides
- Synchronized, full extension pantry runner
- Infinite height adjustment feature on shelves; simply lift a lever to unlock the shelf for repositioning
- For use with a hinged door–165º hinge opening recommended, 90º opening minimum
- For 450–600 mm (18"–24") nominal cabinet widths
- Minimum inside cabinet depth: 500 mm (19-11/16")
- Weight capacity: 20 kg (44 lbs.) per shelf / 130 kg (286 lbs.) total
- Pull-out travel: 470 mm (18-1/2")
Optional accessories: - Required Top Tray, for LAVIDO Trays: 550.13.781, 550.13.881
- Required Tray Frame, for LAVIDO Trays: 550.13.771, 550.13.871
- Optional Large Box Set, for LAVIDO Trays: 550.13.731, 550.13.831
- Optional Small Box Set, for LAVIDO Trays: 550.13.711, 550.13.811
- Optional Large Cross Divider, for LAVIDO Trays: 550.13.795, 550.13.895
- Optional Peg Board, for LAVIDO Trays: 550.13.741, 550.13.841
- Optional Bottle Holder, for LAVIDO Trays: 550.13.701, 550.13.801
- Optional Plate Holder, for LAVIDO Trays: 550.13.761, 550.13.861
- Optional Divider Set, for LAVIDO Trays: 550.13.793, 550.13.893
- Optional Small Divider Set, for LAVIDO Trays: 550.13.794, 550.13.894
- Anti-Slip Bumper, for Fineline™ Kitchenware: 556.87.397
- Pantry Frame, for LAVIDO Pantry Pull-Out: 549.60.901, 549.60.903, 549.60.906, 549.60.909, 549.60.911
|
