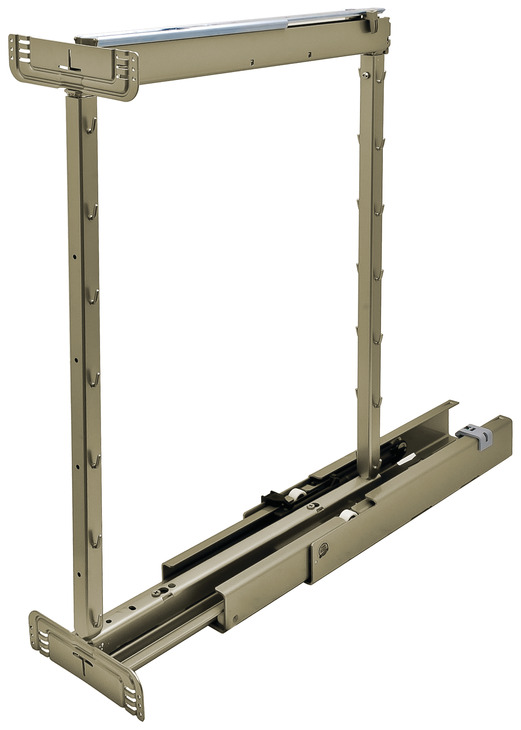

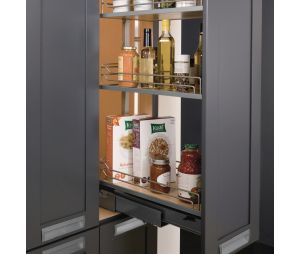

- Dispensa Pull-Out Pantry Frame
- Full Extension
- Installed Height: 31-1/2" (800 mm) - 47-1/4" (1200 mm)
- Width: (4-3/4") 121 mm
- Depth: (21-1/2") 546 mm
- Load bearing capacity: (265 lbs) 120 kg
- Features:
- Easy installation
- Heavy-duty full extension runner with integrated soft-close and soft-open
- Synchronized runner provides a more stable and smooth operation
- Application:
- Works with overlay and insetdoors
- For 12" (305 mm) to 24" (610 mm) cabinet widths
- Mounting: Door mounted
- Version: Recommended for 8 shelves
- Material: Steel, epoxy-coated
- Finish: Champagne
- Supplied with: Frame, Slides, Brackets, Integrated soft open and close
- Packing & Sold as: Set.
- Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
Required products: - Tray Set, Dispensa: 545.09.340, 545.09.341, 545.09.342, 546.63.112, 546.63.113, 546.63.114, 546.63.115, 546.63.116, 546.63.132, 546.63.133, 546.63.134, 546.63.135, 546.63.136, 546.63.160, 546.63.161, 546.63.162, 546.63.177, 546.63.178, 546.63.212, 546.63.213, 546.63.214, 546.63.215, 546.63.216, 546.63.232, 546.63.233, 546.63.234, 546.63.235, 546.63.236, 546.63.260, 546.63.261, 546.63.262, 546.63.532, 546.63.533, 546.63.534, 546.63.560, 546.63.562, 546.63.580, 546.63.581, 546.63.582, 546.63.583, 546.63.584, 546.63.585, 546.63.587, 546.63.588, 546.63.589, 546.63.812, 546.63.813, 546.63.814, 546.63.815, 546.63.816, 546.63.832, 546.63.833, 546.63.834, 546.63.835, 546.63.836, 546.63.860, 546.63.861, 546.63.862, 546.63.878
- Wire Basket Set, for Pantry Pull-Out: 546.63.202, 546.63.203, 546.63.204, 546.63.205, 546.63.206
- Dispensa Fineline™ Pantry Box: 545.96.780, 545.96.781, 545.96.782, 545.96.783, 545.96.784, 545.96.785, 545.96.786, 545.96.787, 545.96.788, 545.96.789, 545.96.790, 545.96.791, 545.96.792, 545.96.880, 545.96.881, 545.96.882, 545.96.883, 545.96.884, 545.96.885, 545.96.886, 545.96.887, 545.96.888, 545.96.889, 545.96.890, 545.96.891, 545.96.892
- Dispensa Fineline™ Pantry Bracket Set: 545.96.000, 545.96.001, 545.96.002, 545.96.003, 545.96.004, 545.96.005, 545.96.006, 545.96.007, 545.96.008, 545.96.009, 545.96.010, 545.96.011, 545.96.012, 545.96.800, 545.96.801, 545.96.802, 545.96.803, 545.96.804, 545.96.805, 545.96.806, 545.96.807, 545.96.808, 545.96.809, 545.96.810, 545.96.811, 545.96.812, 545.96.900, 545.96.901, 545.96.902, 545.96.903, 545.96.904, 545.96.905, 545.96.906, 545.96.907, 545.96.908, 545.96.909, 545.96.910, 545.96.911, 545.96.912
