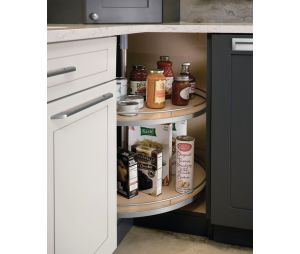

Hafele 541.39.720

• Suzie-Q®
• Revolving And Self-Closing
• Face Frame inset

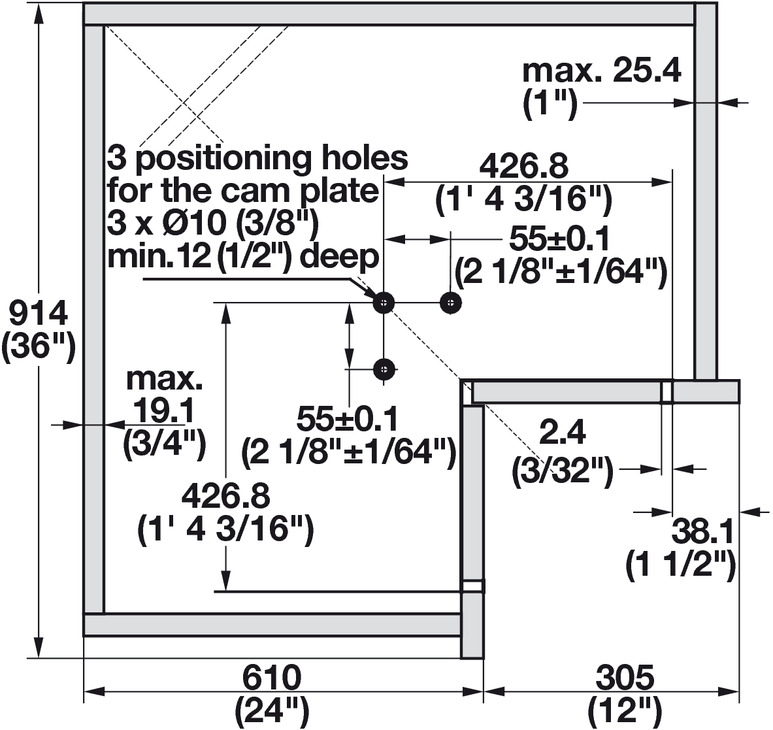

• For cabinet width: (36") 914 mm
• For cabinet depth: (36") 914 mm

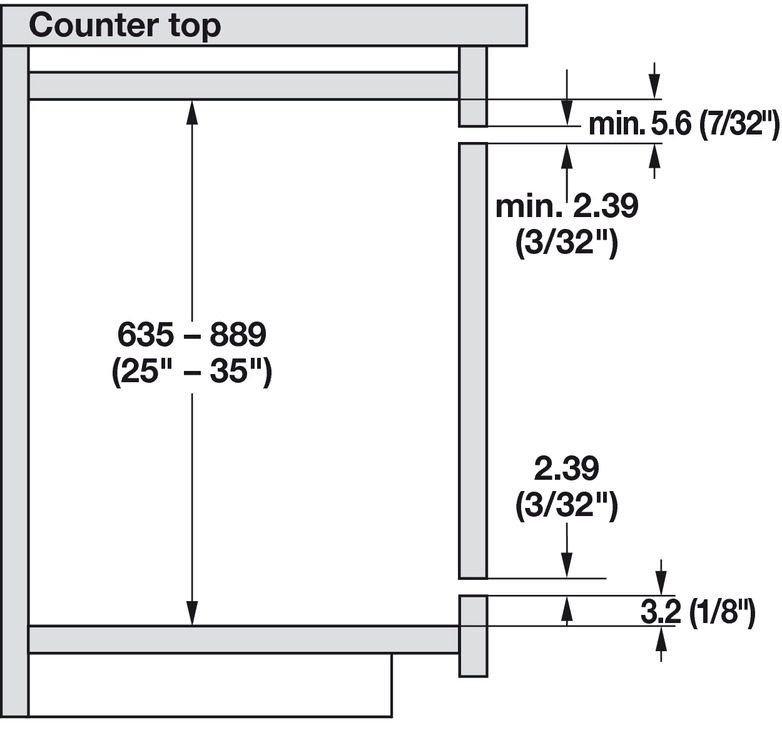

• Height: 635 mm (25") - 889 mm (35")
• Mounting: Door mounting for slab, panel and framed doors with a frame width minimum of 40 mm (1-5/8")
• Load bearing capacity: 45 lbs evenly distributed per tray
• Adjustment: Three dimensional adjustment ±4 mm each direction
• Application
  • For frame and frameless construction
  • For front mounted, internally revolving doors
  • For door opening: 305 mm x 305 mm (12" x 12")

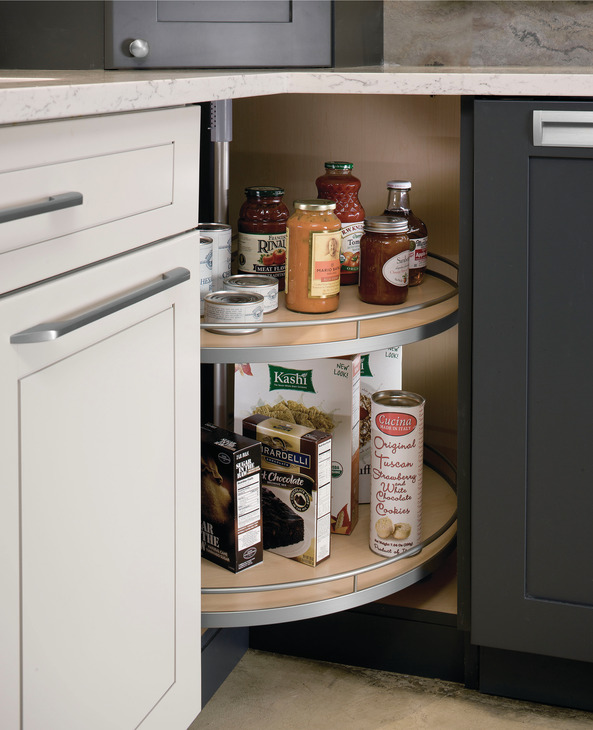

• A classic revolving design with a twist, these shelves offer ample storage and close on their own

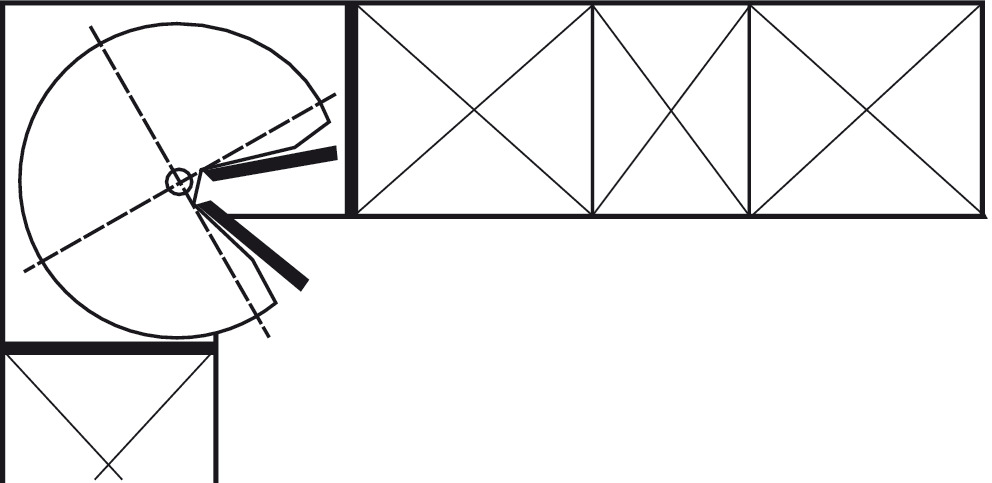

• When opened, the folding doors are drawn inward by the mechanism and revolve through the cabinet interior
• Pre-assembled components for quick assembly
• Shelves quickly attach and are easily removed

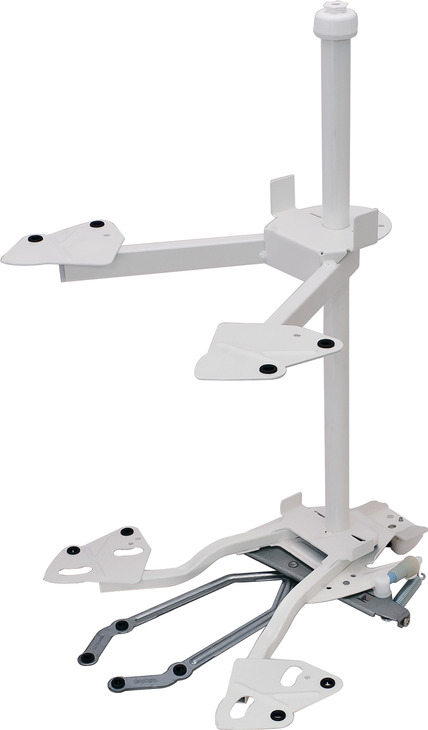

• Post with pre-installed folding assembly
• Upper post bearing
• Material: Steel, powder-coated
• Finish: White
• Supplied with: Mounting instructions
• Order reference: Please note that the cabinet bottom must be positioned lower if the door height is to match adjacent cabinetry.
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Kidney Shaped Wood Shelf, for Suzie-Q®: 541.46.197, 541.46.297, 541.46.597, 541.46.997

Optional accessories:

• Door Stop with Bumper, for Suzie-Q®: 251.79.600
